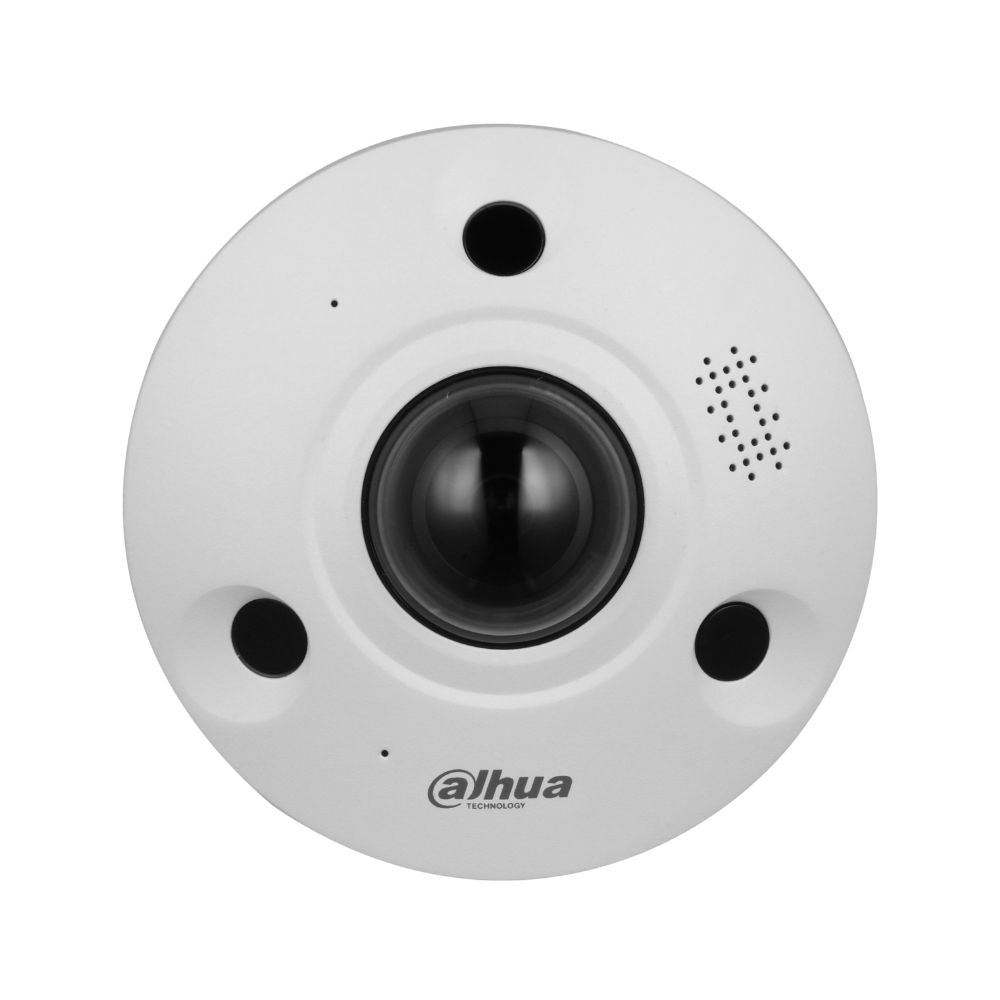

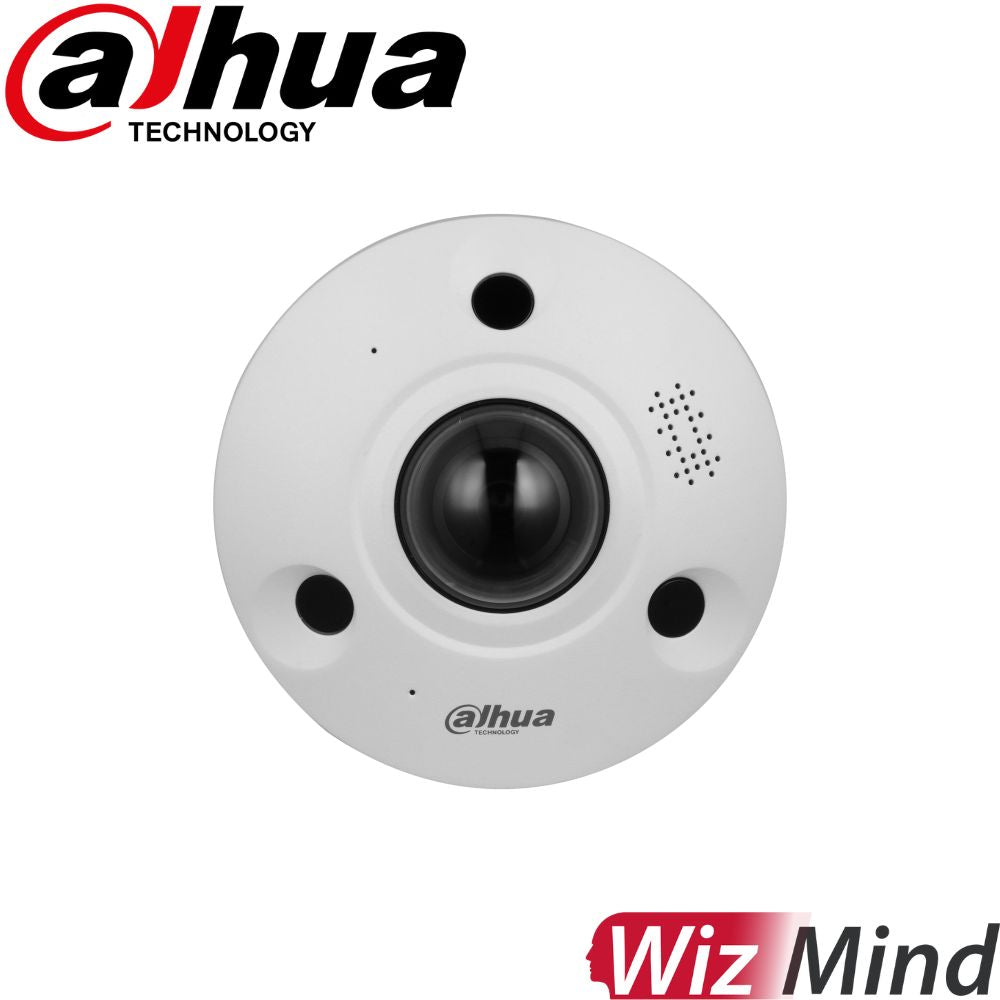

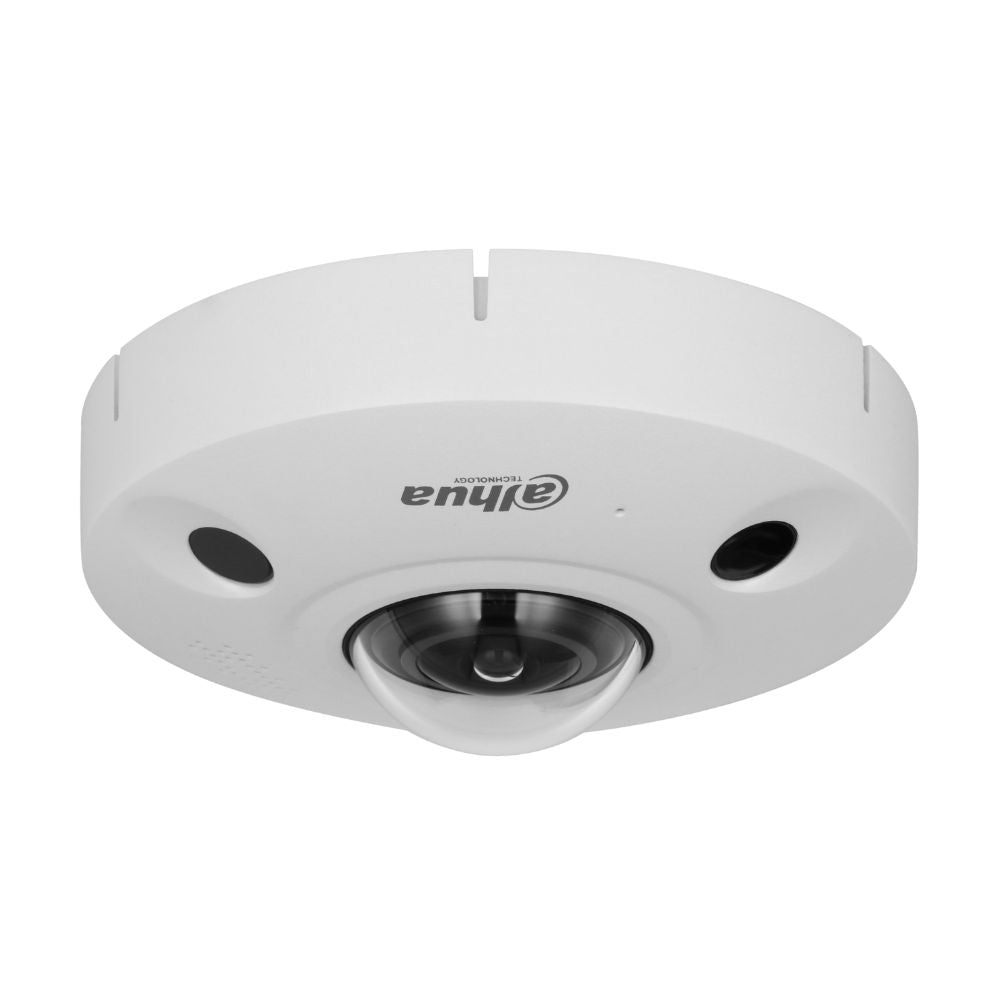

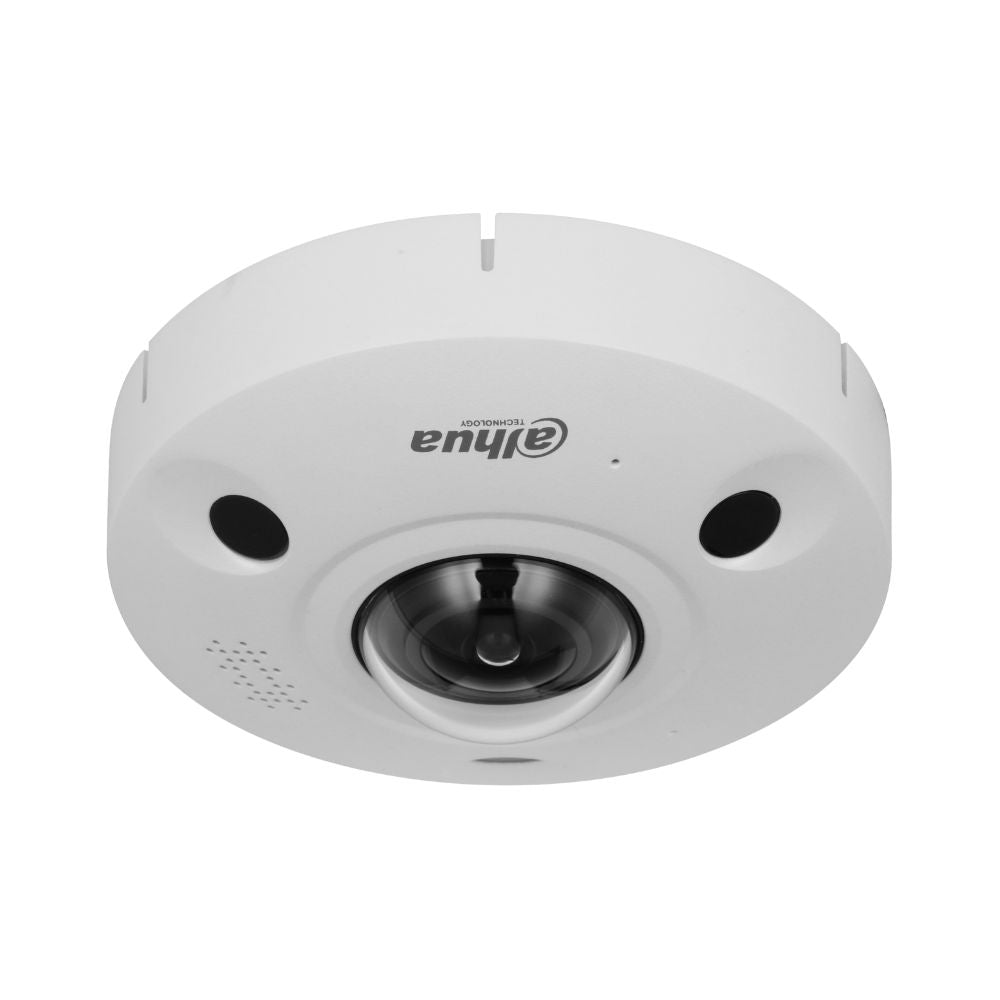

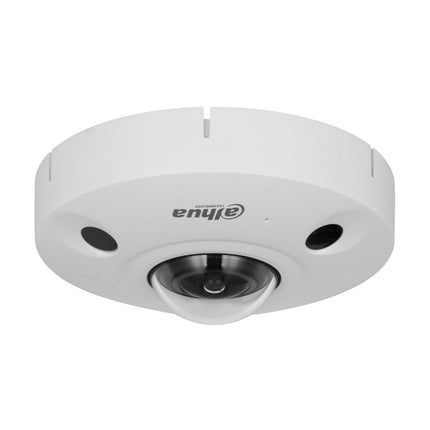

Dahua DH-IPC-EBW81242-AS-S2 Security Camera
Panoramic Cameras provide coverage of a wide, horizontal area to detect the activity of people, and vehicles. Because of the wide-area coverage, a single panoramic IP camera can be an attractive alternative to purchasing and placing multiple cameras. The fisheye lenses are designed to give you total situational awareness. This device is capable of People Counting in multiple areas, Queuing Management in multiple areas, Heat Map, and Track Map.
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Dahua Fisheye series camera can realize 360°
surveillance, and it is widely applied in various scenes such as airports,
shopping centers, banks and hotels.
Features
- 12 MP 1/1.7" CMOS image sensor, low luminance, and high definition
- Outputs max. 12M (4000 × 3000)@25 fps; supports 8M (3280 ×
2480)@25/30 fps
- Built-in IR LED, and the max. illumination distance is 10 m
- Intelligent monitoring: Intrusion, tripwire, heat map, and people
counting
- SMART H.264 +/H.265+, flexible coding, applicable to various
bandwidth and storage environments
- Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
card; built-in dual-array Mic and speaker
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua DH-IPC-EBW81242-AS-S2 Security Camera
Camera |
Image Sensor |
1/1.7” CMOS |
Effective Pixels |
4000 (H) × 3000 (V) |
ROM |
4 GB |
RAM |
2 GB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.01 Lux@F2.0 (Color, 30 IRE)
0.001 Lux@F2.0 (B/W, 30 IRE)
0 Lux (Illuminator on) |
S/N Ratio |
> 56 dB |
Illumination Distance |
up to 10 m (32.81 ft) (IR) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
3 (IR LED) |
Lens |
Lens Type |
Fixed-focal |
Lens Mount |
M12 |
Focal Length |
1.85mm |
Max. Aperture |
F2.0 |
Field of View |
Horizontal: 185°;
Vertical: 180° |
Iris Control |
Fixed |
DORI Distance
|
Detect |
Observe
|
Recognize
|
Identify
|
40.0 m
(131.23 ft) |
16.0 m
(52.49 ft) |
8.0 m
(26.2 ft) |
4.0 m
(13.12 ft) |
*DORI (Detect, Observe, Recognize, Identify) is a
standard system (EN-62676-4) for defining the ability
of a person viewing the video to distinguish persons
or objects within a covered area. The numbers in this
table do not reflect intelligent function distances. For
intelligent function distances, refer to installation and
commissioning manual/project design tool. |
Heat Map |
Yes |
IVS (Perimeter Protection) |
Intrusion; tripwire |
Fisheye |
Installation |
Ceiling mount; wall mount; ground mount |
Decoding Mode |
Front-dewarp; Back-dewarp; Front-dewarp+Back-dewarp |
Video |
Video Compression |
H.265; H.264; H.264H; MJPEG (Only supported by the
sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
Video Frame Rate |
Main stream: 4000 × 3000@(1–25/25 fps)
sub stream: 704 × 576@(1–25/30 fps)
third stream: 1280 × 960@(1–17/17 fps)
Fisheye mode:
1O (4000 × 3000)
1P (4096 × 1024)
2P (2432 × 2432)
1R (1216 × 1216)
2R (2432 × 2432)
4R (2432 × 2432)
1O + 3R (2432 × 2432)
*The values above are the max. frame rates of each
stream; for multiple streams, the values will be subjected
to the total encoding capacity. |
Resolution |
4000 × 3000; 3280 × 2480; 2880 × 2160; (3M) 2048 ×
1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF
(352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBRV |
Day/Night |
Auto(ICR)/Color/B/W |
Audio |
| Built-in MIC |
Yes, built-in dual Mic |
| Network Port |
RJ-45 (10/100/1000 Base-T) |
| User/Host |
20 |
| Power Consumption |
Basic: 6.5 W (12 VDC); 6.1 W (PoE)
Max. (ICR + IR intensity): 13 W (12 VDC); 13.9 W (PoE)
Heating: 3 W (12 VDC); 3 W (PoE) |
| Environment |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
| Protection |
IP67; IK10 |
| Structure |
| Product Dimensions |
59.8 mm × Φ149.8 mm (2.35" × Φ5.90") |
| Net Weight |
0.79 kg (1.74 lb) |
| Gross Weight |
1.21 kg (2.67 lb) |
