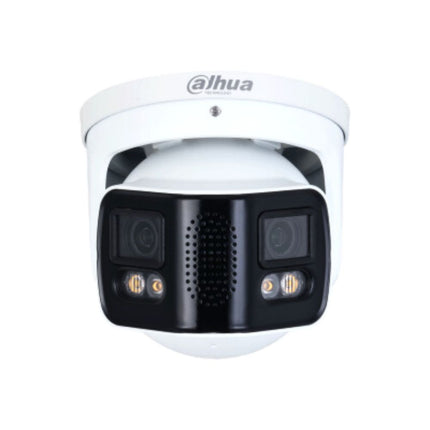

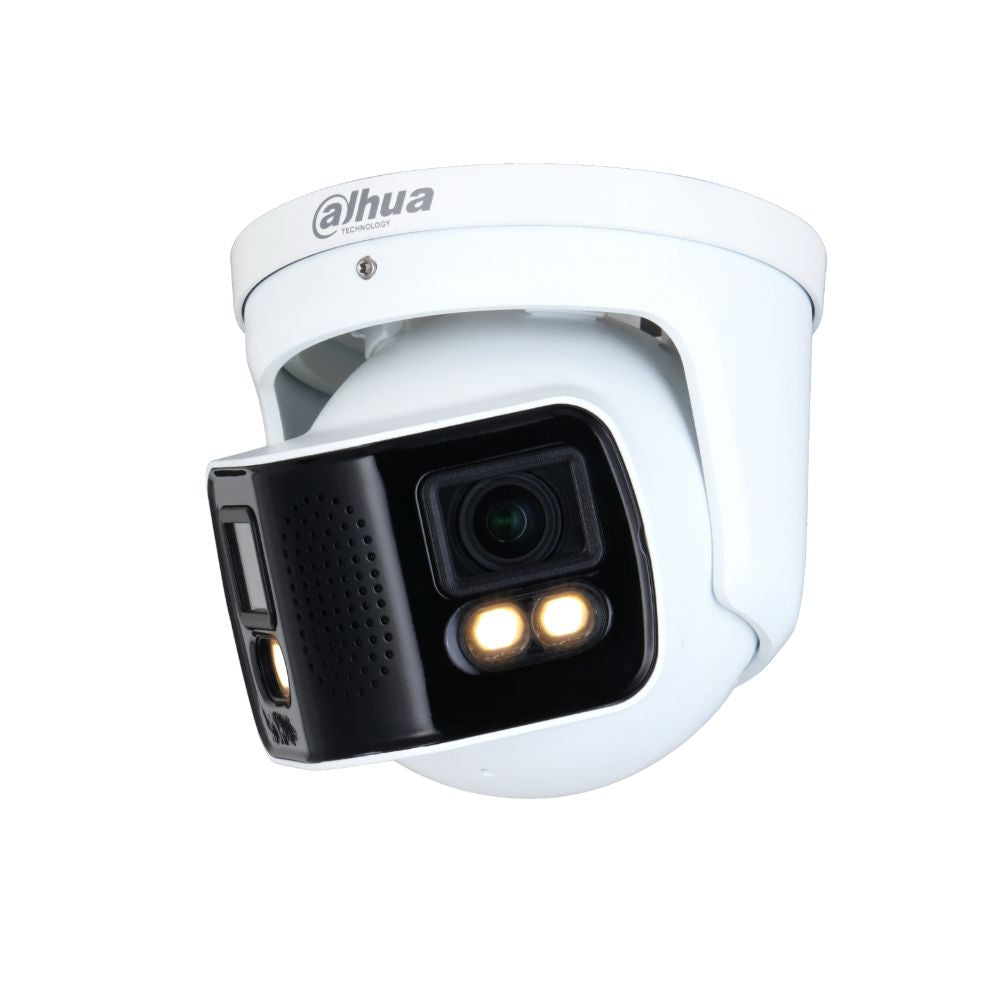

This camera provides an ultra-wide, seamless 180° view, making it ideal for covering large areas with a single device. It's designed for users who need comprehensive surveillance and intelligent monitoring capabilities, offering advanced detection and clear imaging in various lighting conditions. This camera is particularly valuable for those seeking to minimize blind spots and enhance security with smart features.
Features
-
180° Panoramic View: Captures a complete wide-angle image, eliminating the need for multiple cameras to cover expansive spaces.
-
Full-Color Night Vision: Utilizes built-in warm light to deliver clear, colorful images even in complete darkness up to 40 meters.
-
Advanced AI Detection (SMD 3.0 & Perimeter Protection): Accurately identifies and classifies humans and vehicles, significantly reducing false alarms from irrelevant movements like animals or swaying trees.
-
Two-Way Audio: Features a built-in microphone and speaker, enabling real-time communication and direct interaction with subjects in the camera's view.
-
Flexible Storage Options: Supports up to a 512 GB Micro SD card for local recording, as well as FTP, SFTP, and NAS for versatile data storage.
-
Enhanced Connectivity (ePoE): Allows for extended power and data transmission over longer distances using a single cable, simplifying installation and expanding deployment possibilities.
-
Robust Weather Protection (IP67): Ensures reliable operation in harsh outdoor conditions, being fully protected against dust and capable of immersion in water.
-
Intelligent Tracking (EPTZ): Automatically zooms in and tracks multiple human and vehicle targets that trigger alarms, providing both detailed close-ups and a panoramic overview.
Perfect For:
- Large backyards and open spaces
- Commercial parking lots
- Building entrances and lobbies
- Warehouse perimeters
- Public park monitoring
- Farm or agricultural area surveillance
Installer Tips
-
Optimal Placement for 180° View: To fully leverage the 180° field of view, mount the camera in a central location, ideally on a wall or pole, rather than in a corner.
-
PoE+ or ePoE for Simplicity: Utilize PoE+ or ePoE for power and data over a single Ethernet cable, simplifying wiring and reducing installation time, especially for longer cable runs with ePoE.
-
Adjust Tilt for Coverage: While the pan/rotation is 360°, the tilt range of 4°–90° is crucial for adjusting vertical coverage, ensuring you capture areas of interest directly in front of and below the camera.
-
Consider DORI Distances for Clarity: Refer to the DORI (Detect, Observe, Recognize, Identify) distances (e.g., Detect up to 70.3m with the 3.6mm lens) to manage customer expectations about the level of detail achievable at various distances.
-
Pair with a WizMind NVR: For optimal performance of AI features like Perimeter Protection and People Counting, integrate the camera with a Dahua WizMind NVR, which can further process and analyze the video data.
-
Utilize Alarm I/O: Connect external alarm devices or sensors to the camera's alarm input/output ports for enhanced security system integration, triggering actions based on camera-detected events.
Downloads
Quick-Read Specs
| Feature |
Specification |
| Resolution |
8 MP (4096 × 1800) |
| Lens Options |
3.6 mm fixed-focal |
| Night Vision |
Full-color (warm light), 40 m (131.23 ft) range |
| Deterrence |
Built-in warm light, two-way talk |
| AI Features |
SMD 3.0, Perimeter Protection, People Counting, Heat Map, Smart Object Detection |
| Audio |
Built-in Mic & Speaker (two-way talk) |
| Storage |
Micro SD card (max. 512 GB) |
| Power |
12 VDC / PoE+ (802.3at) / ePoE |
| Weather Rating |
IP67 |
Extra Info
Full-Color Night Vision with Warm Light
The IPC-PDW5849-A180-E2-ASTE stands out with its full-color night vision, achieved through four built-in warm lights. Unlike traditional infrared (IR) cameras that produce black and white images at night, this camera illuminates the scene with soft, visible light. This allows for the capture of vivid, color-rich details even in complete darkness up to 40 meters. This feature is particularly beneficial for identifying crucial details like vehicle colors, clothing, and other elements that might be missed in monochrome footage, enhancing post-event analysis and evidence gathering.
Advanced AI with SMD 3.0 and Perimeter Protection
At the heart of this camera's intelligence is Dahua's WizMind technology, powered by deep learning algorithms. SMD 3.0 (Smart Motion Detection) accurately distinguishes between human and vehicle movements and other irrelevant motion like rustling leaves or falling rain, drastically reducing false alarms. Complementing this, Perimeter Protection focuses on securing defined areas. It intelligently identifies and alerts for intrusions, tripwire crossings, fast-moving objects, loitering, people gathering, and parking violations, specifically classifying whether the event involves a human or a vehicle. This precision ensures that security personnel are notified of genuine threats, improving response efficiency.
Efficient Data Management with Smart Codecs and AI Coding
The camera employs a suite of advanced video compression technologies, including H.265, Smart H.265+, and AI H.265. These codecs are designed for high compression rates and ultra-low bit rates. Smart H.265+ intelligently optimizes bandwidth and storage without compromising video quality, while AI H.265 further enhances this efficiency by dynamically adjusting encoding parameters based on the detected objects and scene complexity. This flexibility ensures the camera can adapt to various network bandwidths and storage capacities, saving on operational costs and extending recording durations.
Two-Way Talk for Active Engagement
Equipped with a built-in microphone and speaker, the camera facilitates two-way audio communication. This isn't just for listening in; it allows users to actively engage with the scene. For instance, you can issue warnings to intruders, guide delivery personnel, or simply communicate with family members if the camera is used in a residential setting. This feature transforms the camera from a passive monitoring device into an active communication tool, adding an extra layer of security and convenience.
EPTZ for Dynamic Surveillance
EPTZ (Electronic Pan, Tilt, Zoom) is a powerful feature that works in conjunction with the camera's intelligent alarms. When a human or vehicle is detected, the EPTZ function can automatically zoom in on the target, providing a detailed close-up while simultaneously maintaining a panoramic view of the overall scene. This ensures that operators get both the specific details of the threat and the broader context of the event, aiding in real-time assessment and response without the need for manual camera adjustments.
Q&A
Q1: Can this camera record in color at night?
A1: Yes, the IPC-PDW5849-A180-E2-ASTE features "Full-color" night vision. It utilizes four built-in warm lights to illuminate the scene, allowing it to capture clear, colored images even in complete darkness up to 40 meters.
Q2: How loud is the built-in speaker?
A2: While the exact decibel level isn't specified, the built-in speaker supports two-way talk, meaning it's designed to be loud enough for clear communication and effective vocal deterrence in most typical environments.
Q3: Can the warm lights be disabled or set to activate only under certain conditions?
A3: Yes, the illuminator (warm light) control can typically be set to "Auto" through the camera's settings. This allows the camera to automatically turn on the lights only when illumination is needed, or they can be manually controlled or scheduled.
Q4: Does this camera work with Network Video Recorders (NVRs) from other brands?
A4: Yes, the camera supports ONVIF (Profile S/Profile G/Profile T) and CGI, which are industry standards for IP camera interoperability. This generally allows it to work with NVRs from other brands that also support these standards, though full feature compatibility may vary. For optimal performance of advanced AI features, a Dahua WizMind NVR is recommended.
Q5: How long can the camera record on a 512 GB Micro SD card?
A5: The recording duration on a 512 GB Micro SD card depends on several factors, including the chosen resolution, frame rate, compression settings (H.265 vs. H.264, Smart Codec, AI Coding), and the amount of motion in the recorded scene. With efficient H.265 AI coding and motion-triggered recording, it can store many days to weeks of footage.
Q6: What makes this camera different from a "PRO" version of a similar camera?
A6: The term "PRO" often indicates higher-end features, superior low-light performance, more advanced AI analytics (e.g., more specific object detection, facial recognition), higher frame rates at max resolution, or more robust build quality. This particular model, with its WizMind series designation, already includes many "pro" level AI features like SMD 3.0 and Perimeter Protection, making it a high-performance option itself.
Q7: Will the siren activate automatically if an intruder is detected?
A7: The product description mentions a built-in speaker that supports two-way talk, but it does not explicitly state a siren feature for automatic activation. However, with the alarm output, you could potentially link it to an external siren. The two-way talk feature allows you to manually speak through the camera as a form of deterrence if an intelligent alarm event occurs.
Q8: Can I access the camera feed and receive alerts on my phone?
A8: Yes, the camera supports mobile clients for both iOS and Android (DMSS app is mentioned). This allows you to view live feeds, access recorded footage, and receive push notifications for alarm events directly on your smartphone.
Camera Model Comparison
Dahua IPC-PDW5849-A180-E2-ASTE
| Category |
Newer Model (IPC-PDW5849-A180-E2-ASTE) |
Older Model (No direct predecessor identified for a meaningful comparison) |
| Model Name/Number |
IPC-PDW5849-A180-E2-ASTE |
N/A (See Summary Recommendation) |
| Camera Type |
2×4MP Full-color Duo Splicing WizMind Network Camera |
Potentially a previous generation 180° panoramic camera without Duo Splicing or advanced WizMind features. |
| Image Sensor |
Dual 1/1.8" CMOS |
Likely smaller sensors (e.g., 1/2.7" or 1/2.8") or a single sensor setup. |
| Max. Resolution |
8 MP (4096 × 1800) @25 fps |
Lower resolution (e.g., 4MP or 6MP panoramic) or lower frame rate. |
| Field of View |
H: 180°±10°, V: 48° (Spliced) |
Could be a single-sensor panoramic with a less seamless stitch or narrower vertical FOV. |
| Min. Illumination |
0.0005 lux@F1.0 (Color, 30 IRE), 0.0002 lux@F1.0 (B/W, 30 IRE), 0 lux (Illuminator on) |
Higher minimum illumination for color, less effective in low light without illuminator. |
| Illumination Type/Distance |
Built-in warm light, 40 m (131.23 ft) max distance |
Shorter IR distance or no warm light (only IR). |
| WDR |
140 dB |
Lower WDR (e.g., 120 dB) or no WDR. |
| AI Features |
WizMind (SMD3.0, Perimeter Protection, People Counting, Heat Map, Smart Object Detection, EPTZ) |
Less advanced AI features, possibly SMD 2.0 or basic IVS without human/vehicle classification. |
| AI Coding |
AI H.265; AI H.264 |
Standard H.265/H.264 without AI enhancements. |
| Audio |
Built-in Mic and Speaker, 1 in, 1 out, Two-way talk |
Possibly Mic-in only, or no built-in audio. |
| Storage |
Max. 512 G Micro SD card |
Smaller maximum SD card support (e.g., 256GB or 128GB). |
| Power Supply |
12 VDC (±30%)/PoE+ (802.3at)/ePoE |
Standard PoE (802.3af) or no ePoE. |
| Protection |
IP67 |
Potentially lower ingress protection (e.g., IP66). |
| DORI Distance (Detect) |
70.3 m (230.64 ft) |
Potentially shorter DORI distances due to lower resolution or optics. |
Summary Recommendation
- Choose the IPC-PDW5849-A180-E2-ASTE when:
- You require the latest in panoramic surveillance technology with seamless 180° splicing.
-
Low-light performance and full-color imaging are critical, thanks to the F1.0 aperture and warm light illumination.
- Advanced and accurate AI features like SMD3.0, enhanced perimeter protection (human/vehicle classification), people counting, and EPTZ are essential for intelligent monitoring and analysis.
- You need robust two-way audio communication and significant on-board storage capacity (512GB).
- Extended power and data transmission (ePoE) are beneficial for installation flexibility.
- An older model (if available and with different specifications) might still be suitable when:
- Budget is the primary constraint and the absolute latest in imaging or AI capabilities isn't required.
- Less demanding low-light environments are present, and basic surveillance functions are sufficient.
- Installation does not require extended ePoE capabilities.
