| Specifications |
|---|
| Model |

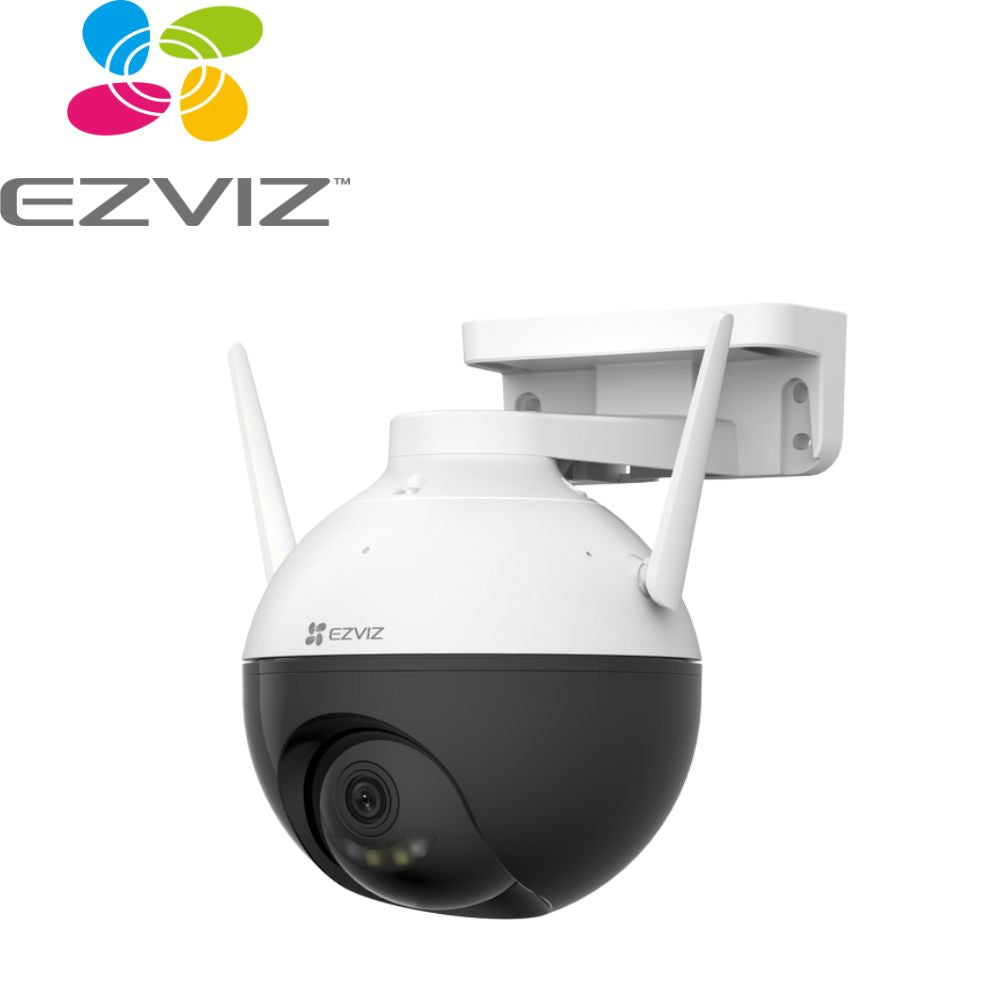

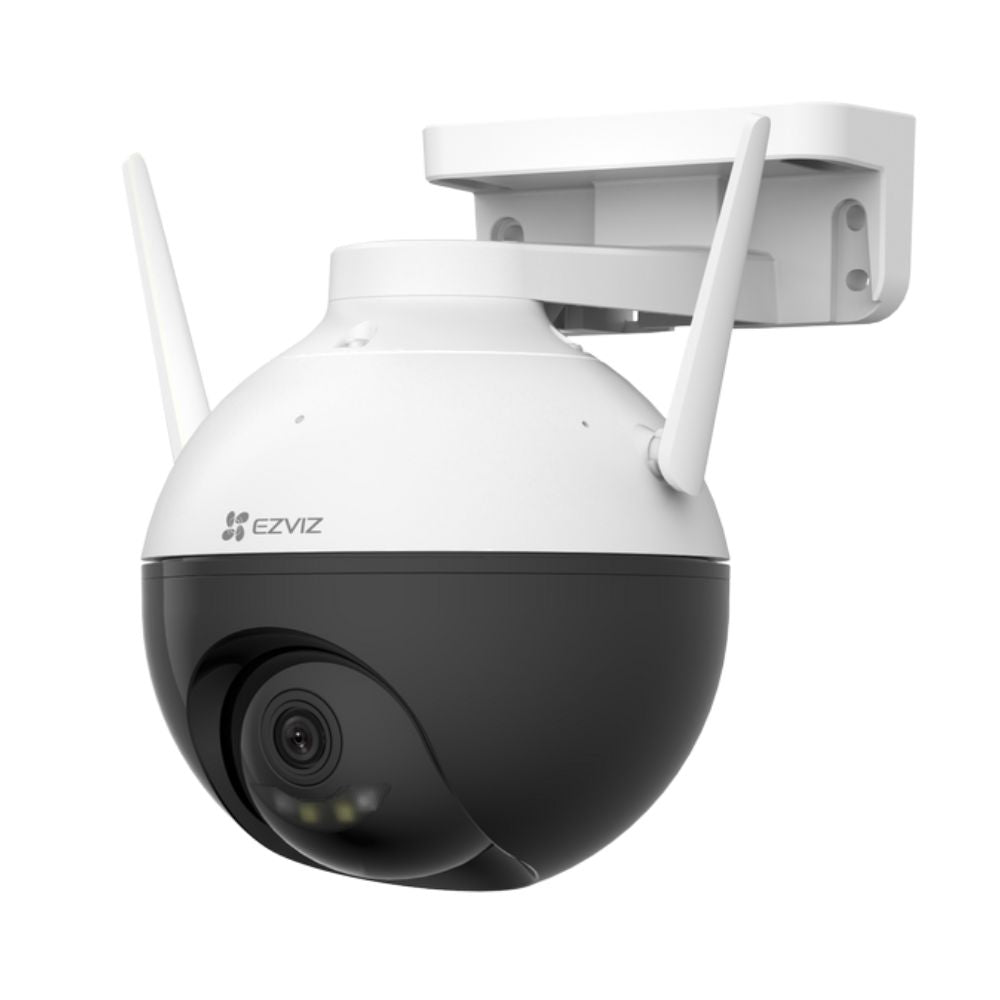

CS-C8W (4MP,W1) |
| Camera |
|---|
| Image Sensor |
1/2.7” Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) |
| 6mm @ F1.6, view angle: 55° (Horizontal), 66° (Diagonal) |
| PT Angle |
Pan: 352°, Tilt: 95° |
| Minimum Illumination |
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| BLC |
Supports |
| Black & White Night |
30 m / 98 ft. |
| Video & Audio |
|---|
| Max. Resolution |
2560 × 1440 |
| Frame Rate |
Max. 30 fps, self-adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| H.265 Type |
Main Profile |
| Video Bit Rate |
Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
2Mbps |
| Network |
|---|
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) |
| Storage |
|---|
| Local Storage |
MicroSD card slot (Max. 256 GB) |
| Cloud Storage |
EZVIZ Cloud Storage |
| Function |
|---|
| Smart Alarm |
AI-powered human shape detection |
| Customized Alert Area |
Supports |
| Audio |
Supports two-way talk |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General |
|---|
| Operating Conditions |
-30°C ~ 60°C ( -22°F to 140°F ), humidity 95% or less (non-condensing) |
| IP Grade |
Weatherproof design |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
Max. 6W |
| Dimensions |
158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch) |
| Packaging Dimensions |
197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch) |
| Weight (With Package) |
885 g (31.22 oz) |
| Net Weight |
510 g (17.99 oz) |
| In the box |
|---|
| In the box |
- C8W Camera |
| - 1.5-Meter Power Adapter |
| - Screw Kit |
| - Waterproof Kit |
| - Drill Template |
| - Regulatory Information |
| - Quick Start Guide |
| Certifications |
|---|
| Certifications |
UL / FCC / CE / WEEE / REACH / RoHS / UKCA |
