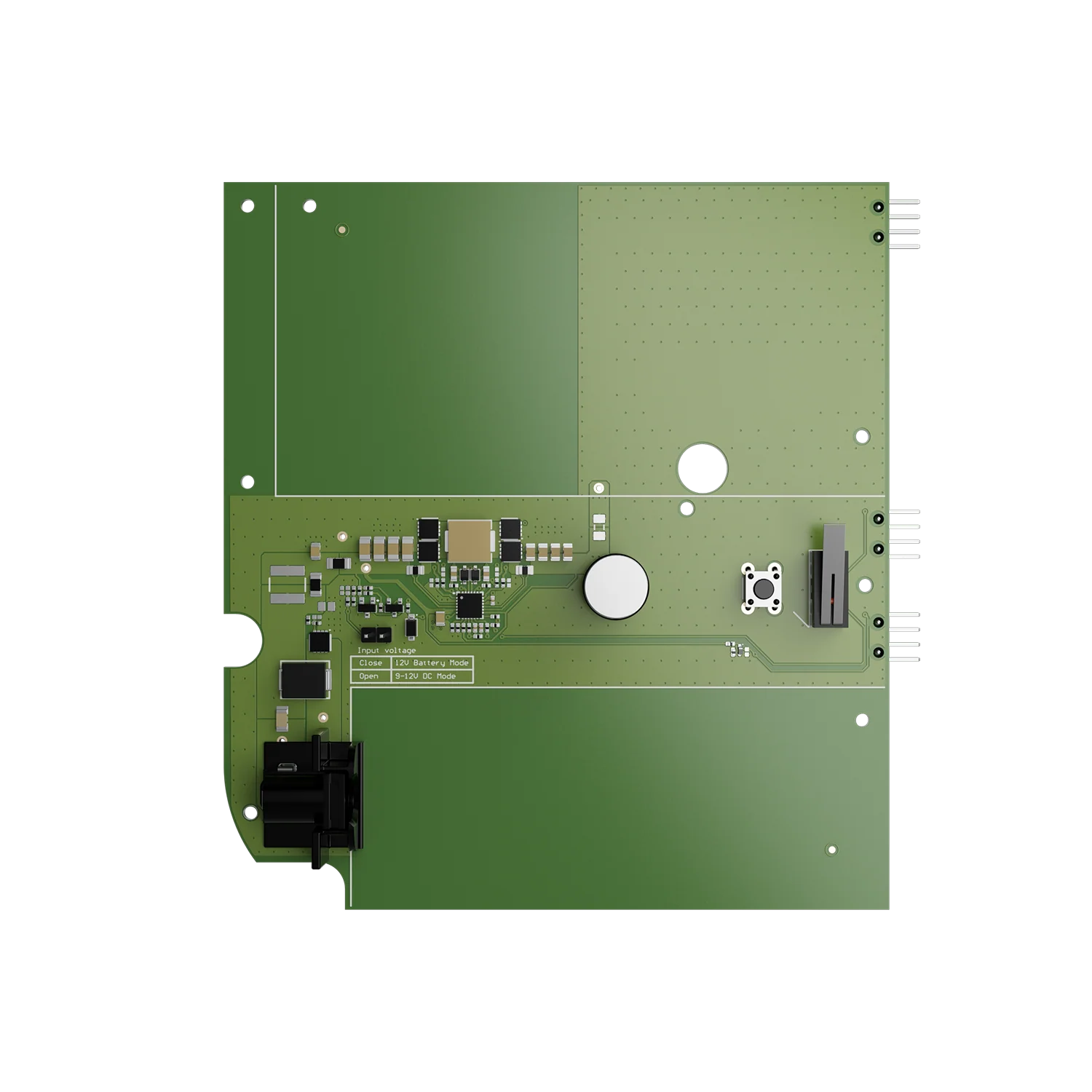

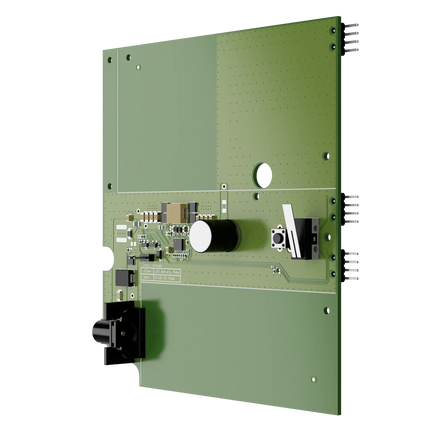

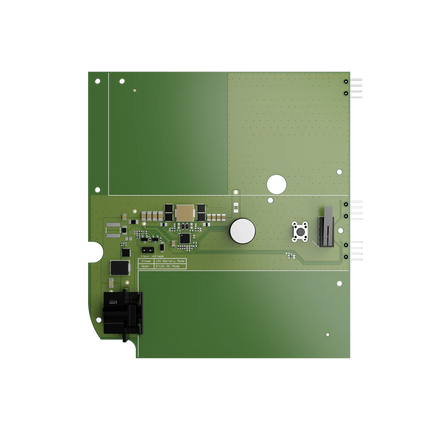

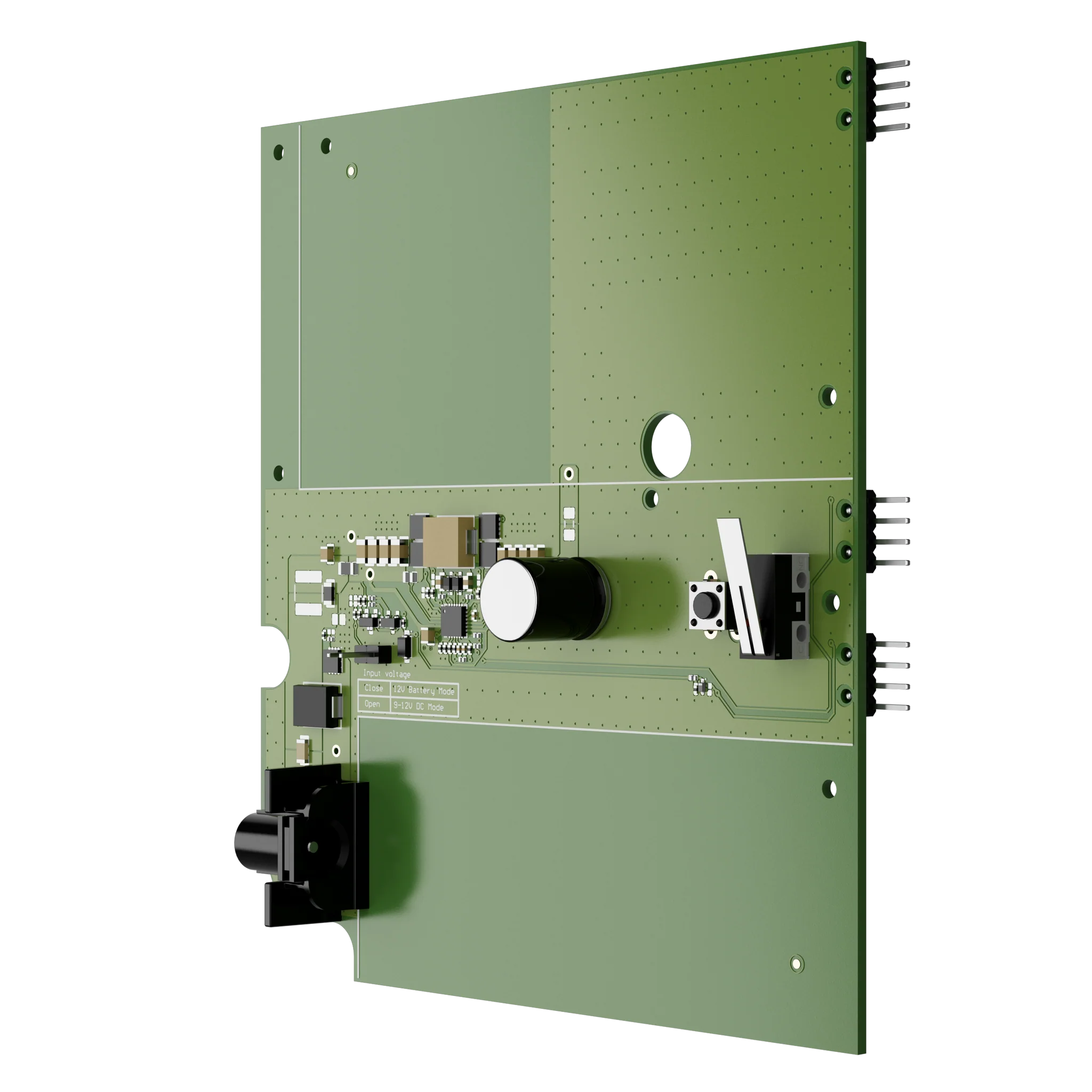

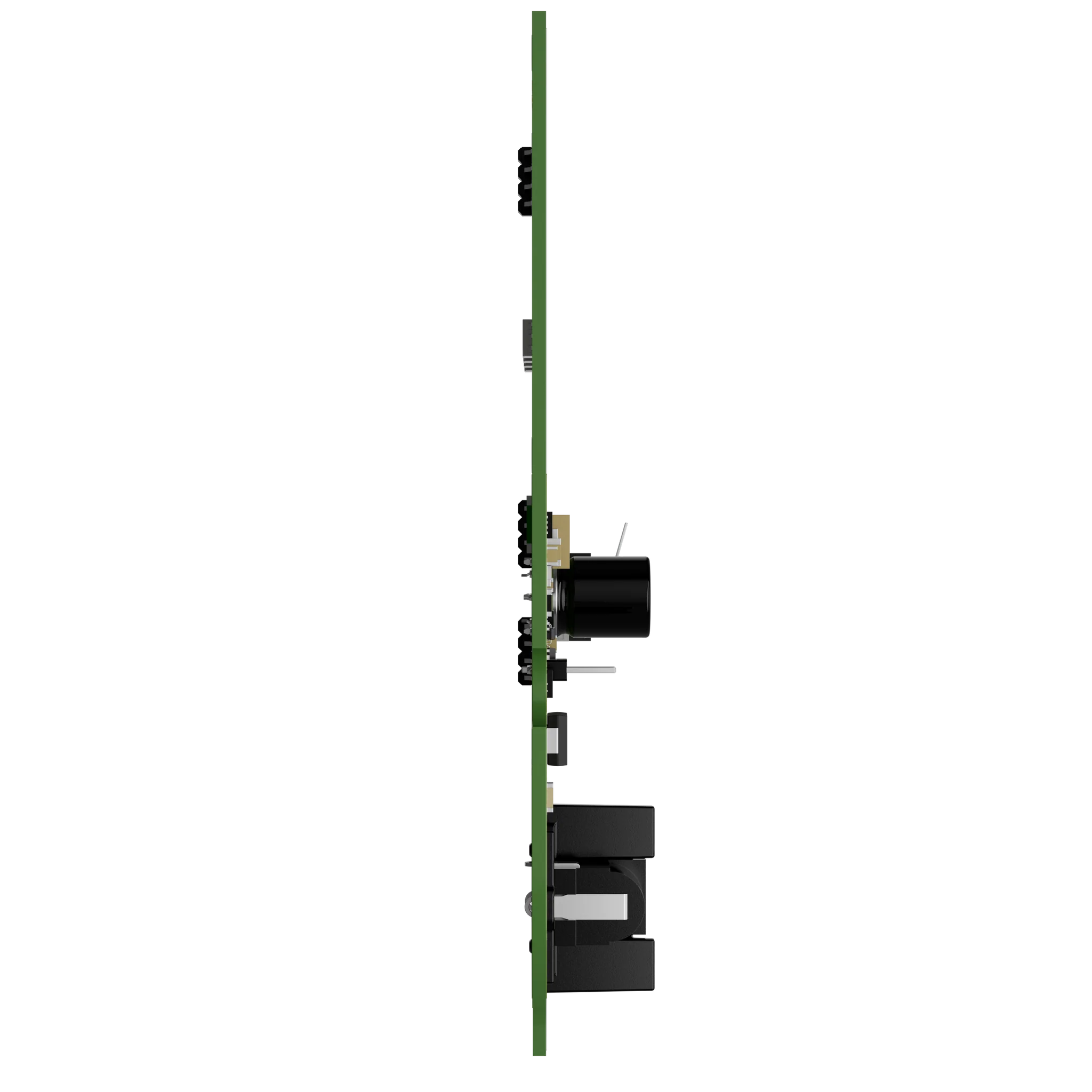

12V PSU for NVR is a power supply unit designed to allow an Ajax NVR to operate from a low-voltage power source instead of the standard 110/230 V~ mains supply. The module replaces the default internal power supply unit inside the NVR enclosure.
By powering the NVR from a low-voltage source such as a backup battery system, the device can continue operating during power outages. This ensures uninterrupted video recording and reliable surveillance, making it ideal for facilities with unstable or unavailable mains power.
Features
- Alternative low-voltage power supply for Ajax NVR
- Supports operation from 8–16 V⎓ power sources
- Ensures uninterrupted recording during power outages

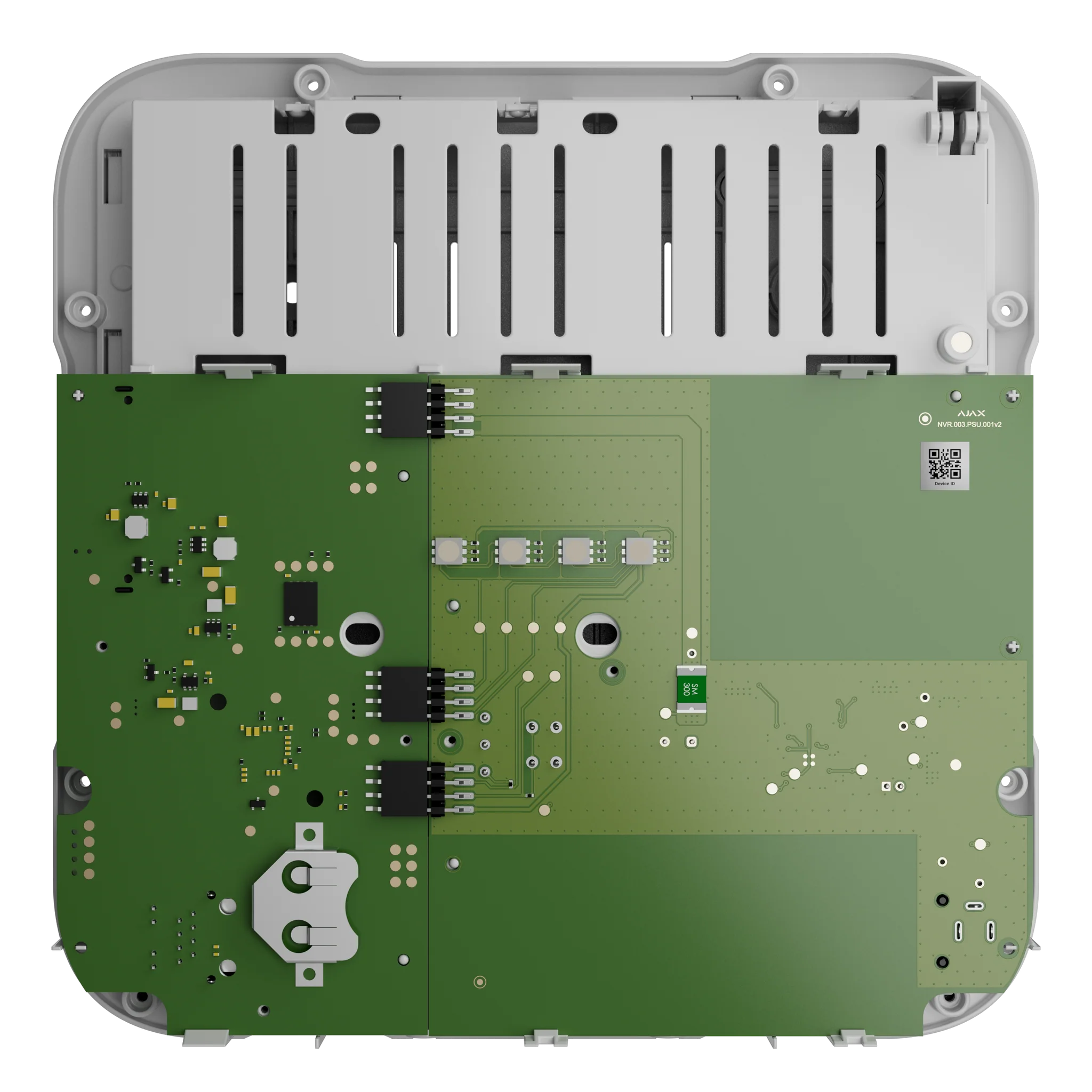

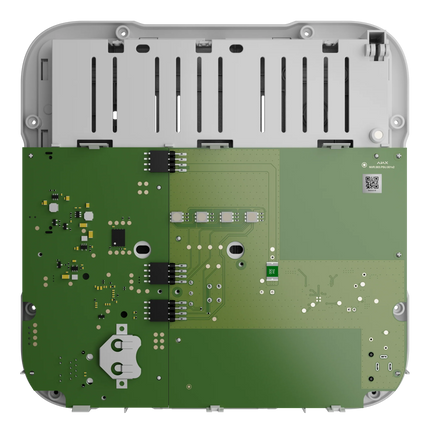

- Installs directly inside the NVR enclosure
- Replaces the standard 110/230 V~ internal power supply
- Supports two operating modes depending on jumper configuration
- Standard jack plug power connection
- Quick installation using a PH1 screwdriver
Complete Set
- 12V PSU for NVR
- Terminal adapter
- Quick start guide
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
Tech Specs
| Device Type |
Low-voltage power supply unit for Ajax NVR |
| Compatibility |
NVR (8-ch)
NVR (16-ch) |
| Installation Method |
Installed inside the NVR enclosure replacing the standard 110/230 V~ PSU |
| Power Connection Socket |
6.5 × 2.0 mm (Power jack – female) |
| Power Plug |
5.5 × 2.1 mm |
| Supported Cable Cross-Section |
AWG 12–14 |
| Operating Mode (No Jumper) |
8–16 V⎓ operating voltage |
| Maximum Current Consumption (No Jumper) |
Up to 4 A |
| Turn-On Voltage Threshold (No Jumper) |
8.1 V⎓ |
| Turn-Off Voltage Threshold (No Jumper) |
8.0 V⎓ |
| Operating Mode (With Jumper) |
12.1–16 V⎓ operating voltage |
| Maximum Current Consumption (With Jumper) |
Up to 4 A |
| Turn-On Voltage Threshold (With Jumper) |
12.1 V⎓ |
| Turn-Off Voltage Threshold (With Jumper) |
10.35 V⎓ |
| Output Voltage |
12 V⎓ ±3% |
| Shutdown Current Consumption |
110 μA |
| Quiescent Current Consumption |
65 mA |
| Maximum Output Current |
2 A |
| Operating Temperature |
0 °C to +40 °C |
| Operating Humidity |
Up to 75% |
| Protection Class |
IP20 |
| Dimensions |
118 × 123 × 17 mm |
| Weight |
51 g |
