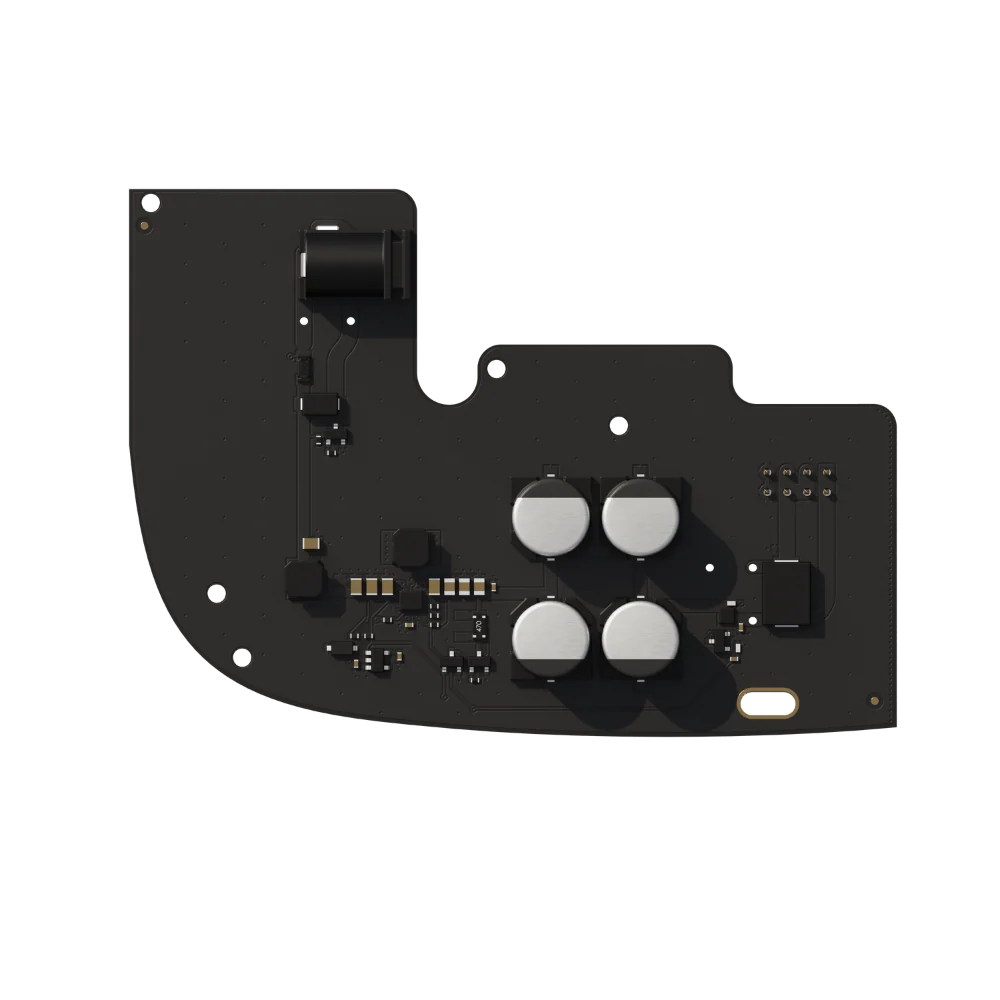

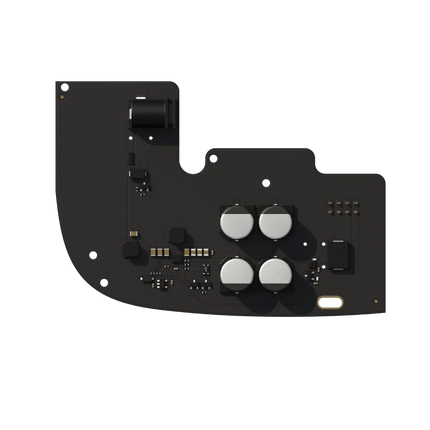

6V PSU (type A) is a dedicated power supply unit designed to operate Ajax devices from a portable battery source. It enables reliable power delivery when connecting compatible Ajax hubs or range extenders to external batteries.
The power supply supports a wide input voltage range and provides stable regulated output for uninterrupted device operation. It is installed directly inside the hub or range extender enclosure, making it an efficient solution for backup power setups and portable installations.
Features
- Designed for powering Ajax devices from portable batteries
- Supports zinc-air alkaline batteries with 4.2–10 V⎓ operating voltage
- Wide input voltage range for flexible power configurations
- Stable 4.8 V regulated output

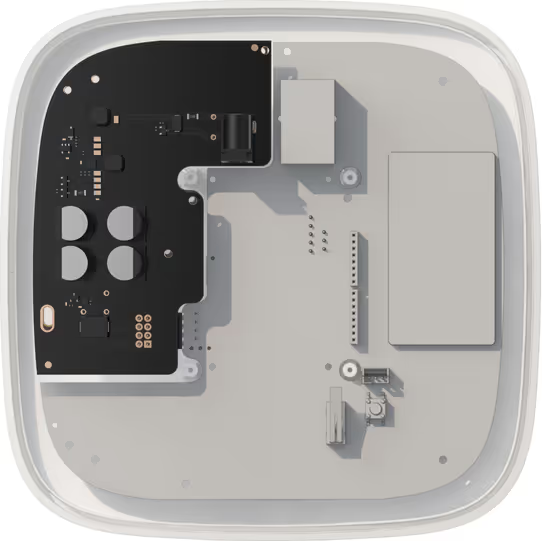

- Installs directly inside compatible hub or range extender enclosure
- Compact lightweight board design
- Reliable operation in indoor environments
Complete Set
- 6V PSU (type A)
- Terminal adapter
- Quick start guide
Download
Tech Specs
| Device Type |
Power supply unit for portable battery operation |
| Recommended Batteries |
Zinc-air alkaline batteries with 4.2–10 V⎓ operating voltage |
| Input Voltage |
4.2–10 V⎓ |
| Input Current |
2.2 A at 4.2 V⎓
0.8 A at 10 V⎓ |
| Switch-on Voltage |
4.2 V⎓ ± 0.5% |
| Switch-off Voltage |
3–3.4 V⎓ (depends on the load) |
| Output Voltage |
4.8 V⎓ ± 3% |
| Output Current |
Up to 1.5 A |
| Installation Method |
Installed inside hub or range extender enclosure |
| Connector Slot |
6.5 × 2 mm power jack (female) |
| Plug |
5.5 × 2.1 mm power jack (male) |
| Dimensions |
98 × 70 × 17 mm |
| Weight |
26 g |
| Operating Temperature |
−10 °C to +40 °C |
| Operating Humidity |
Up to 75% |
| Board Color |
N/A |
