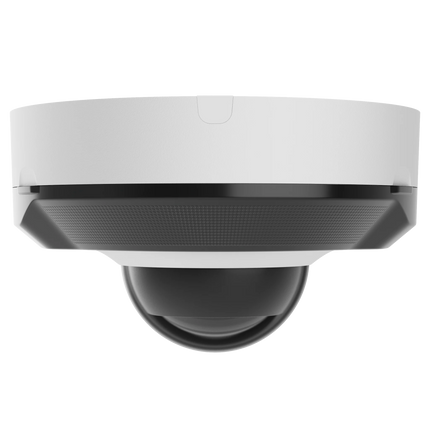

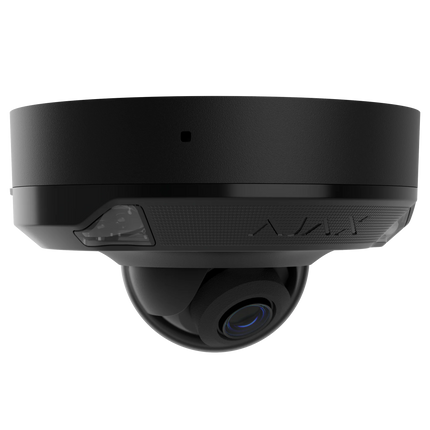

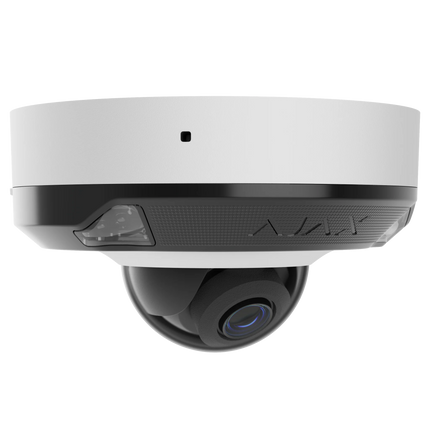

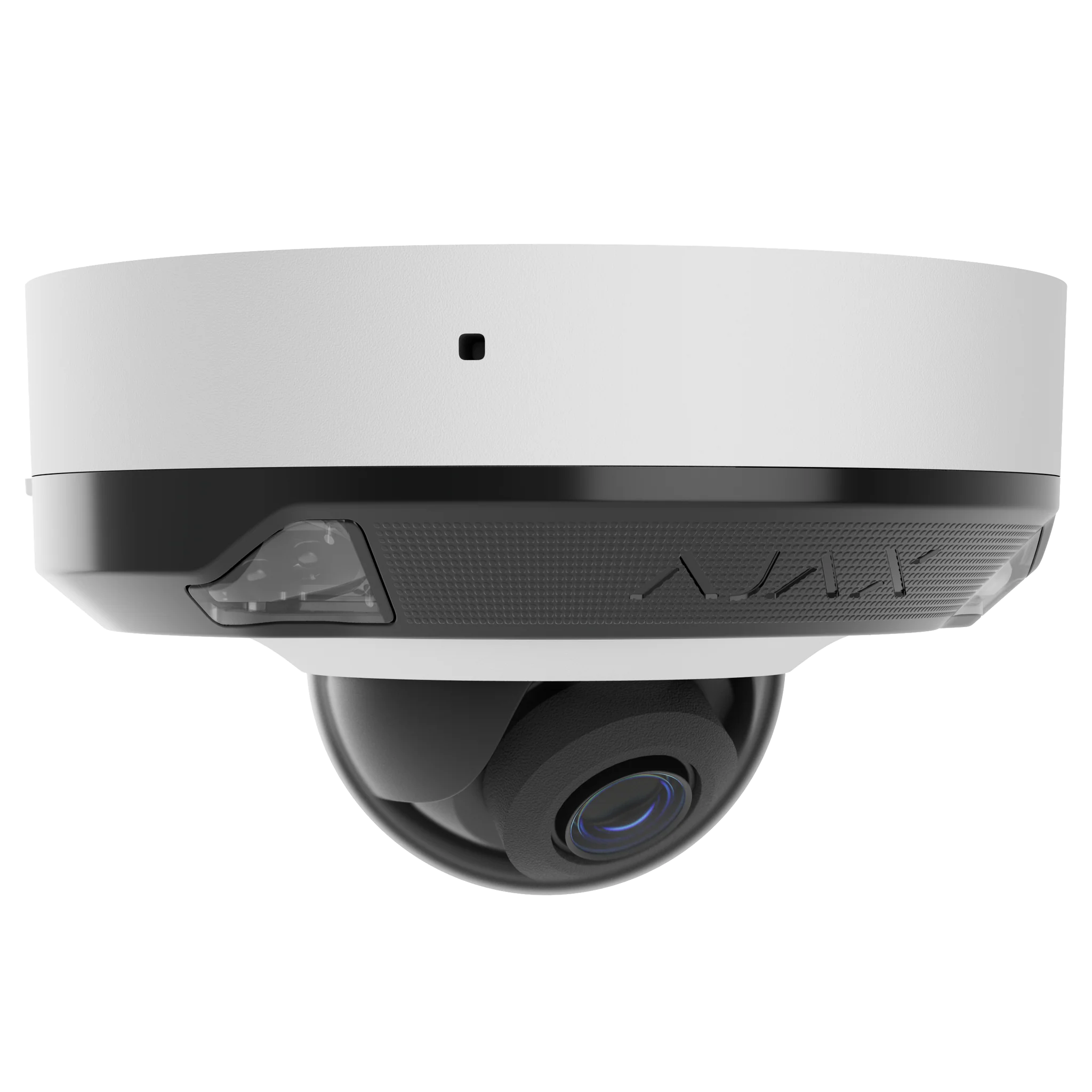

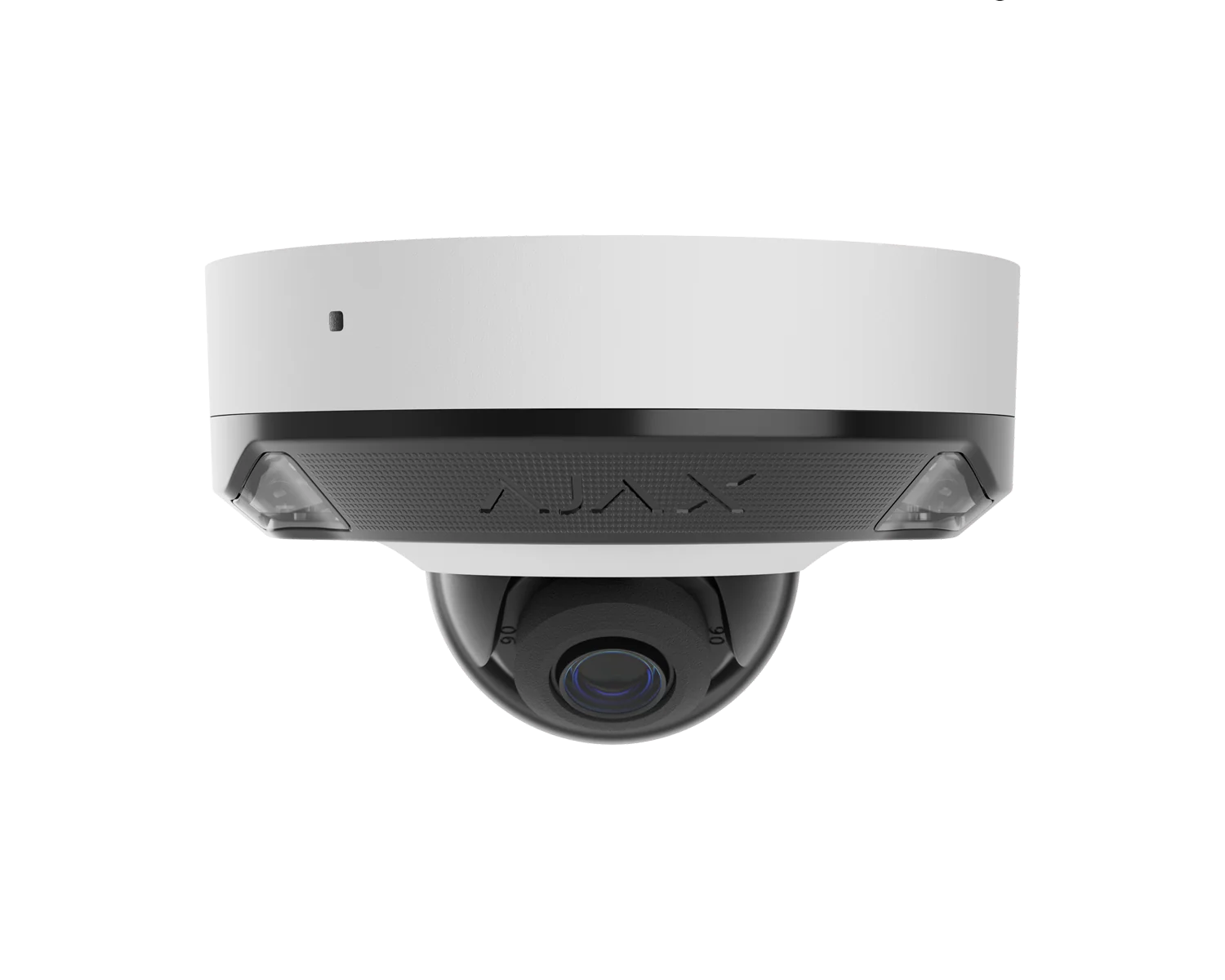

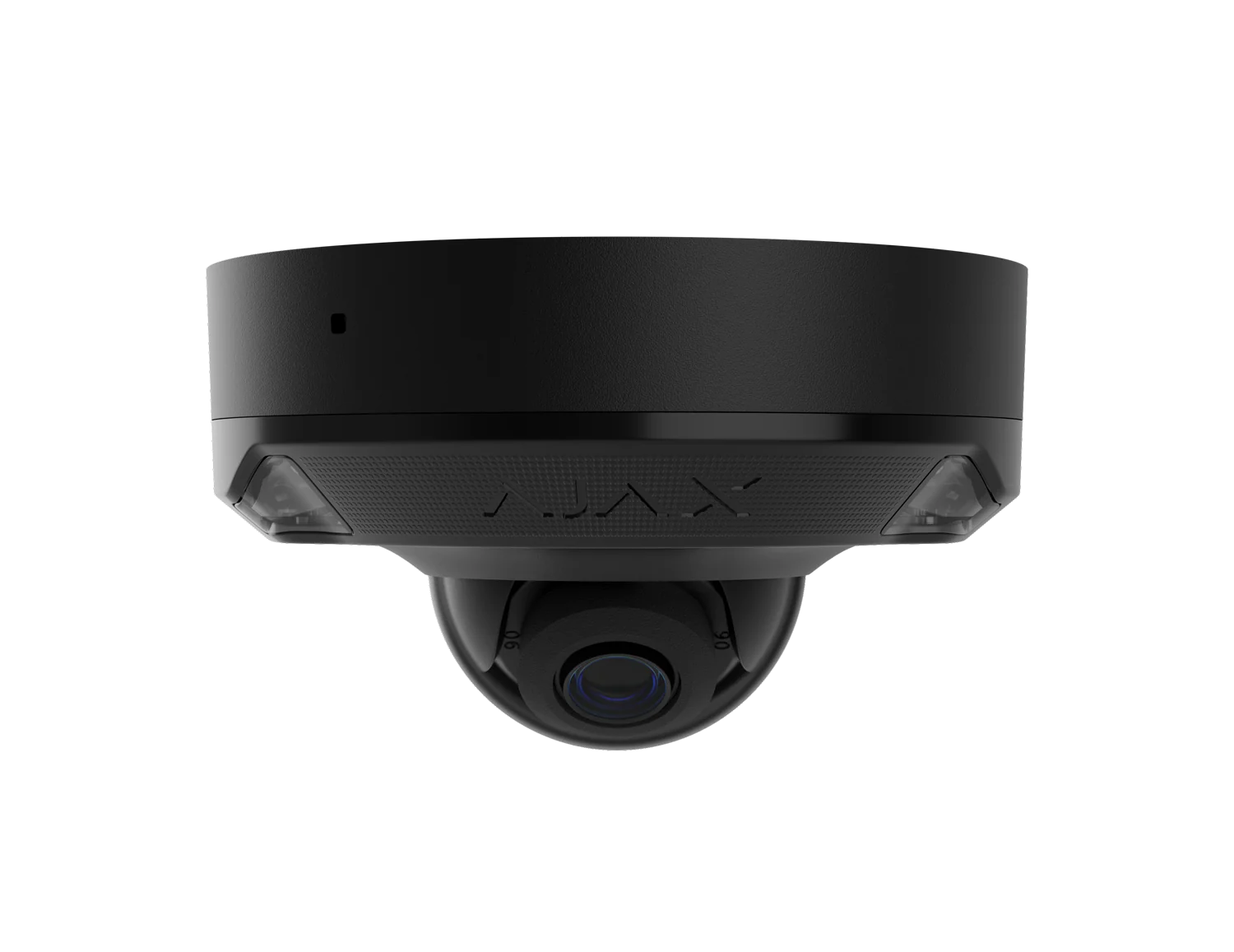

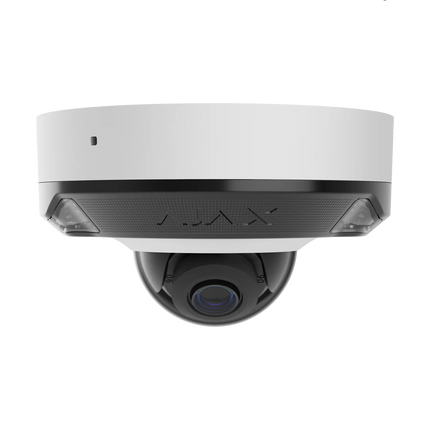

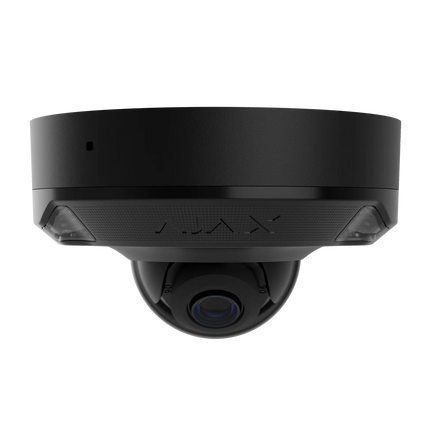

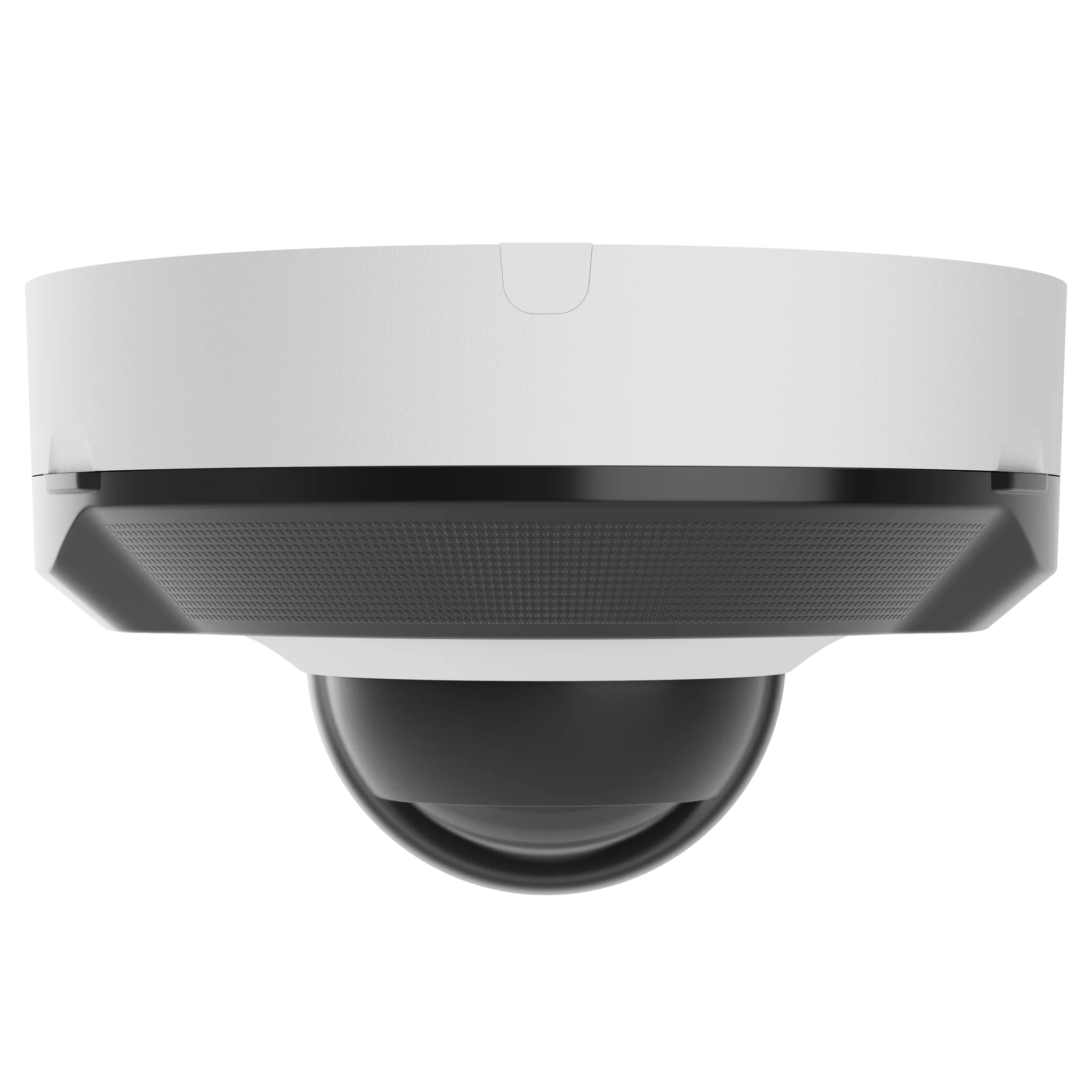

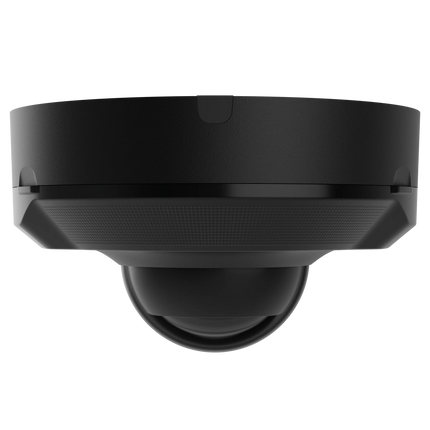

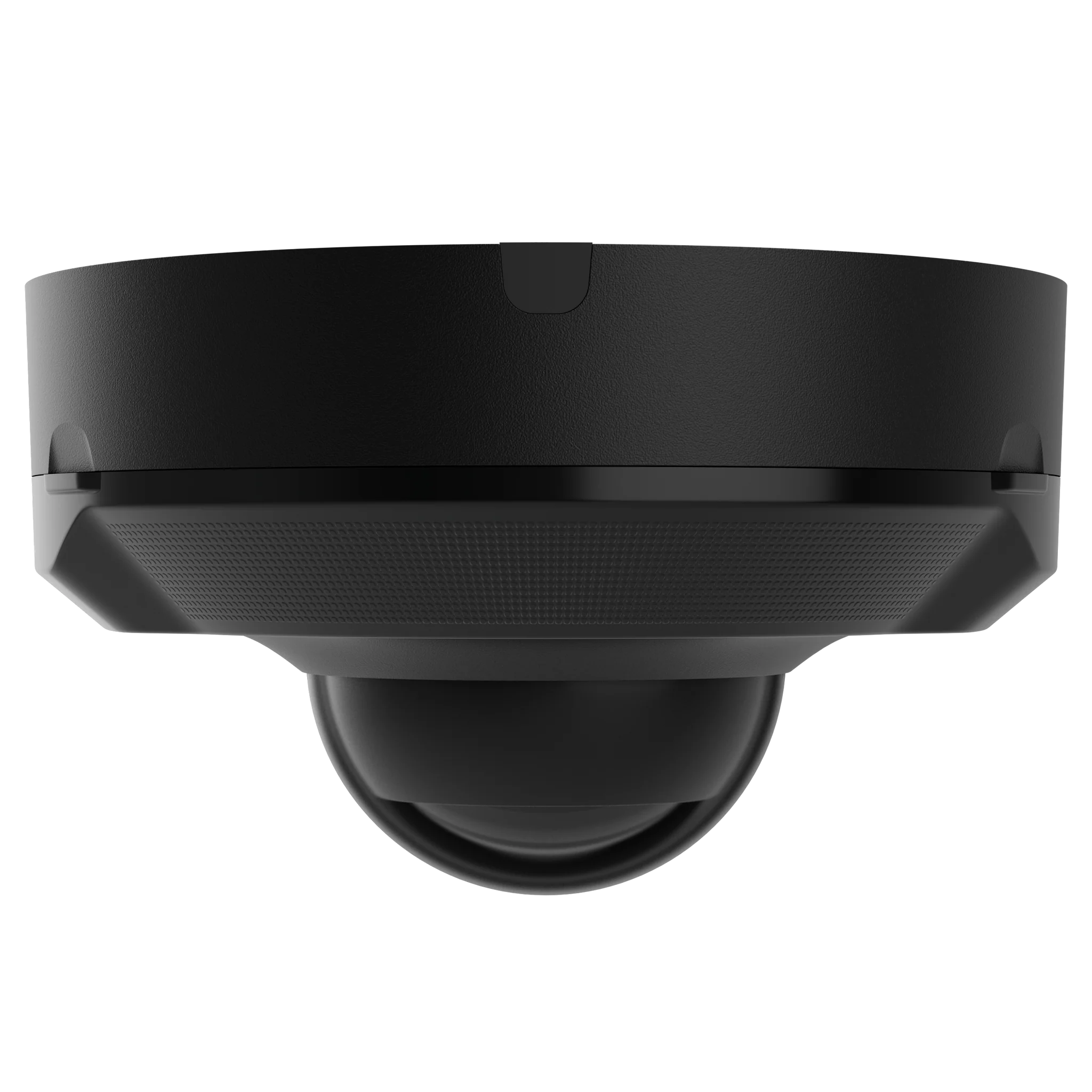

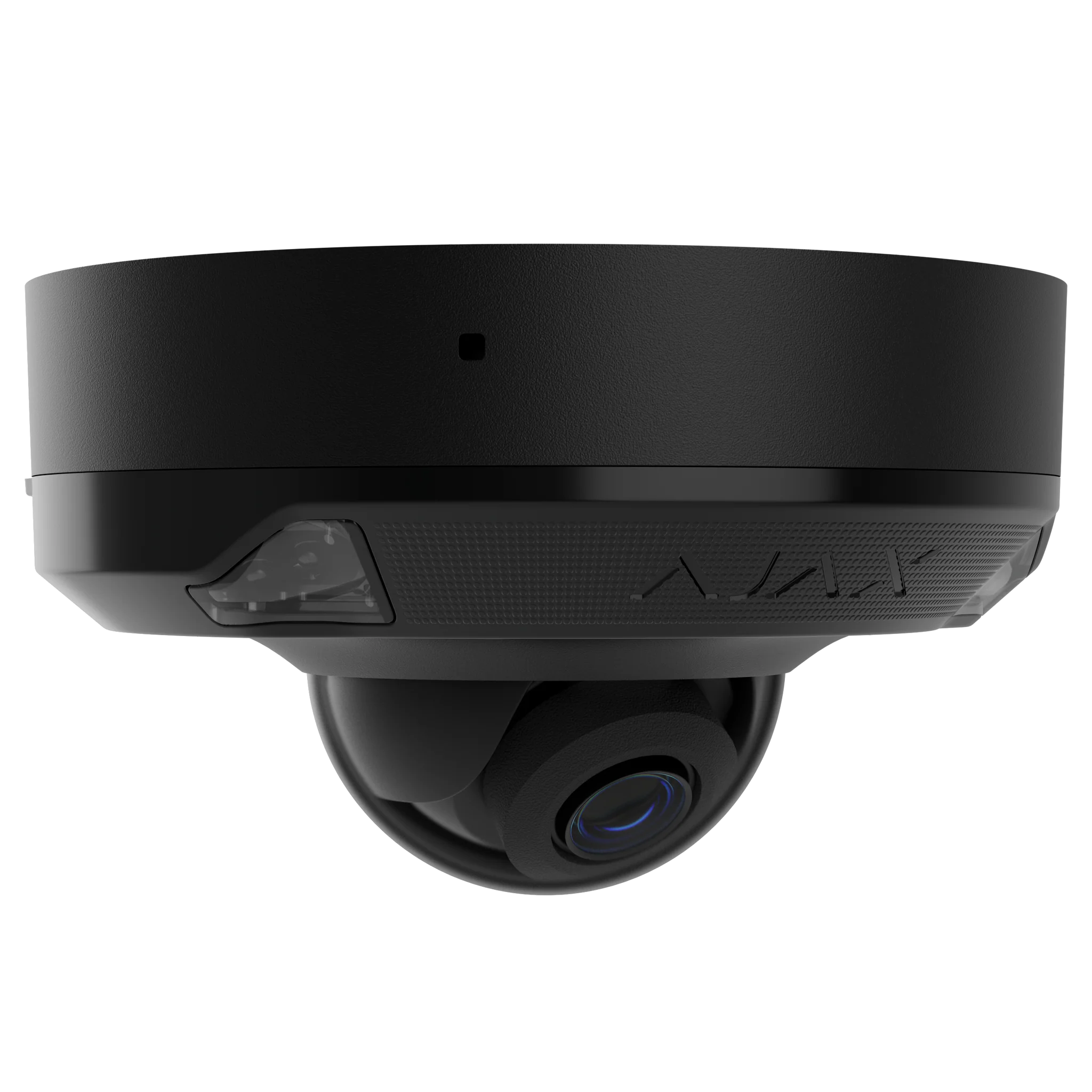

DomeCam Mini HL (8 Mp / 2.8 mm) is a compact wired AI-powered IP security camera designed for reliable indoor and outdoor surveillance. Its mini dome form factor allows for discreet installation while delivering ultra-high-resolution video monitoring.
Equipped with intelligent video analytics, hybrid illumination, and advanced privacy protection, DomeCam Mini HL ensures clear visibility in low-light environments and integrates seamlessly with professional security systems.
Features
- 8 MP CMOS sensor for ultra-high-resolution video
- Wide viewing angle up to 110°
- Hybrid illumination with IR and white LEDs (up to 15 m)
- True WDR (120 dB) for balanced lighting in high-contrast scenes
- AI object detection for people, pets, and vehicles
- Built-in microphone for audio recording
- Supports microSD card up to 256 GB
- Compatible with Ajax NVR and third-party VMS via ONVIF
- JetSparrow encrypted peer-to-peer video protocol
- PoE (802.3af/at) or 12 V DC power supply
- IP65 weather protection and IK08 impact resistance
Complete Set
- DomeCam Mini HL (8 Mp/2.8 mm)
- Installation template
- Installation kit
- Quick start guide
Download
Tech Specs
| Camera Type |
Wired AI-powered IP security camera |
| Image Sensor |
8 MP CMOS, 1/2.7" type |
| Lens |
2.8 mm fixed lens, f/1.6 |
| Lens Type |
Fixed focal length with fixed iris |
| Field of View |
Horizontal: 100–110°
Vertical: 50–60°
Diagonal: 125–135° |
| DORI Distance |
Detection: 90 m
Observation: 36 m
Recognition: 18 m
Identification: 9 m |
| Maximum Illumination Distance |
White LED: up to 15 m
IR LED: up to 15 m
Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure and ensure clear visibility in low-light conditions. |
| Minimum Illumination |
Color: 0.005 lx
B/W: 0 lx |
| Signal-to-Noise Ratio |
More than 52 dB |
| Video Resolution |
8 MP (3840 × 2160)
6 MP (3072 × 1728)
5 MP (2944 × 1656 / 2880 × 1620 / 2592 × 1944)
4 MP (2560 × 1440)
3 MP (2304 × 1296)
2 MP (1920 × 1080)
0.6 MP (1024 × 576) |
| Frame Rate |
Up to 20 fps |
| Image Rotation |
0°, 180° |
| Video Codec |
H.265, H.264 |
| Dynamic Range |
120 dB (True WDR) |
| Storage |
microSD card up to 256 GB (Class V30 or faster), Ajax NVR |
| Audio |
Built-in microphone |
| Audio Codec |
G711-ULAW, G711-ALAW, G726, G722 |
| Motion Detection |
Software-based motion detection using image frame analysis |
| AI Object Detection |
People, Pets, Vehicles |
| Network Port |
1 × RJ-45 Ethernet (10/100 Mbps) |
| Protocols |
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| Interoperability |
ONVIF (Profile S/T) |
| Video Protocol |
JetSparrow encrypted peer-to-peer protocol |
| PoE Standard |
802.3af / 802.3at |
| PoE Power Consumption |
Max: 8.2 W / Avg: 7.7 W |
| External Power Supply |
12 V⎓ ±20%, 1 A |
| 12 V DC Power Consumption |
Max: 7.1 W / Avg: 6.7 W |
| Dimensions |
114 × 114 × 67 mm |
| Weight |
430 g |
| Operating Temperature |
−30 °C to +60 °C |
| Operating Humidity |
Up to 90% |
| Protection Class |
IP65, IK08 |
| Available Colors |
Black, White |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
