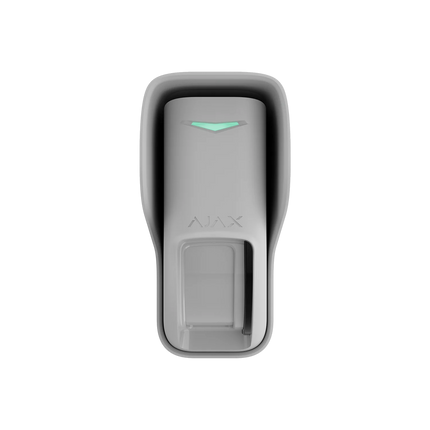

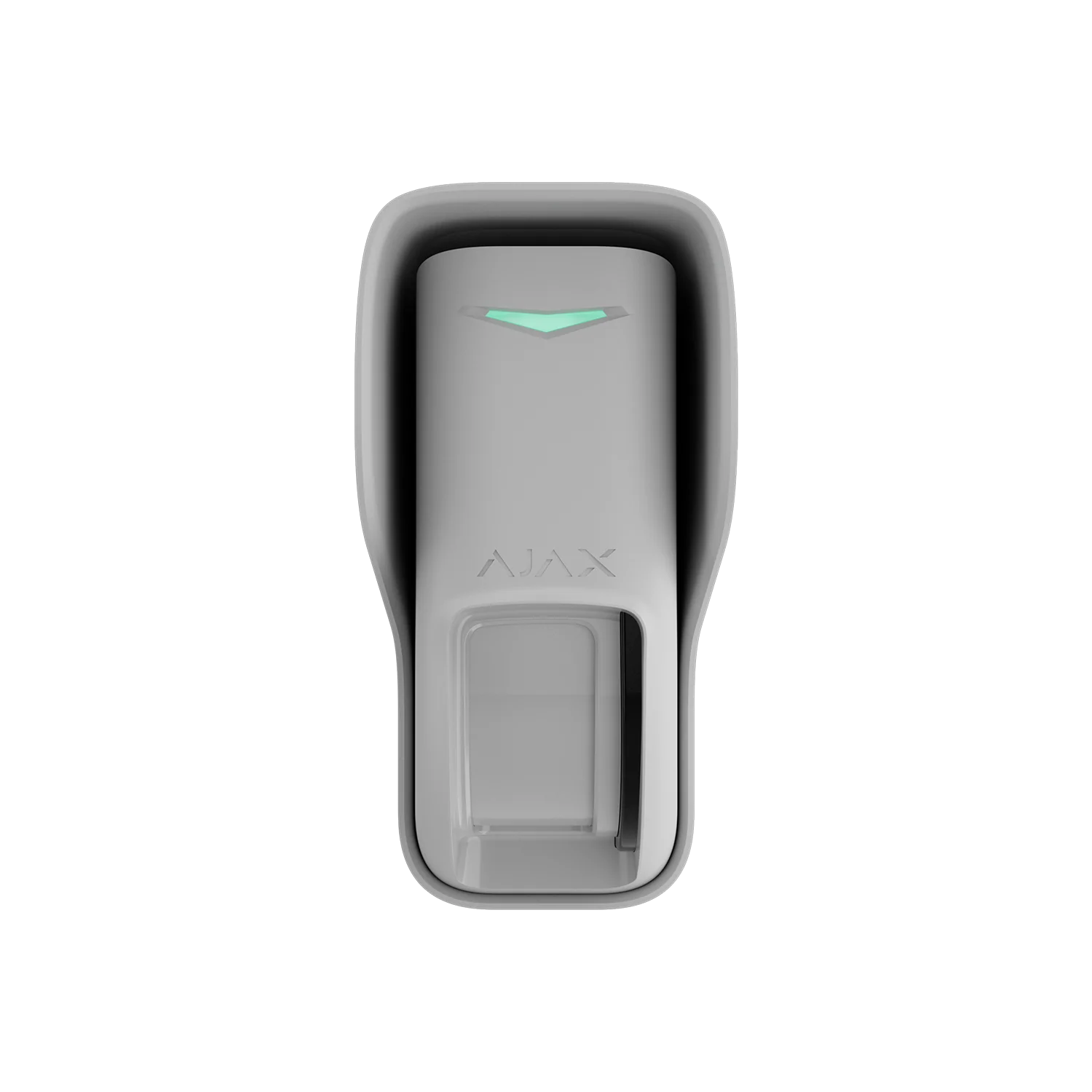

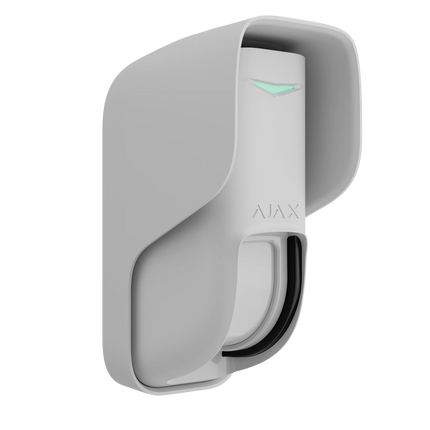

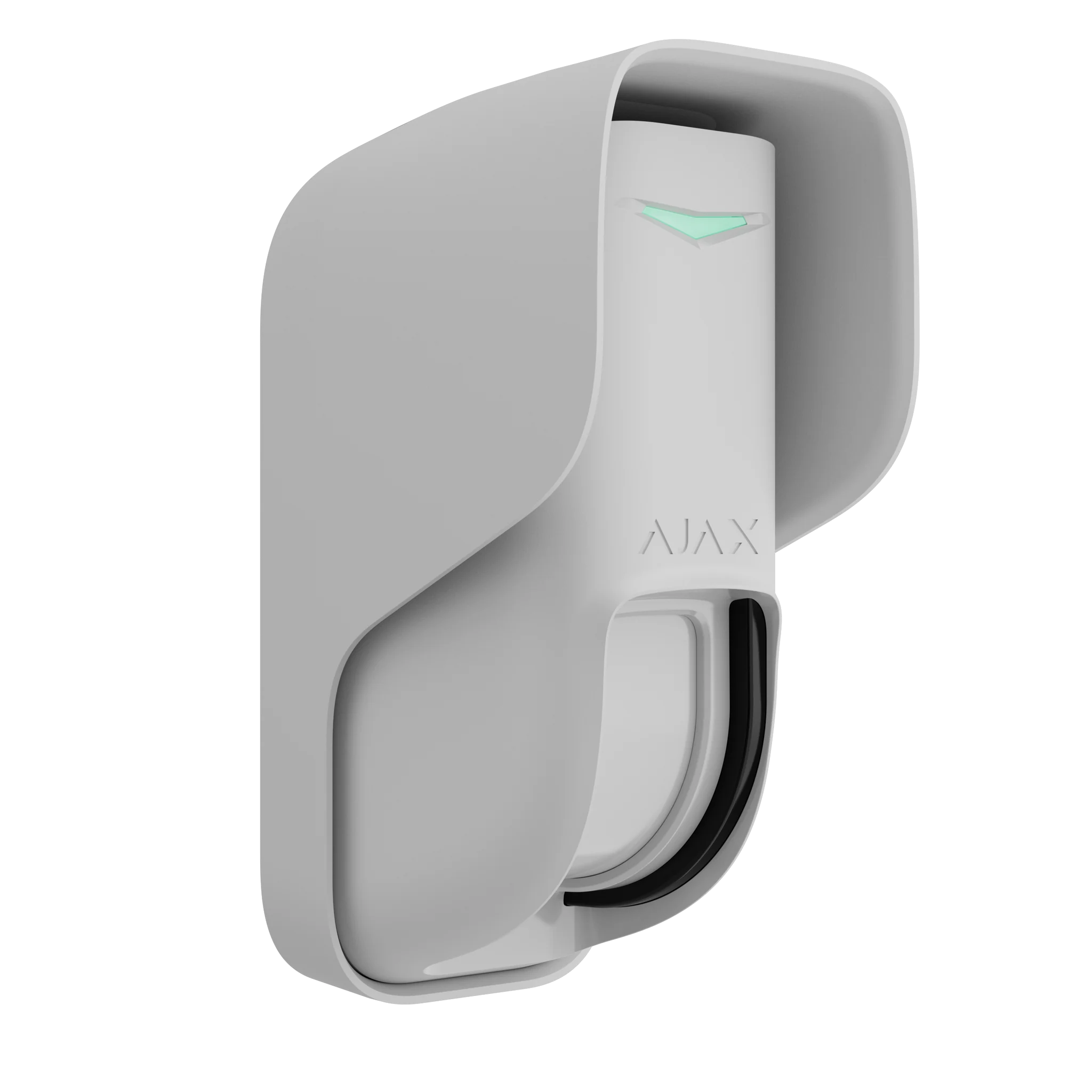

Curtain Outdoor Jeweller is a wireless dual-technology curtain motion detector designed for reliable perimeter protection both outdoors and indoors. Using PIR sensors combined with a K-band microwave sensor, the detector accurately identifies movement while minimizing false alarms caused by thermal interference.
The device communicates with the Ajax hub using secure Jeweller and Wings wireless technologies, ensuring stable alarm transmission and firmware updates even at long distances. With advanced anti-sabotage protection, pet immunity, and IP55 weather protection, Curtain Outdoor Jeweller is ideal for protecting windows, doors, fences, and other perimeter areas.
Features
- Dual motion detection technology (2 × PIR sensors + K-band microwave sensor)
- Motion detection range up to 8–12 m
- Narrow curtain detection pattern (8° horizontal detection angle)
- Pet immunity up to 100 cm height
- SmartDetect software algorithm to reduce false alarms
- Jeweller wireless communication with range up to 1,700 m
- Encrypted communication with dynamic key and frequency hopping
- Wings technology for secure firmware updates
- Anti-masking system to detect attempts to block the sensor
- Accelerometer to detect movement or tampering
- Tamper alarm for removal from mounting surface
- Weather-resistant enclosure with IP55 protection
- Up to 3 years battery life using CR123A batteries
Complete Set
- Curtain Outdoor Jeweller

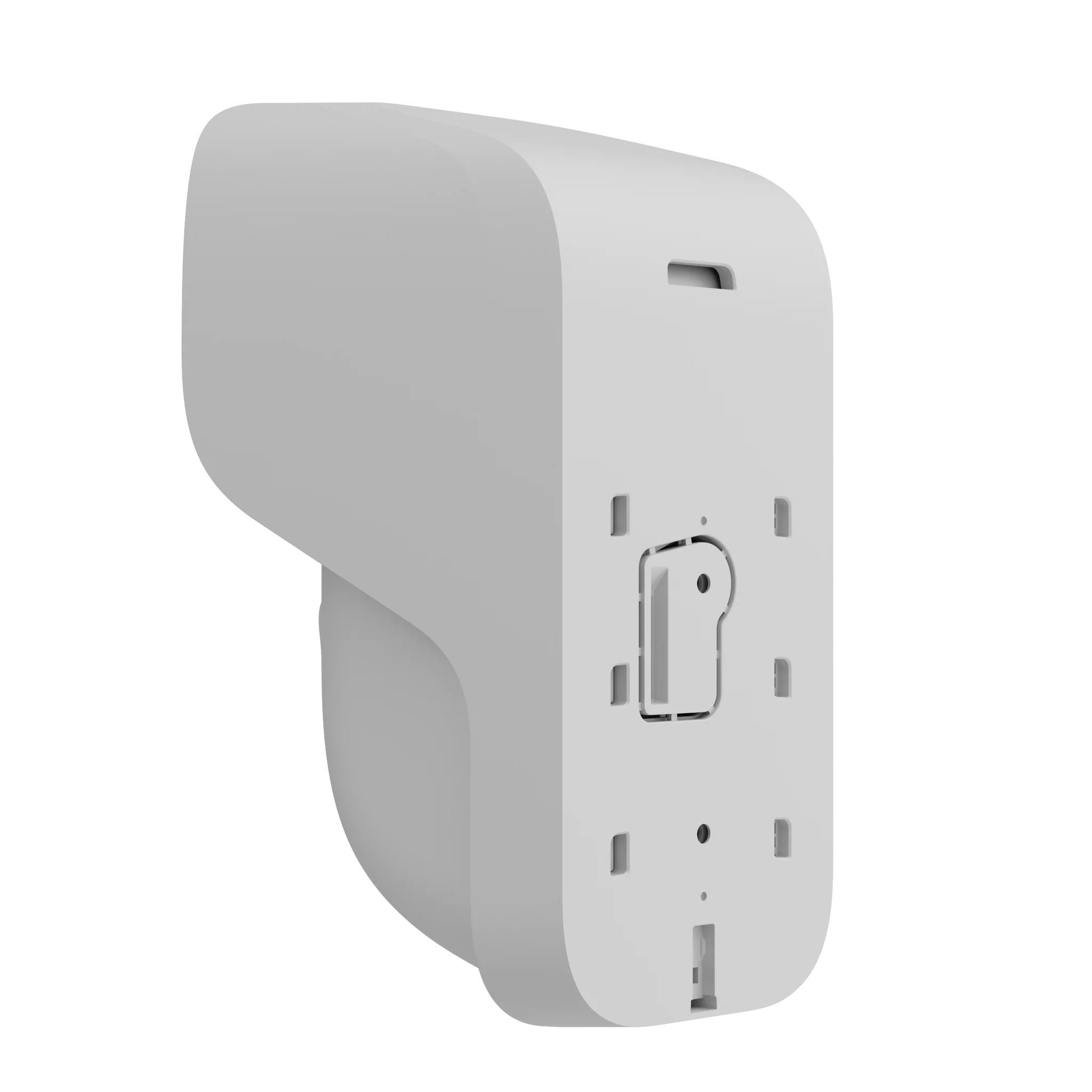

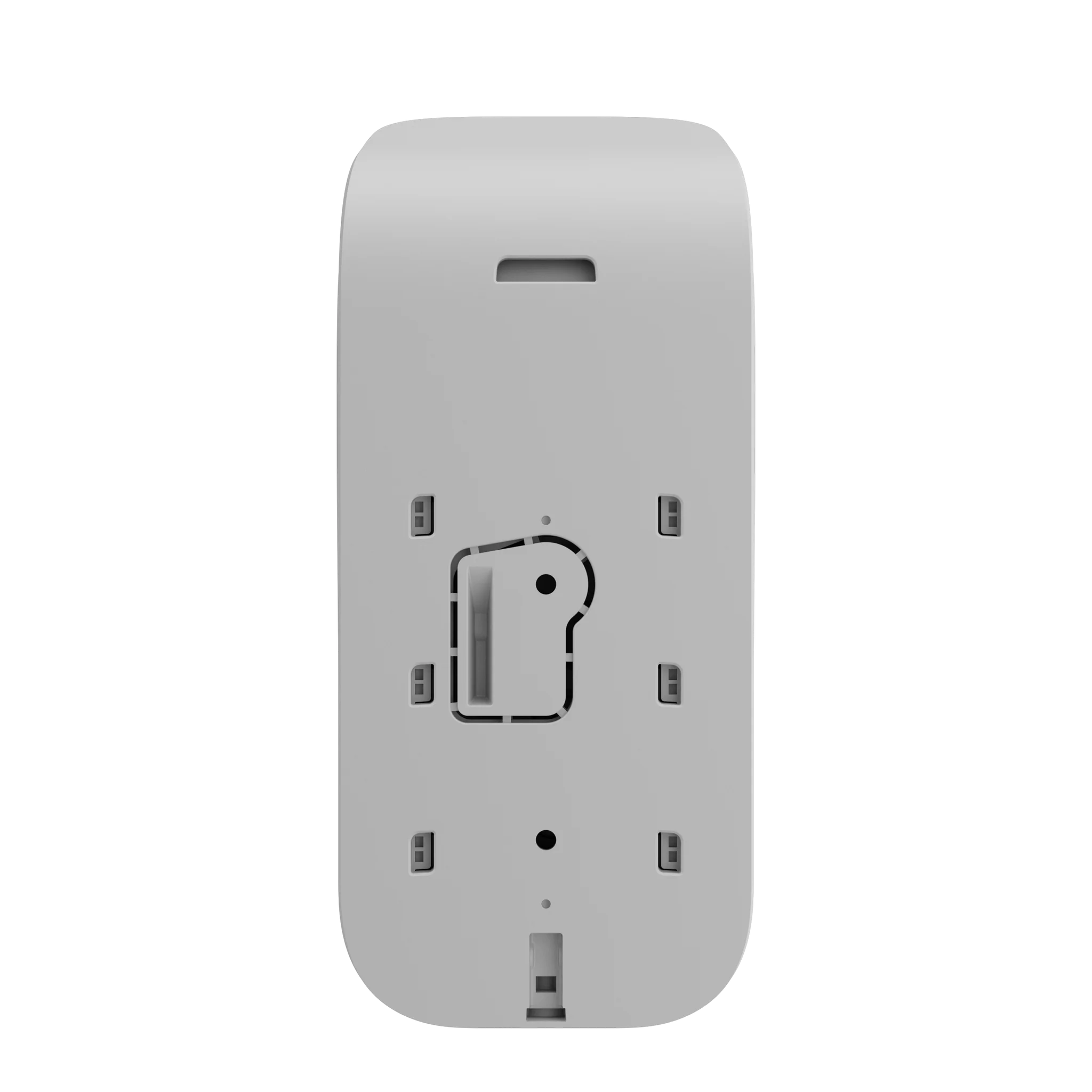

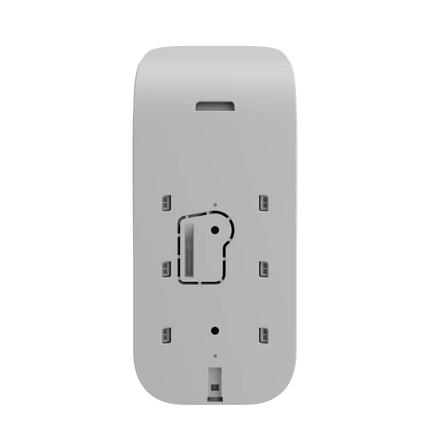

- SmartBracket mounting panel
- 2 × CR123A battery (pre-installed)
- Angle mount
- Hood
- Installation kit
- Quick start guide
Download
Tech Specs
| Device Type |
Wireless dual-technology curtain motion detector for indoor and outdoor use |
| Communication Technology |
Jeweller and Wings proprietary wireless communication |
| Frequency Bands |
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
(Depends on the sales region) |
| Maximum Effective Radiated Power (ERP) |
Up to 20 mW |
| Radio Signal Modulation |
GFSK |
| Radio Communication Range |
Up to 1,700 m in open space |
| Encrypted Communication |
Block encryption featuring a dynamic key |
| Frequency Hopping |
Prevents radio interference and jamming |
| Sensitive Elements |
2 × PIR sensors
1 × K-band microwave sensor (24 GHz) |
| Motion Detection Distance |
Up to 8–12 m (installed at 1–2.4 m height) |
| Motion Detection Angles |
Horizontal: 8°
Vertical: 85° / 75° / 15° depending on installation height |
| Motion Detection Speed |
0.3 – 2.0 m/s |
| Sensitivity Levels |
3 levels (configured in Ajax apps) |
| Pet Immunity |
Up to 100 cm height |
| False Alarm Prevention |
Dual motion detection technology and SmartDetect software algorithm |
| Temperature Compensation |
Maintains accurate detection from −25 °C to +60 °C |
| Sabotage Protection |
Tamper alarm
Anti-masking system
Accelerometer (movement detection)
Device authentication |
| Communication Loss Detection |
Within 36 seconds (depending on Jeweller settings) |
| Battery Type |
2 × CR123A batteries (pre-installed) |
| Battery Type Category |
Type C |
| Battery Life |
Up to 3 years |
| Operating Voltage Range |
4.1 – 6.2 V⎓ |
| Nominal Operating Voltage |
6 V⎓ |
| Quiescent Current Consumption |
37 μA |
| Maximum Current Consumption |
600 mA |
| Battery Capacity |
1,600 mAh |
| Low Battery Voltage |
4.48 V⎓ |
| Low Battery Recovery Voltage |
5.14 V⎓ |
| End-of-Life Battery Voltage |
4.1 V⎓ |
| Manufacturer |
Huiderui or Panasonic |
| Dimensions (with hood) |
155 × 77 × 85 mm |
| Dimensions (with hood + angle mount) |
155 × 84 × 98 mm |
| Dimensions (without hood) |
141 × 60 × 72 mm |
| Dimensions (without hood + angle mount) |
141 × 76 × 84 mm |
| Weight (with hood) |
299 g |
| Weight (without hood) |
223 g |
| Angle Mount Weight |
34 g |
| Operating Temperature |
−25 °C to +60 °C |
| Operating Humidity |
Up to 95% |
| Protection Class |
IP55 |
| Available Color |
White |
