Description

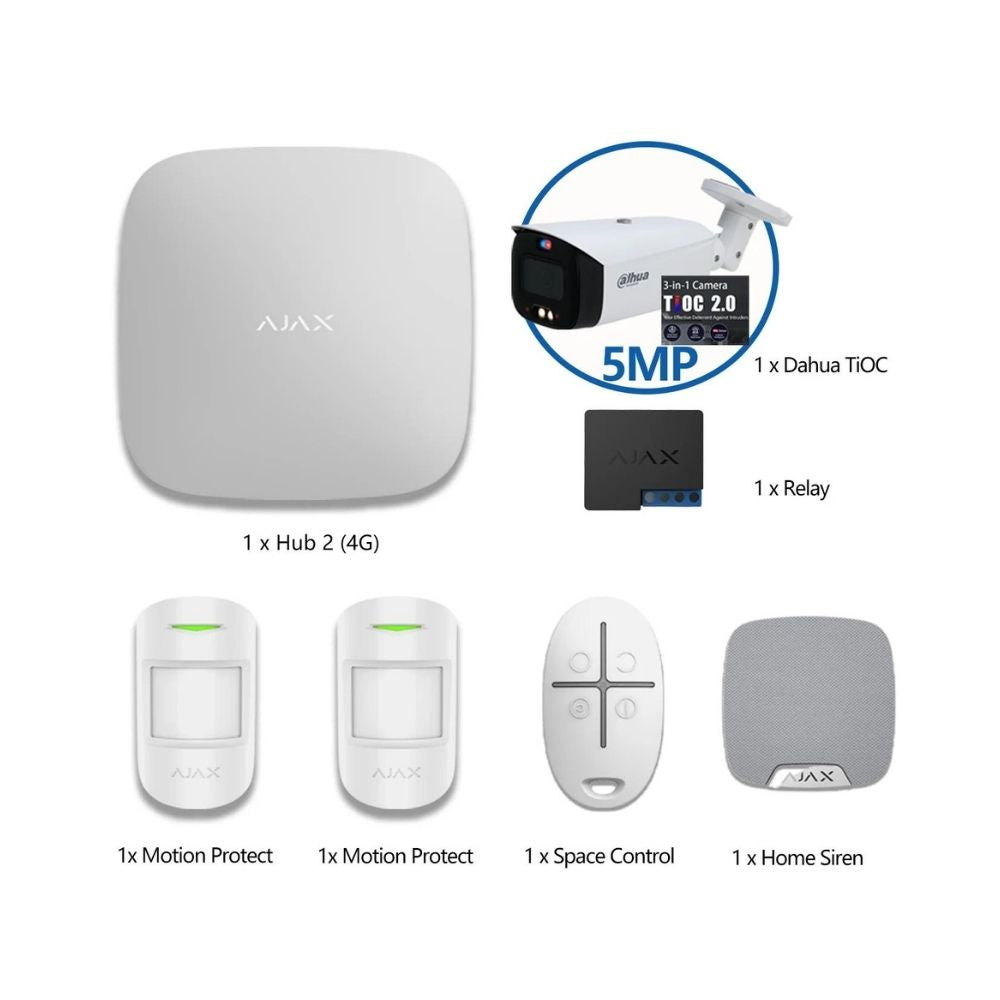

StarterKit includes:
- 1 x Hub2 Ajax-35992
- 2 x Motion Protect Ajax-30655
- 1 x Space Control Ajax-30670
- 1 x Home Siren Ajax-30630
- 1 x DH-IPC-HFW3549T1P-AS-PV-0280B-S3
More info about these products on Ajax website:
Downloads
Video
Tech Specs
Hub 2
| Classification |
Security system control panel with Ethernet, Wi-Fi, and dual SIM card support |
| Support of detectors with photo verification of alarms |
Available |
| Number of connected wireless Ajax devices |
Up to 100 |
| Number of connected IP cameras or DVR's |
Up to 25 |
| Number of connected Automation scenarios |
up to 32 |
| Number of security groups |
Up to 9 |
| Number of rooms |
Up to 50 |
| Number of users |
Up to 50 |
|
|
| Central Monitoring Station communication protocols |
Supported protocols
- SIA (DC-09)
- SurGard (Contact ID)
- ADEMCO 685
- Other proprietary protocols
|
| Power supply |
110-240 V~ AC with pre-installed battery
6 V⎓ DC with alternative 6V PSU power supply |
| Built-in back-up battery |
Li-Ion 3 Аh
Ensures up to 15 hours of operation when using SIM card only |
| Energy consumption from the grid |
Up to 10 W |
| Tamper proof |
Available, tamper |
| Radio communication protocols with Ajax detectors and devices |
Jeweller — for transmitting events and alarms.
Learn more
Wings — for transmitting photos.
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| RF output power |
10.4 mW (max 25 mW) |
| Radio signal range |
Up to 1700 m |
| Communication channels |
2 SIM cards
- 2G (GSM900/DCS1800 (B3/B8))
- 3G (WCDMA 850/900/2100 (B1/B5/B8))
- LTE (FDD B1/B3/B5/B7/B8/B20/B28)
Wi-Fi (802.11 b/g/n)
Ethernet
|
| Operating temperature range |
From –10°C to +40°C |
| Operating humidity |
Up to 75% |
| Size |
163 × 163 × 36 mm |
| Weight |
362 g |
| Service life |
10 years |
MotionProtect
| Sensitive element |
PIR sensor |
| Motion detection distance |
Up to 12 m |
| Motion detector viewing angles (H/V) |
88,5° / 80° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Pet immunity |
Yes, height up to 50 cm, weight up to 20 kg
Why motion detectors react to animals and how to avoid it >
|
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
|
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Maximum RF output power |
Up to 20 mW |
| Modulation of the radio signal |
GFSK |
| Radio signal range |
Up to 1700 m (any obstacles absent)
Learn more
|
| Power supply |
1 battery CR123A, 3 V |
| Battery life |
Up to 5 years |
| Installation method |
Indoors |
| Operating temperature range |
From -10°С to +40°С |
| Operating humidity |
Up to 75% |
| Overall dimensions |
110 × 65 × 50 mm |
| Weight |
86 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-2, EN 50131-5-3 |
SpaceControl
| Number of buttons |
4 |
| Panic button |
Yes |
| Accidental click protection |
Available with the firmware version 5.54.1.0 and higher. Manufacture date from March 19, 2020
How to find out the manufacture date of a detector or device
|
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Effective radiated power |
6.01 dBm / 3.99 mW (limit 20 mW) |
| Modulation of the radiosignal |
GFSK |
| Radio signal range |
Up to 1,300 m (any obstacles absent) |
| Power supply |
1 battery CR2032A, 3 V |
| Service life from the battery |
Up to 5 years (depending on the usage frequency) |
| Operating temperature range |
From -25°С to +50°С |
| Operating humidity |
Up to 95% |
| Overall dimensions |
65 × 37 × 10 mm |
| Weight |
13 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class III in conformity with the requirements of EN 50131-1, EN 50131-3, EN 50131-5-3 |
HomeSiren
| Type of notification |
Acoustic and LED |
| Sound notification volume |
81 – 105 dB at a distance of 1 m (adjustable) |
| Operating frequency of the buzzer |
3.4 ± 0.5 kHz |
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders |
Maximum RF output power |
Up to 25 mW |
Radio signal modulation |
GFSK |
Radio signal range |
Up to 2,000 m (any obstacles absent) |
Battery supply |
2 × CR123A, 3 V |
Battery life |
Up to 5 years |
Socket for connecting
an external light indicator |
Yes (power supply 3 V, 10 mA) |
| Body protection level |
IP50 |
| Installation method |
Indoors |
Operating temperature range |
From -10°С to +40°С |
Operating humidity |
Up to 75% |
Overall dimensions |
75 × 76 × 27 mm |
Weight |
97 g |
Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-4, EN 50131-5-3 |
Dahua DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Security Camera
Camera |
Image Sensor |
1/2.7" CMOS |
Max. Resolution |
2592 (H) × 1944 (V) |
ROM |
128 MB |
RAM |
512 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on) |
S/N Ratio |
﹥ 56 dB |
Illumination Distance |
30 m (IR)
30 m (warm light) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
2 (IR LED)
2 (warm light) |
Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
M12 |
Focal Length |
2.8 mm; 3.6 mm |
Field of View |
2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128°
3.6 mm: Horizontal: 78°× Vertical: 58°× Diagonal: 102° |
Iris Type |
Fixed |
Close Focus Distance |
2.8 mm: 1.5 m
3.6 mm: 2.2 m |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
66.0 m |
26.4 m |
13.2 m |
6.6 m |
3.6 mm |
78.0 m |
31.2 m |
15.6 m |
7.8 m |
Professional, intelligent |
IVS (Perimeter Protection) |
Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
SMD 3.0 |
Less false alarms, longer detection distance |
Intelligent Search |
Work together with Smart NVR to perform the refined intelligent search, event extraction and merging to event videos. |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
AI Coding |
AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 2592 × 1944@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability |
3 streams |
Resolution |
5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps |
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto; Manual |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas) |
Region of Interest (RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Defog |
Yes |
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
8 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
User/Host |
20 (Total bandwidth: 72 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser |
IE: IE8/9/11
Chrome
Firefox |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Phone |
iOS; Android |
Certification |
Certification |
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
|
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: 5mA 3V–5 VDC |
Alarm Output |
1 channel out: 300mA 12 VDC |
Power |
Power Supply |
12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 2.4 W (12 VDC); 3.1 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.9 W (12 VDC); 9.7 W (PoE) |
Environment |
Operating Conditions |
–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
Storage Conditions |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection Grade |
IP67 |
Structure |
Casing |
Metal + plastic |
Dimensions |
288.4 mm × 94.4 mm × 84.7 mm
(11.4" × 3.7" × 3.3") (L × W × H) |
Net Weight |
1.0 kg (2.20 lb) |
Gross Weight |
1.23 kg (2.71 lb) |
