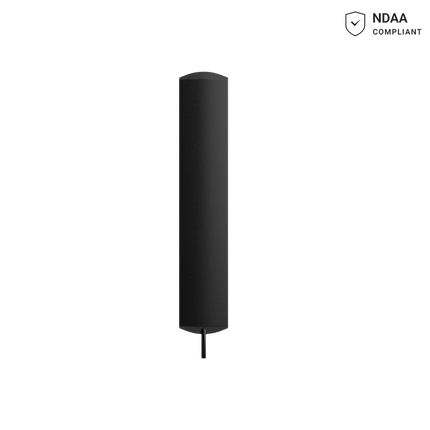

ExternalAntenna is an external antenna designed to improve LTE and radio communication performance for Ajax security systems. It enhances signal reception and transmission for hubs using cellular and wireless communication channels.
The antenna supports multiple communication technologies including LTE, 2G/3G, Jeweller, and Wings, ensuring reliable connectivity for alarms, commands, and firmware updates. With its durable construction and long cable, the antenna can be positioned outside the hub enclosure to optimize signal strength.
Features
- External antenna for improved LTE and wireless communication signal
- Supports 2G, 3G, and LTE cellular communication
- Compatible with Jeweller and Wings communication technologies
- Wide operating frequency range for reliable connectivity
- SMA connector for secure and stable connection
- External antenna breakage detection with system notification
- 3 m cable length for flexible installation
- Durable design suitable for wide temperature environments
Complete Set
- ExternalAntenna
- Quick start guide
Download
Tech Specs
| Device Type |
External antenna for LTE and radio communication channels |
| Supported Communication Channels |
2G / 3G / LTE
Jeweller
Wings |
| Operating Frequencies |
698–960 MHz
1,710–2,690 MHz |
| Connector Type |
SMA |
| Sabotage Protection |
External antenna breakage detection with system notification |
| Installation Method |
Connected to the hub’s communication channels and routed outside through the hub casing.
Mounted using pre-applied double-sided adhesive tape. |
| Cable Length |
3,000 mm |
| Dimensions |
115.6 × 21.7 × 5.8 mm |
| Weight |
41 g |
| Operating Temperature |
−40 °C to +85 °C |
| Operating Humidity |
Up to 95% |
| Available Color |
Black |
