Description

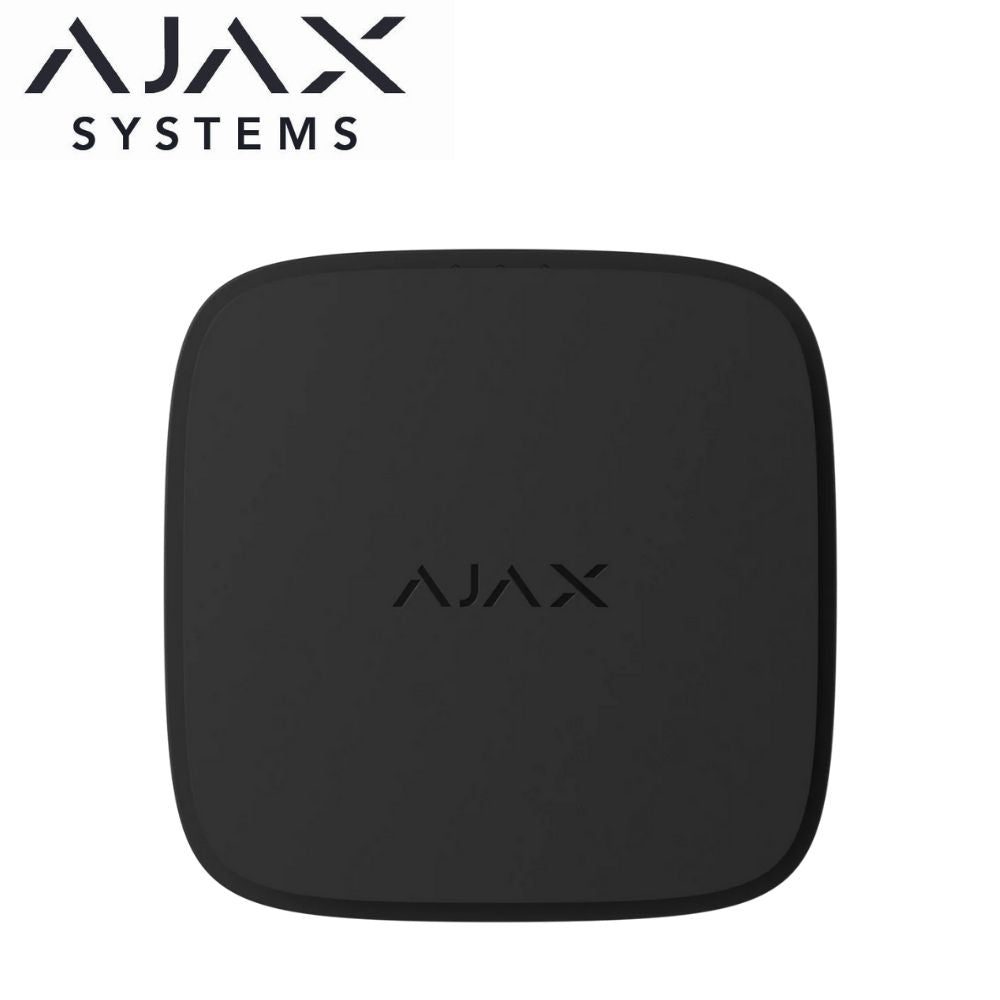

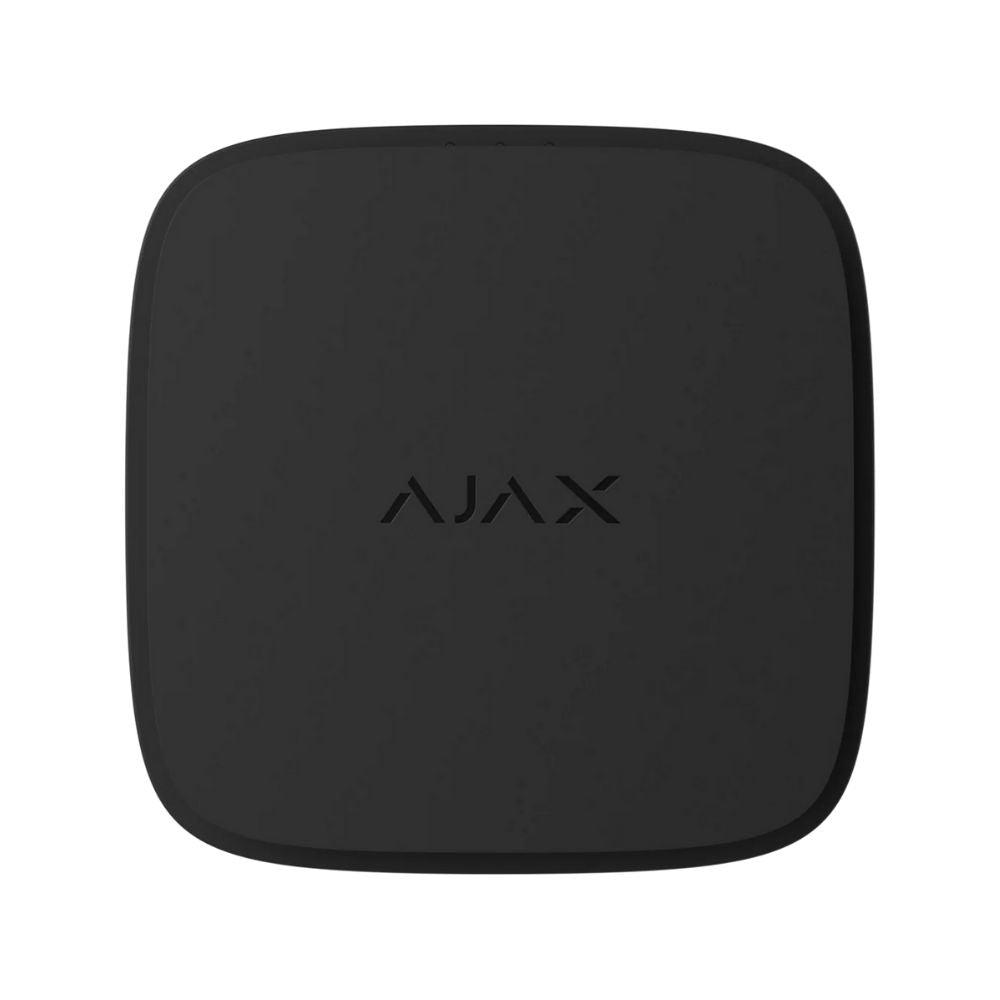

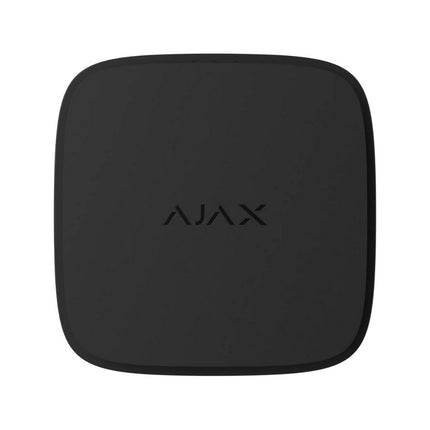

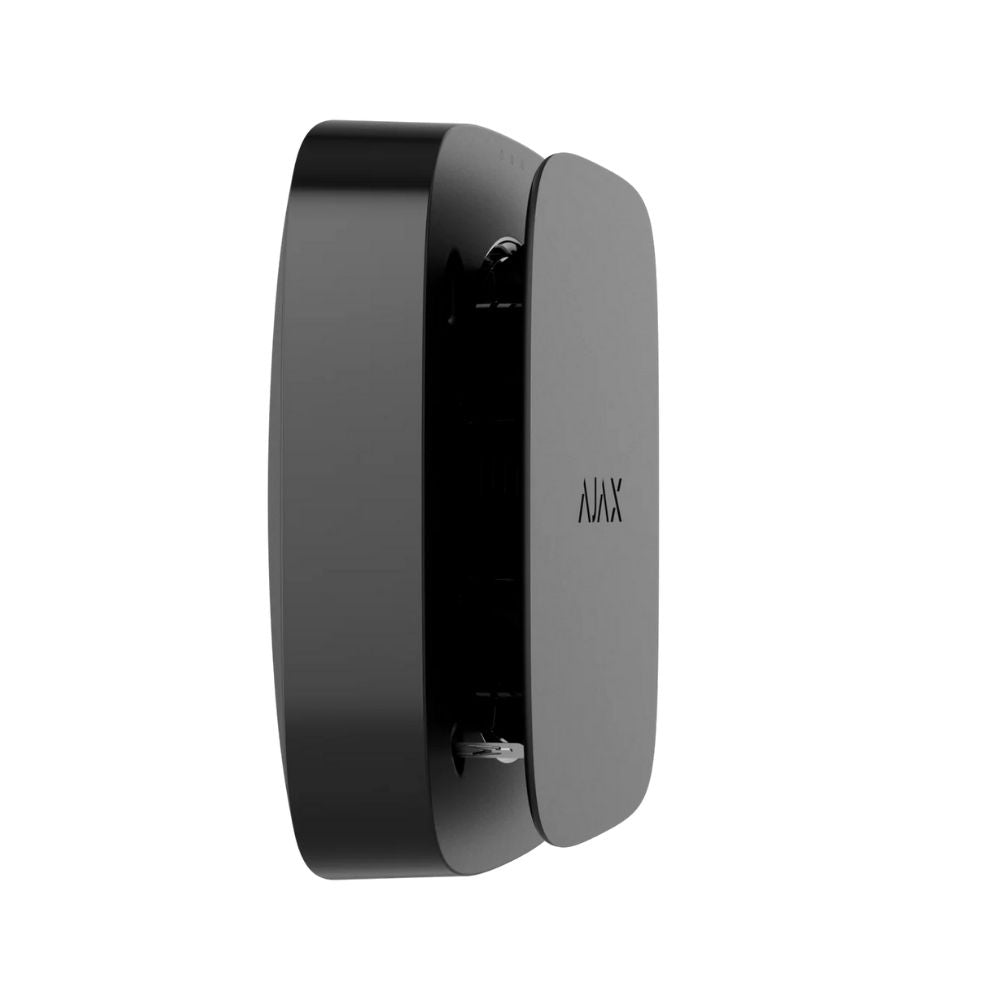

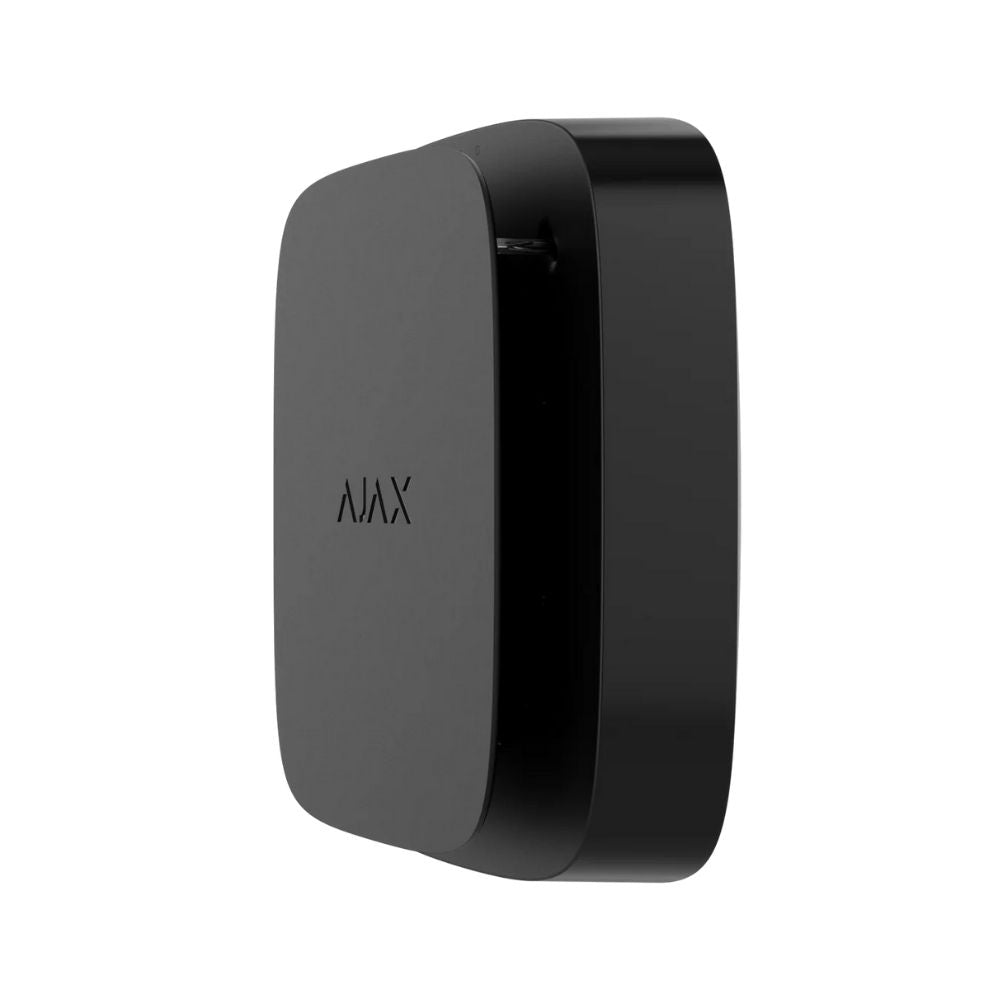

FireProtect 2 (Heat/Smoke) Jeweller is a wireless fire detector with a built-in siren. Intended for indoor installation. Detects smoke and temperature rise. The detector also can work without a hub.
There are two available modifications: one with sealed batteries (has SB in the name) that run for 10 years, and another with replaceable batteries (has RB in the name) that run for up to 7 years.
The detector operates as part of the Ajax system, communicating with the hub via the Jeweller secure radio protocol. The hub communication range is up to 1,700 meters without obstacles.
Features
- Accurate detection of threats
- Advanced hardware and software
- Easy to install and configure
- Quick pairing and installation
- Smoke and rapid temperature rise detection
- Interconnected fire detector alarms
- Operation without a hub
Complete Set
- FireProtect 2 RB (Heat/Smoke) Jeweller

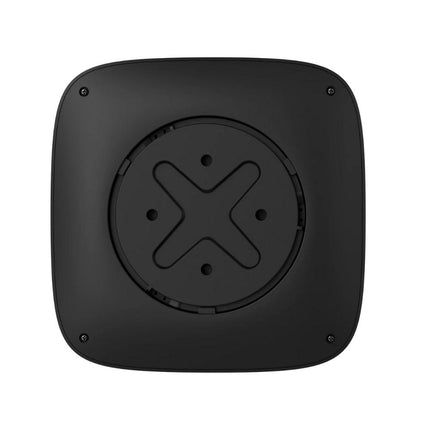

- SmartBracket mounting panel
- Installation kit
- 2 × CR123A battery (pre-installed)
- Quick Start Guide
More info about FireProtect 2 (Heat/Smoke) on Ajax website: https://ajax.systems/products/fireprotect-2-smoke-heat/
Download
Video
Tech specs
| Compatibility |
Hubs
* with firmware version OS Malevich 2.15.4 or higher
Radio signal range extenders
|
| Communication |
Jeweller communication technology
Proprietary wireless technology for transmission of alarms and events. Learn more
|
Anti-sabotage protection |
Tampering alarm
Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofing
device authentication
Detection of communication failure
within 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweller or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
|
| Motion detection distance |
3 to 15 meters when installed at 0.8–1.3 meters (set by user)
1 to 13 meters when installed at 0.5 meters (set by user)
|
| Radio communication protocols with Ajax detectors and devices |
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
To prevent radio interference and jamming.
|
| Sensitive Elements |
smoke sensor
heat sensor
|
Protection class |
IP20 |
| Radio signal modulation |
GFSK |
| Radio signal range |
Up to 1,700 m (without obstacles)
Learn more
|
| Power supply |
2 × CR123A battery (pre-installed) |
| Battery life |
Up to 7 years |
| Smoke detection |
Sensitive element
Double-spectrum optical sensor
Recognizes smoke by the size of particles in the air.
Protection from false alarms
Does not react to water vapor.
Patented smoke chamber
Protects the smoke sensor from dust, dirt, and insects. |
| Dangerous detection |
Sensitive element
according to the requirements for Class A1R heat detectors
Requirements of EN 54-5 and BS 5446-2 standards.
High temperature alarm
at temperatures above 64°C
Temperature spike alarmwhen the temperature rises more than 10°C in 1 minute or less
|
| Operating temperature range |
from 0°С to +50°С |
| Operating humidity |
Up to 80% |
| Dimensions |
124 × 124 × 45 mm |
| Weight |
272 g |
Additional features |
In-built siren
Interconnected Fire Detectors Alarms
LED indication
Button on the front panel of the detector
|
| Warranty |
24 months
