Description

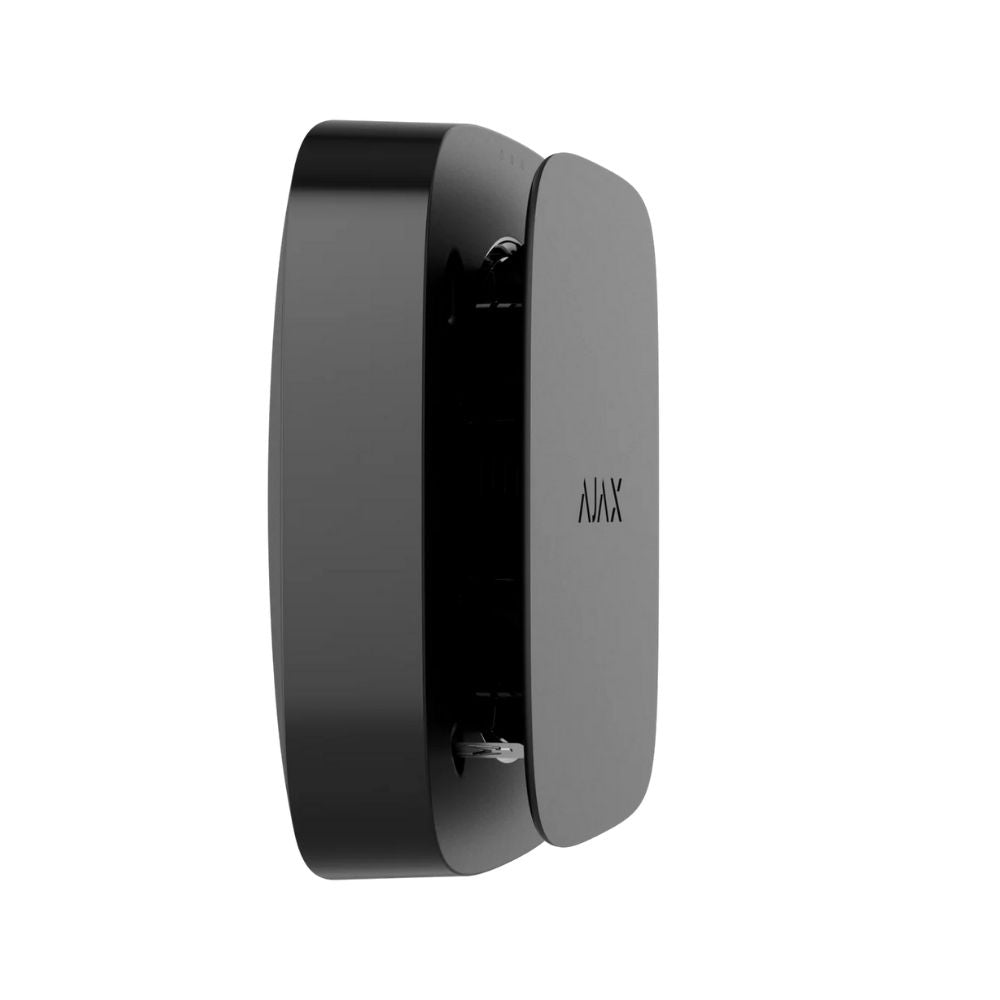

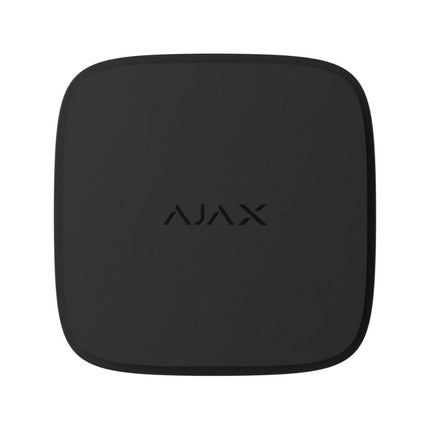

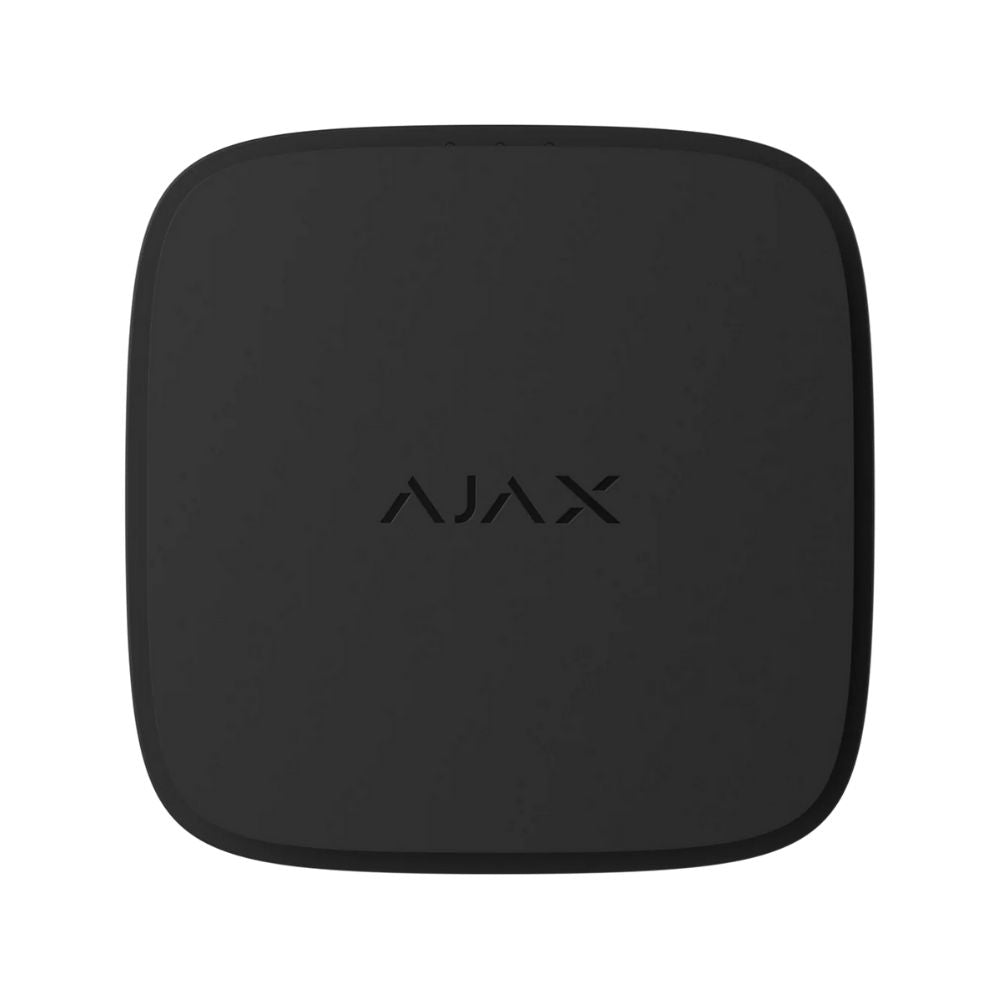

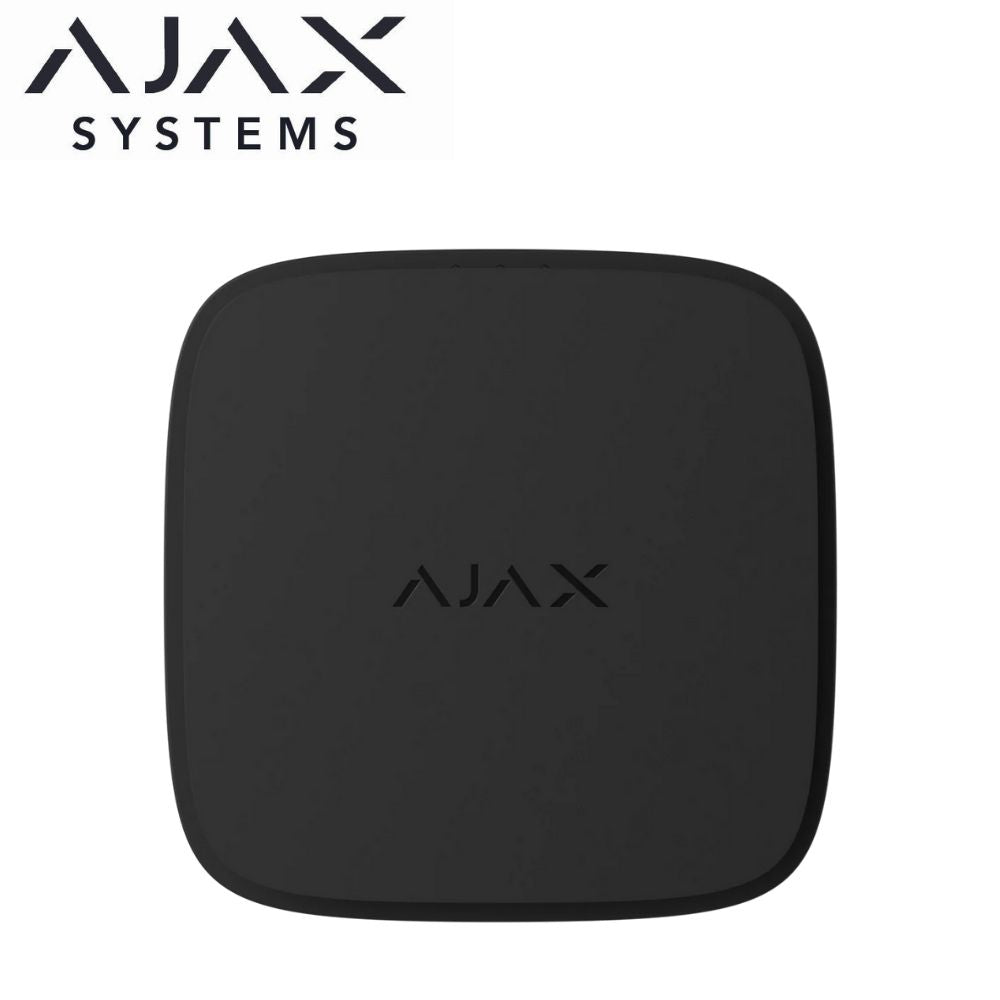

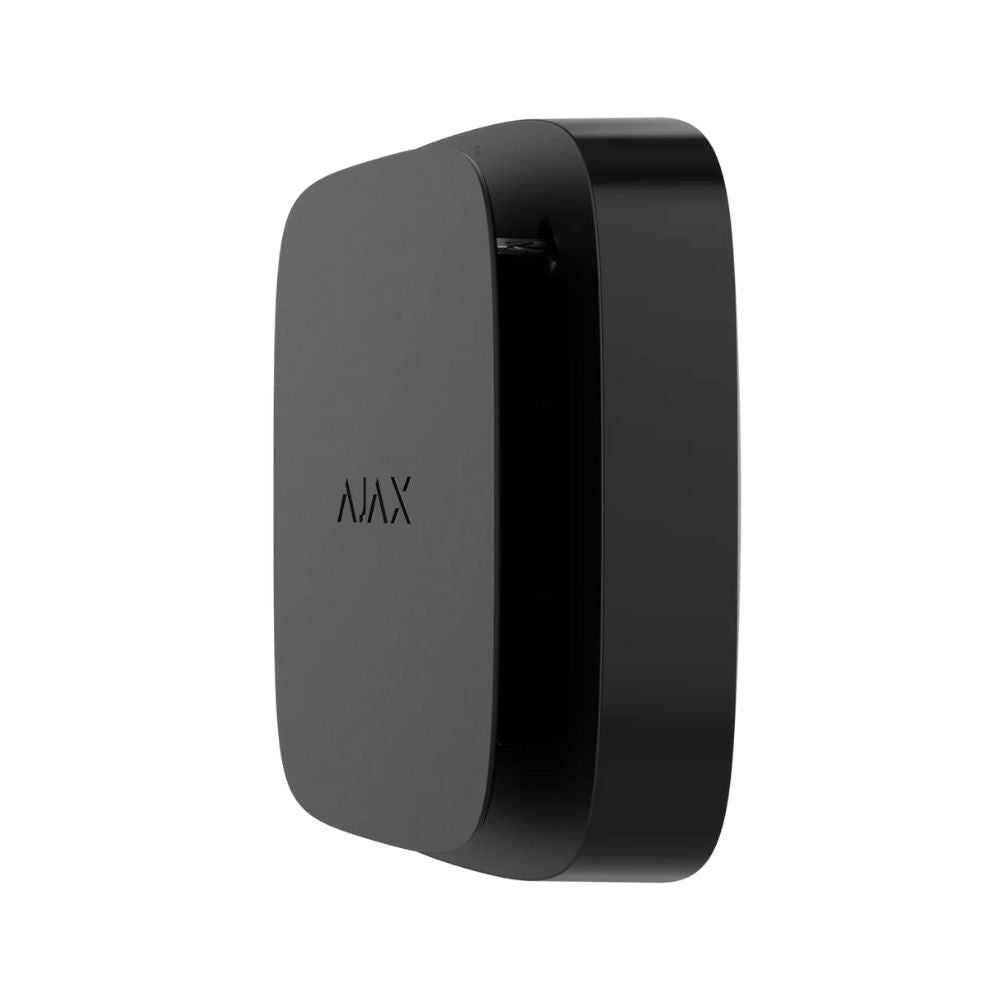

FireProtect 2 (Heat/CO) Jeweller is a wireless fire detector with a built-in siren. Designed for indoor installation. Detects temperature rise, and dangerous CO (carbon monoxide) level. The detector also can work without a hub.
It is available in two modifications: with sealed batteries (has SB in the name) that run 10 years, and with replaceable ones (has RB in the name) that run up to 7 years.
The detector operates as part of the Ajax system, communicating with the hub via the Jeweller secure radio protocol. The hub communication range is up to 1,700 meters without obstacles.
Features
- 85dB built-in buzzer
- Accurate detection of threats
- Smartbracket mounting panel
- Temperature rise and CO (Carbon Monoxide) detection
- Informative in-app notifications
- Dual-spectrum optical sensor
- LED indication of events and alarms
- Interconnected alarm in 20 seconds (wireless)
- Easy to install and configure
- Quick pairing and installation
- Jeweller
Complete Set
- FireProtect 2 SB (Heat/CO) Jeweller

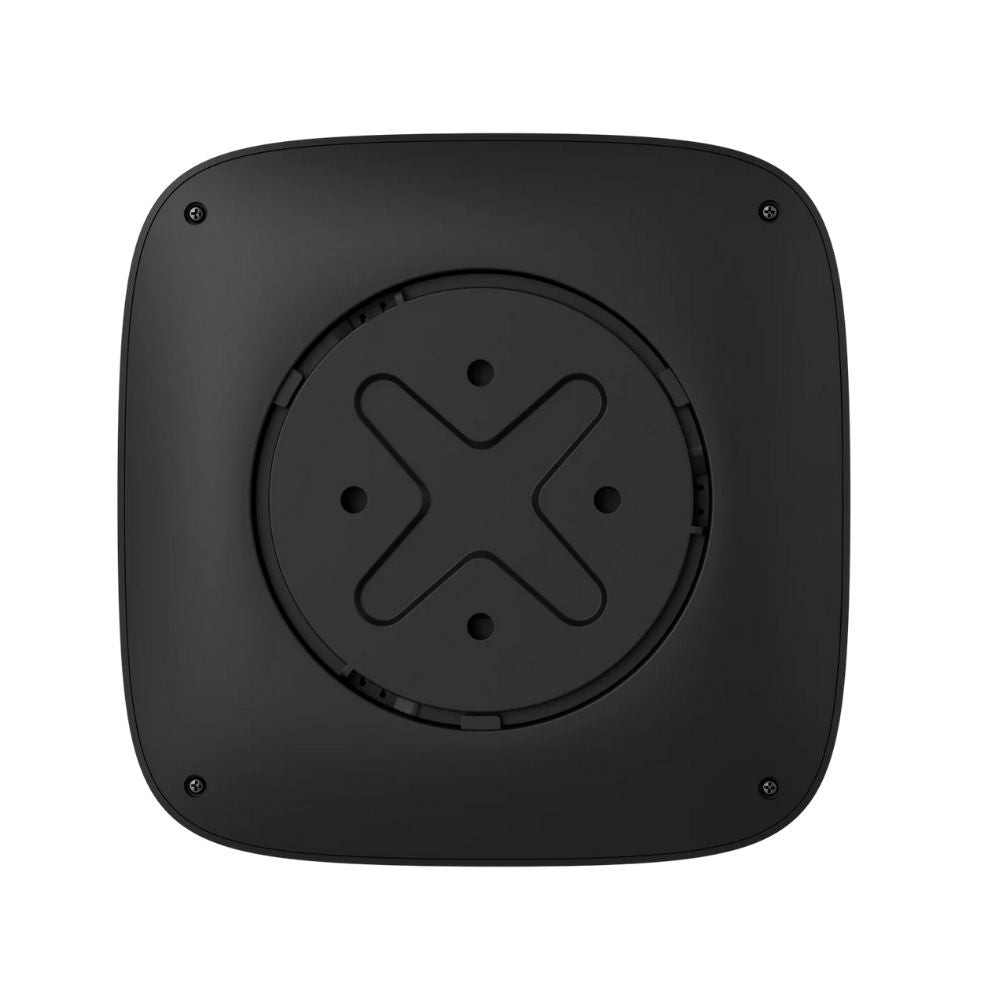

- SmartBracket mounting panel
- Installation kit
- Quick Start Guide
More info about FireProtect 2 (Heat/Smoke) on Ajax website: https://ajax.systems/products/fireprotect-2-heat-co/
Download
Video
Tech specs
| Compatibility |
Hubs
* with firmware version OS Malevich 2.15.4 or higher
Radio signal range extenders
|
| Communication |
Jeweller communication technologyProprietary wireless technology for transmission of alarms and events. Learn more
|
Anti-sabotage protection |
Tampering alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against spoofingdevice authentication
Detection of communication failurewithin 15 minutes
The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweller or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds.
|
| Motion detection distance |
3 to 15 meters when installed at 0.8–1.3 meters (set by user)
1 to 13 meters when installed at 0.5 meters (set by user)
|
| Radio communication protocols with Ajax detectors and devices |
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
To prevent radio interference and jamming.
|
| Sensitive Elements |
heat sensor
CO (carbon monoxide) sensor |
| Radio signal modulation |
GFSK |
| Radio signal range |
Up to 1,700 m (without obstacles)
Learn more
|
| Power supply |
2 non-replaceable lithium batteries |
| Battery life |
10 years of battery life. |
| Smoke detection |
Sensitive element
double-spectrum optical sensor
Recognizes smoke by the size of particles in the air.
Protection from false alarms
Does not react to water vapor.
Patented smoke chamber
Protects the smoke sensor from dust, dirt, and insects. |
| Dangerous detection |
Sensitive element
according to the requirements for Class A1R heat detectors
Requirements of EN 54-5 and BS 5446-2 standards.
High temperature alarm
at temperatures above 64°C
Temperature spike alarm
when the temperature rises more than 10°C in 1 minute or less
|
Carbon monoxide (CO) detection |
Sensitive element
chemical CO sensor
Alarm if accumulated dose of CO is exceeded
more than 50 ppm (0.005%) — no more than in 90 minutes
more than 100 ppm (0.01%) — no more than in 40 minutes
more than 300 ppm (0.03%) — no more than in 3 minutes
CO concentration of 400 ppm (0.04%) within 3 hours can be life-threatening. The detector stops notifying about the dangerous level of carbon monoxide when the concentration drops to 50 ppm (0.005%) within one minute.
|
| Operating temperature range |
from 0°С to +50°С
Operating humidity
Up to 80% |
| Dimensions |
44 × 86 × 86 mm |
| Weight |
145 g |
Additional features |
In-built siren
Interconnected Fire Detectors Alarms
LED indication
Button on the front panel of the detector
|
| Warranty |
24 months
Learn more
|
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SECSOURCE will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@secsource.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
