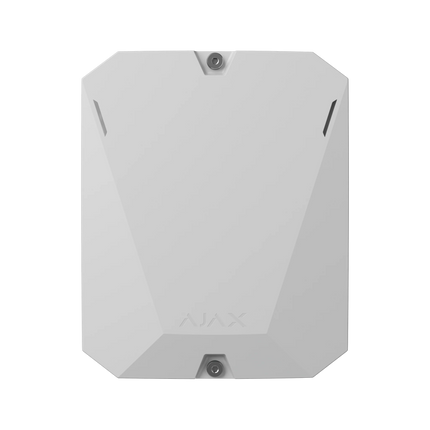

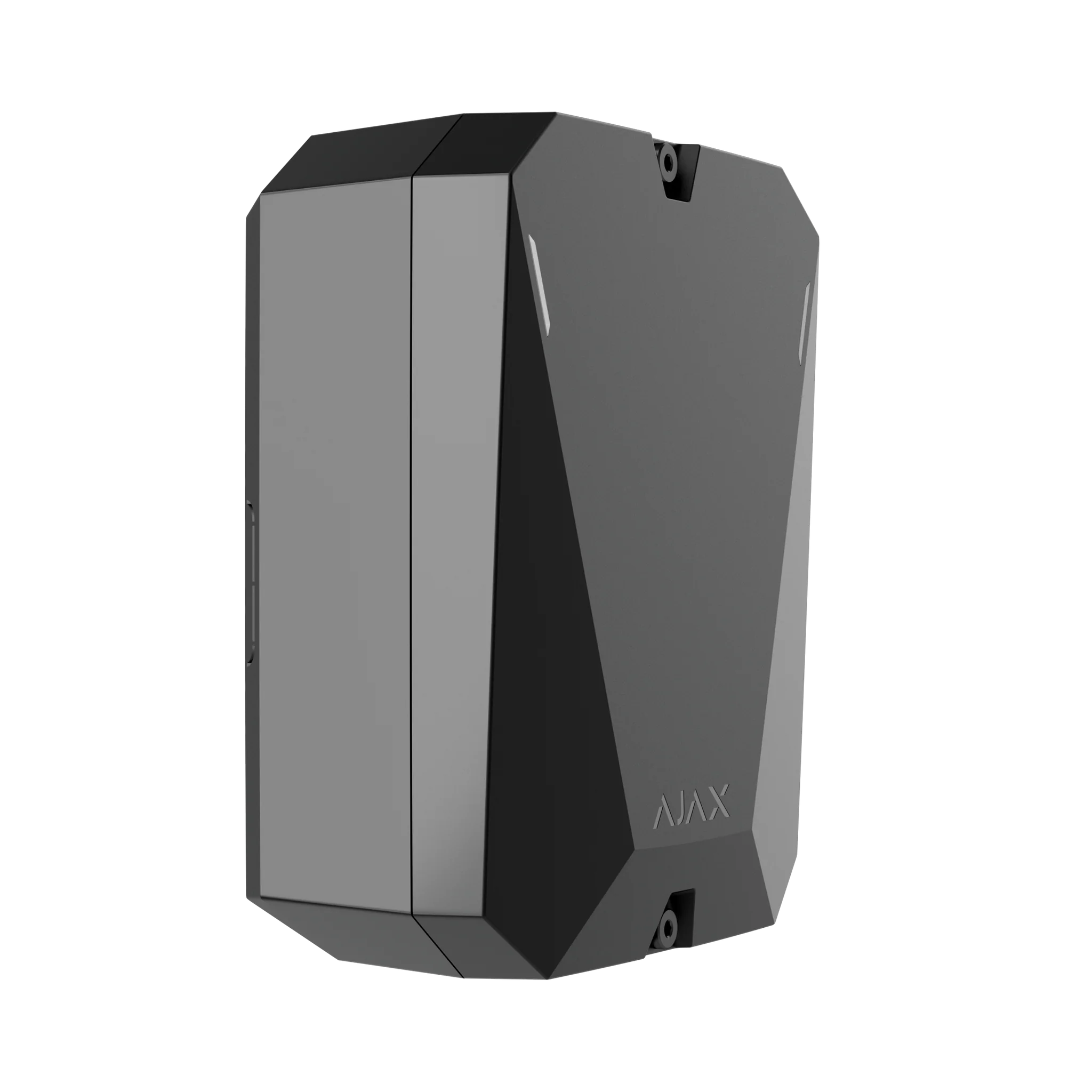

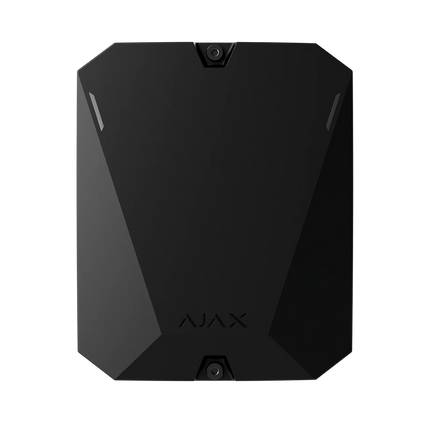

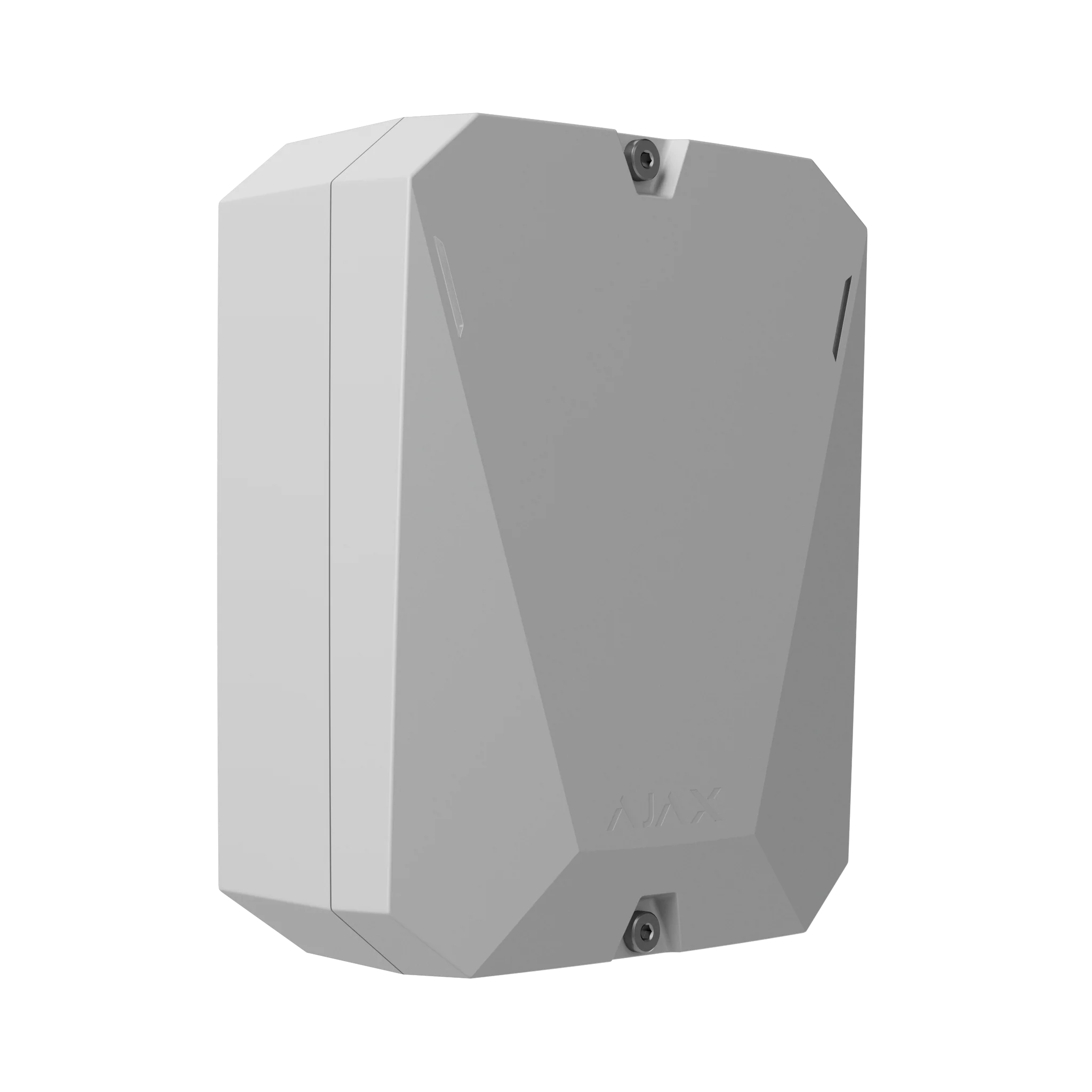

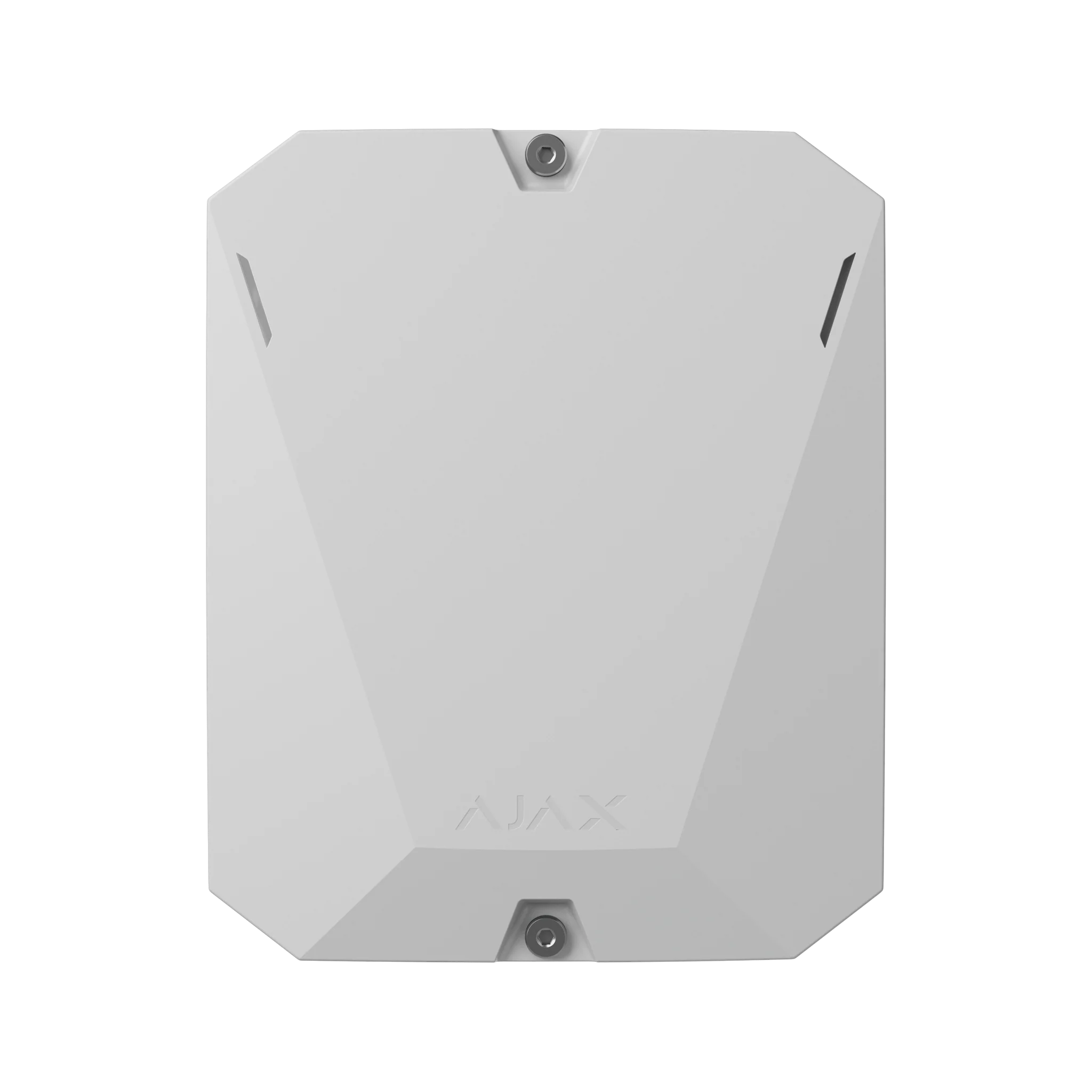

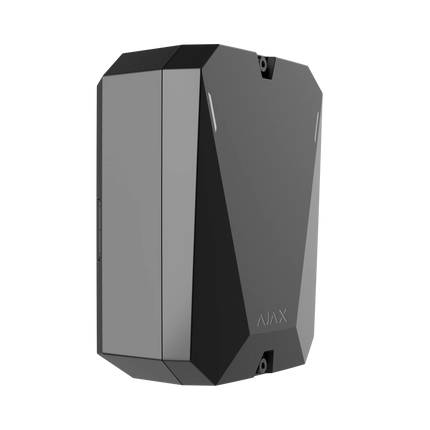

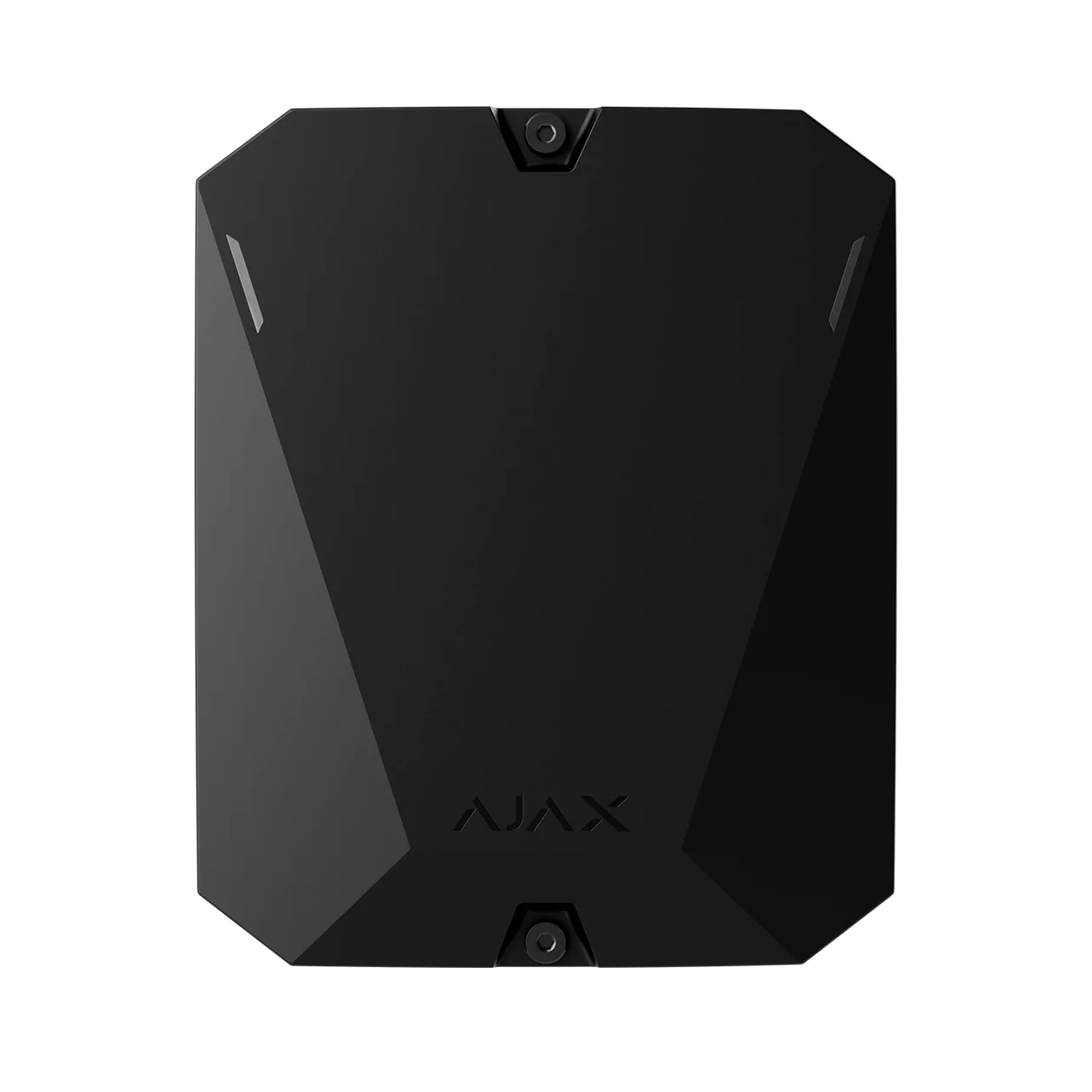

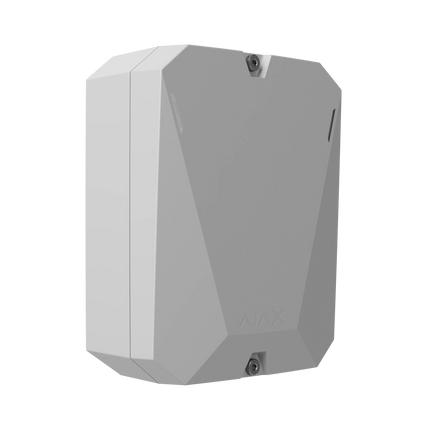

Hub BP Jeweller is a wireless, battery-powered control panel designed for professional security systems. It supports photo verification and ensures reliable communication via dual SIM connectivity (2G/3G/LTE), making it suitable for remote and автономous installations.
With advanced wireless technologies, extended device compatibility, and long автономous operation, Hub BP Jeweller provides a flexible and secure foundation for large-scale intrusion protection systems.
Features
- Supports up to 100 Ajax devices
- Up to 224 cameras via Ajax NVR and 492 standalone cameras
- Dual SIM connectivity (2G / 3G / LTE)
- Photo verification: by alarm, scenario, schedule, and on demand
- Up to 32 automation scenarios
- Supports up to 50 users and 9 security groups
- Event log capacity up to 1,000 events
- Jeweller and Wings encrypted wireless communication technologies
- Up to 2,000 m communication range (open space)
- Advanced anti-sabotage and jamming protection
- Battery-saving mode for extended автономous operation
- Supports external and internal battery configurations
Complete Set
- Hub BP Jeweller

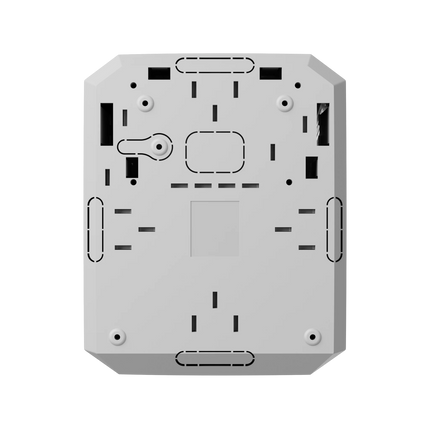

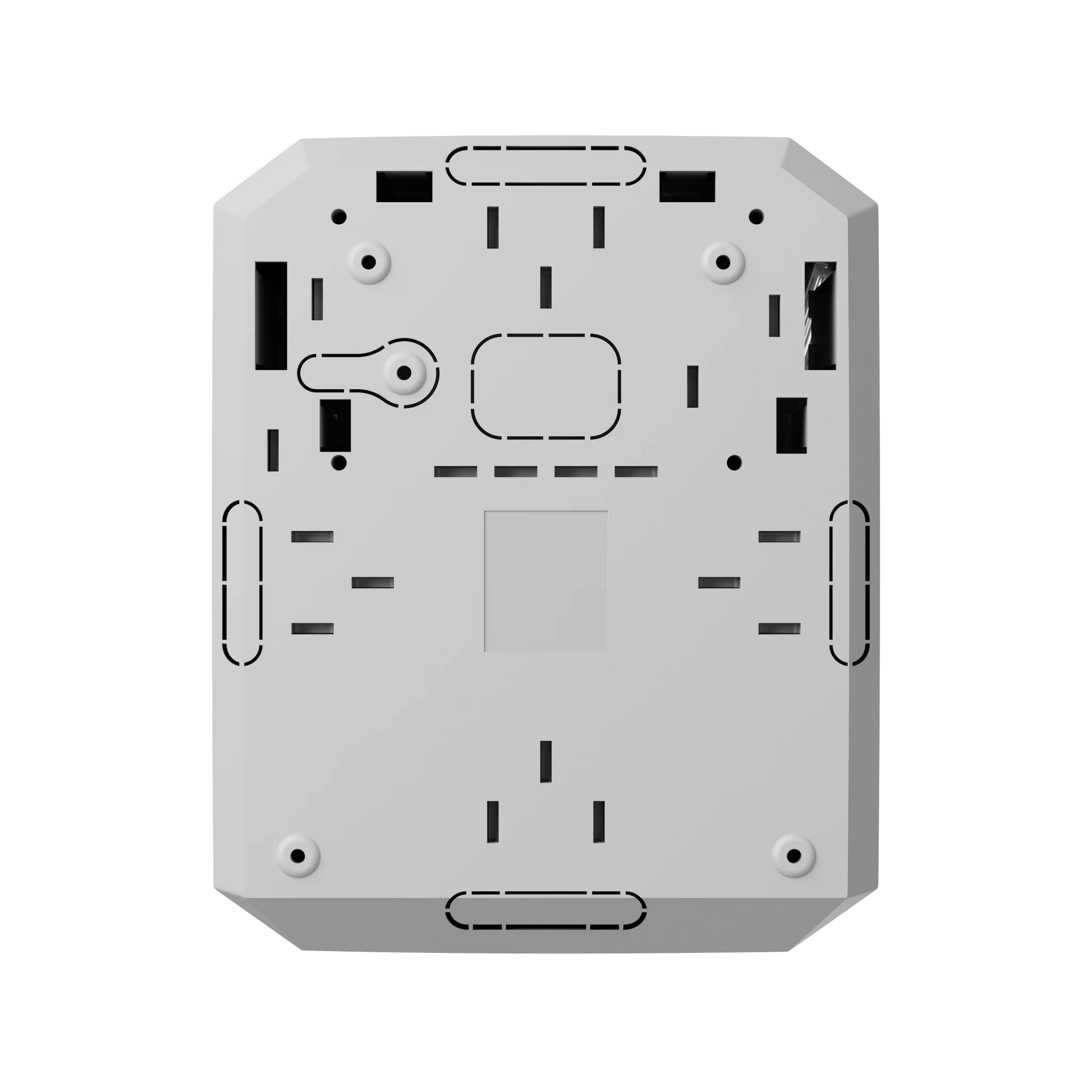

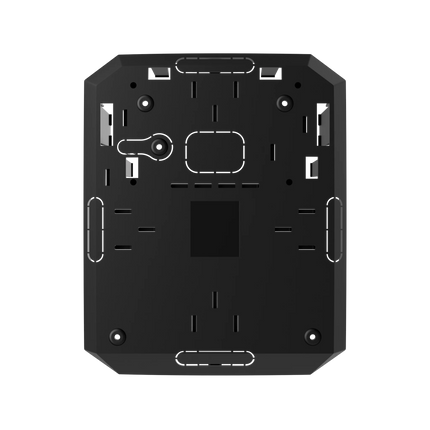

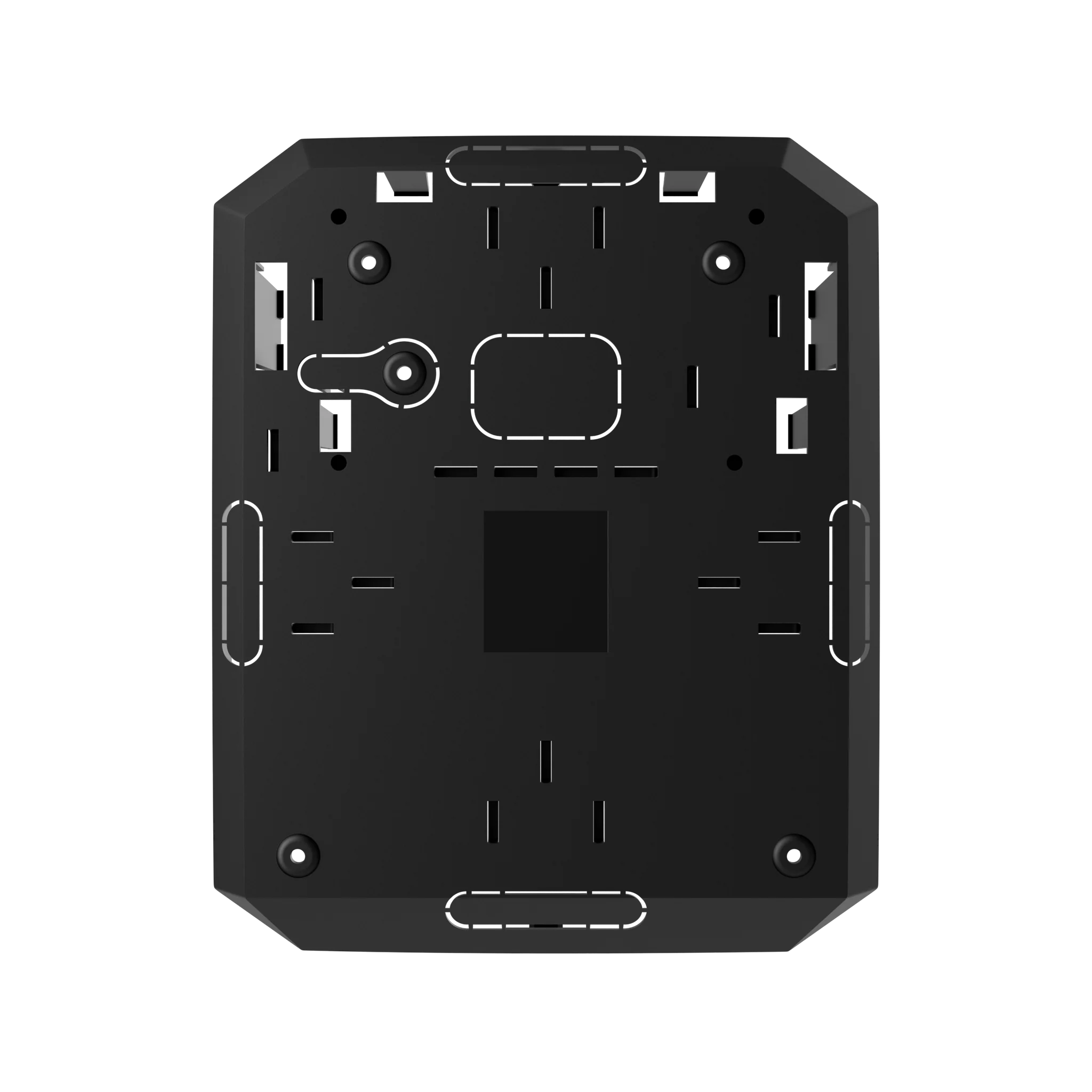

- Casing
- Installation kit
- Quick start guide
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
Tech Specs
| Device Type |
Wireless battery-powered control panel |
| Device Compatibility |
Up to 100 Ajax devices
Up to 5 range extenders
Up to 10 sirens
Up to 50 keypads
Up to 36 Ajax NVRs
Up to 224 cameras via NVR / 492 standalone
Up to 10 third-party cameras (RTSP) / 224 via ONVIF |
| Users |
Up to 50 users (including admin and PRO accounts) |
| Automation Scenarios |
Up to 32 scenarios (alarm, schedule, arming/disarming, environmental triggers, Button, LightSwitch) |
| Security Groups |
Up to 9 |
| Rooms |
Up to 50 |
| Event Log |
Up to 1,000 events (stored in onboard flash memory) |
| Communication Technologies |
Jeweller (commands, alarms, events)
Wings (photo transmission) |
| Frequency Bands |
866–866.5 MHz / 868–868.6 MHz / 868.7–869.2 MHz (region-dependent) |
| Radio Range |
Up to 2,000 m (open space) |
| Radio Signal Modulation |
GFSK |
| Max Radiated Power |
Up to 25 mW |
| Polling Interval |
12–300 seconds (configurable) |
| Encryption |
Block encryption with dynamic key |
| Communication Channels |
2 × micro SIM (cellular) |
| Cellular Bands |
2G: GSM900 / DCS1800
3G: WCDMA 850 / 900 / 2100
4G LTE: B1 / B3 / B5 / B7 / B8 / B20 |
| SIM Switching |
Automatic switching between SIM cards (up to 4 minutes) |
| Notification Types |
Push notifications, SMS, calls |
| Event Types |
Alarms, video detections, malfunctions, system events, automation events |
| Photo Verification |
By alarm, scenario, schedule, on demand, arming/disarming, anti-masking, tamper, magnetometer |
| Photo Resolution |
Up to 960 × 720 |
| Photo Delivery Time |
Up to 9 seconds |
| Supported Protocols |
SIA DC-09, Contact ID (SurGard), ADEMCO 685, proprietary protocols |
| Power Supply |
External: 4.2–16 V, up to 2 A
Internal: 4.2–16 V, up to 2 A |
| Operating Voltage Range |
3.5–16 V |
| Autonomous Operation |
Up to 18 months (external battery)
More than 5 years (battery-saving mode, external)
Up to 23 months (internal battery, saving mode)
Up to 8 months (LiFePO4 battery)
Up to 2 months (lead-acid battery) |
| Sabotage Protection |
Tamper alarm, anti-spoofing, jamming detection, frequency hopping |
| Alarm Transmission Category |
SP5 |
| Signaling Security |
S2 |
| Information Security |
I2 |
| Dimensions |
196 × 238 × 100 mm |
| Weight |
1.01 kg |
| Operating Temperature |
−10 °C to +40 °C |
| Operating Humidity |
Up to 75% |
| Protection Class |
IP40 |
| Available Colors |
Black, White |
