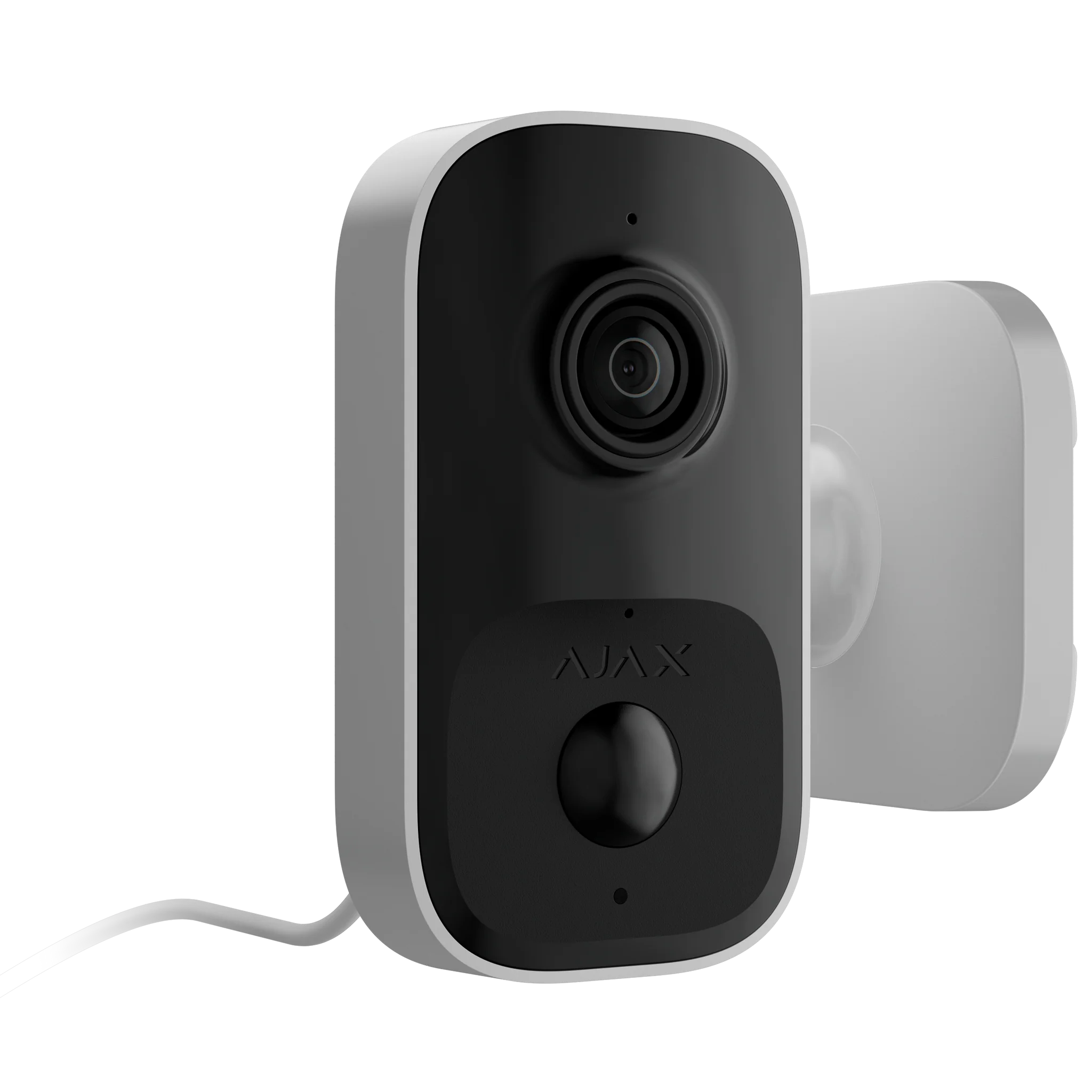

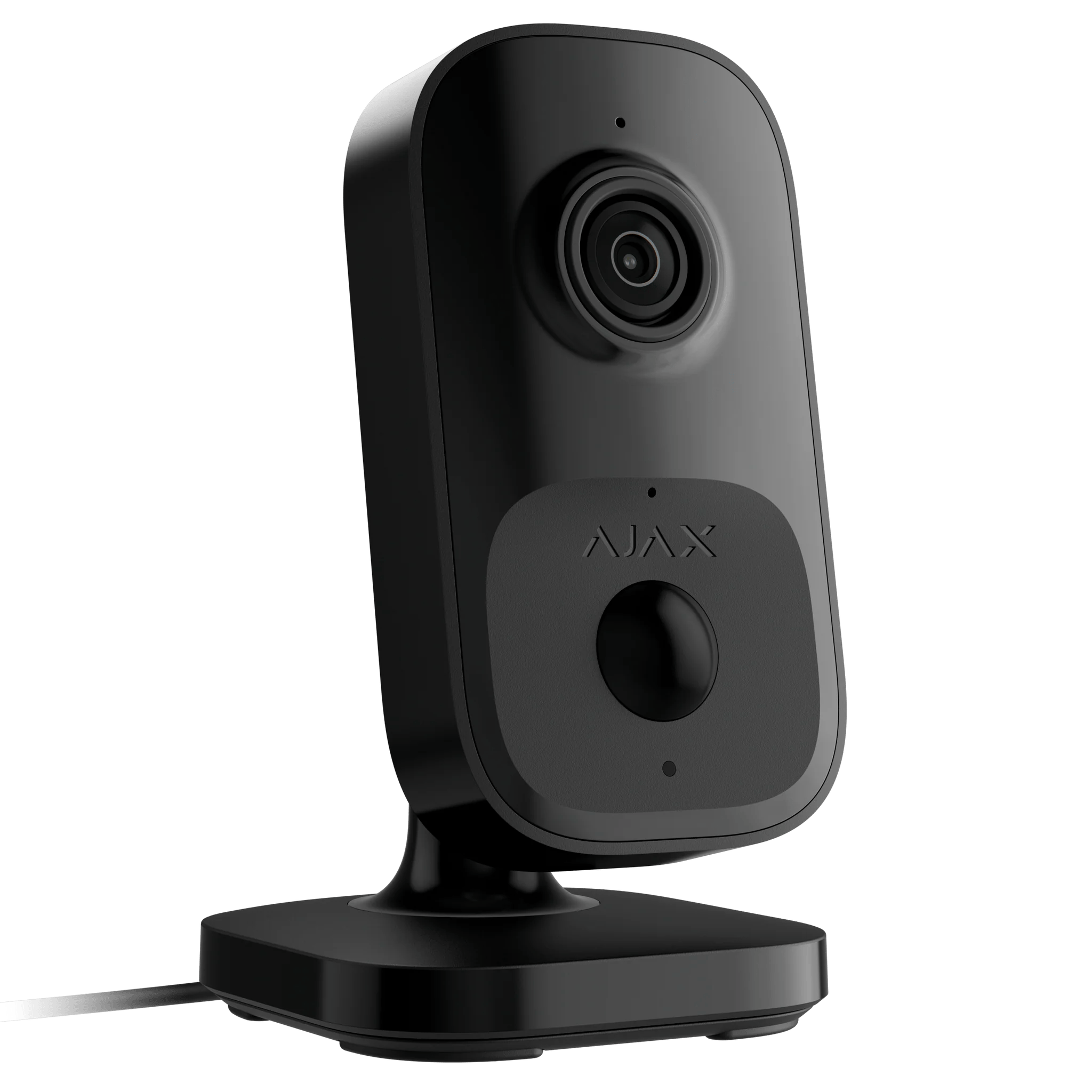

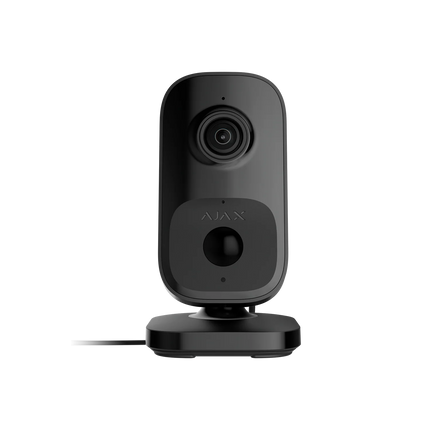

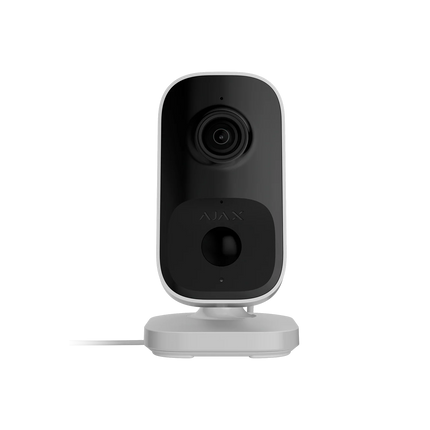

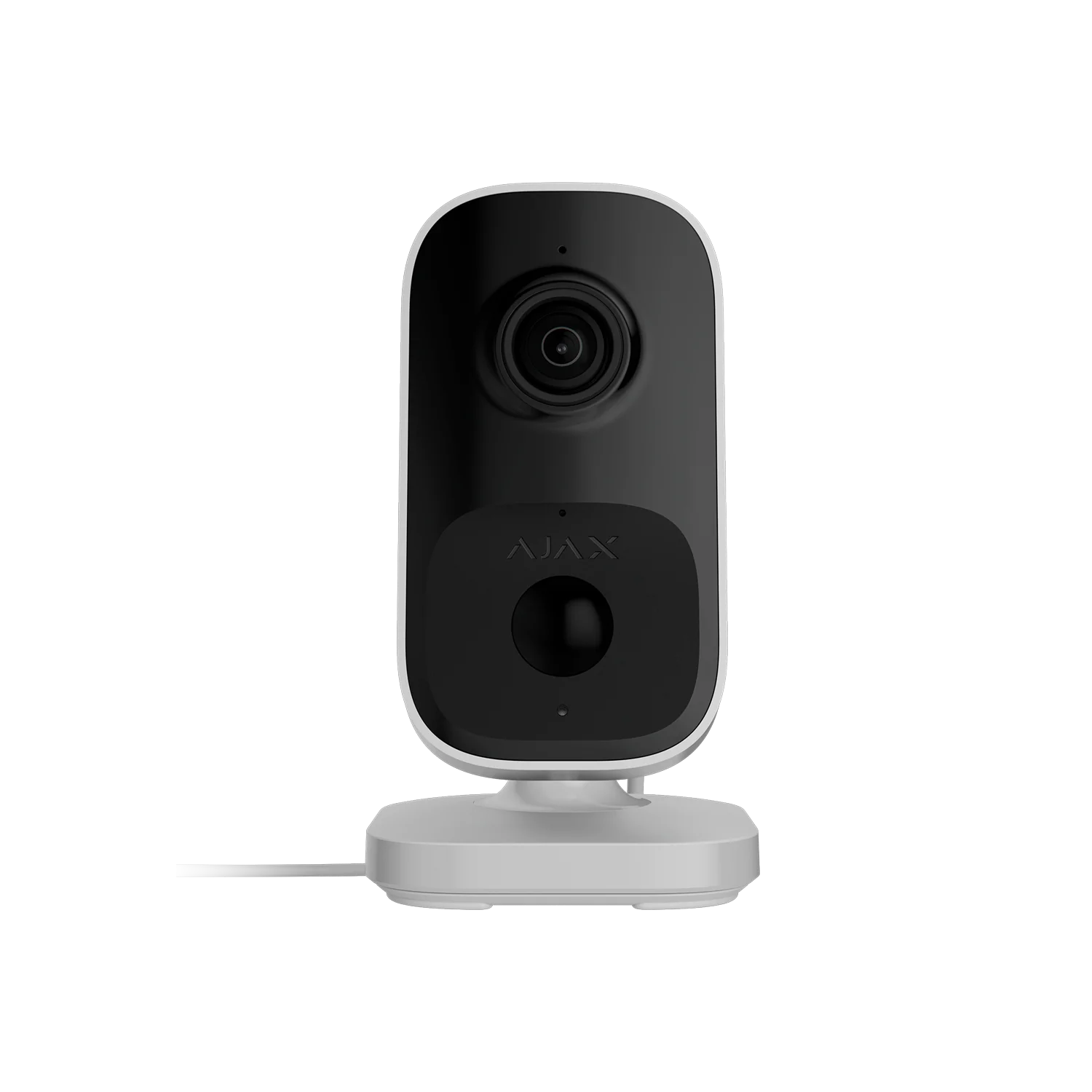

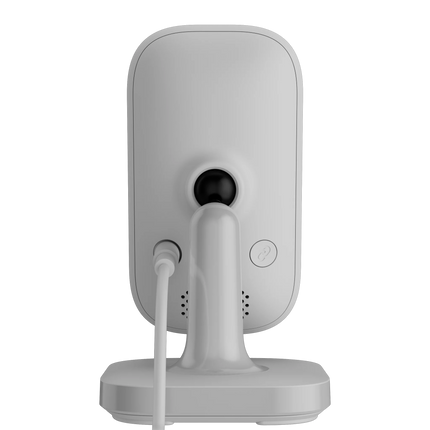

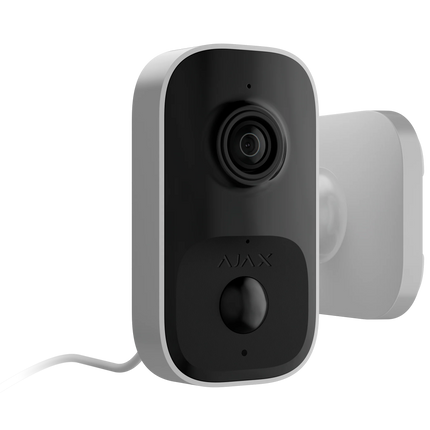

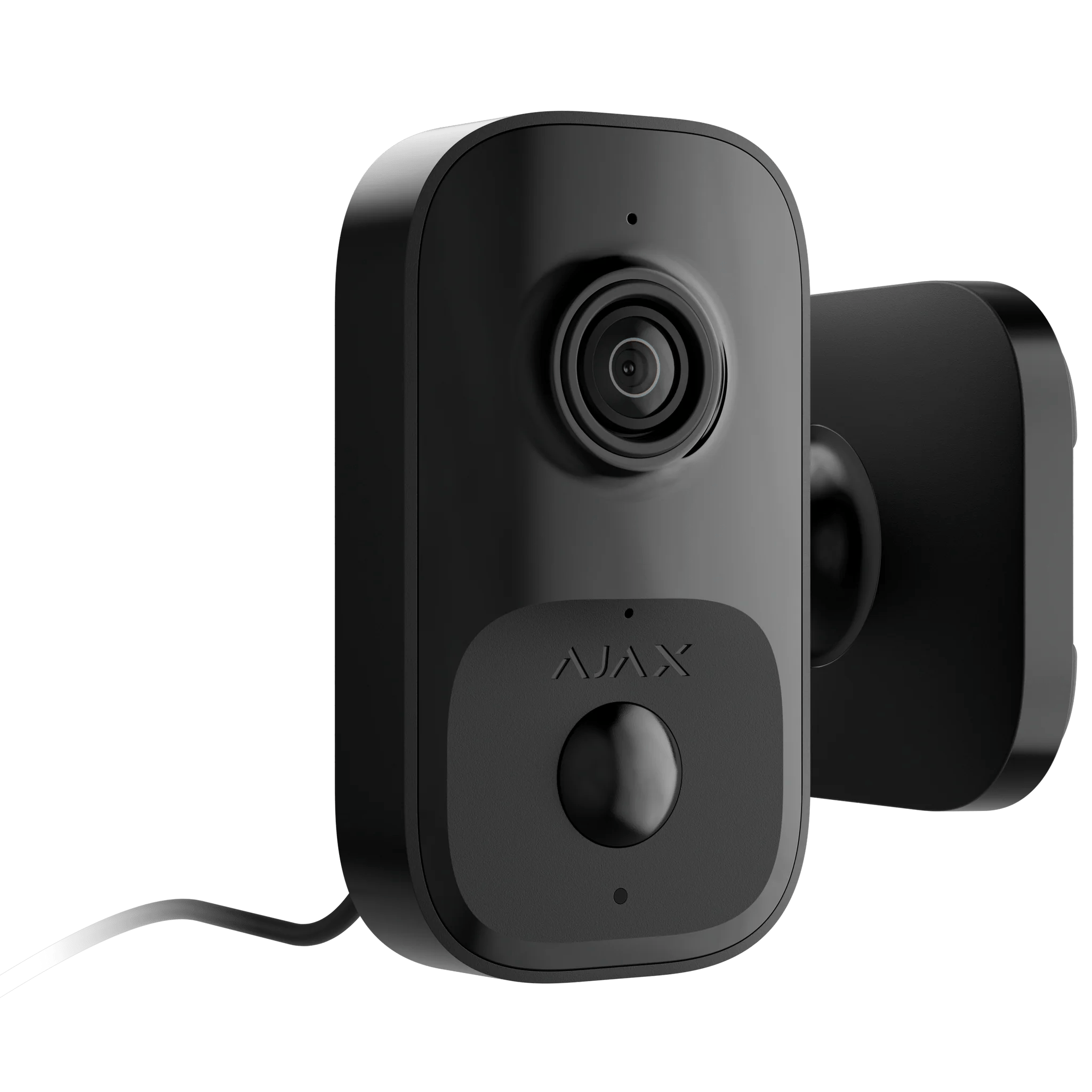

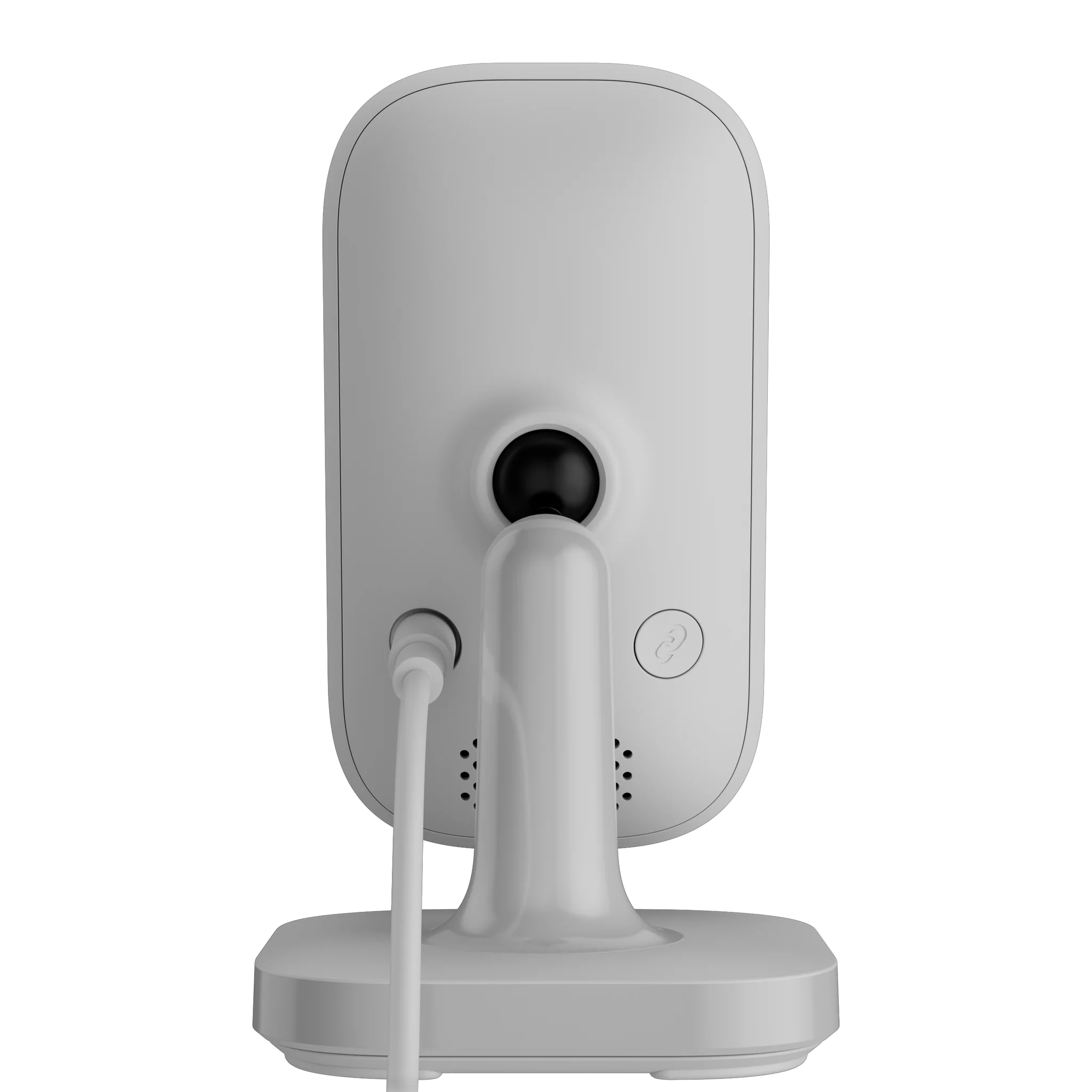

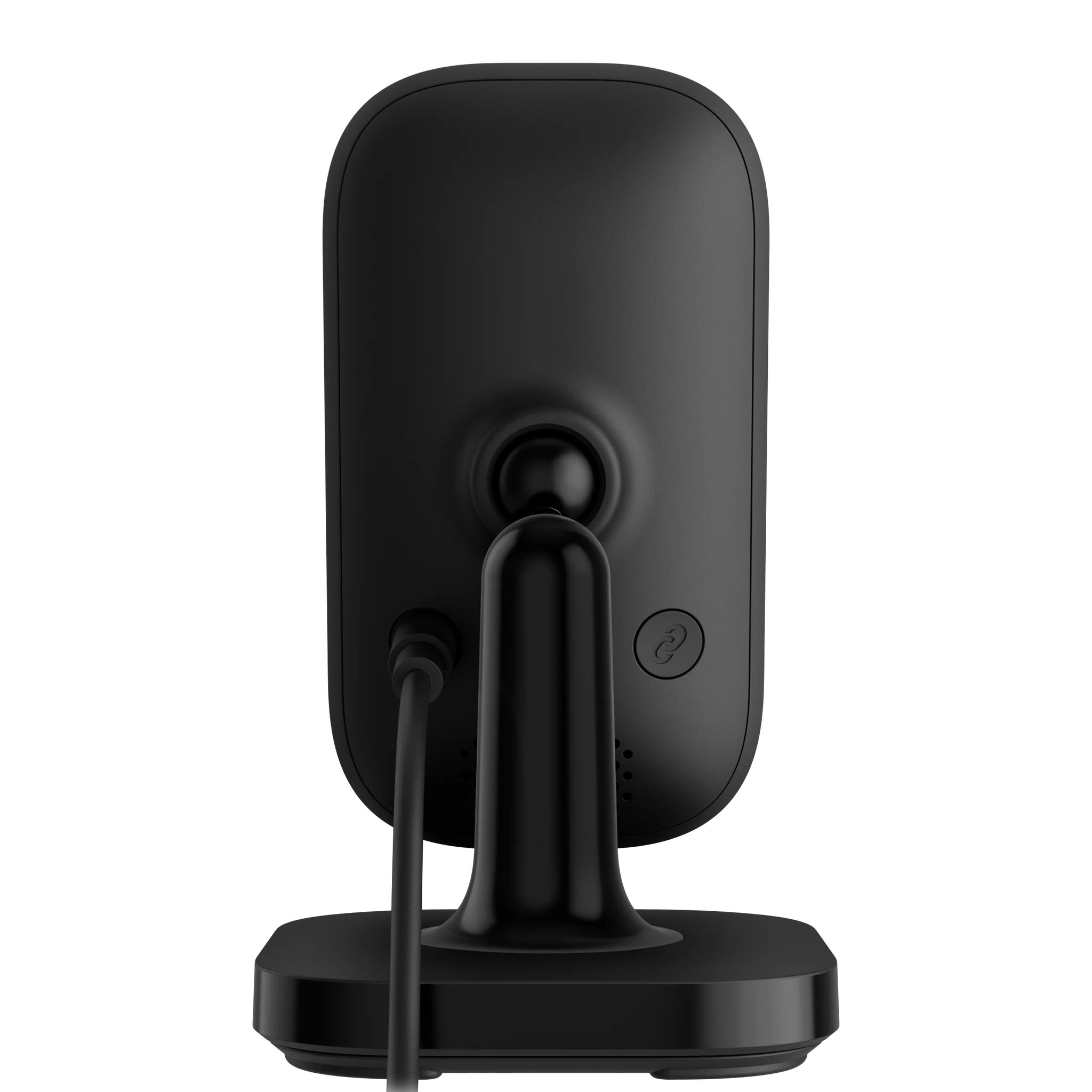

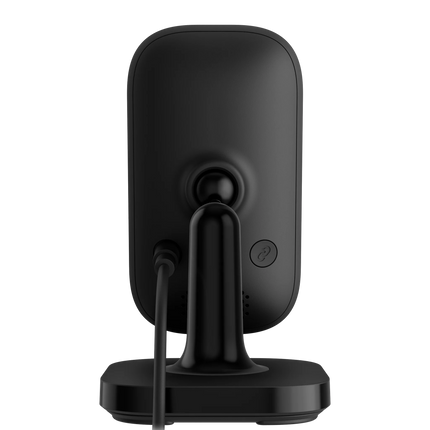

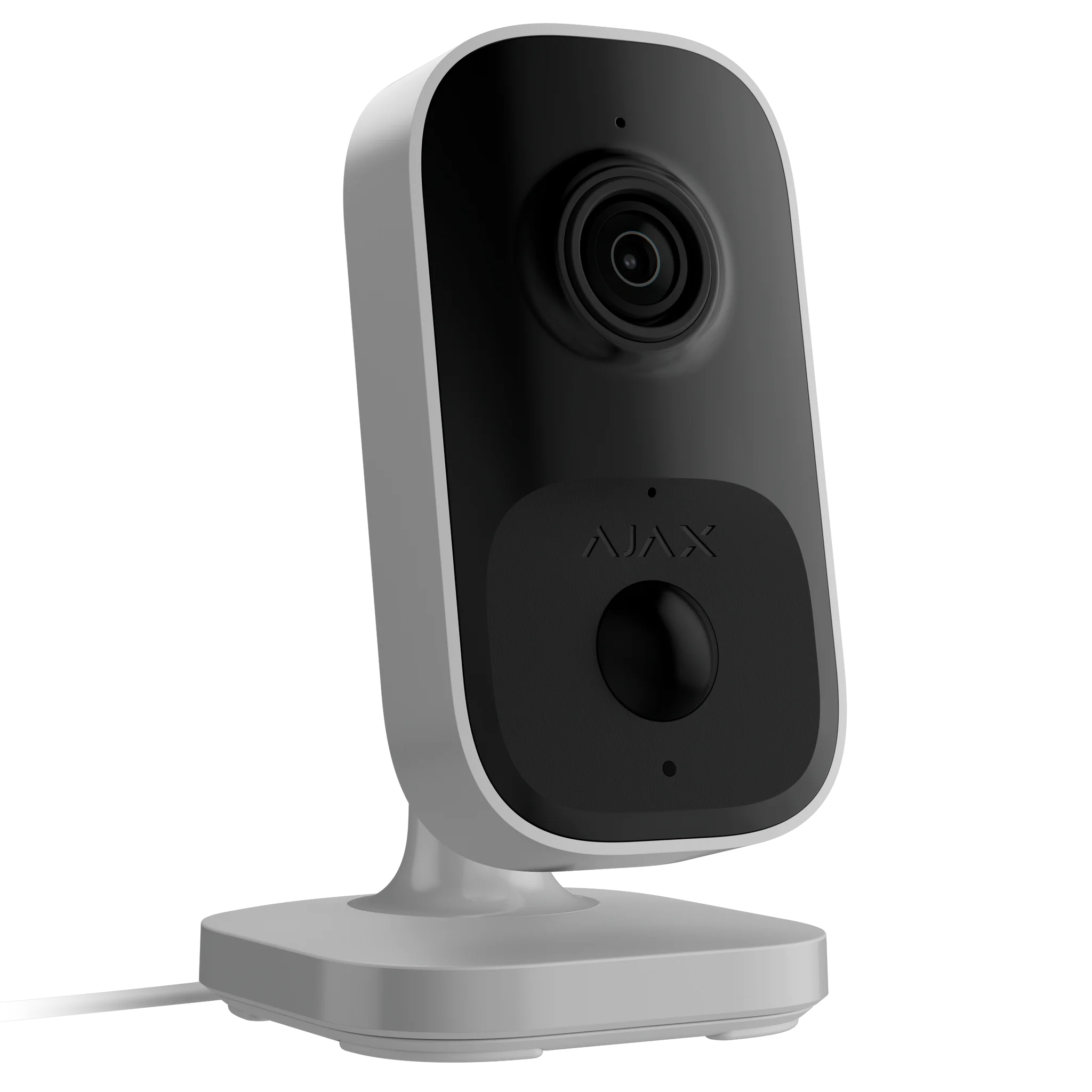

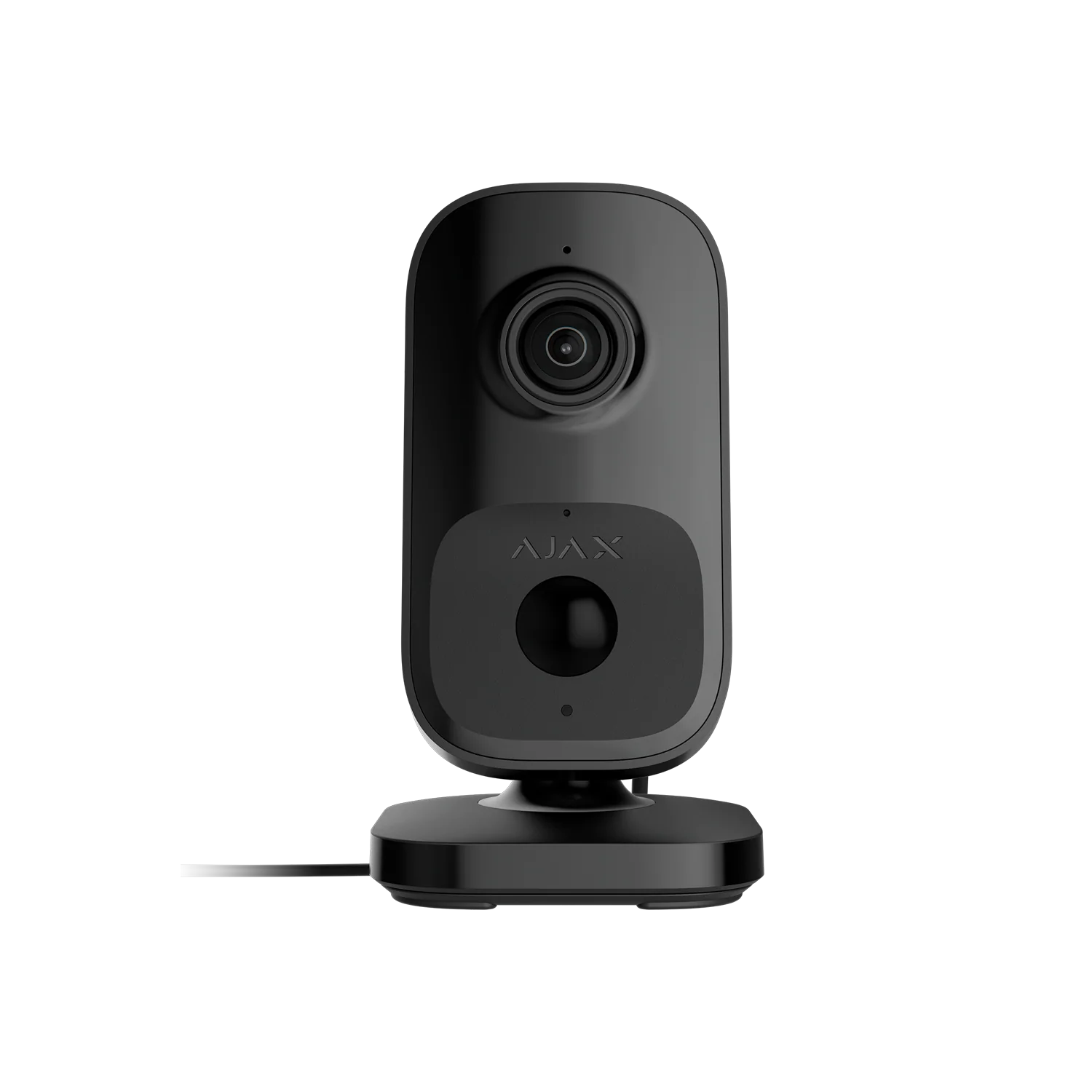

IndoorCam is a smart indoor Wi-Fi security camera equipped with a built-in PIR motion sensor and AI-powered object detection. Designed for modern home and office surveillance, the device provides clear 2K video monitoring with reliable wireless connectivity.
The camera supports encrypted video streaming via Ajax’s JetSparrow protocol and integrates seamlessly with Ajax security systems. With smart IR illumination, motion detection, and two-way audio communication, IndoorCam allows users to monitor their property in real time and respond instantly to security events.
Features
- 4 MP CMOS sensor with up to 2688 × 1520 video resolution
- 110° horizontal and 60° vertical viewing angle
- JetSparrow encrypted peer-to-peer video protocol
- Built-in PIR motion sensor with up to 4 m detection distance
- AI object detection for people, pets, and vehicles
- Two-way audio communication with built-in microphone and speaker
- Smart IR illumination up to 8 m with automatic intensity adjustment
- HDR dynamic range for improved detail in bright and dark scenes
- Wi-Fi 802.11 b/g/n communication (2.4 GHz)
- Backup communication via Jeweller and Wings technologies
- Noise suppression and echo cancellation for clear audio
- Secure firmware updates with OTA signature verification
- Secure boot and encrypted cloud authentication
- LED status indication for device operation
- Indoor installation with IP20 enclosure protection
Complete Set
- IndoorCam
- Power supply unit
- Installation kit
- Quick start guide
Download
Tech Specs
| Camera Type |
Indoor Wi-Fi security camera with PIR motion sensor and AI detection |
| Image Sensor |
4 MP CMOS |
| Maximum Resolution |
Up to 2688 × 1520 px |
| Field of View |
Horizontal: 110° / Vertical: 60° |
| Video Protocol |
JetSparrow encrypted peer-to-peer video protocol |
| Video Codec |
H.264 |
| Dynamic Range |
HDR |
| Storage Options |
Ajax Cloud (coming soon), Ajax NVR |
| Communication |
Wi-Fi 802.11 b/g/n (2.4 GHz)
Backup communication via Jeweller and Wings technologies |
| Motion Detection |
Built-in PIR sensor with software image frame analysis
Detection distance: up to 4 m |
| PIR Sensor |
1 × PIR sensor with 3 adjustable sensitivity levels |
| AI Object Detection |
People, Pets, Vehicles |
| IR Illumination |
Smart IR illumination up to 8 m with automatic intensity adjustment |
| Audio |
Built-in microphone and speaker for two-way communication |
| Audio Codec |
G722 |
| Audio Processing |
Noise suppression and echo cancellation |
| LED Indicator |
Status indication of device operation |
| Security Features |
mTLS encrypted connection
Authentication via Ajax Cloud
Secure Boot protection
OTA firmware signature verification |
| Communication Loss Detection |
Wi-Fi: configurable from 30 s
Jeweller/Wings: after 36 s |
| Power Supply |
12 V⎓ ±20%, 1 A power adapter |
| Power Consumption |
TBC |
| Dimensions |
128 × 74 × 76 mm |
| Weight |
235 g |
| Operating Temperature |
0 °C to +40 °C |
| Operating Humidity |
Up to 90% (non-condensing) |
| Protection Class |
IP20 |
| Available Colors |
Black (RAL 9005), White (RAL 9003) |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
