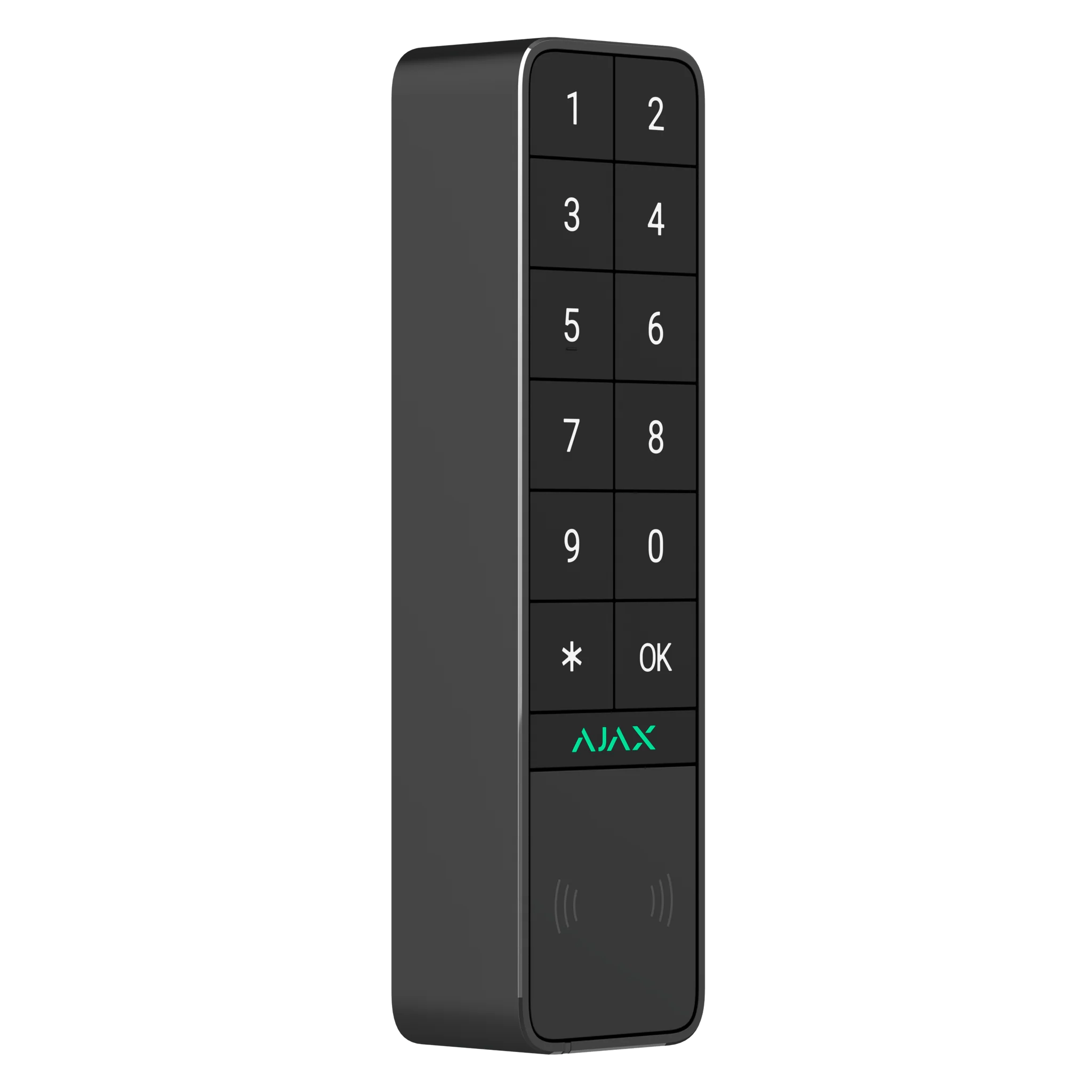

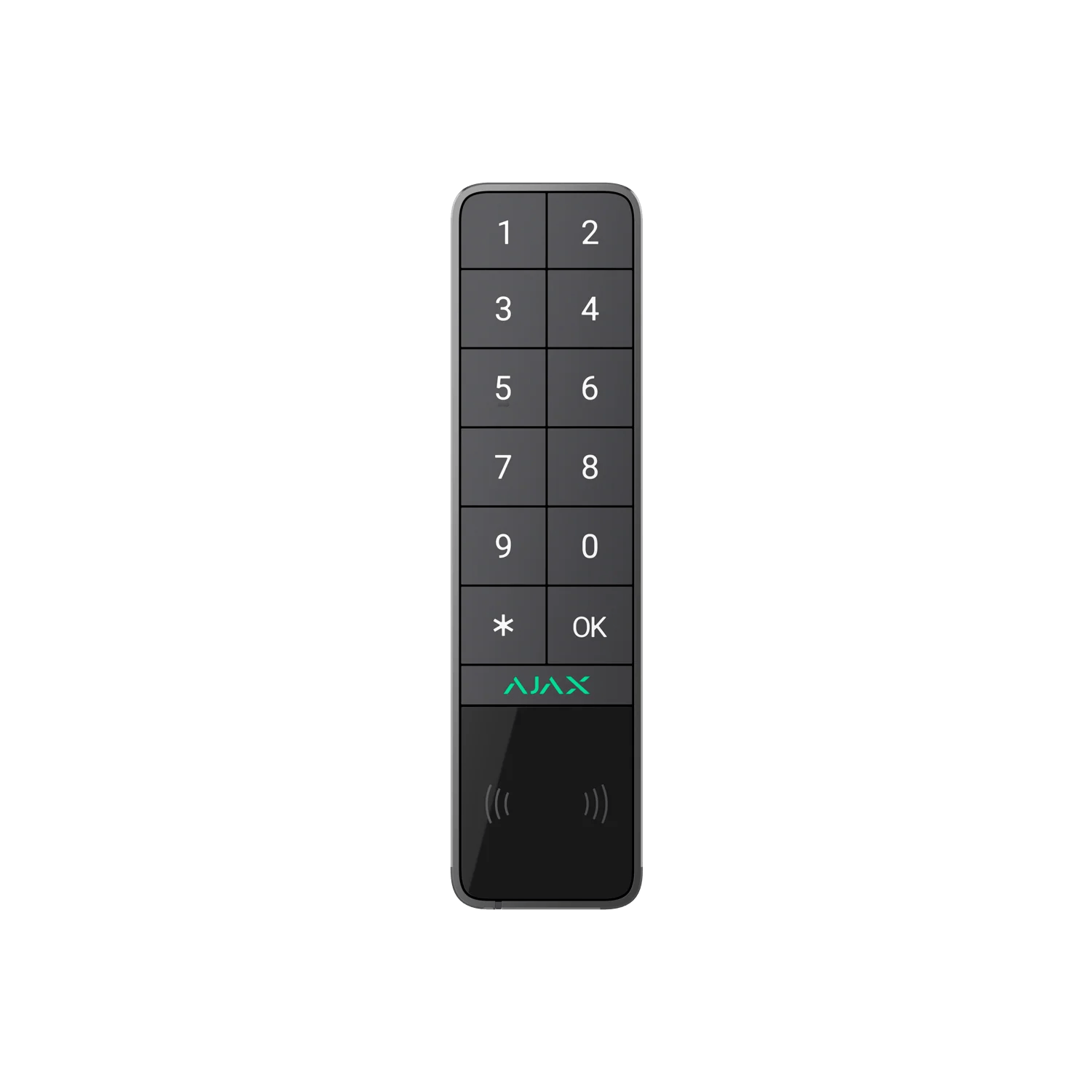

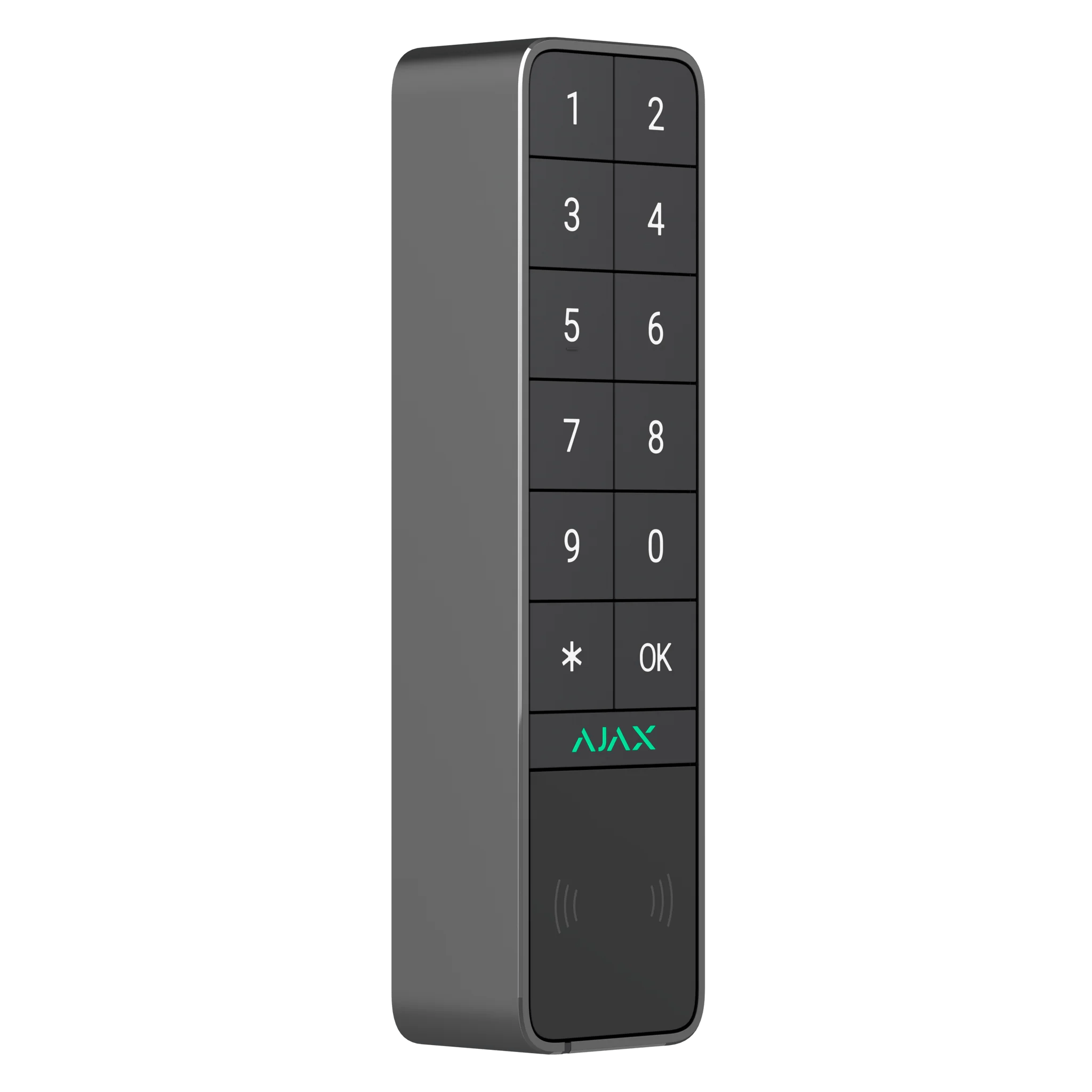

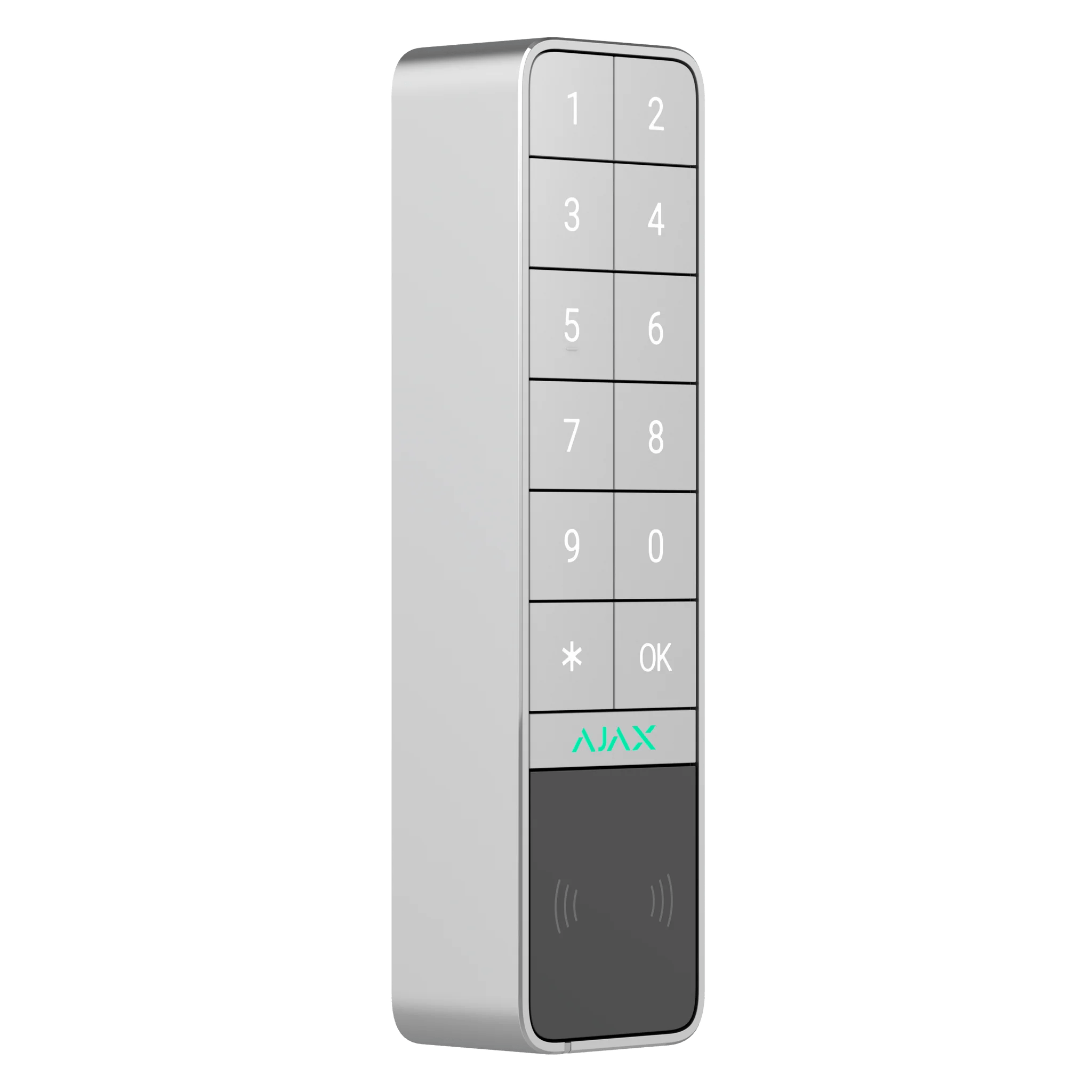

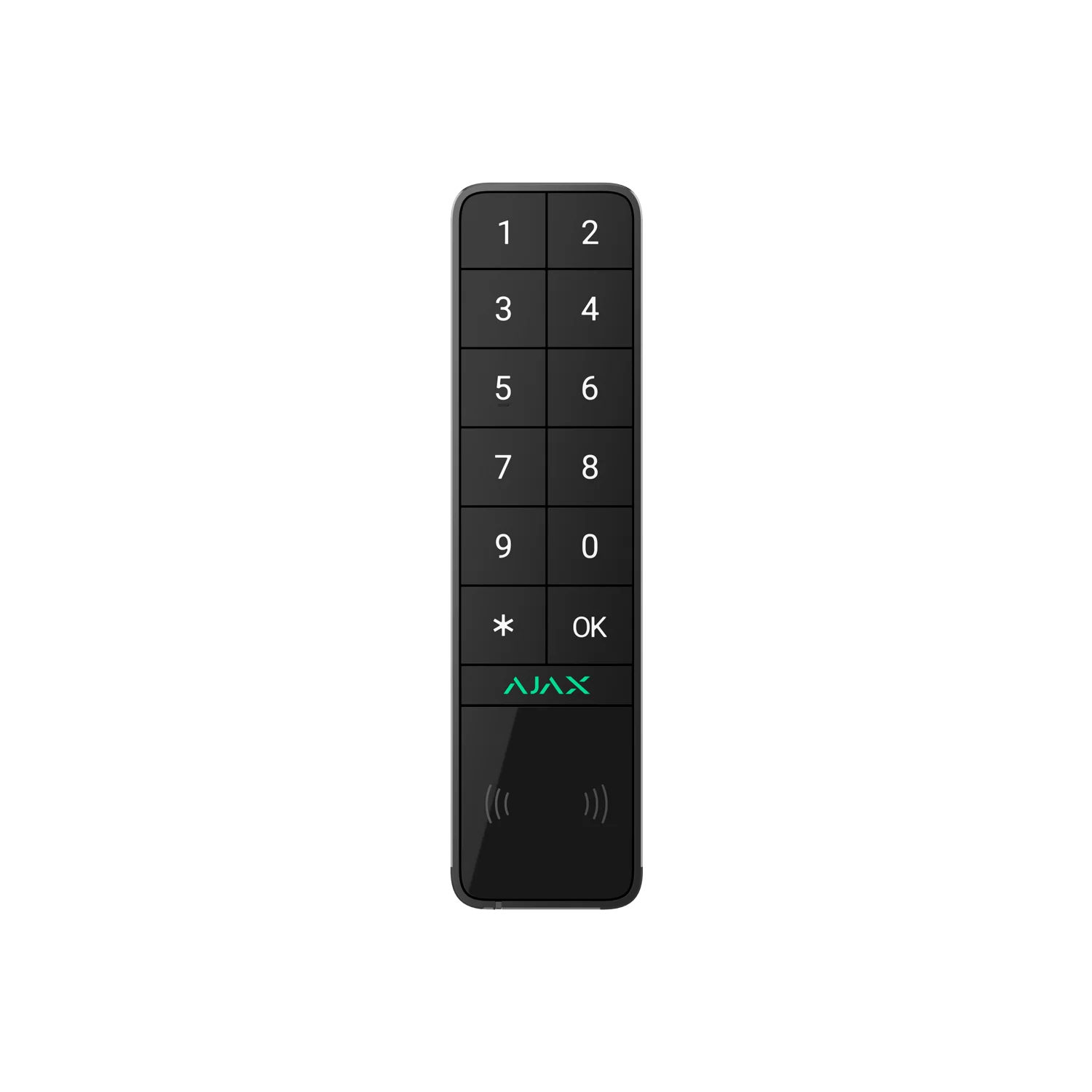

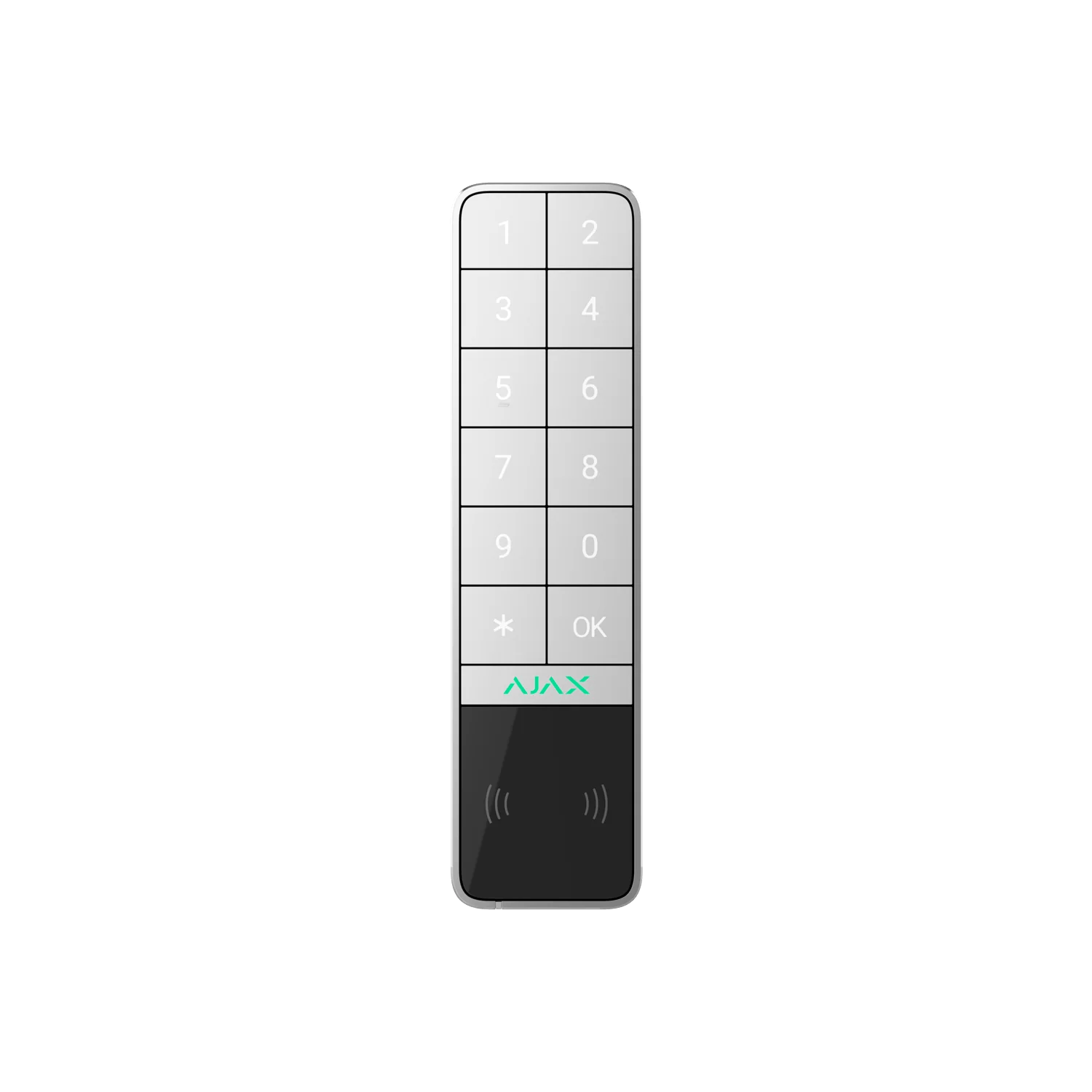

KeyPad Outdoor Jeweller is a wireless keypad designed for outdoor and indoor use. It supports authentication via Pass cards, Tag key fobs, smartphones, and access codes. The device allows users to arm or disarm the security system, manage automation devices, and trigger alarms while providing secure encrypted communication with Ajax hubs.
Features
- Wireless keypad using Jeweller communication technology
- Supports authentication via Pass cards, Tag key fobs, smartphones (Bluetooth), and access codes
- Allows arming and disarming of security systems
- Supports automation device control and scenario activation
- Function button configurable for panic alarm or fire alarm mute
- Two-factor authentication support
- LED indicators and buzzer for system status and alerts
- Unauthorized access auto-lock after multiple incorrect attempts
- Designed for both outdoor and indoor installation
- IP66 weather protection rating
Tech Specs
| Product Name |
KeyPad Outdoor Jeweller |
| Communication Technology |
Jeweller proprietary wireless communication |
| Frequency Bands |
866–866.5 MHz / 868–868.6 MHz / 868.7–869.2 MHz / 905–926.5 MHz / 915.85–926.5 MHz / 921–922 MHz (depends on region) |
| Radio Communication Range |
Up to 1,700 m in open space |
| Radio Signal Modulation |
GFSK |
| Maximum Radiated Power |
Up to 20 mW |
| Authentication Methods |
Access codes, Pass cards, Tag key fobs, smartphone via Bluetooth |
| Contactless Technology |
DESFire® EV1, EV2, EV3 / ISO 14443-A (13.56 MHz) |
| Battery |
2 × CR123A (pre-installed) |
| Battery Life |
Up to 3 years |
| Optional External Power |
10.5–14 V⎓, up to 1 A |
| Dimensions |
170 × 45 × 31 mm |
| Weight |
258 g |
| Operating Temperature |
−25 °C to +60 °C |
| Operating Humidity |
Up to 80% |
| Protection Class |
IP66 / IK08 |

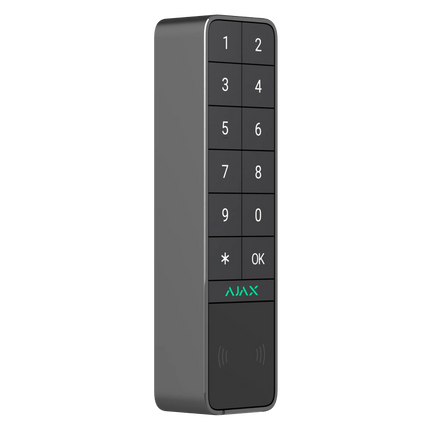

| Available Colors |
Black / White / Graphite |
