Description

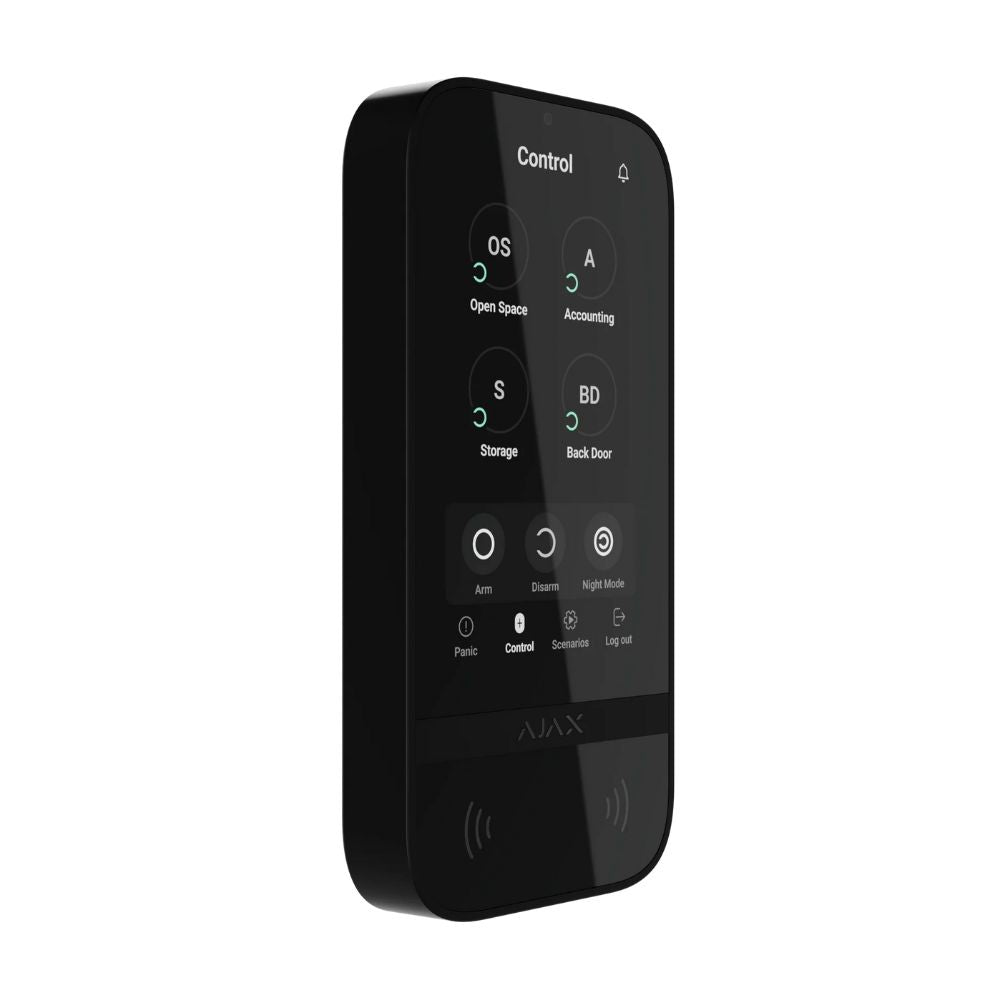

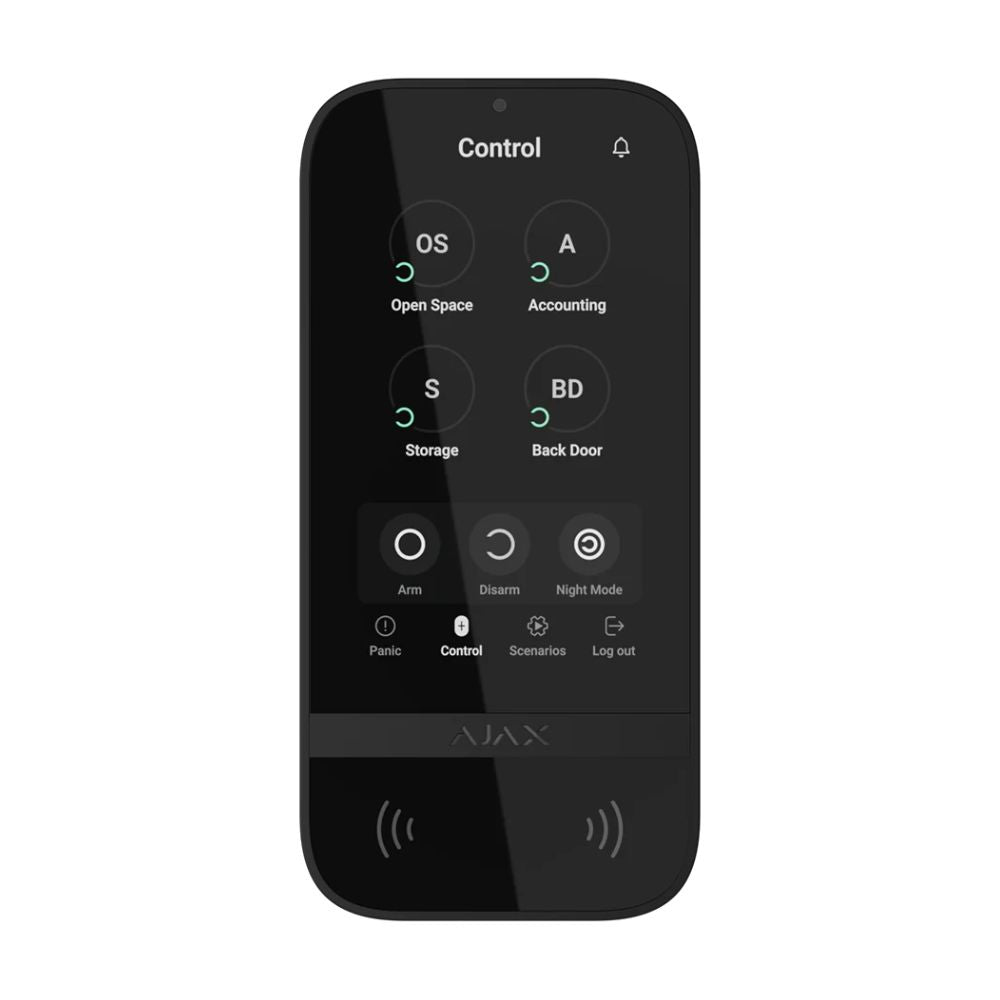

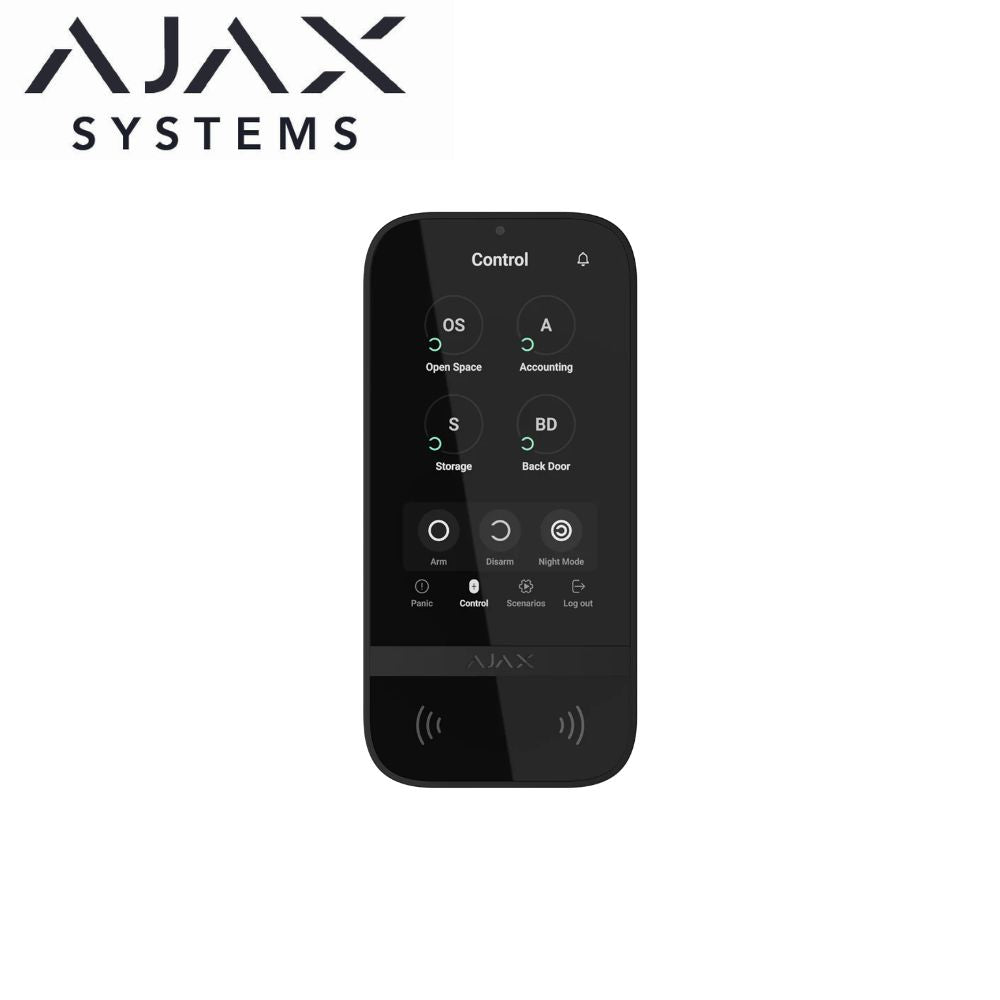

KeyPad TouchScreen is a wireless keypad with a touch screen designed for managing the Ajax security system. Users can authenticate using smartphones, Tag key fobs, Pass cards, and codes. The device is intended for indoor use.
KeyPad TouchScreen communicates with a hub over two secure radio protocols. The keypad uses Jeweller to transmit alarms and events, and Wings to update firmware, transmit the list of groups, rooms, and other additional information. The communication range without obstacles is up to 1,700 meters.
Features
- Two-way communication.
- Advanced sabotage protection
- Block encryption featuring a dynamic key
- Instant notifications
- Remote configuration in the Ajax apps.
Complete Set
More info about KeyPad on Ajax website: https://ajax.systems/produts/keypad/
Download
Video
Tech Spech
| Sensor type |
Capacitive |
| Anti-tamper switch |
Yes |
| Protection against guessing a code |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Control panels
Range extenders
|
Key features |
Panic buttons
- panic
- fire
- auxiliary help
Sending an alarm or calling for help from the separate keypad tab.
Control
|
| Maximum RF output power |
Up to 20 mW |
| Modulation of the radio signal |
GFSK |
| Radio signal range |
Up to 1,700 m
Between keypad and hub (or range extender) in an open space. |
| Power supply |
6 × AA (pre-installed) |
| Battery life |
up to 1.5 years |
| Installation method |
Indoors |
| Operating temperature range |
From -10°C to +40°C |
| Operating humidity |
Up to 75% |
| Overall dimensions |
172 × 82 × 26 mm |
| Weight |
327 g |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
