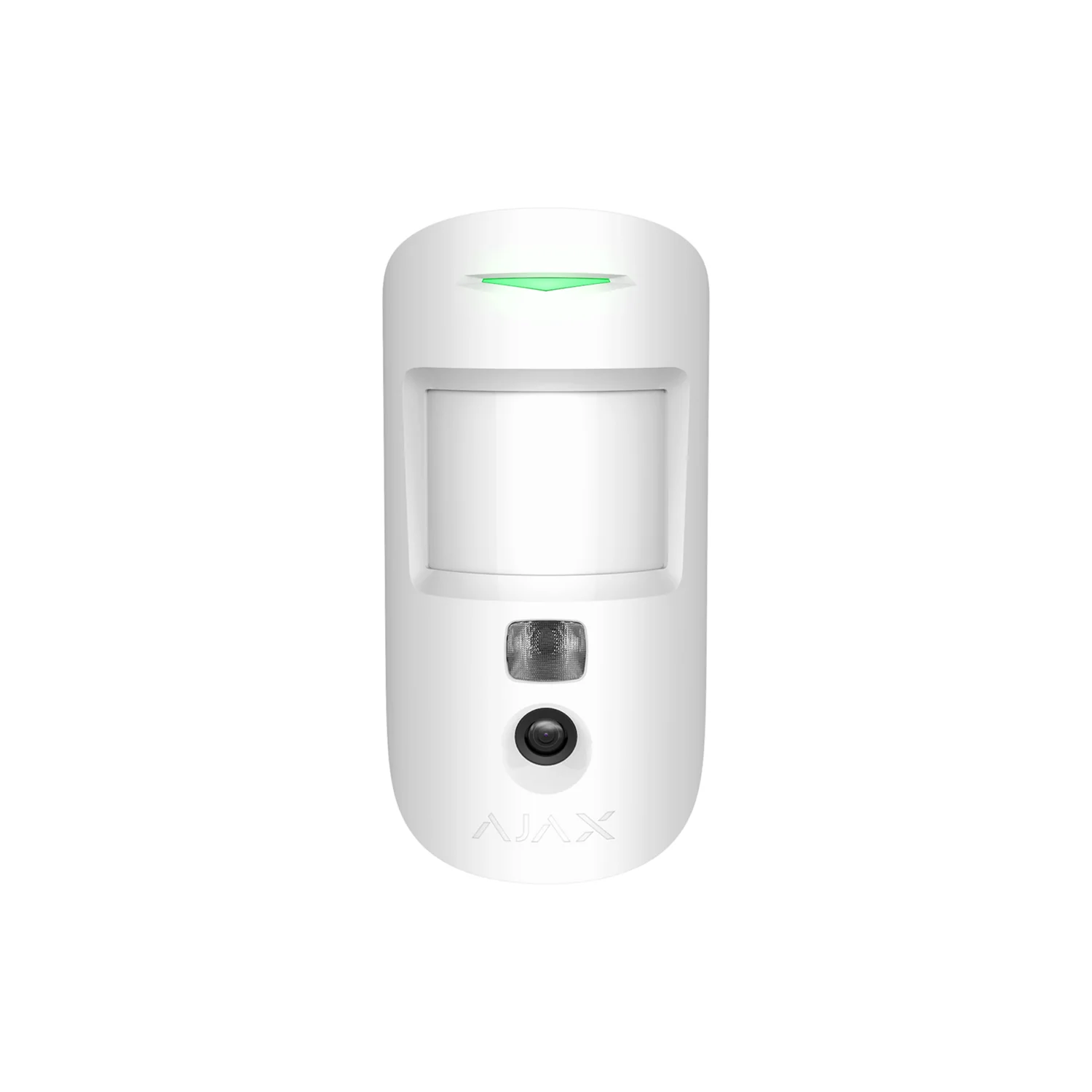

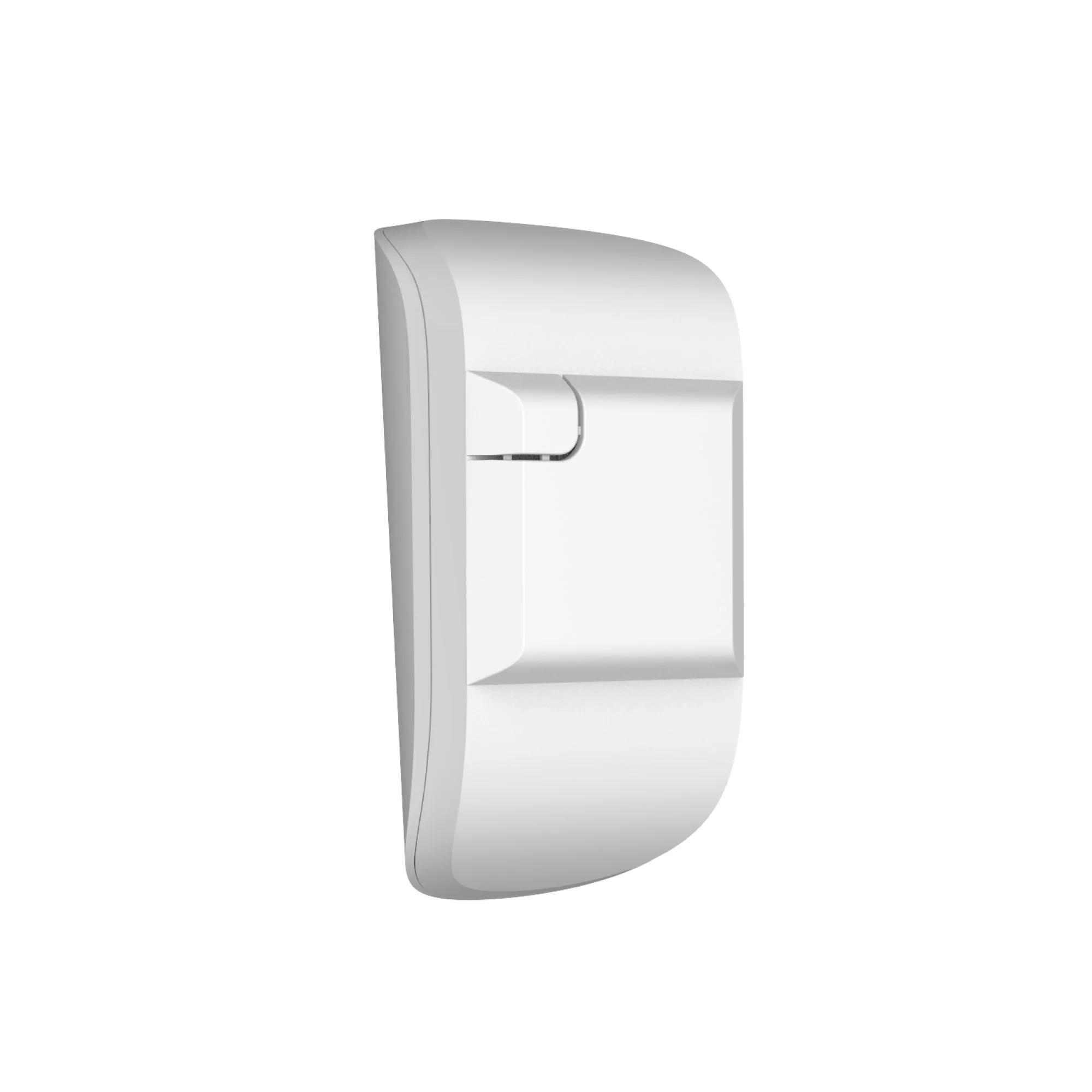

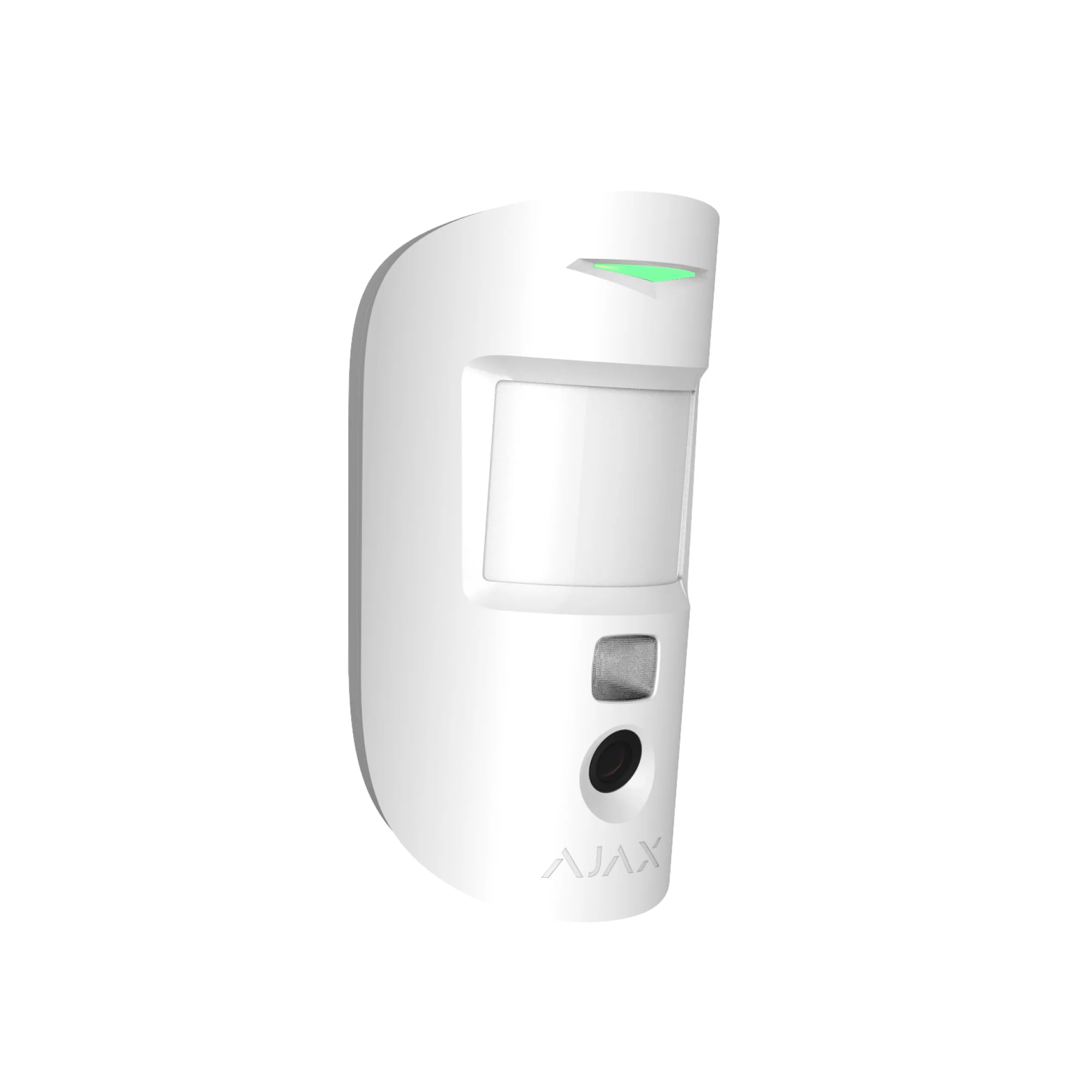

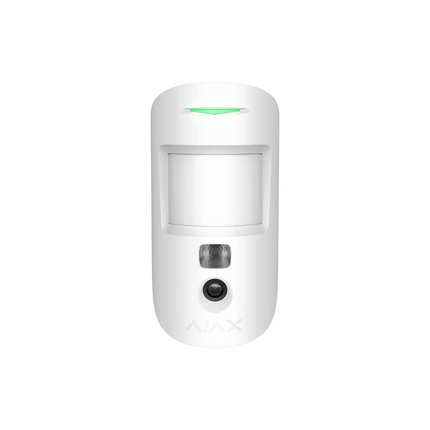

MotionCam (PhOD) Jeweller is a wireless PIR motion detector with advanced photo verification capabilities. It detects movement within the protected area and sends alarm notifications with photo evidence to help users verify incidents instantly.
The detector uses Jeweller wireless technology to transmit alarms and events, and Wings communication technology to deliver photos quickly and securely. MotionCam (PhOD) supports features such as photo by alarm, photo on demand, photo by scenario, and scheduled photo capture.
Features
- Wireless PIR motion detector with photo verification
- Jeweller communication technology for secure alarm transmission
- Wings communication technology for fast photo delivery
- Photo by alarm, photo on demand, photo by scenario, and photo by schedule
- HDR image support for improved image clarity
- IR backlight for night and low-light photography
- Pet immunity (up to 20 kg and 50 cm height)
- SmartDetect software algorithm to reduce false alarms
- Temperature compensation for stable detection
- Encrypted communication with dynamic key protection
- Frequency hopping to prevent radio interference and jamming
- Tamper alarm and device authentication
- Remote configuration via Ajax mobile and desktop apps
Complete Set
- MotionCam (PhOD) Jeweller
- SmartBracket mounting panel
- Installation kit
- 2 × CR123A batteries (pre-installed)
- Quick start guide
Download
Tech Specs
| Device Type |
Wireless PIR motion detector with photo verification |
| Communication Technology |
Jeweller & Wings proprietary wireless technologies |
| Radio Frequency Bands |
866–926 MHz (depending on region) |
| Maximum Effective Radiated Power |
Up to 20 mW |
| Radio Signal Range |
Up to 1,700 m (open space) |
| Radio Signal Modulation |
GFSK |
| Detection Sensor |
1 × PIR sensor |
| Motion Detection Distance |
Up to 12 m |
| Motion Detection Angle |
Horizontal — 88.5° |
| Detection Speed |
0.3–2.0 m/s |
| Sensitivity Levels |
3 levels (adjustable in Ajax app) |
| Pet Immunity |
Up to 20 kg and 50 cm height |
| Photo Resolution |
640 × 480, 320 × 240 (default), 160 × 120 px |
| Pictures per Series |
1–5 photos (320 × 240 or 160 × 120), 1–3 photos (640 × 480) |
| Photo Delivery Time |
Up to 7 s (160×120), 9 s (320×240), 20 s (640×480) |
| IR Backlight |
Yes |
| HDR Image |
Supported (firmware dependent) |
| Sabotage Protection |
Tamper alarm, device authentication, encrypted communication |
| Communication Loss Detection |
Within 36 seconds |
| Power Supply |
2 × CR123A batteries (pre-installed) |
| Battery Life |
Up to 4 years (photo on demand disabled) |
| Operating Voltage |
4.2–6.2 V |
| Nominal Voltage |
6 V |
| Dimensions |
135 × 70 × 60 mm |
| Weight |
170 g |
| Operating Temperature |
−10 °C to +40 °C |
| Operating Humidity |
Up to 75% |
| Protection Class |
IP50 |
| Installation |
Indoor use only |
| Colours Available |
Black, White |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
