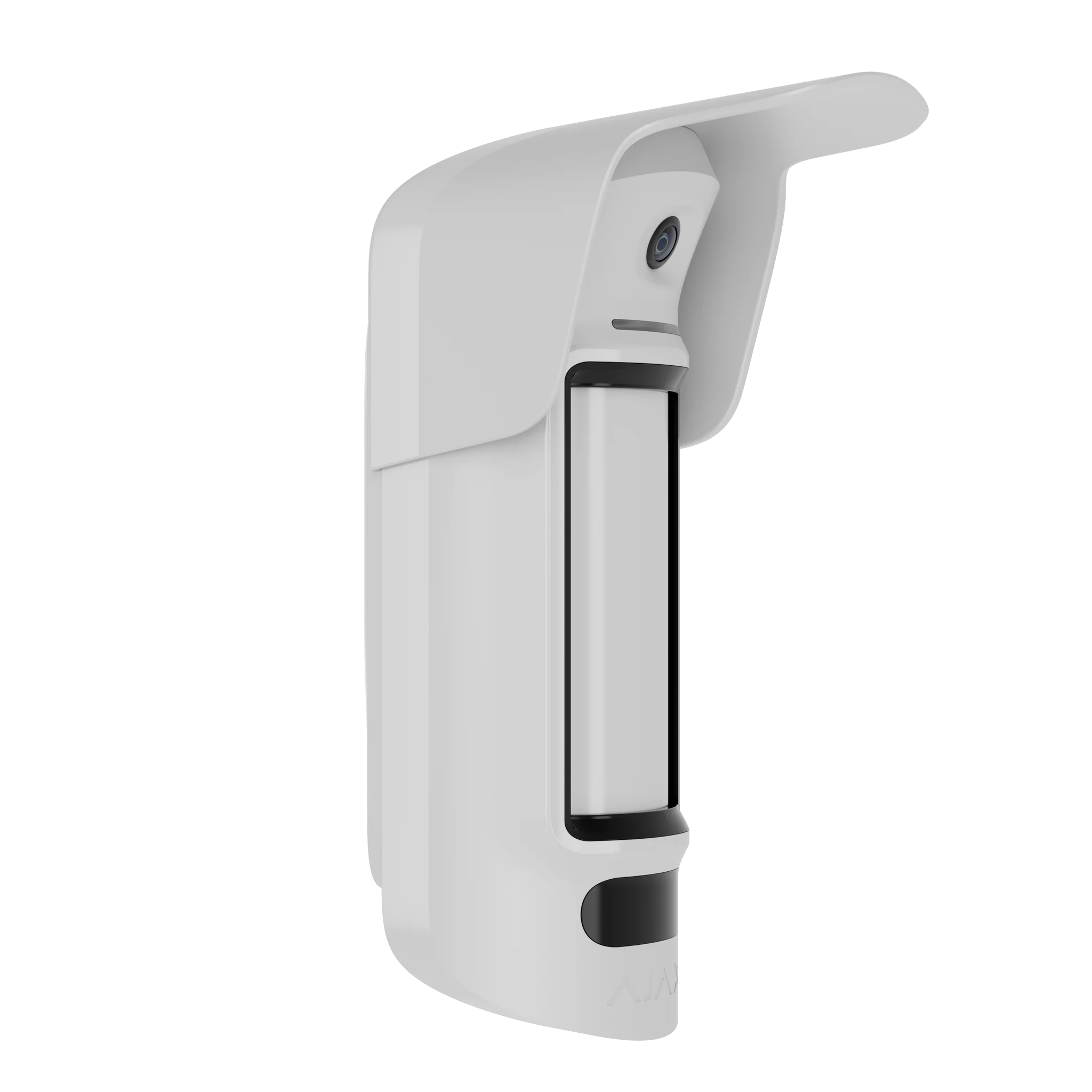

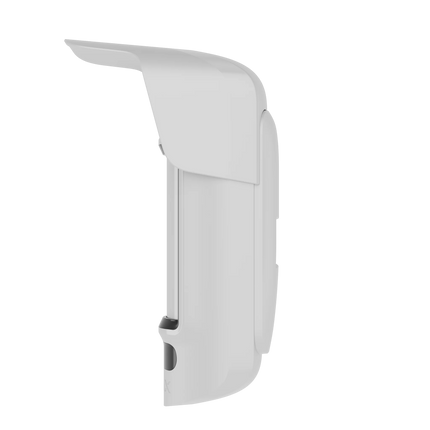

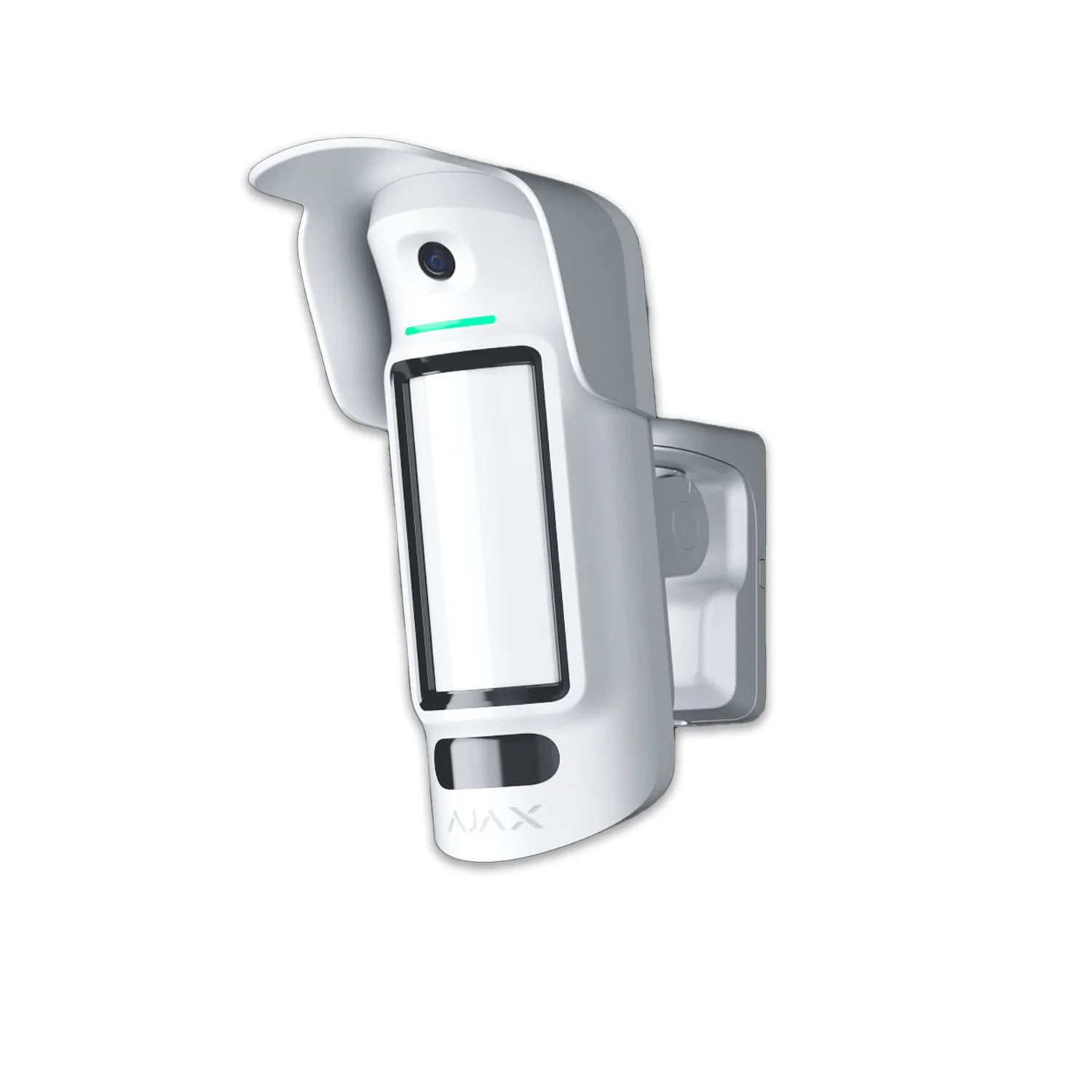

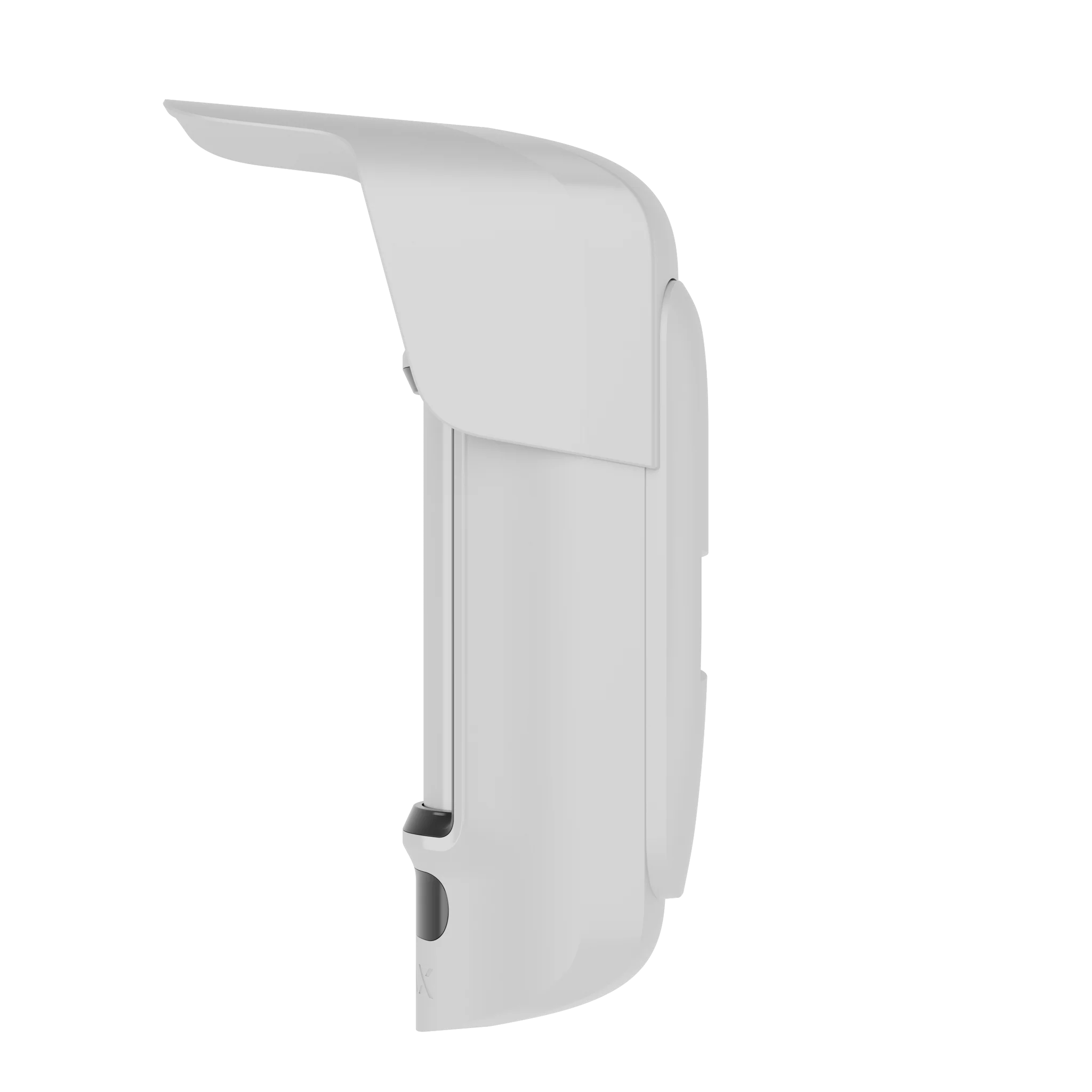

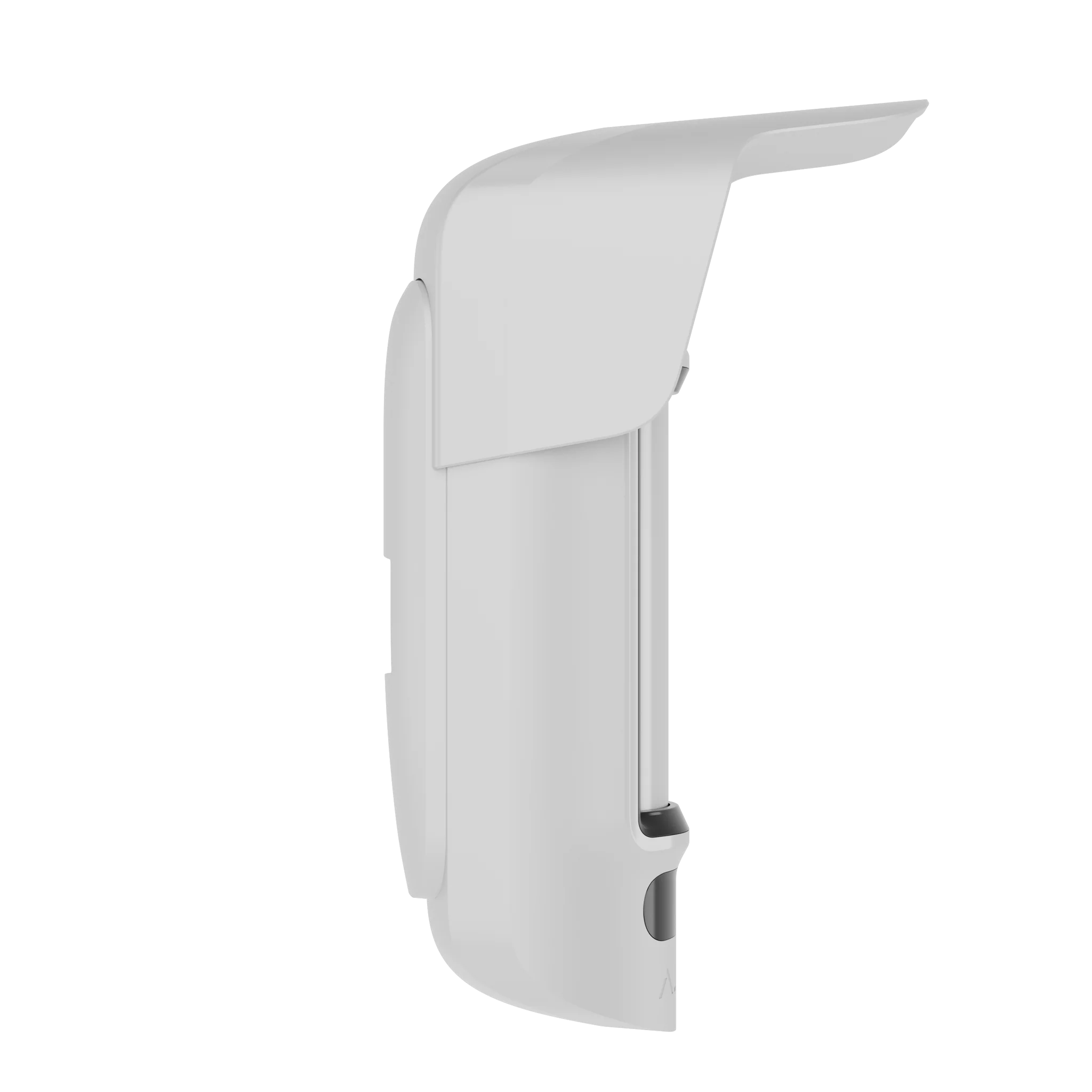

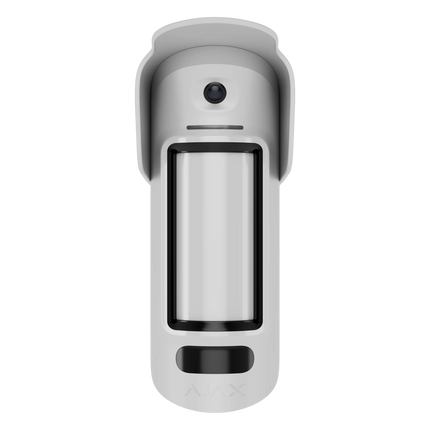

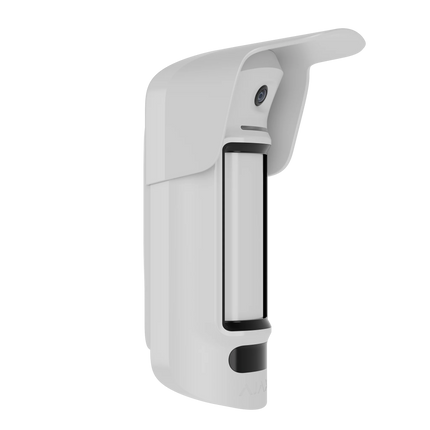

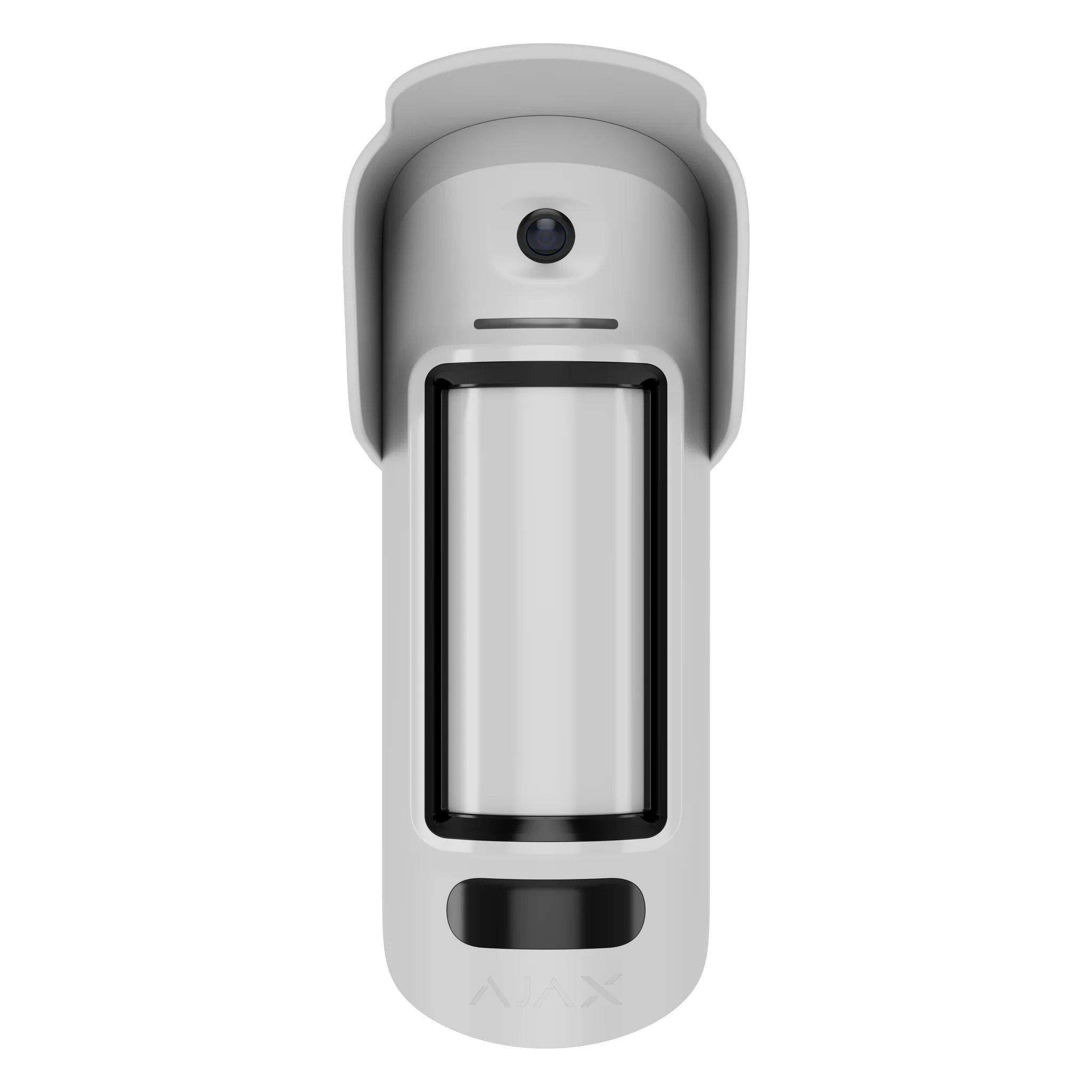

MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless outdoor motion detector with photo verification designed for professional perimeter protection. Installed at a height of 2–4 m, the device detects motion using dual PIR sensors and a K-band microwave sensor while providing instant photo verification through the built-in camera.
Using Ajax’s proprietary Jeweller and Wings wireless technologies, the detector delivers encrypted communication, instant alarms, and rapid photo transmission to the Ajax system. With advanced anti-masking, tilt detection, and sabotage protection, MotionCam Outdoor HighMount ensures reliable detection and verification in both residential and commercial environments.
Features
- Wireless outdoor motion detector with photo verification
- Dual PIR sensors and K-band microwave sensor (24 GHz)
- Motion detection distance up to 15 m
- Wide detection angle: 90° horizontal
- Adjustable sensitivity with SmartDetect false alarm prevention
- Photo verification with HDR camera and IR backlight
- Photo resolution options: 640 × 480 px or 320 × 240 px
- Photo on demand, by alarm, by scenario, by schedule, or by arming/disarming
- Encrypted wireless communication using Jeweller and Wings technologies
- Communication range up to 1,700 m in open space
- Advanced sabotage protection with tamper alarm, magnetometer, and anti-masking system
- Frequency hopping to prevent radio interference and jamming
- Battery life up to 3 years with optional external power supply
- Designed for outdoor and indoor installation
- IP55 weather protection
Complete Set
- MotionCam Outdoor HighMount (PhOD) Jeweller
- 6 × CR123A batteries (pre-installed)

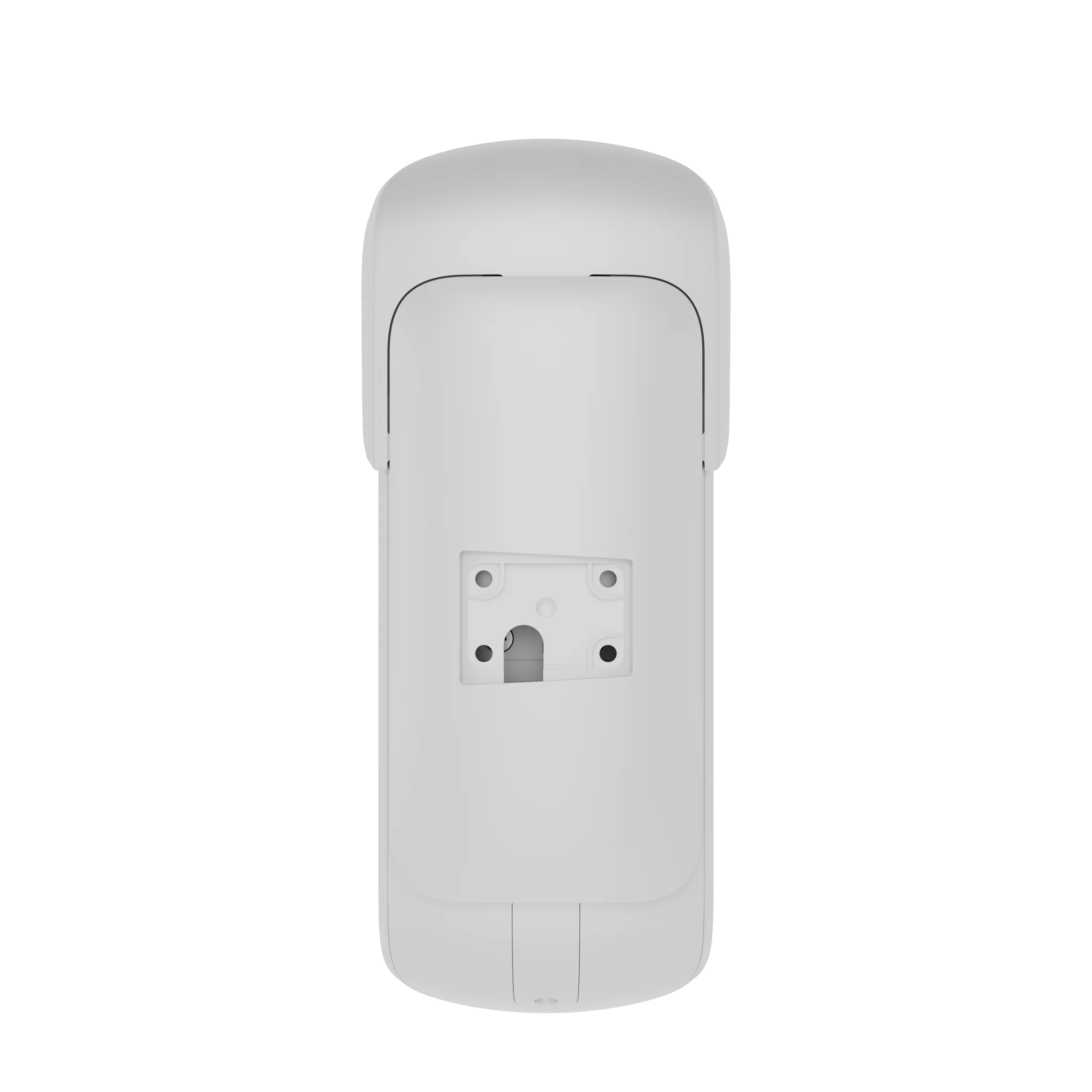

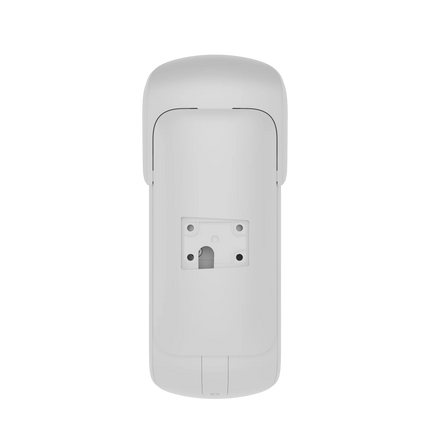

- SmartBracket mounting panel
- Swivel mount
- Protective hood
- Installation kit
- Quick start guide
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
Tech Specs
| Device Type |
Wireless outdoor PIR motion detector with photo verification |
| Communication Technology |
Jeweller (alarms & events) and Wings (photo transmission) |
| Radio Frequency Bands |
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region |
| Maximum Radiated Power |
Up to 25 mW |
| Radio Communication Range |
Up to 1,700 m in open space |
| Radio Signal Modulation |
GFSK |
| Encryption |
Block encryption with dynamic key |
| Detection Sensors |
2 × PIR sensors
1 × K-band microwave sensor (24 GHz) |
| Motion Detection Distance |
Up to 15 m |
| Detection Angle |
Horizontal: 90° |
| Motion Detection Speed |
0.3 – 2.0 m/s |
| Sensitivity Levels |
3 levels adjustable via Ajax apps |
| False Alarm Prevention |
SmartDetect algorithm with temperature compensation |
| Photo Resolution |
640 × 480 px
320 × 240 px (default) |
| Camera Viewing Angles |
Horizontal: 115°
Vertical: 84° |
| Series of Pictures |
1–5 images (320 × 240 px)
1–3 images (640 × 480 px) |
| Photo Delivery Time |
Up to 9 s (320 × 240 px)
Up to 20 s (640 × 480 px) |
| IR Backlight |
Yes, for night photography |
| Sabotage Protection |
Tamper alarm
Magnetometer (tilt and removal detection)
Anti-masking system
Device authentication |
| Communication Loss Detection |
After 36 seconds |
| Battery Type |
6 × CR123A (type C) |
| Battery Life |
Up to 3 years |
| Operating Voltage |
3.8 – 6.5 V⎓ |
| Nominal Voltage |
6 V⎓ |
| Maximum Current Consumption |
1,200 mA |
| Optional External Power |
12 – 24 V⎓ |
| Operating Temperature |
−25 °C to +60 °C |
| Operating Humidity |
Up to 95% |
| Protection Class |
IP55 |
| Dimensions (with swivel mount) |
234 × 98 × 230 mm |
| Dimensions (without swivel mount) |
234 × 98 × 137 mm |
| Weight |
1,010 g (with mount) / 620 g (without mount) |
| Color |
White |
