Description

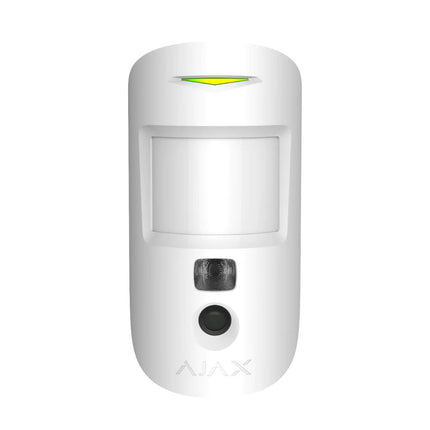

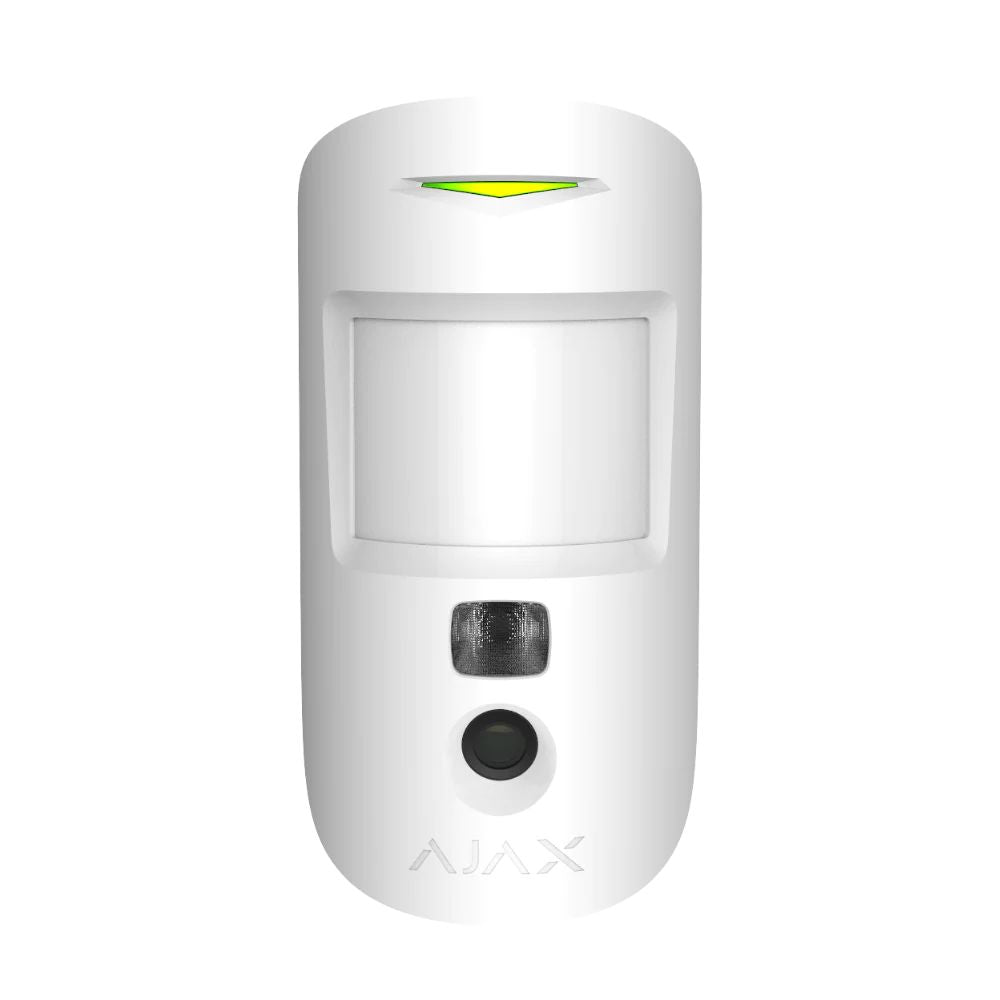

MotionCam (PhOD) Jeweller is a wireless motion detector supporting photo verification of alarms, Photo on Demand, and Photo by Scenario features. Intended for indoor installation. It can recognise movement at a distance of up to 12 meters. Ignores pets when installed and set up correctly.

MotionCam (PhOD) Jeweller works as part of the Ajax system, communicating with the hub over two secure radio protocols: the detector uses Jeweller to transmit alarms and events and Wings to transmit photos. The hub communication range is up to 1,700 meters in an open space.

Features

  • Adjustable image resolution
  • Photo verification in 9 seconds
  • Software filter for false alarms
  • Detection angles
  • IR backlight for the photos in the dark
  • Pet immunity Up to 20 kg / Up to 50 cm
  • Remote configuration and control
  • Hassle-free installation
  • Temperature compensation - Effective detection in the heat and the cold
  • Data-rich notifications
  • Up to 4 years of operation from pre-installed batteries

Complete Set

  • MotionCam (PhOD) Jeweller
  • SmartBracket mounting panel
  • Installation kit
  • 2 × CR123A battery (pre-installed)
  • Quick Start Guide

More info about MotionCam (PhOD) on Ajax website: https://ajax.systems/products/motioncam-phod/

Download

Video

Tech specs

Compatibility

Compatible hub models

Hub 2 (2G)

Hub 2 (4G)

Hub 2 Plus

Hub Hybrid (2G)

Hub Hybrid (4G)

Compatible range extenders

ReX 2

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit alarms and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.

Learn more

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio signal range

up to 1,700 m

Between detector and hub or range extender in an open space.

Calculate radio signal range at the facility

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Radio frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Learn more

Wings communication technology

Proprietary wireless communication technology to transmit photo verifications.

Key features:

  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced anti-sabotage.
  • Data package reloading in case of transmission errors.
  • Photo delivery check.

Learn more

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Radio signal range

up to 1,700 m

Between detector and hub or range extender in an open space.

Calculate radio signal range at the facility

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Radio frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Detection

Sensitive element

1 PIR sensor

Motion detection distance

up to 12 m

When installed at a height of 2.4 m.

Motion detection angles

horizontal — 88.5°
vertical — 80°

Motion detection speed

from 0.3 to 2.0 m/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels

Adjusted by PRO or user with admin rights in the Ajax app.

Pet immunity

weight: up to 20 kg
height: up to 50 cm

Learn more

False alarm prevention

SmartDetect

Software algorithm.

Temperature compensation

Effective motion detection at temperatures from −10°C to +40°C.

Photo verification



Photo by alarm

A built-in camera is activated if the detector is armed, and motion is detected.

Learn more

Photo on demand

User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.

Learn more

Photo by scenario

A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.

Learn more

Photo resolution

640 × 480 px
320 × 240 px (by default)
160 × 120 px

Adjusted by PRO or user with admin rights in the Ajax app.

IR backlight

For night photography and low light conditions.

Pictures in a series

from 1 to 5 images with resolution of 320 × 240 px or 160 × 120 px
from 1 to 3 images with resolution of 640 × 480 px

Adjusted by PRO or user with admin rights in the Ajax app.

Photo delivery time

up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution

When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.

Recommendations

It is recommended to install the detector at a height of 2.4 m.

The device is designed for indoor use only.

Anti-sabotage protection

Tampering alarm

Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.

Learn more

Protection against spoofing

device authentication

Communication loss detection

within 36 s

Detection time depends on the Jeweller settings.

Learn more

Power supply

2 × CR123A battery, 3 V

(pre-installed)

Battery life

up to 4 years

with Photo on demand toggle disabled

up to 3 years

with Photo on demand toggle enabled

Learn more

Enclosure

Dimensions

135 × 70 × 60 mm

Weight

167 g

Operating temperature range

from −10°C to +40°C

Operating humidity

up to 75%

Protection class

IP50

Colour

Black

White

Complete set



MotionCam (PhOD) Jeweller

SmartBracket mounting panel

Installation kit

2 × CR123A battery (pre-installed)

Quick Start Guide
