Description

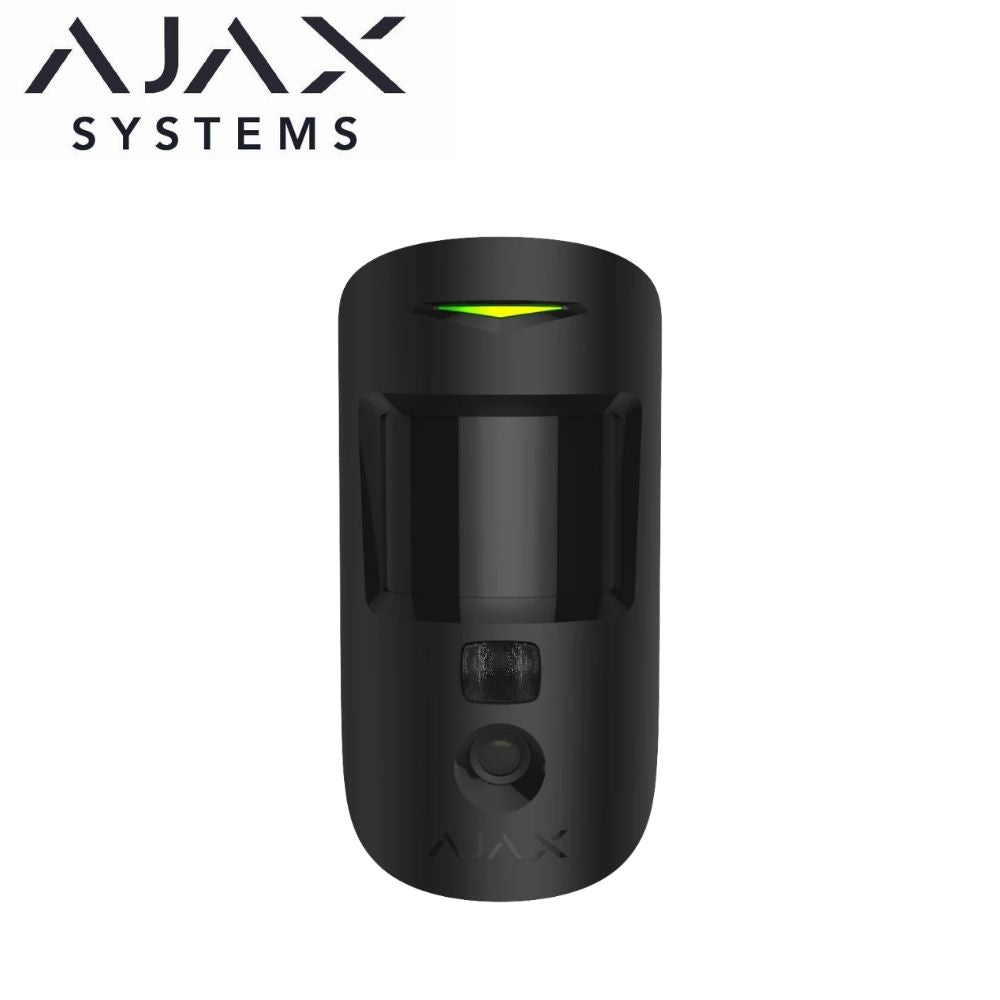

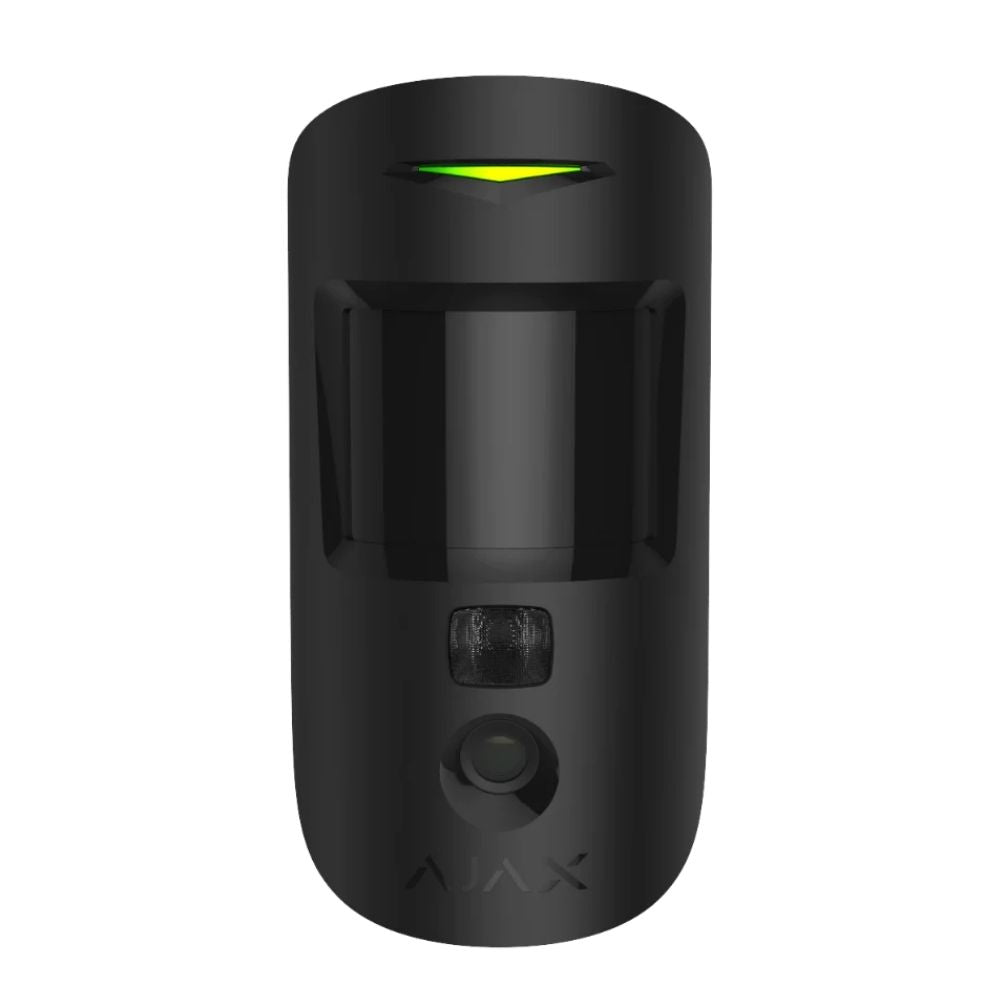

MotionCam (PhOD) Jeweller is a wireless motion detector supporting photo verification of alarms, Photo on Demand, and Photo by Scenario features. Intended for indoor installation. It can recognise movement at a distance of up to 12 meters. Ignores pets when installed and set up correctly.
MotionCam (PhOD) Jeweller works as part of the Ajax system, communicating with the hub over two secure radio protocols: the detector uses Jeweller to transmit alarms and events and Wings to transmit photos. The hub communication range is up to 1,700 meters in an open space.
Features
- Adjustable image resolution
- Photo verification in 9 seconds
- Software filter for false alarms
- Detection angles
- IR backlight for the photos in the dark
- Pet immunity Up to 20 kg / Up to 50 cm
- Remote configuration and control
- Hassle-free installation
- Temperature compensation - Effective detection in the heat and the cold
- Data-rich notifications
- Up to 4 years of operation from pre-installed batteries
Complete Set
- MotionCam (PhOD) Jeweller
- SmartBracket mounting panel
- Installation kit
- 2 × CR123A battery (pre-installed)
- Quick Start Guide
More info about MotionCam (PhOD) on Ajax website: https://ajax.systems/products/motioncam-phod/
Download
Video
Tech specs
Compatibility |
Compatible hub models
Hub 2 (2G)
Hub 2 (4G)
Hub 2 Plus
Hub Hybrid (2G)
Hub Hybrid (4G)
Compatible range extenders
ReX 2
|
Communication |
Jeweller communication technology
Proprietary wireless communication technology to transmit alarms and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Learn more
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Radio signal modulation
GFSK
Radio signal range
up to 1,700 m
Between detector and hub or range extender in an open space.
Calculate radio signal range at the facility
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Learn more
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications.
Key features:
- Two-way communication.
- Block encryption featuring a dynamic key.
- Advanced anti-sabotage.
- Data package reloading in case of transmission errors.
- Photo delivery check.
Learn more
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Radio signal range
up to 1,700 m
Between detector and hub or range extender in an open space.
Calculate radio signal range at the facility
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
|
Detection |
Sensitive element
1 PIR sensor
Motion detection distance
up to 12 m
When installed at a height of 2.4 m.
Motion detection angles
horizontal — 88.5°
vertical — 80°
Motion detection speed
from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity
weight: up to 20 kg
height: up to 50 cm
Learn more
False alarm prevention
SmartDetect
Software algorithm.
Temperature compensation
Effective motion detection at temperatures from −10°C to +40°C.
|
|
Photo verification
|
Photo by alarm
A built-in camera is activated if the detector is armed, and motion is detected.
Learn more
Photo on demand
User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Learn more
Photo by scenario
A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.
Learn more
Photo resolution
640 × 480 px
320 × 240 px (by default)
160 × 120 px
Adjusted by PRO or user with admin rights in the Ajax app.
IR backlight
For night photography and low light conditions.
Pictures in a series
from 1 to 5 images with resolution of 320 × 240 px or 160 × 120 px
from 1 to 3 images with resolution of 640 × 480 px
Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time
up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.
|
Recommendations |
It is recommended to install the detector at a height of 2.4 m.
The device is designed for indoor use only.
|
Anti-sabotage protection |
Tampering alarm
Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.
Learn more
Protection against spoofing
device authentication
Communication loss detection
within 36 s
Detection time depends on the Jeweller settings.
Learn more
|
|
Power supply
|
2 × CR123A battery, 3 V
(pre-installed)
Battery life
up to 4 years
with Photo on demand toggle disabled
up to 3 years
with Photo on demand toggle enabled
Learn more
|
Enclosure |
Dimensions
135 × 70 × 60 mm
Weight
167 g
Operating temperature range
from −10°C to +40°C
Operating humidity
up to 75%
Protection class
IP50
|
Colour |
Black
White
|
|
Complete set
|
MotionCam (PhOD) Jeweller
SmartBracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick Start Guide
|
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SECSOURCE will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@secsource.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
