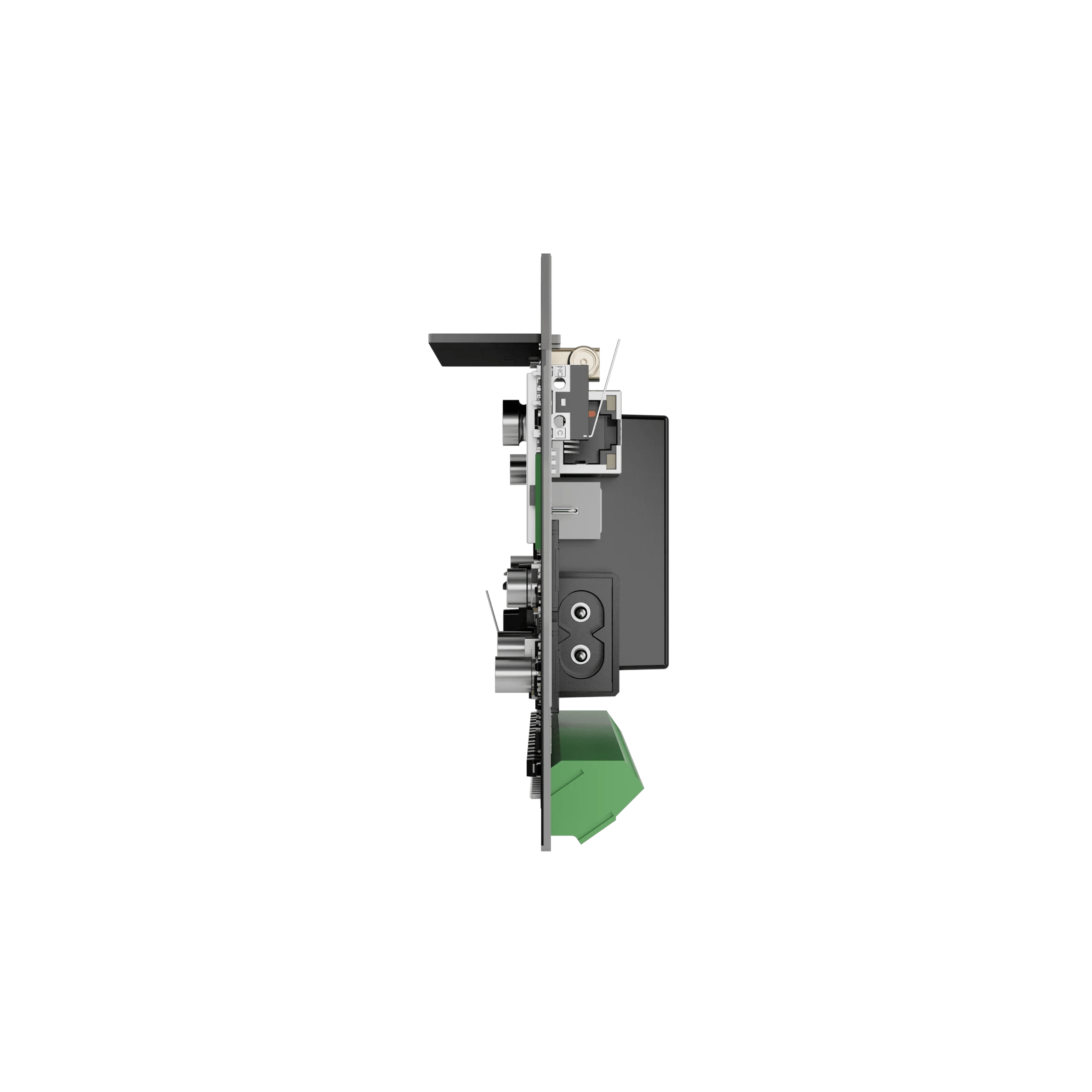

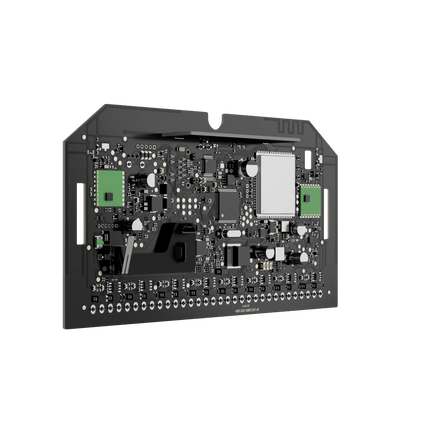

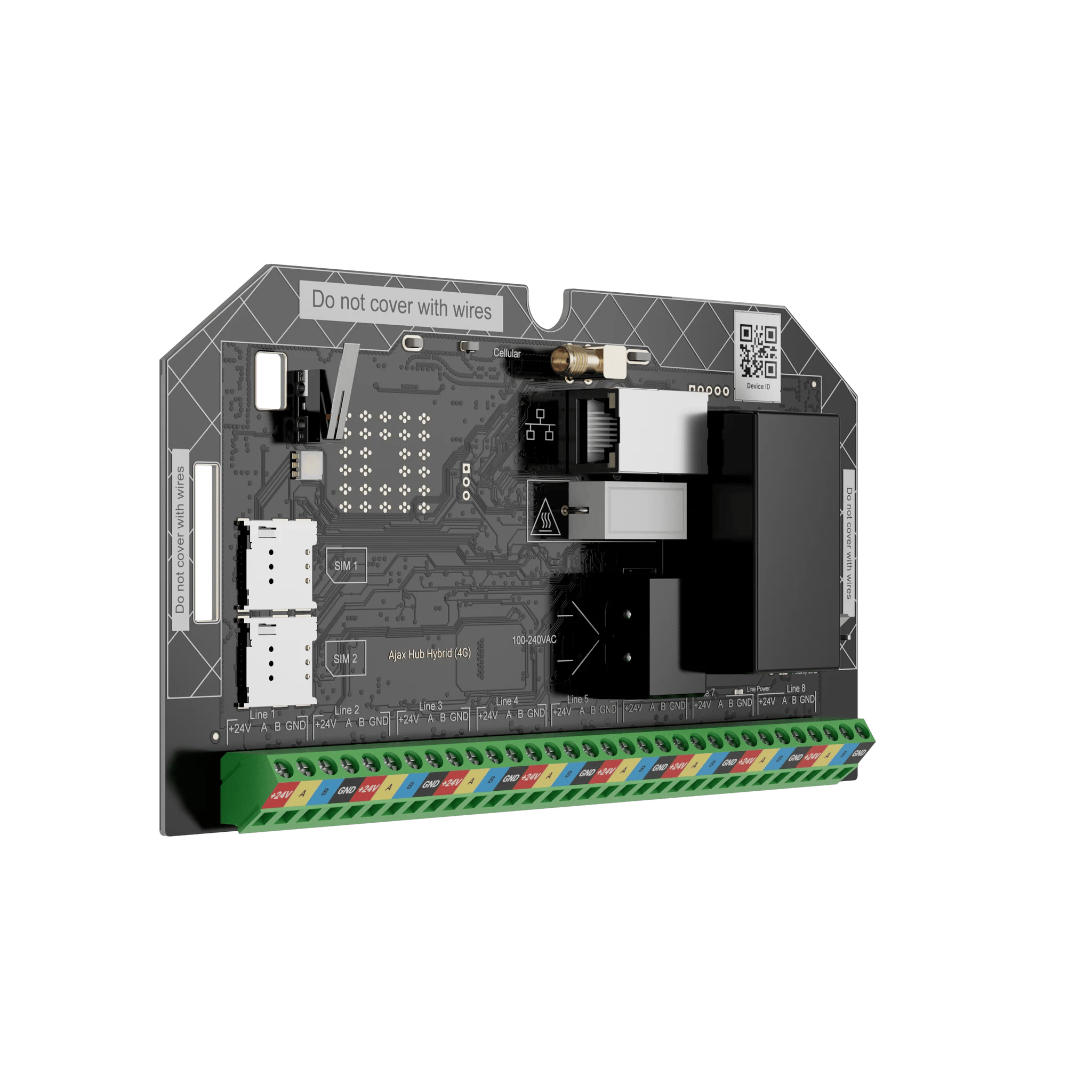

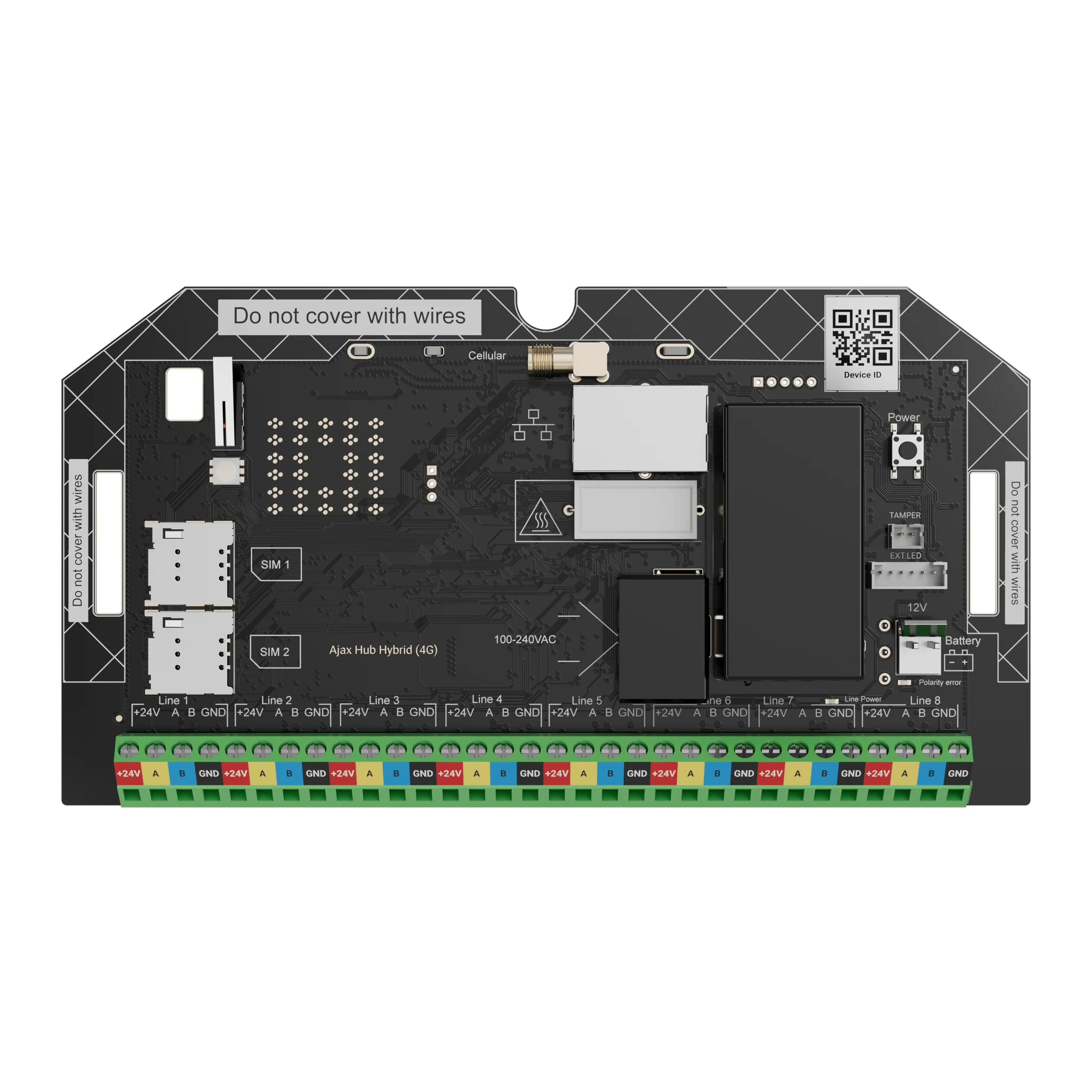

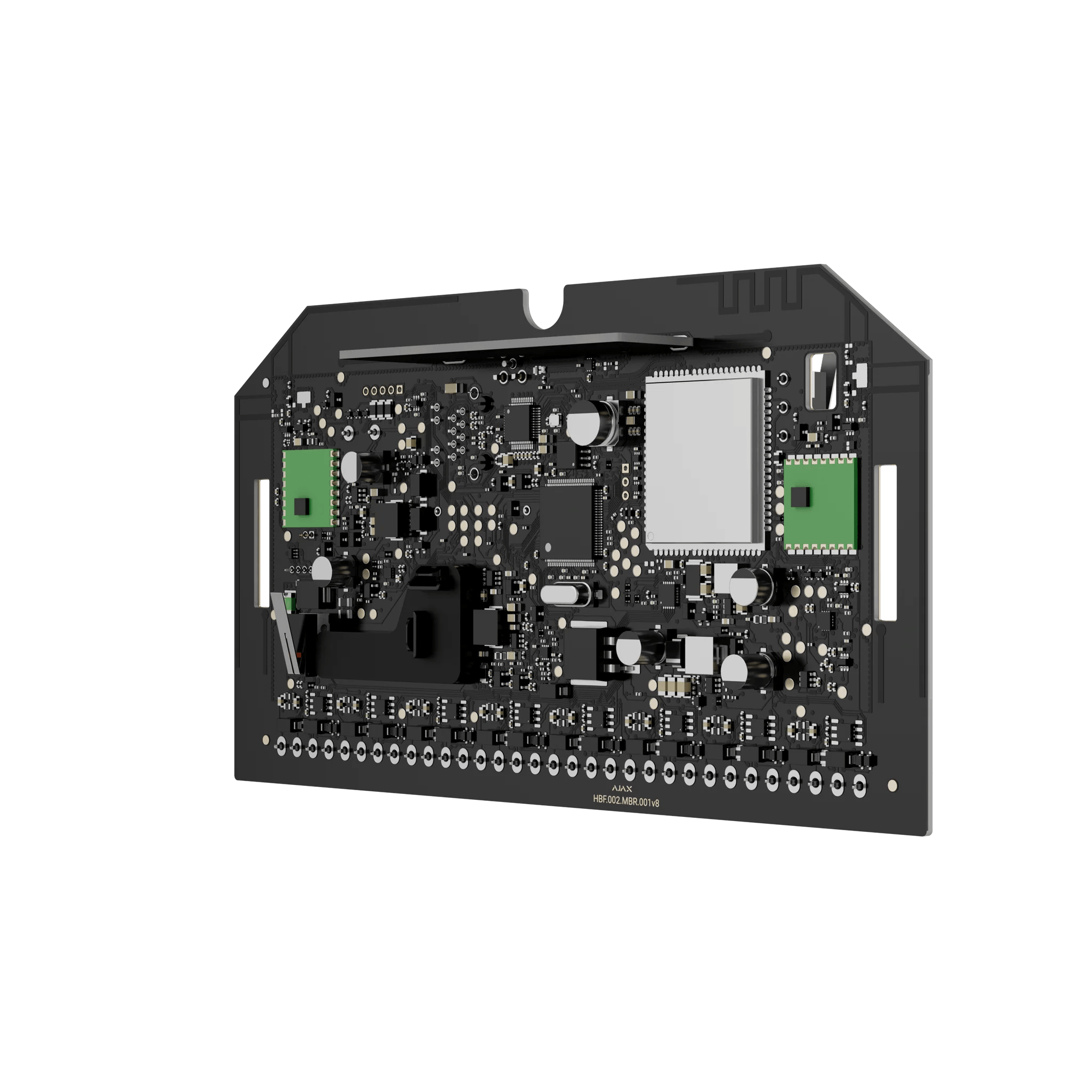

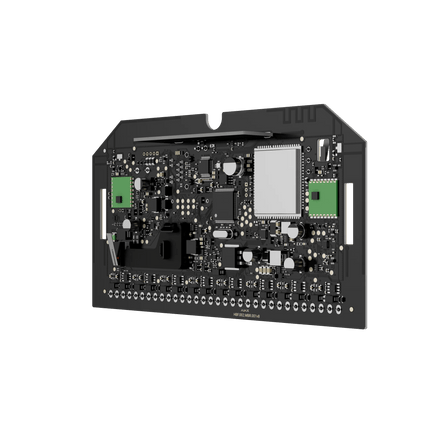

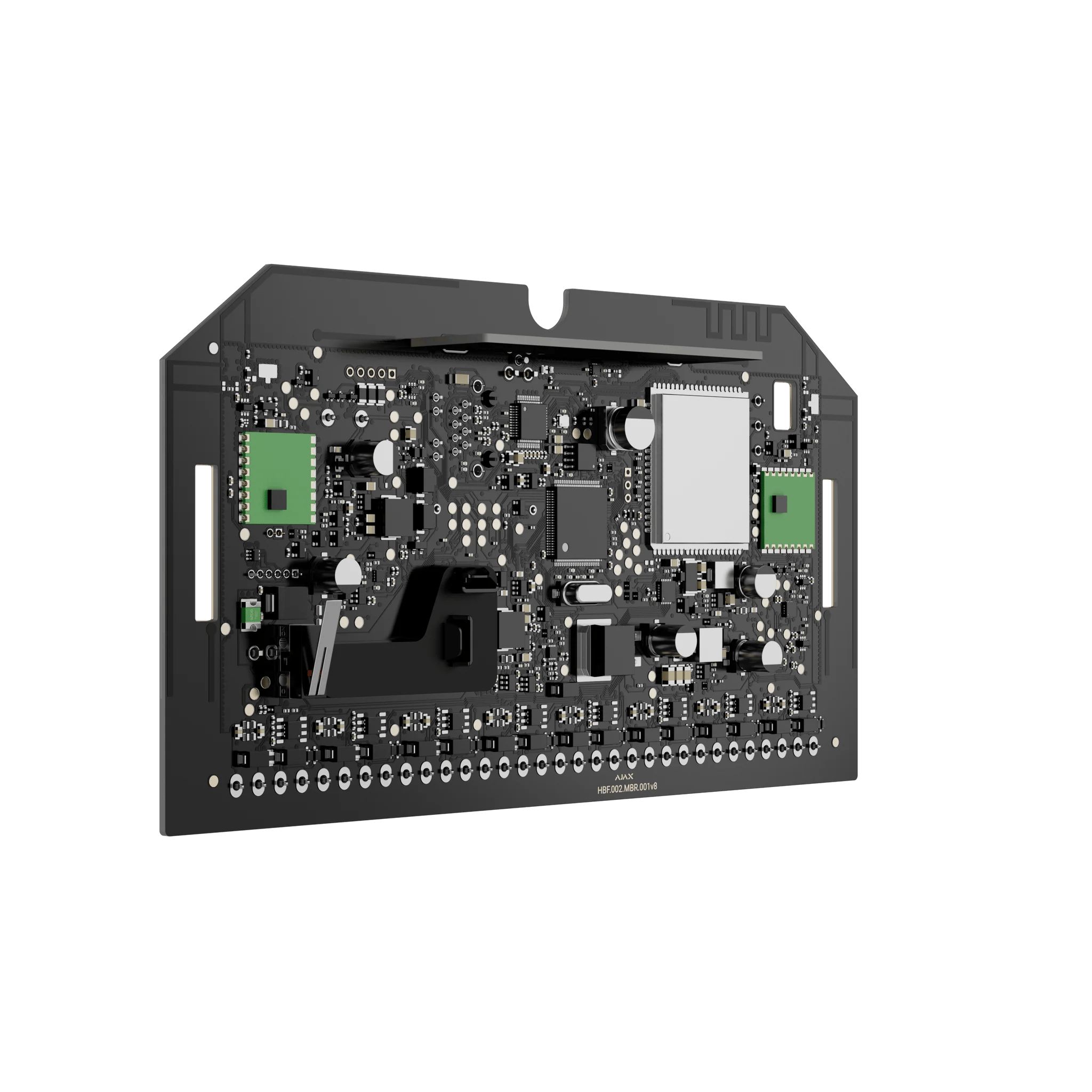

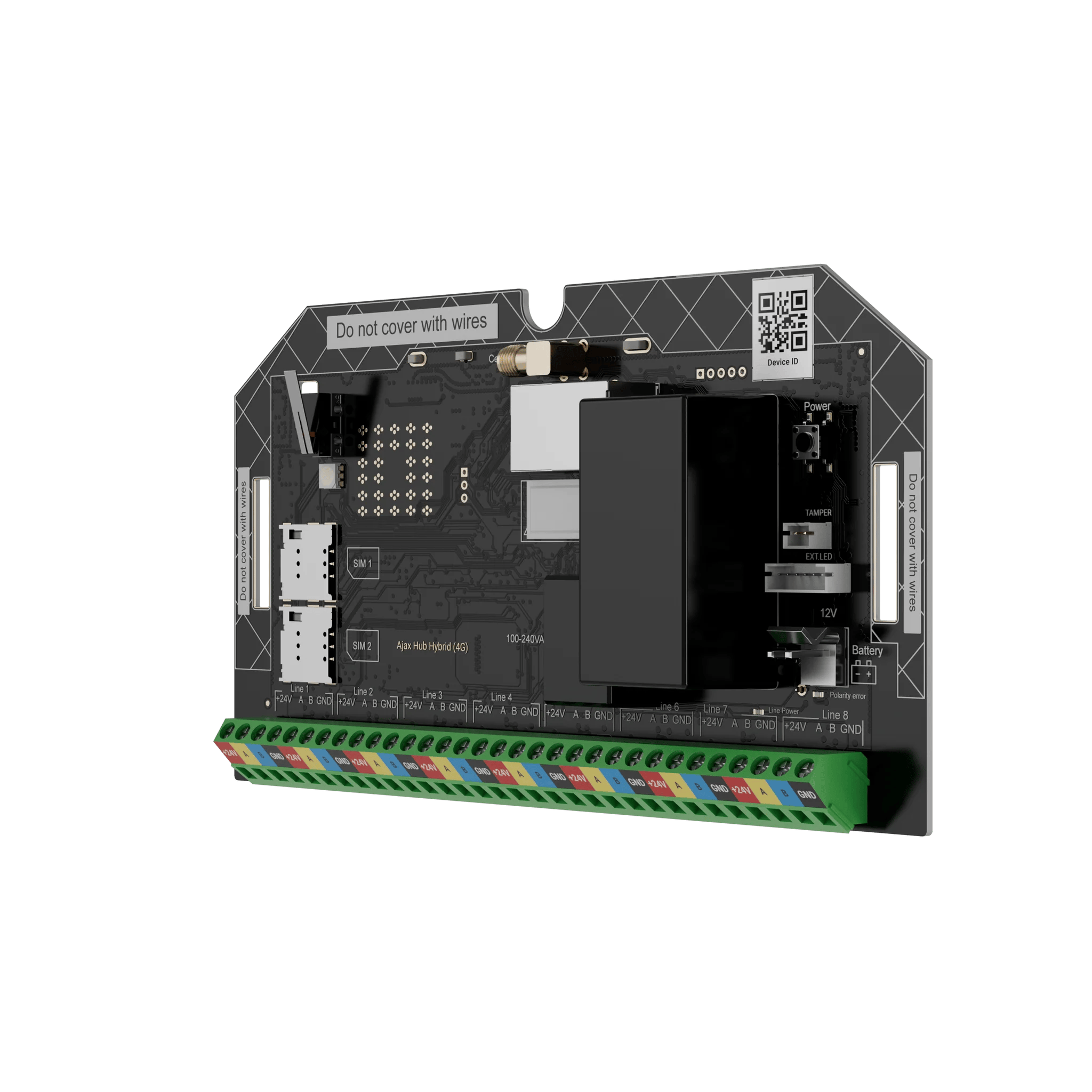

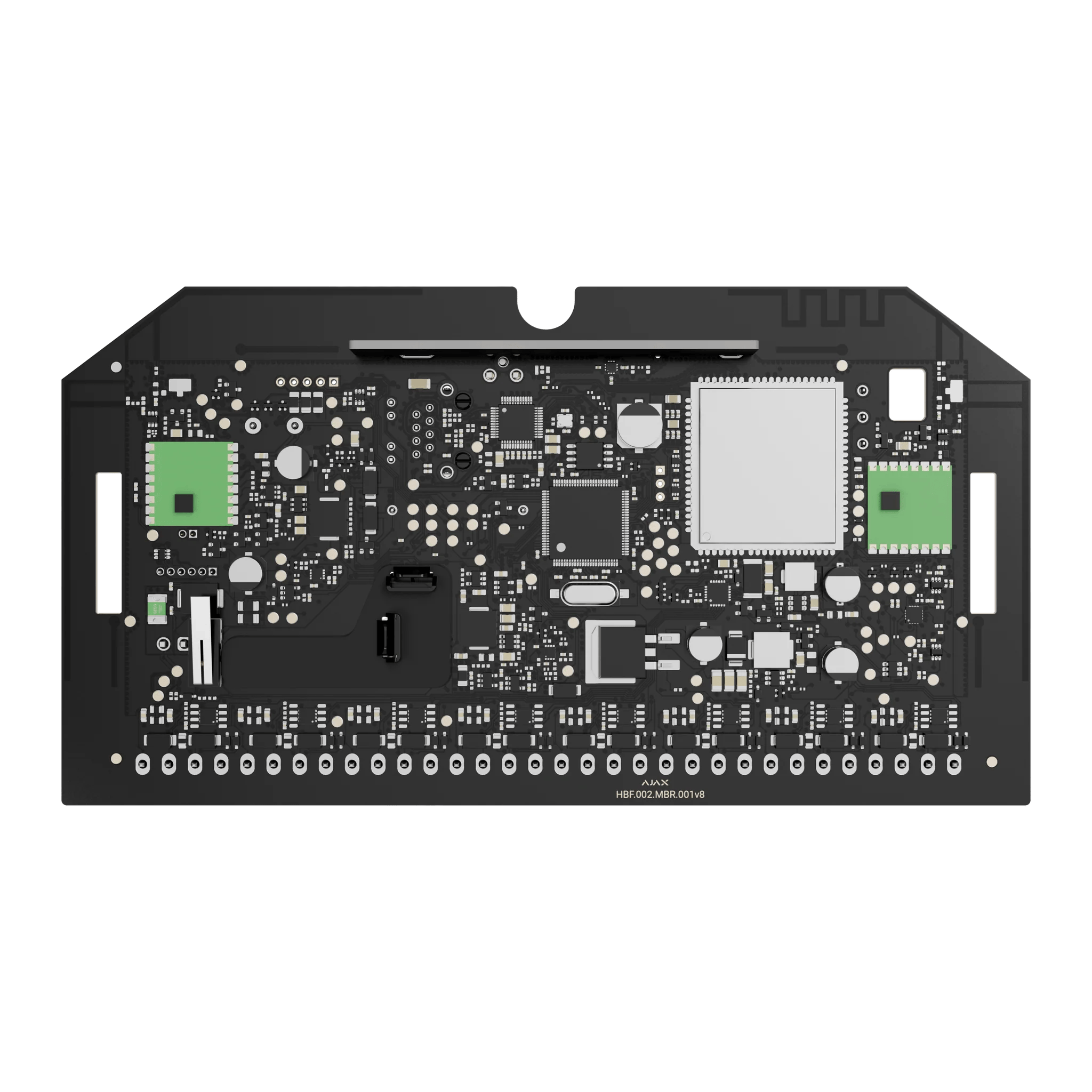

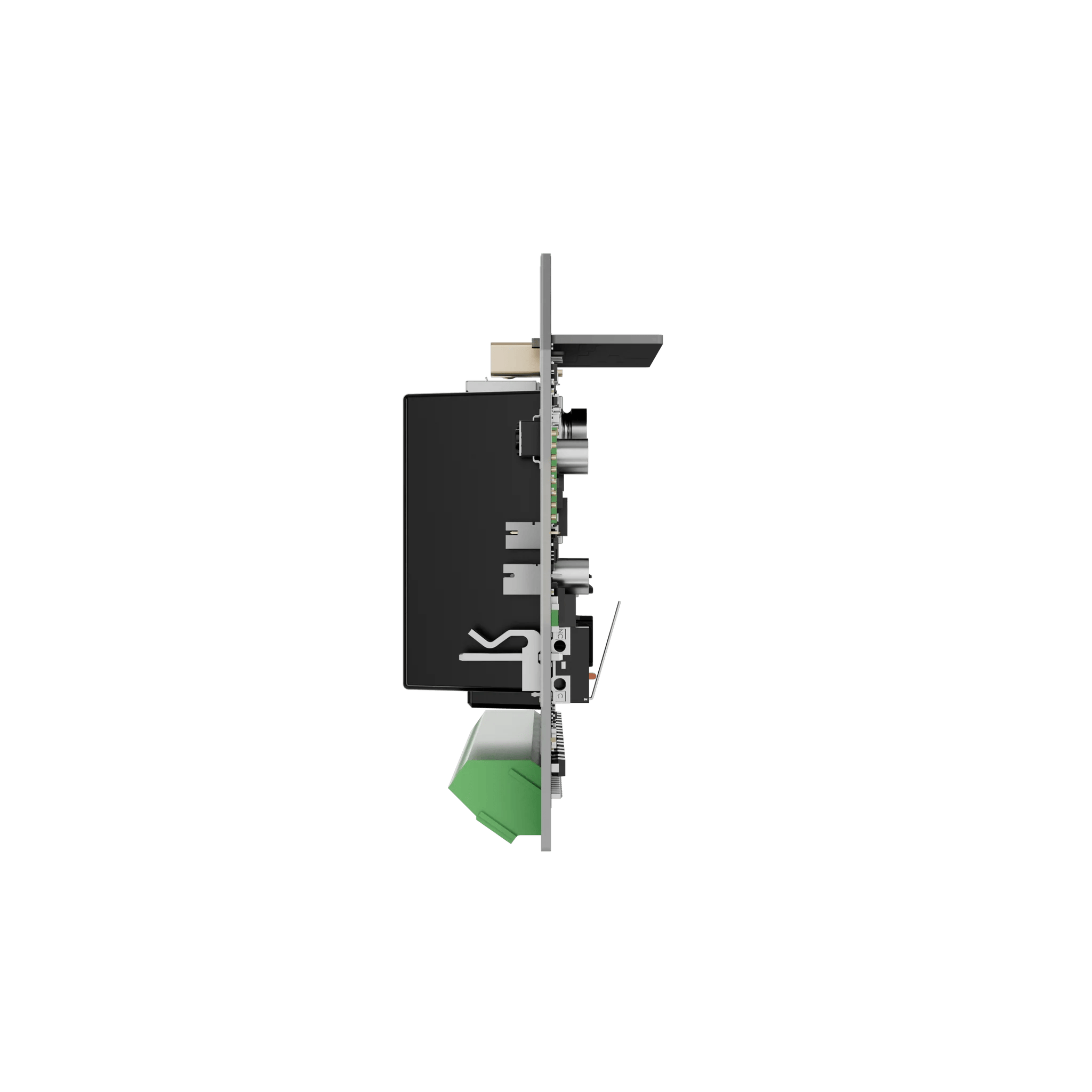

Superior Hub Hybrid (4G) (without casing) is a professional hybrid security control panel designed for installation in Case D. It supports both wired Fibra devices and wireless Jeweller devices, providing flexible system architecture for advanced security installations.
With support for Ethernet and dual SIM cellular connectivity (2G/3G/LTE), Superior Hub Hybrid ensures reliable communication, advanced automation capabilities, and seamless integration with Ajax cameras, NVRs, and third-party video systems.
Features
- Hybrid control panel supporting Fibra wired devices and Jeweller wireless devices
- Supports up to 100 Ajax devices
- Supports up to 36 Ajax NVRs
- Supports up to 224 Ajax cameras via NVR and up to 492 standalone cameras
- Supports up to 10 third-party IP cameras via RTSP
- Supports up to 50 users with access management
- Supports up to 32 automation scenarios
- Supports up to 9 security groups and 50 rooms
- Event log storing up to 1,000 events
- Fibra wired communication with up to 2,000 m line length
- Jeweller wireless communication range up to 2,000 m
- Wings wireless technology for photo verification
- Ethernet and dual SIM connectivity (2G / 3G / 4G LTE)
- Advanced sabotage protection and encrypted communication
- Compatible with Ajax apps for remote configuration and control
Complete Set
- Superior Hub Hybrid (4G) (without casing)
- Power cable
- Screw terminal block adapter
- Battery connection cable
- LED board
- LED board connection cable
- Ethernet cable
- Eight 120 Ω termination resistors
- Quick start guide
Download
Tech Specs
| Device Type |
Hybrid security control panel |
| Supported Devices |
Up to 100 Ajax devices |
| Range Extenders |
Up to 5 |
| Sirens |
Up to 10 |
| Keypads |
Up to 50 wired keypads with built-in buzzer |
| Users |
Up to 50 users |
| Automation Scenarios |
Up to 32 scenarios |
| Security Groups |
Up to 9 |
| Rooms |
Up to 50 |
| Event Log |
Up to 1,000 events |
| Wired Communication |
Fibra technology (two-way encrypted communication) |
| Fibra Lines |
8 lines |
| Maximum Fibra Line Length |
Up to 2,000 m |
| Wireless Communication |
Jeweller technology |
| Wireless Range |
Up to 2,000 m (open space) |
| Photo Transmission |
Wings wireless technology |
| Photo Resolution |
Up to 640 × 480 |
| Photo Delivery Time |
Up to 9 seconds |
| Communication Channels |
Ethernet and dual SIM cellular |
| Ethernet Port |
1 × 8P8C (up to 100 Mbps) |
| SIM Slots |
2 × micro SIM |
| Cellular Networks |
2G / 3G / 4G LTE |
| Supported Monitoring Protocols |
SIA DC-09, Contact ID, ADEMCO 685 |
| Encryption |
AES-128 encrypted communication |
| Main Power Supply |
100–240 V AC, 50/60 Hz |
| Backup Battery Operation |
Up to 60 hours (with 7 Ah battery) |
| Power Consumption |
Up to 10 W |
| Dimensions |
185 × 99 × 43 mm |
| Weight |
184 g |
| Operating Temperature |
−10 °C to +40 °C |
| Operating Humidity |
Up to 75% |
