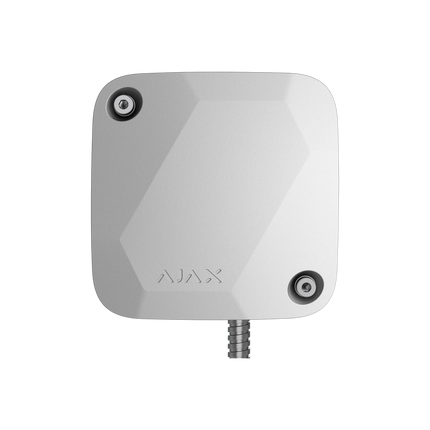

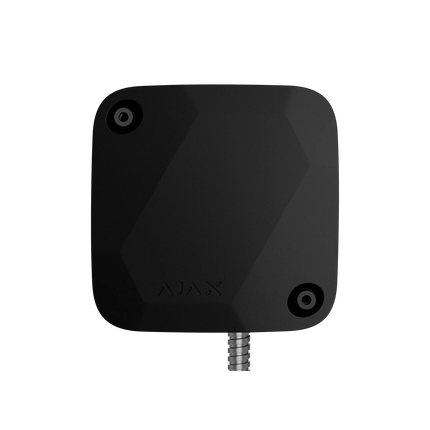

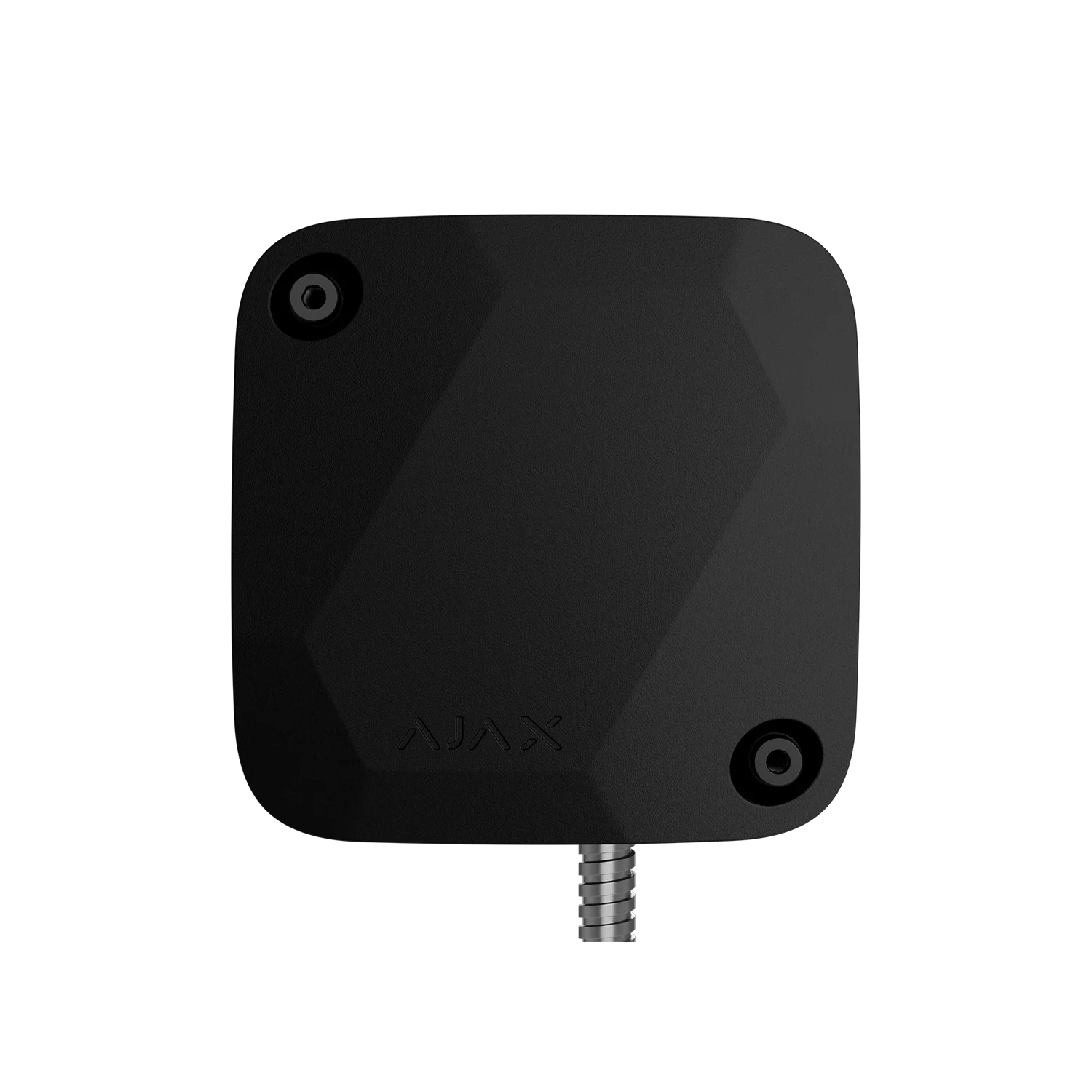

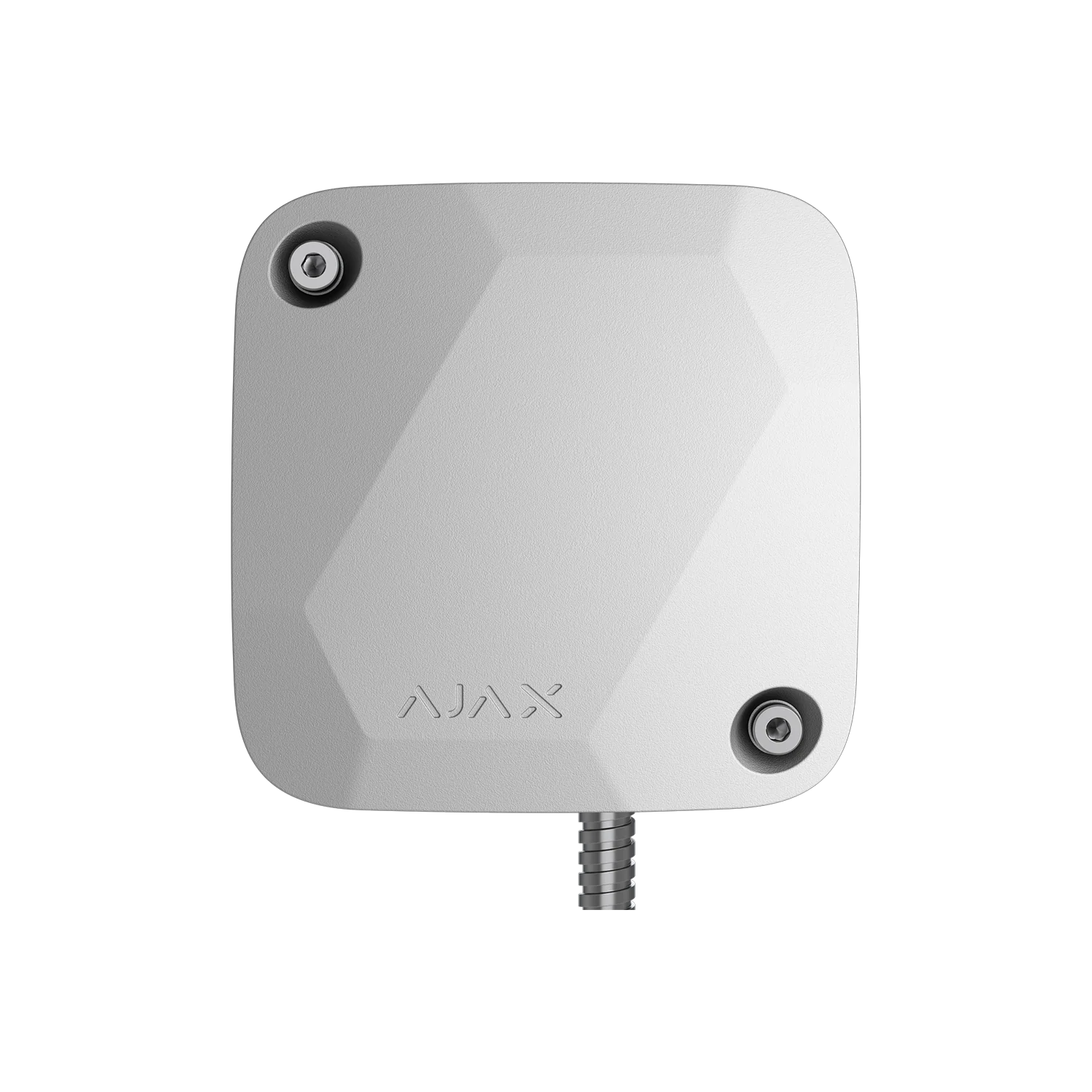

Superior SeismoProtect G3 Fibra is a professional wired seismic detector equipped with an additional shock sensor, designed to detect intrusion attempts involving drilling, cutting, explosions, and physical impact. Built with advanced sensing technology, it ensures high-precision detection for critical infrastructure and high-security environments.
With Fibra wired communication, multiple sensitive elements, and advanced anti-sabotage features, Superior SeismoProtect G3 Fibra delivers reliable protection and real-time alerts for enhanced security systems.
Features
- Piezoelectric sensor, accelerometer, and digital temperature sensor
- Detects explosions, drilling, cutting, blast waves, and physical force
- Operating radius up to 4 m (concrete) and 2 m (steel)
- Adjustable tilt sensor (5° to 25°)
- 3 sensitivity levels configurable via Ajax apps
- Option to ignore single shock events
- Automatic and manual self-test of sensitive elements
- Fibra wired communication with encryption
- Up to 2,000 m communication range (using U/UTP cat.5)
- Advanced sabotage protection with tamper alerts
- Thermal detection (high temperature and rapid temperature rise)
- Indoor installation, professional setup required
Complete Set
- Superior SeismoProtect G3 Fibra
- Mounting plate
- Self-test device
- Armored 4-core signal cable (1.5 m)
- Installation kit
- Quick start guide
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
Tech Specs
| Device Type |
Wired seismic detector with shock sensor |
| Communication Technology |
Fibra proprietary wired communication |
| Connection |
4-core cable, connectable to any point of the Fibra line |
| Fibra Line Length |
Up to 2,000 m (U/UTP cat.5 twisted pair) |
| Encryption |
Block encryption with dynamic key |
| Sensitive Elements |
Piezoelectric sensor, accelerometer, digital temperature sensor |
| Threat Detection |
Explosions
Drilling and cutting vibrations
Blast waves
Physical force (bending, pressing, pushing) |
| Operating Radius |
Concrete: up to 4 m
Steel: up to 2 m |
| Tilt Sensor |
Adjustable from 5° to 25° |
| Sensitivity Levels |
3 levels (configurable) |
| Shock Filtering |
Option to ignore single shock |
| Self-Test |
Automatic and manual sensor diagnostics |
| Sabotage Protection |
2 tampers (lid opening and detachment detection)
Enclosure drilling detection
Communication loss detection (after 36 s) |
| Thermal Protection |
Alarm above +70 °C
Alarm for rapid rise (>5 °C within 5 seconds) |
| Operating Voltage |
5–30 V⎓ (powered via Fibra line) |
| Nominal Voltage |
24 V⎓ |
| Current Consumption |
Idle: 0.3 mA
Max: 12 mA |
| Dimensions |
88 × 88 × 20 mm (mounting plate adds 5 mm) |
| Weight |
Detector: 170 g
Mounting plate: 224 g
Cable: 130 g |
| Cable Length |
1.5 m (armored cable) |
| Operating Temperature |
−10 °C to +55 °C |
| Operating Humidity |
Up to 95% |
| Protection Class |
IP43, IK04 |
| Available Colors |
Black, White |
