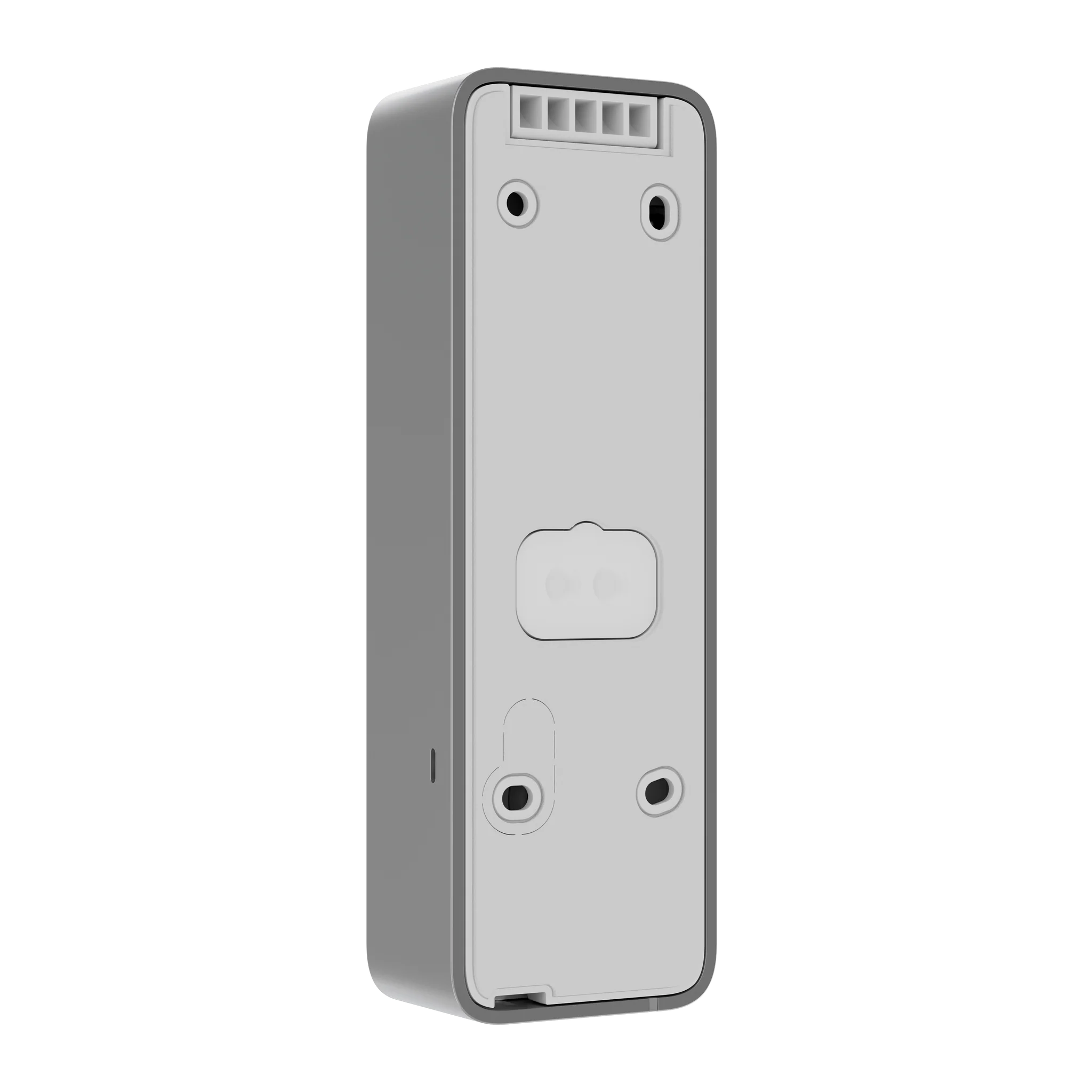

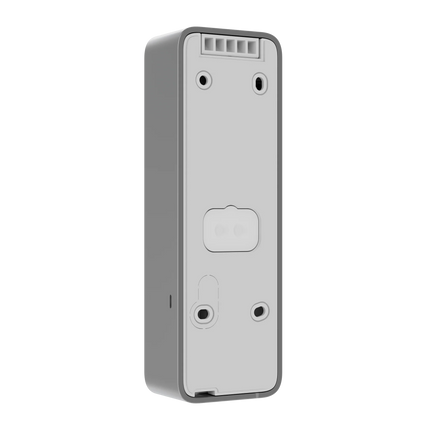

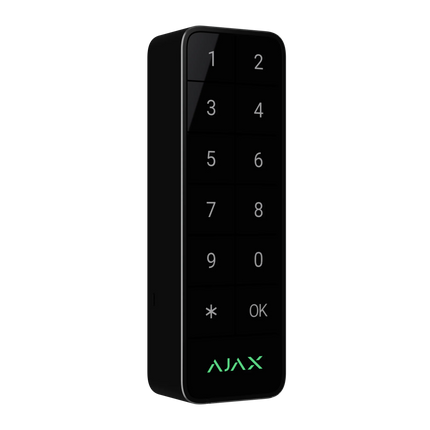

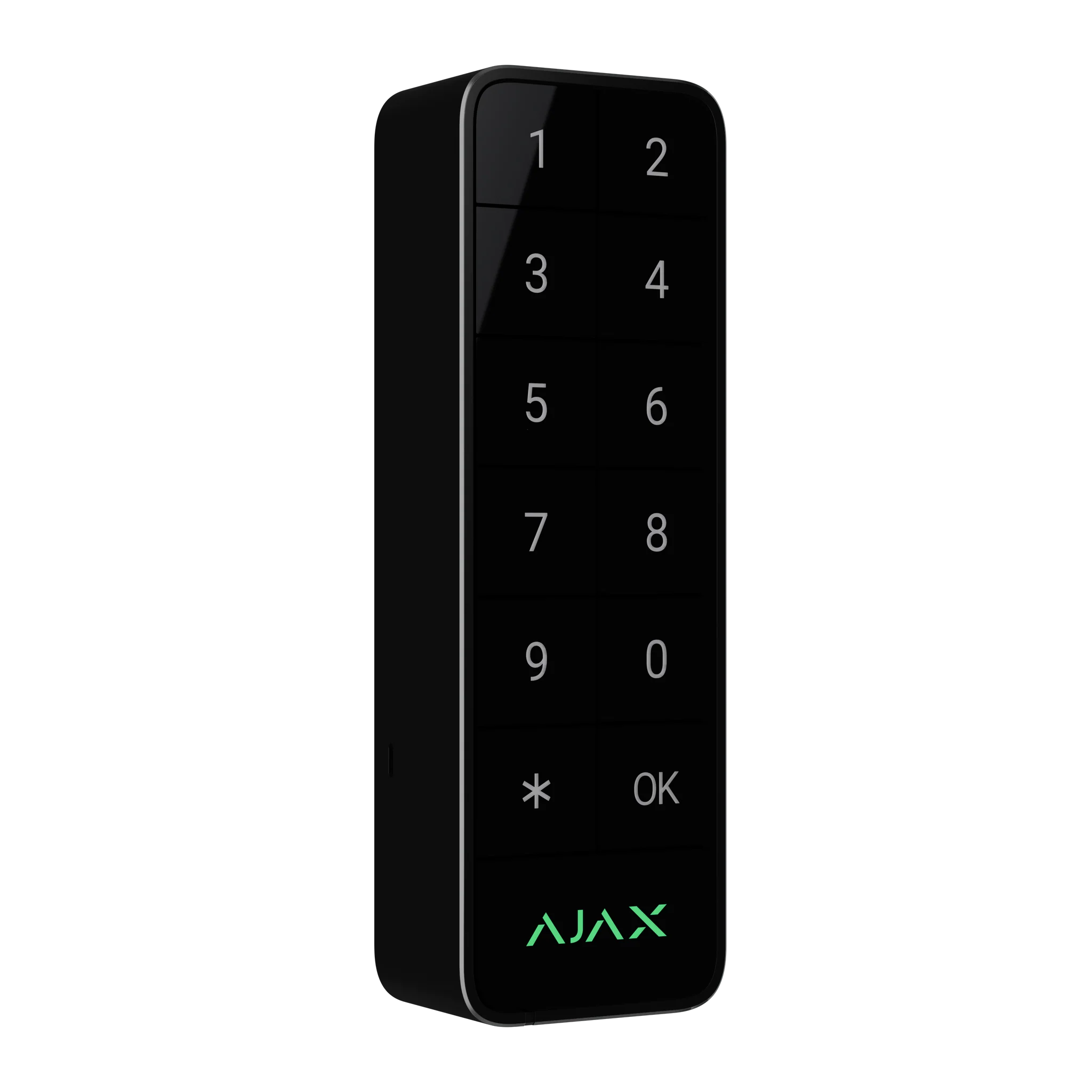

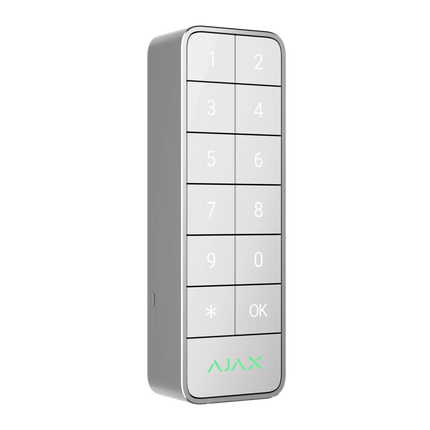

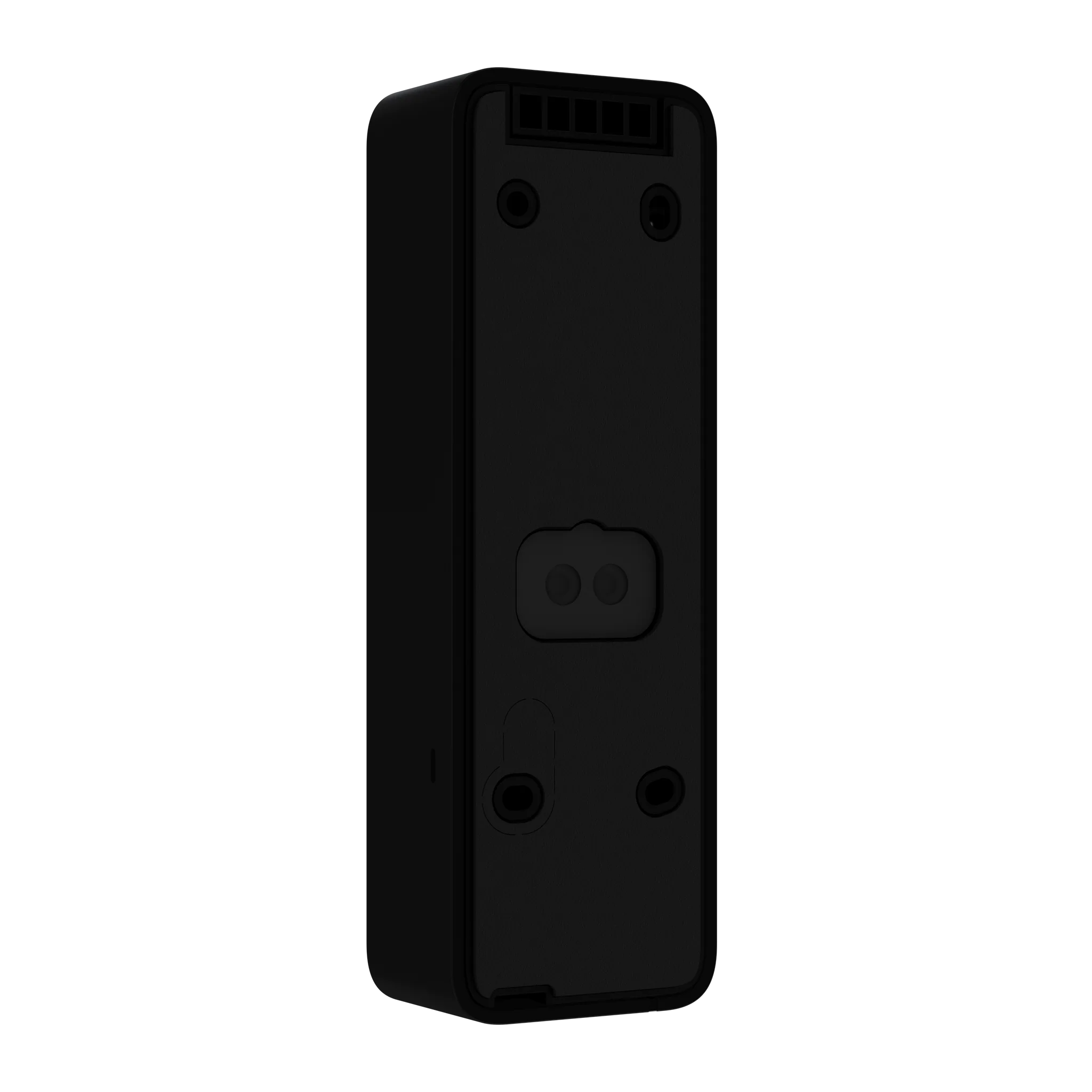

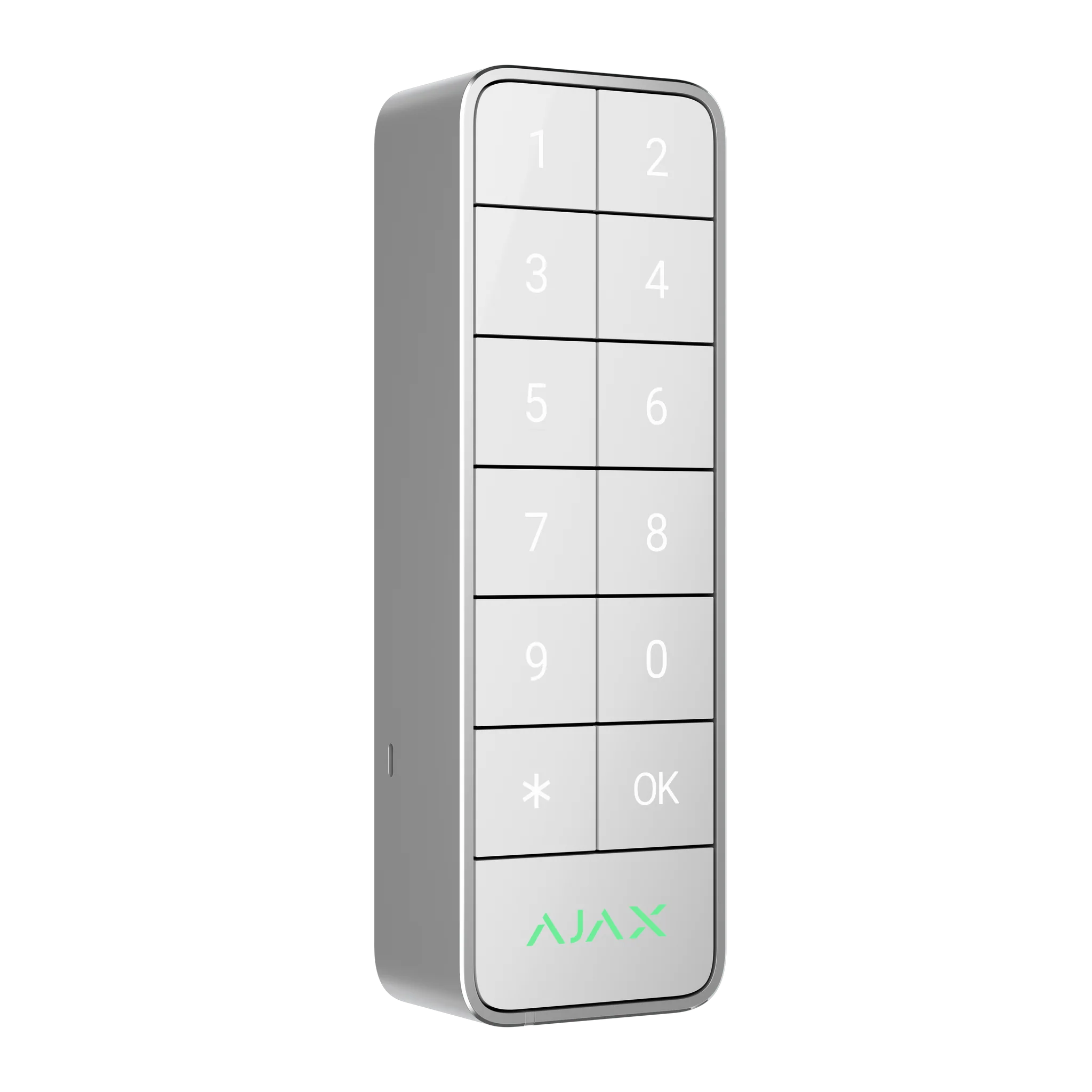

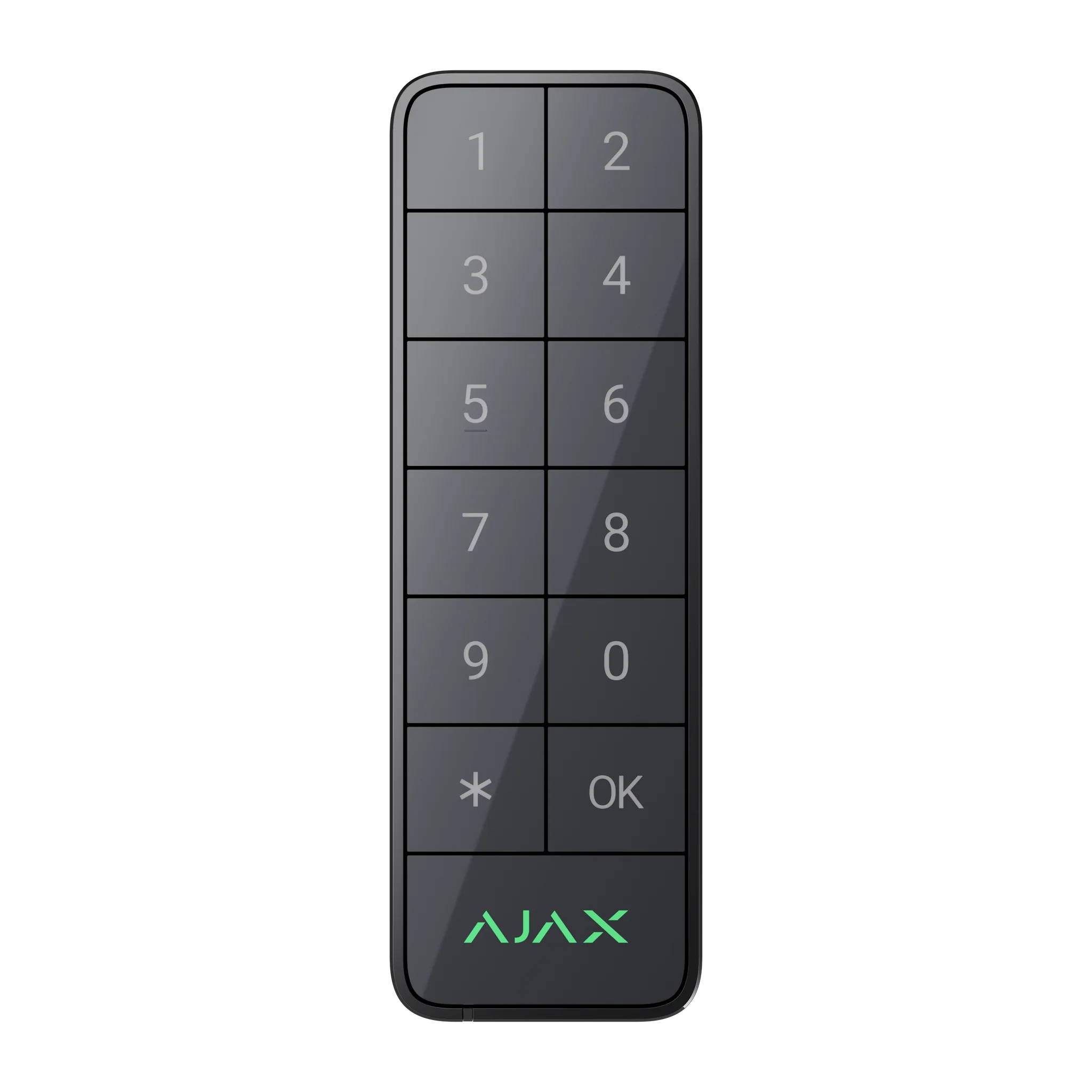

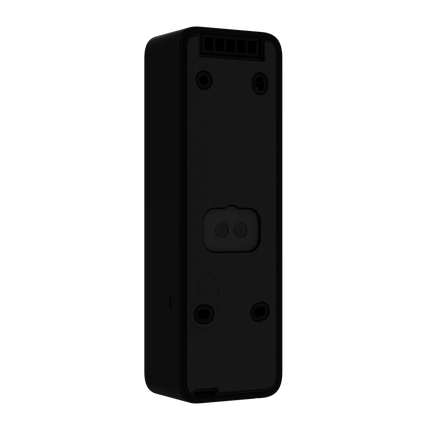

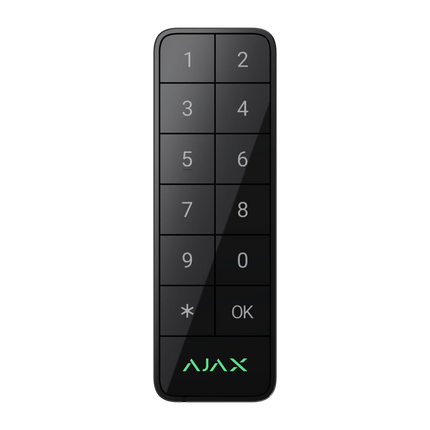

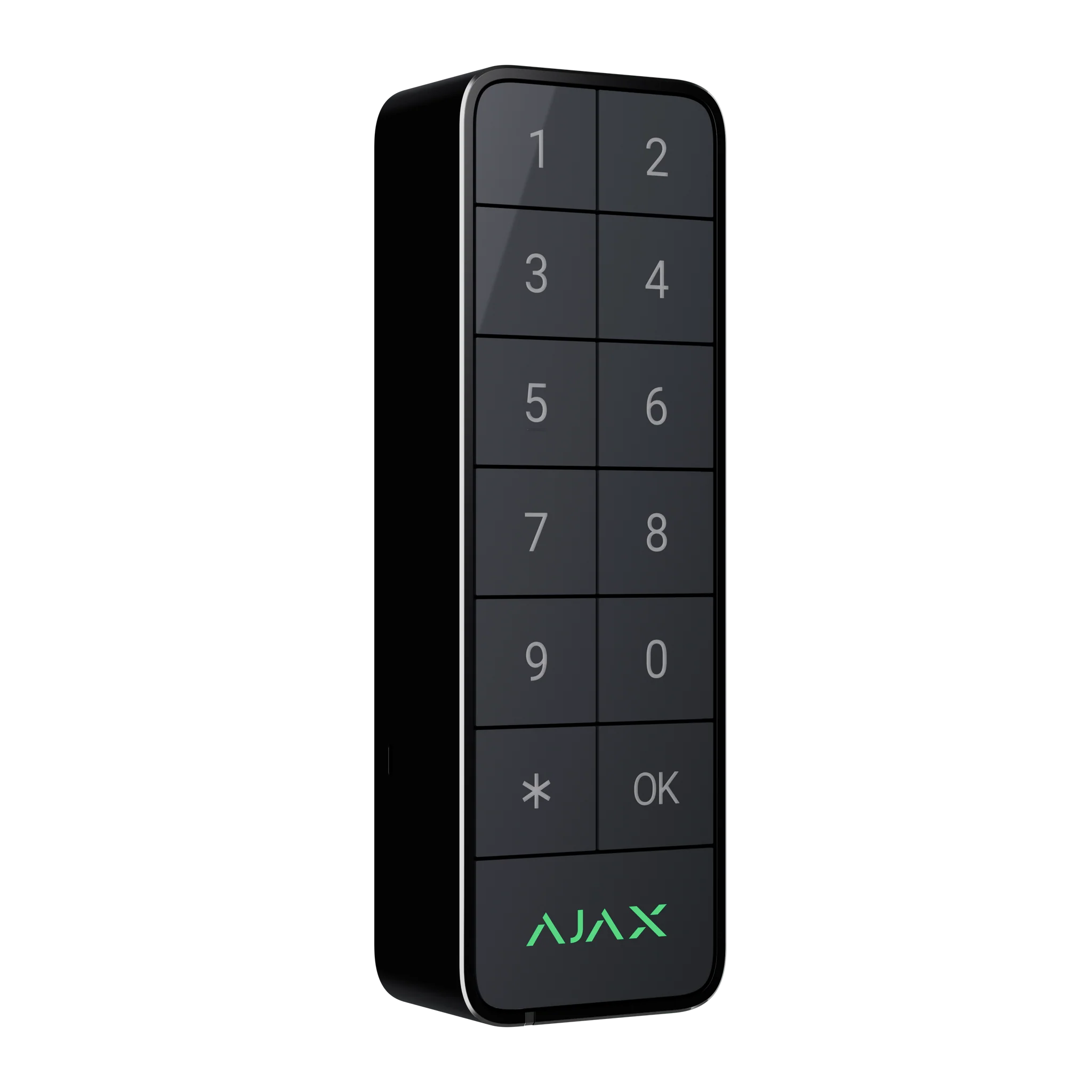

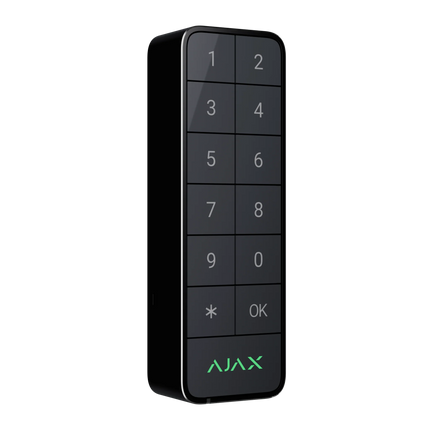

Superior KeyPad Outdoor Fibra is a wired security keypad designed for reliable access control and security system management in both outdoor and indoor environments. It supports multiple authentication methods including codes, Ajax Pass cards, Tag key fobs, and smartphones via Bluetooth.
With advanced Fibra wired communication technology, the keypad ensures secure and stable communication with the hub while providing strong protection against sabotage attempts. The device allows users to manage security modes, control automation devices, and receive instant notifications through Ajax apps.
Features
- Wired keypad with Fibra communication technology
- Supports authentication via Pass cards, Tag key fobs, smartphones, and access codes
- Two-way encrypted communication with dynamic key protection
- Supports up to 50 personal access codes and duress codes
- Contactless access using DESFire® EV1, EV2, EV3 (ISO 14443-A)
- Bluetooth Low Energy (BLE) smartphone authorization
- Group security mode management
- Two-factor authentication support
- Function button configurable as panic alarm or fire alarm mute
- Automation device and scenario control
- Entry delay activation for convenient disarming
- LED indication and built-in buzzer for alarms and system status
- Advanced sabotage protection with tamper alarm
- Automatic lock after multiple incorrect access attempts
- IP66 weather protection and IK08 impact resistance
Complete Set
- Superior KeyPad Outdoor Fibra
- SmartBracket mounting panel
- Installation template
- Installation kit
- Quick start guide
Download
Tech Specs
| Device Type |
Wired security keypad |
| Communication Technology |
Fibra proprietary wired communication |
| Communication Features |
Two-way communication
Encrypted data transmission with dynamic key
Advanced anti-sabotage protection
Instant notifications via Ajax apps |
| Connection |
4-core cable connection
Connects to any point of the Fibra line
Can be installed behind hubs, detectors, sirens, or other keypads |
| Fibra Line Length |
Up to 2,000 m using U/UTP cat.5 twisted pair cable |
| Control Methods |
Access codes
Tag key fobs
Pass cards
Smartphone via Bluetooth |
| Personal Access Codes |
Up to 50 personal codes (depending on hub model) |
| Duress Codes |
Up to 50 personal duress codes |
| Codes for Unregistered Users |
Up to 50 codes for non-registered users |
| Contactless Access |
DESFire® EV1, EV2, EV3 / ISO 14443-A (13.56 MHz) |
| Smartphone Authorization |
Bluetooth Low Energy (BLE) 4.2 or later (Android and iOS) |
| Keypad Functions |
Switch security mode
Manage automation devices
Start entry delay |
| Function Button Modes |
Panic alarm
Mute fire alarm
Disabled |
| Automation Control |
Control automation devices and scenarios via keypad |
| Indication |
LED security mode indication
Built-in buzzer for alarms, door openings, and delays |
| Sabotage Protection |
Automatic keypad lock after 3 incorrect attempts within 1 minute
Tamper alarm for removal or detachment |
| Authentication Protection |
Device authentication and spoofing protection |
| Communication Loss Detection |
After 36 seconds (depending on Fibra settings) |
| Power Supply |
Fibra line power: 7–30 V⎓, up to 25 mA at 24 V⎓ |
| Dimensions |
137 × 45 × 27 mm |
| Weight |
160 g |
| Operating Temperature |
−25 °C to +60 °C |
| Operating Humidity |
Up to 80% |
| Protection Class |
IP66 weather protection, IK08 impact resistance |

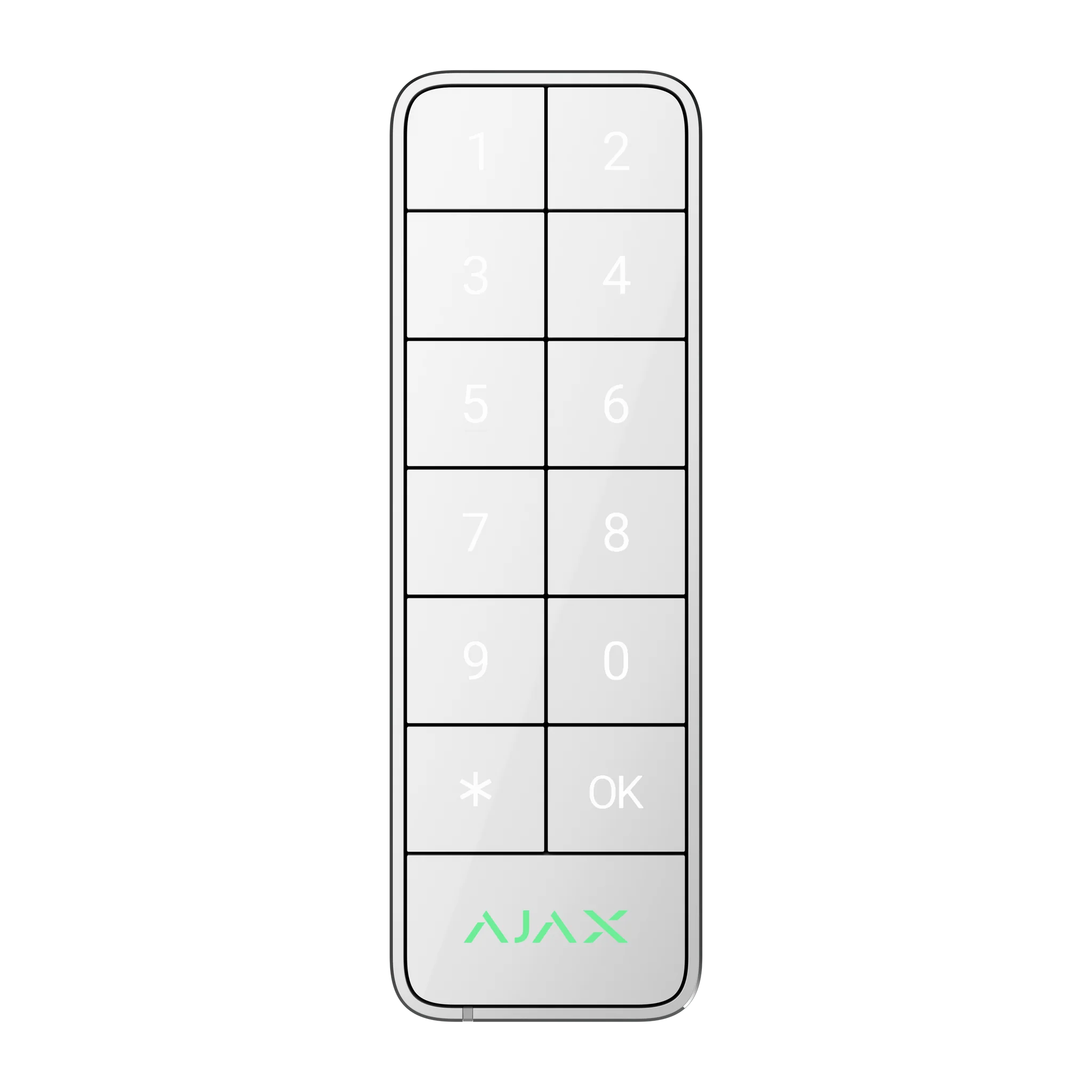

| Available Colors |
Black, White, Graphite |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
