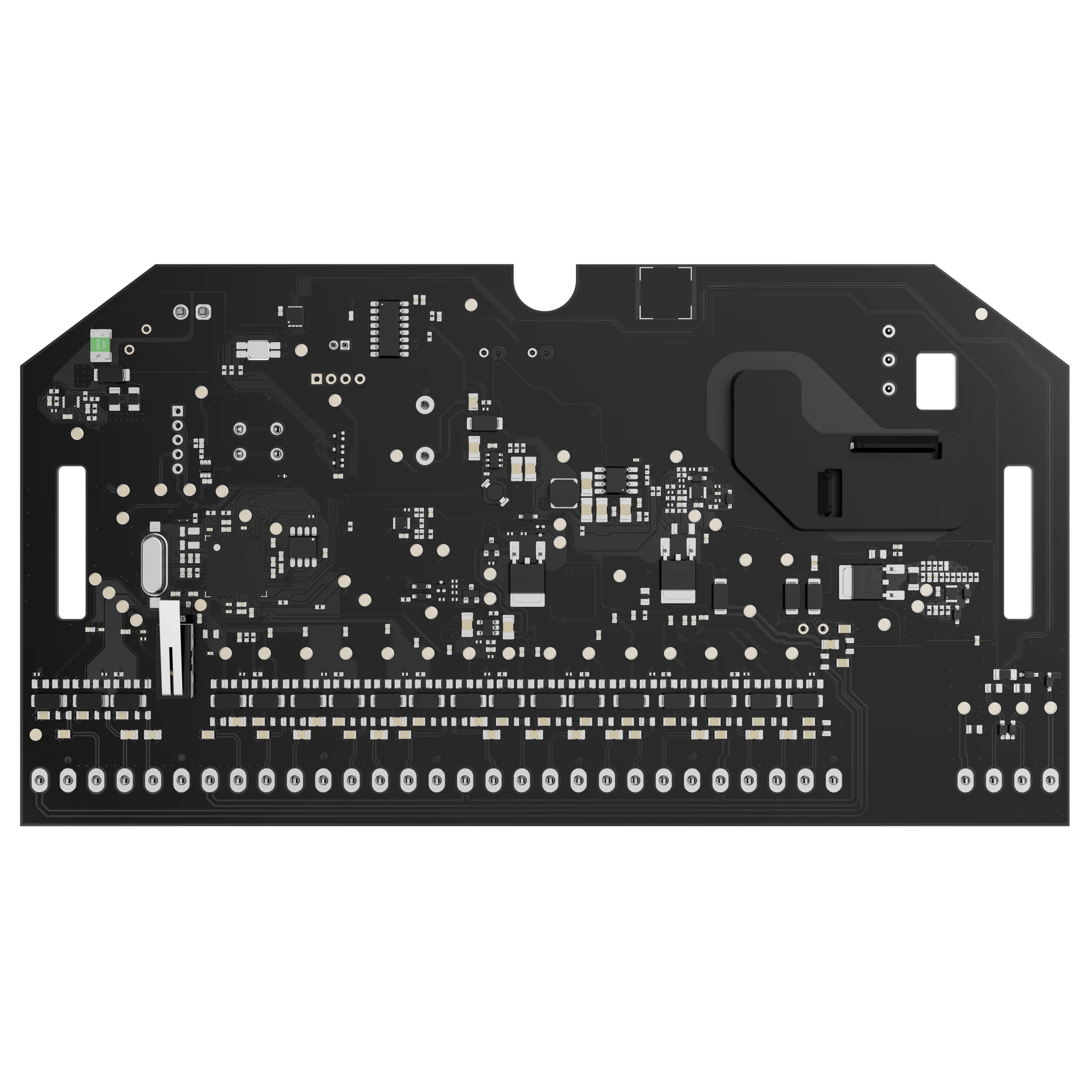

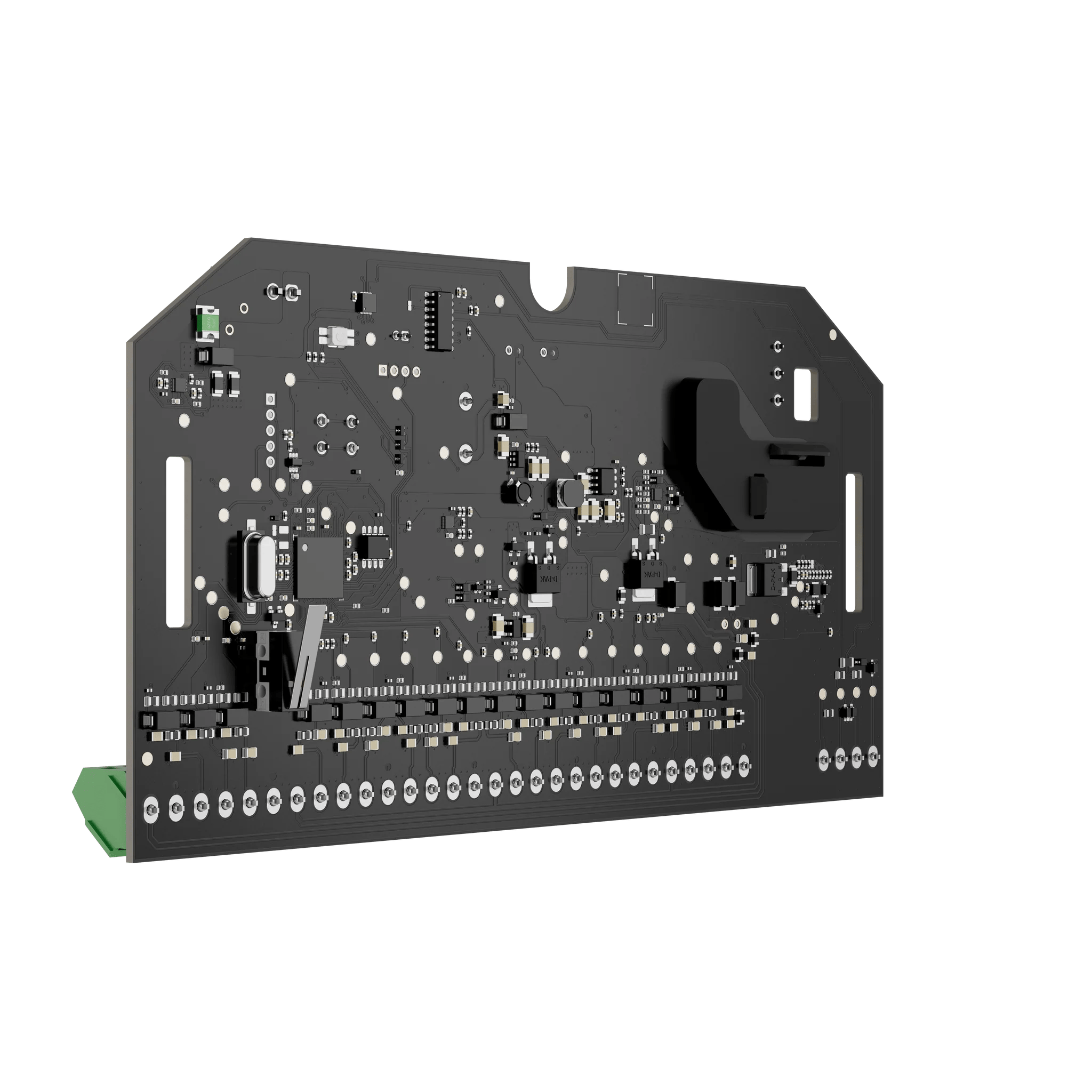

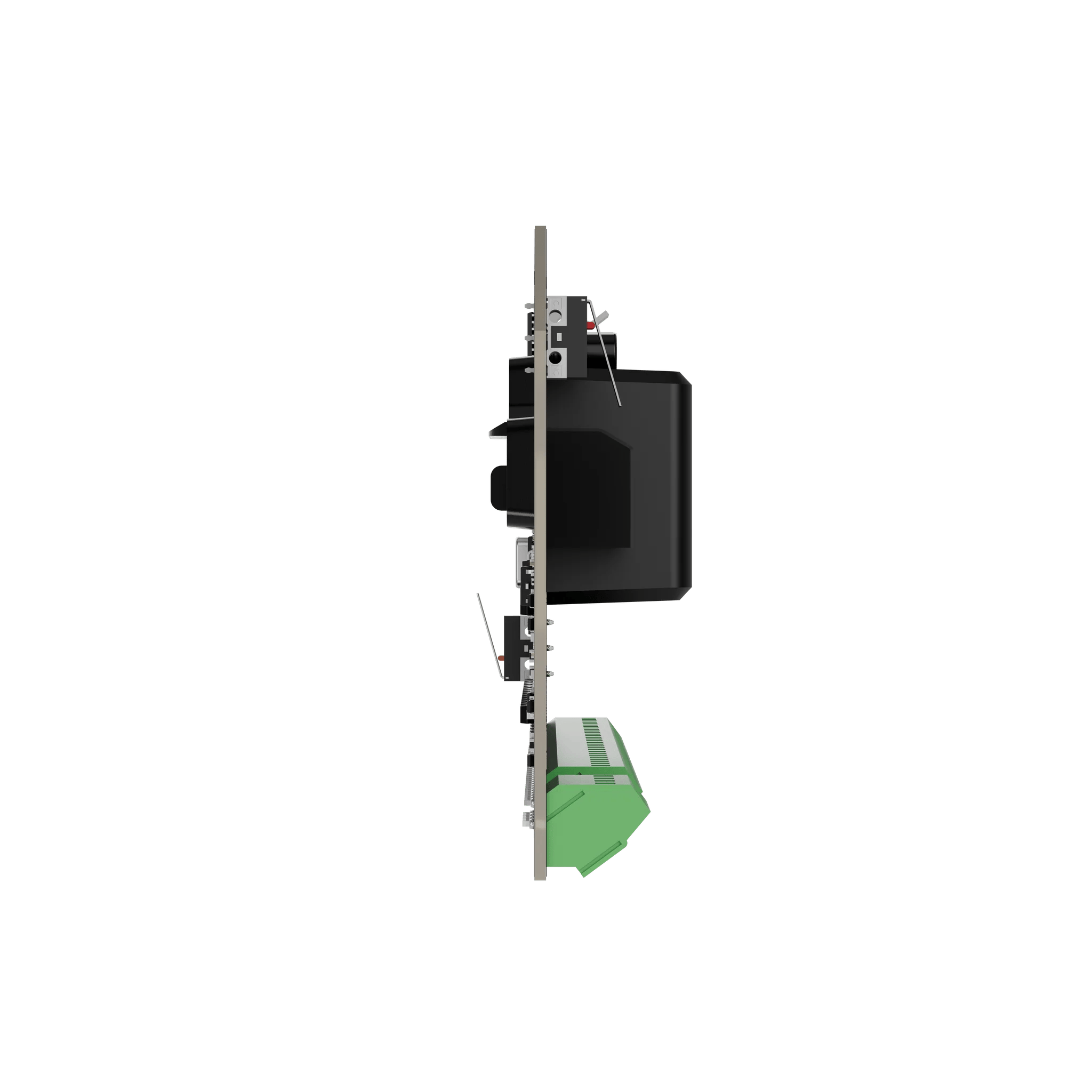

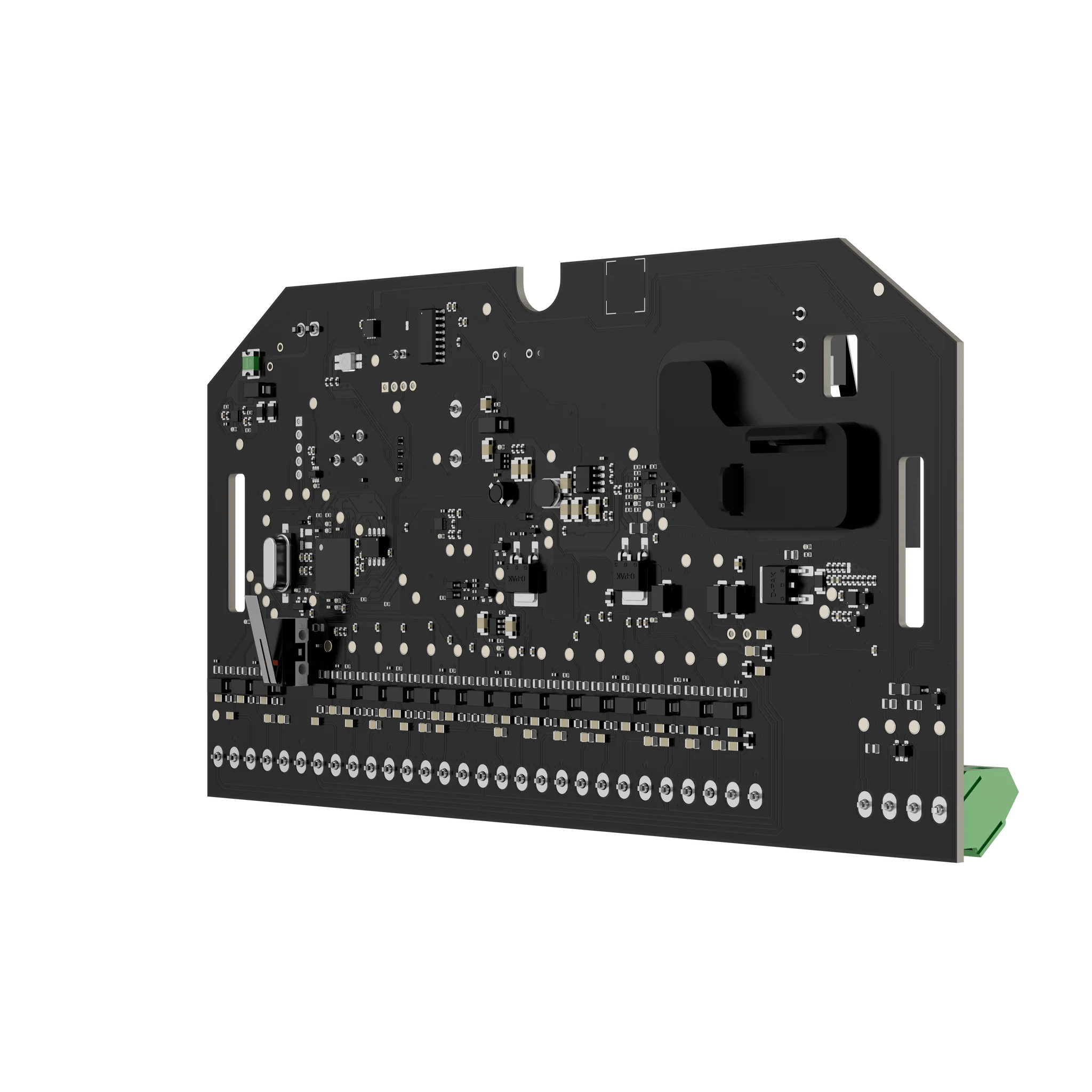

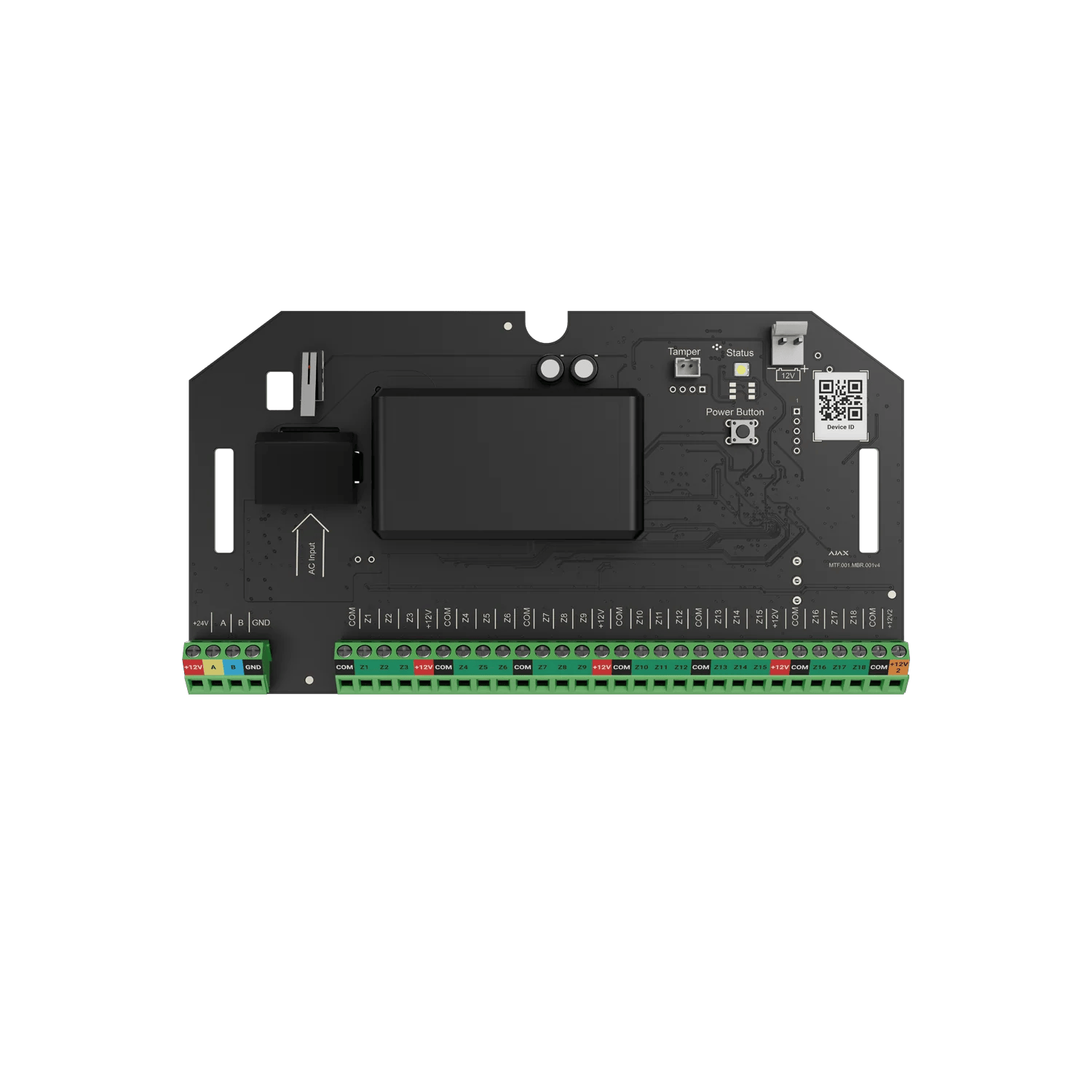

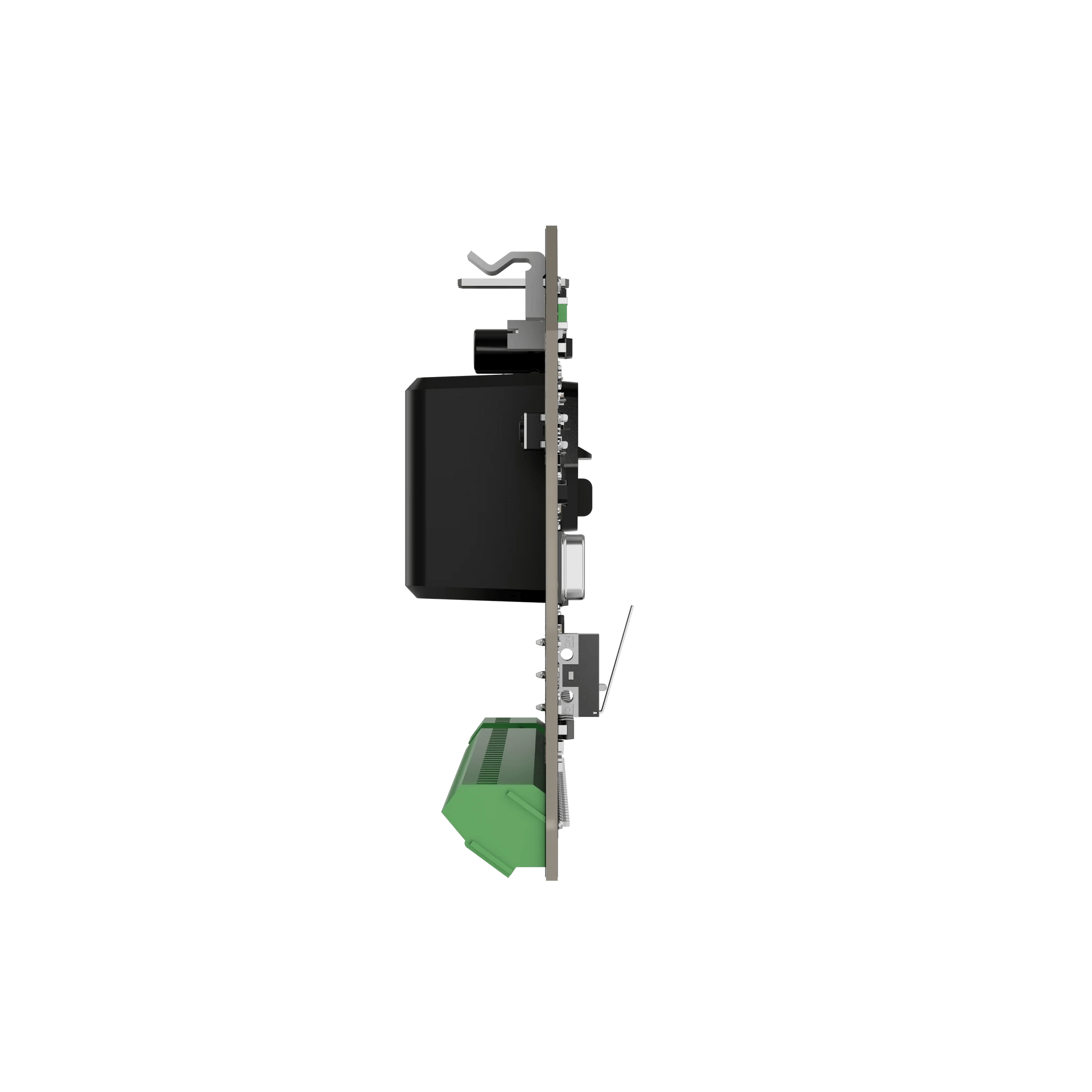

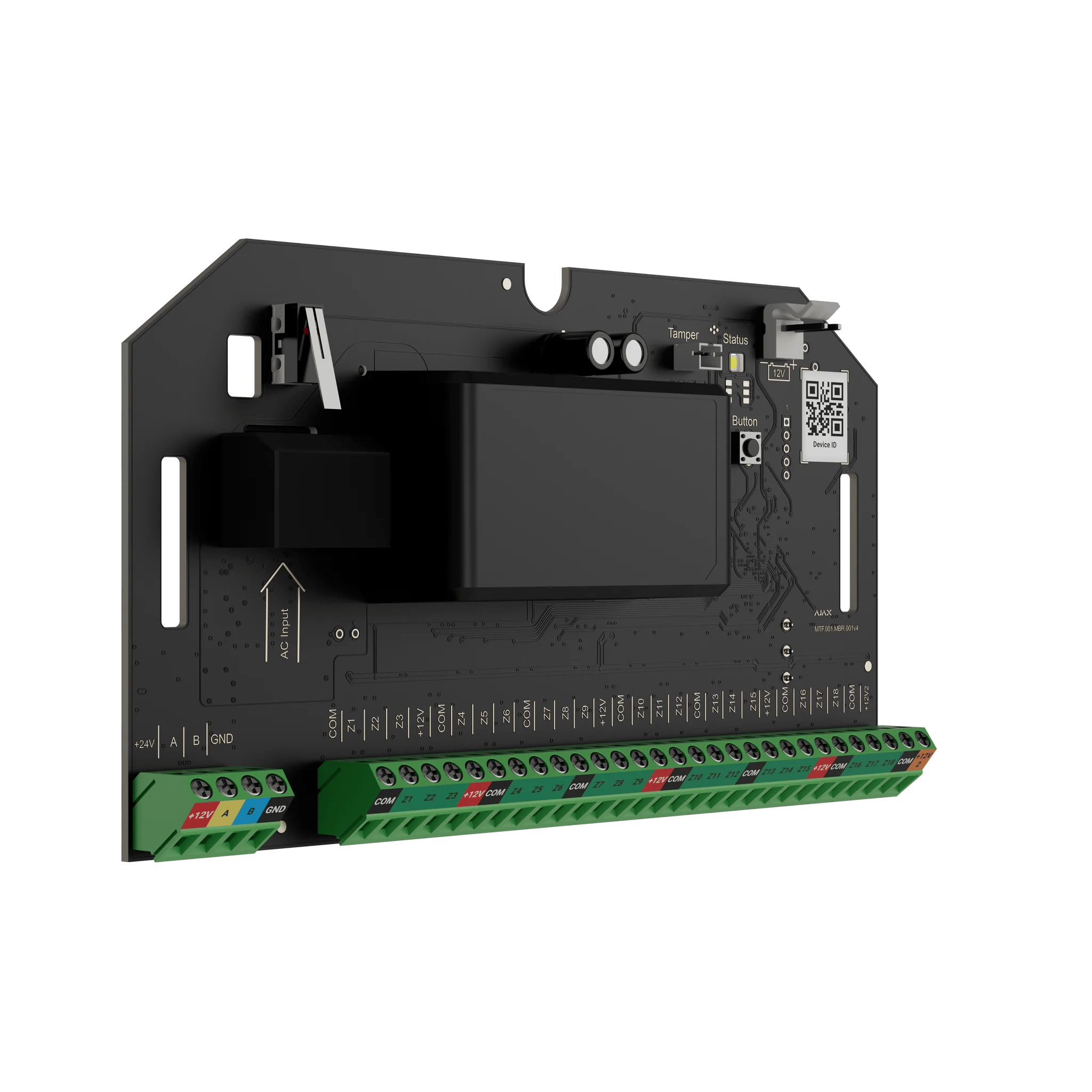

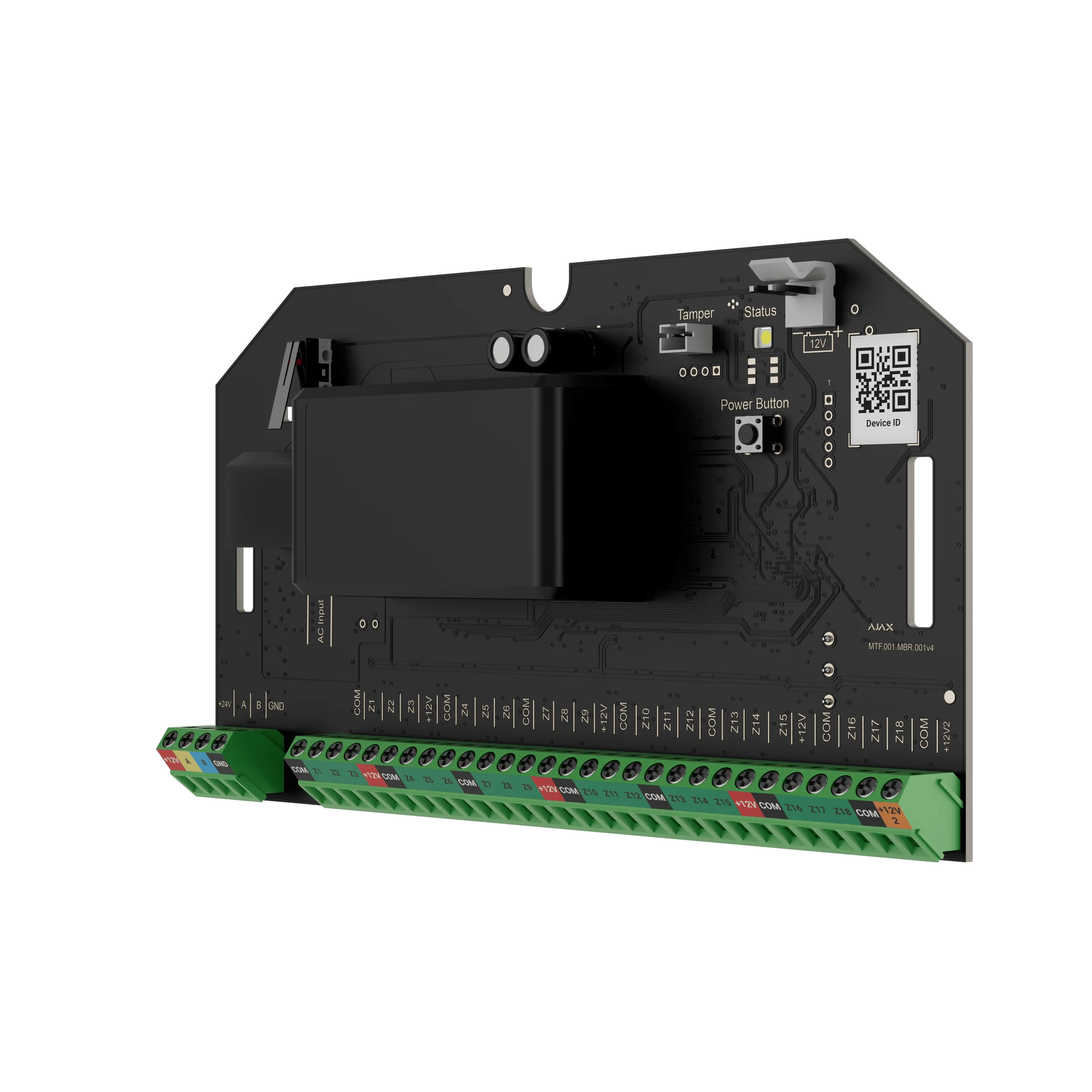

Superior MultiTransmitter Fibra (without casing) is a wired integration module that allows you to connect up to 18 third-party wired devices to an Ajax security system. It uses Fibra proprietary wired communication technology, combining the reliability of wired connections with advanced encryption, sabotage protection, and instant notifications.
The device is powered by 100–240 V~ mains and designed for indoor use only.
It could be installed in Case D, which is sold separately.
Features
- Supports up to 18 wired zones
- Compatible with NC, NO, EOL, 2EOL, 3EOL connection types
- Fibra wired communication technology (up to 2,000 m line length)
- Encrypted communication with dynamic key protection
- Two-way communication
- 15 configurable event types
- Instant notifications
- Remote control and configuration via Ajax apps
- Tamper protection (case opening & detachment detection)
- Backup battery support up to 7 Ah
- Three power supply lines for wired devices (up to 1 A total)
- Dedicated power supply line for fire detectors (up to 0.4 A)
Complete Set
- Superior MultiTransmitter Fibra (without casing)
- Power cable
- Screw terminal block adapter (for INCERT compliance only)
- 12 V battery connection cable
- Quick start guide
Download
Tech Specs
| Device Type |
Wired integration module |
| Communication Technology |
Fibra proprietary wired technology |
| Line Connection |
4-core cable |
| Fibra Line Length |
Up to 2,000 m (U/UTP Cat.5 twisted pair) |
| Number of Zones |
18 wired zones |
| Zone Connection Types |
NC, NO, EOL, 2EOL, 3EOL |
| EOL Resistance |
1 kΩ to 30 kΩ (100 Ω increment) |
| Cable Length (Zones) |
Up to 400 m (0.22 mm² copper cable) |
| Operation Modes |
Pulse, Bistable |
| Communication Loss Detection |
Within 36 seconds |
| Main Power Supply |
100–240 V~, 50/60 Hz |
| Backup Power Supply |
12 V⎓, up to 7 Ah |
| Operating DC Range |
10.5–15 V⎓ |
| Quiescent Current |
25 mA (backup mode) |
| Maximum Current |
30 mA (backup mode) |
| Power Output (Wired Devices) |
10.5–15 V⎓, up to 1 A total |
| Power Output (Fire Detectors) |
10.5–15 V⎓, up to 0.4 A |
| Dimensions |
185 × 99 × 38 mm |
| Weight |
221 g |
| Operating Temperature |
−10 °C to +40 °C |
| Operating Humidity |
Up to 75% |
| Installation |
Indoor use only |
| Optional Accessory |
Case D (sold separately) |
