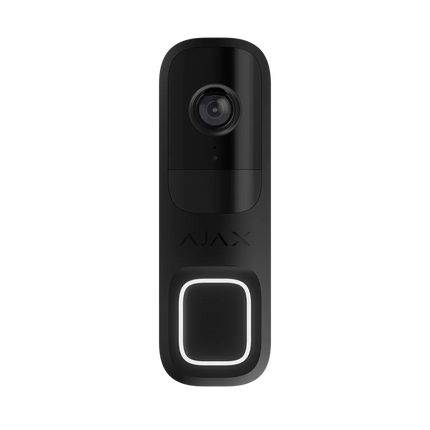

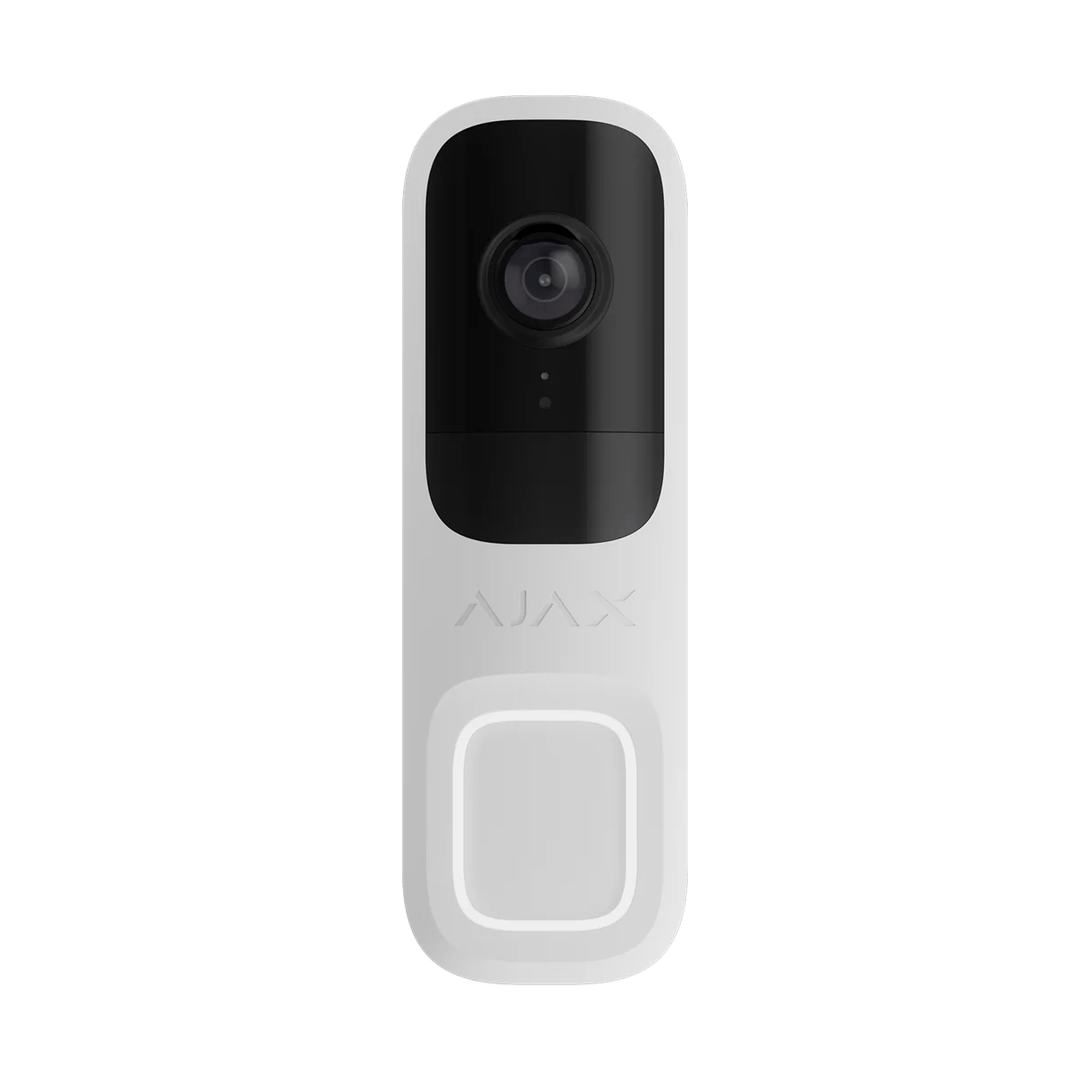

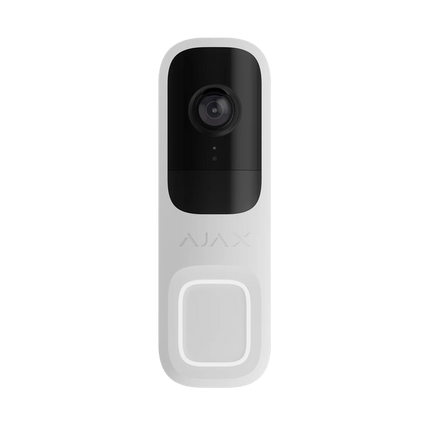

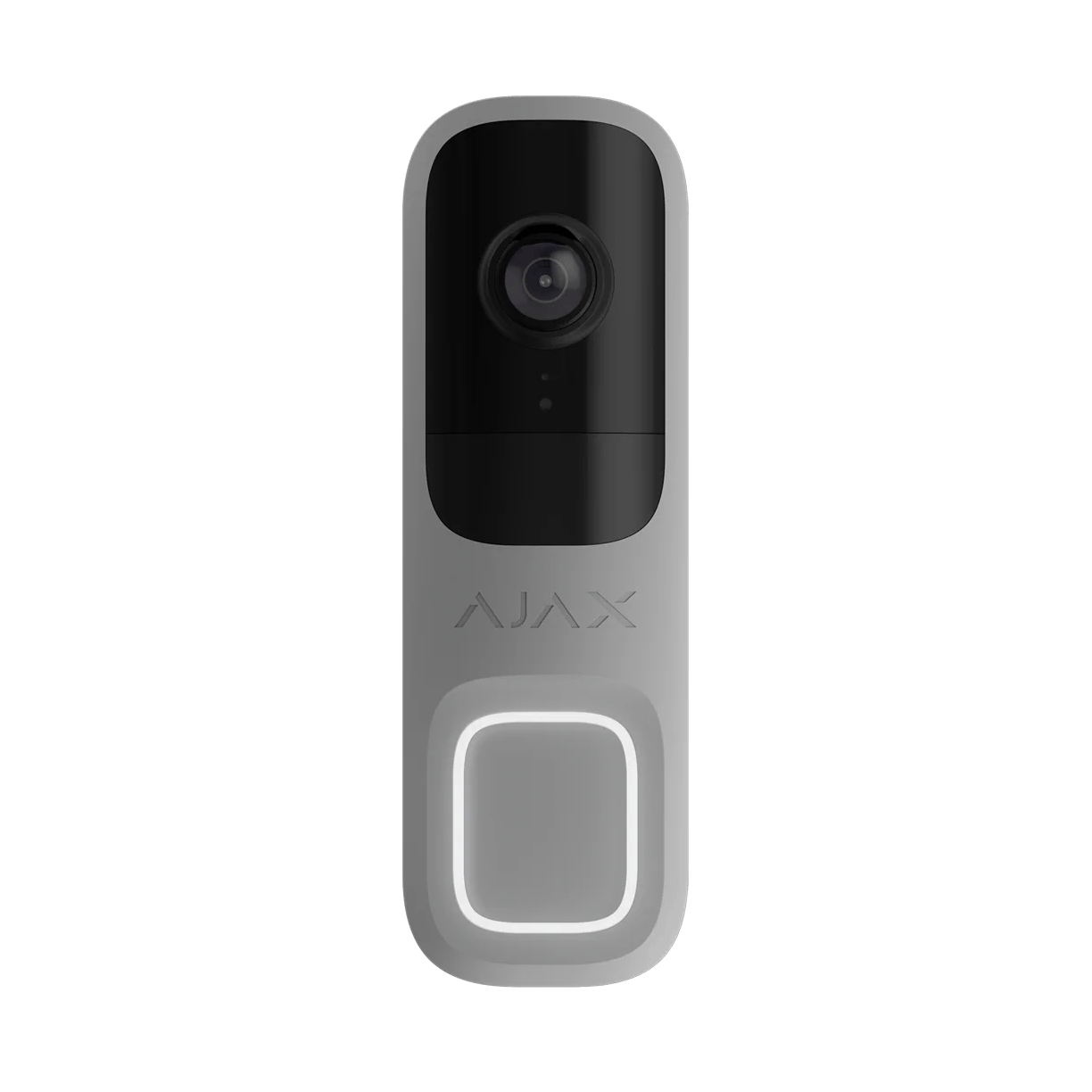

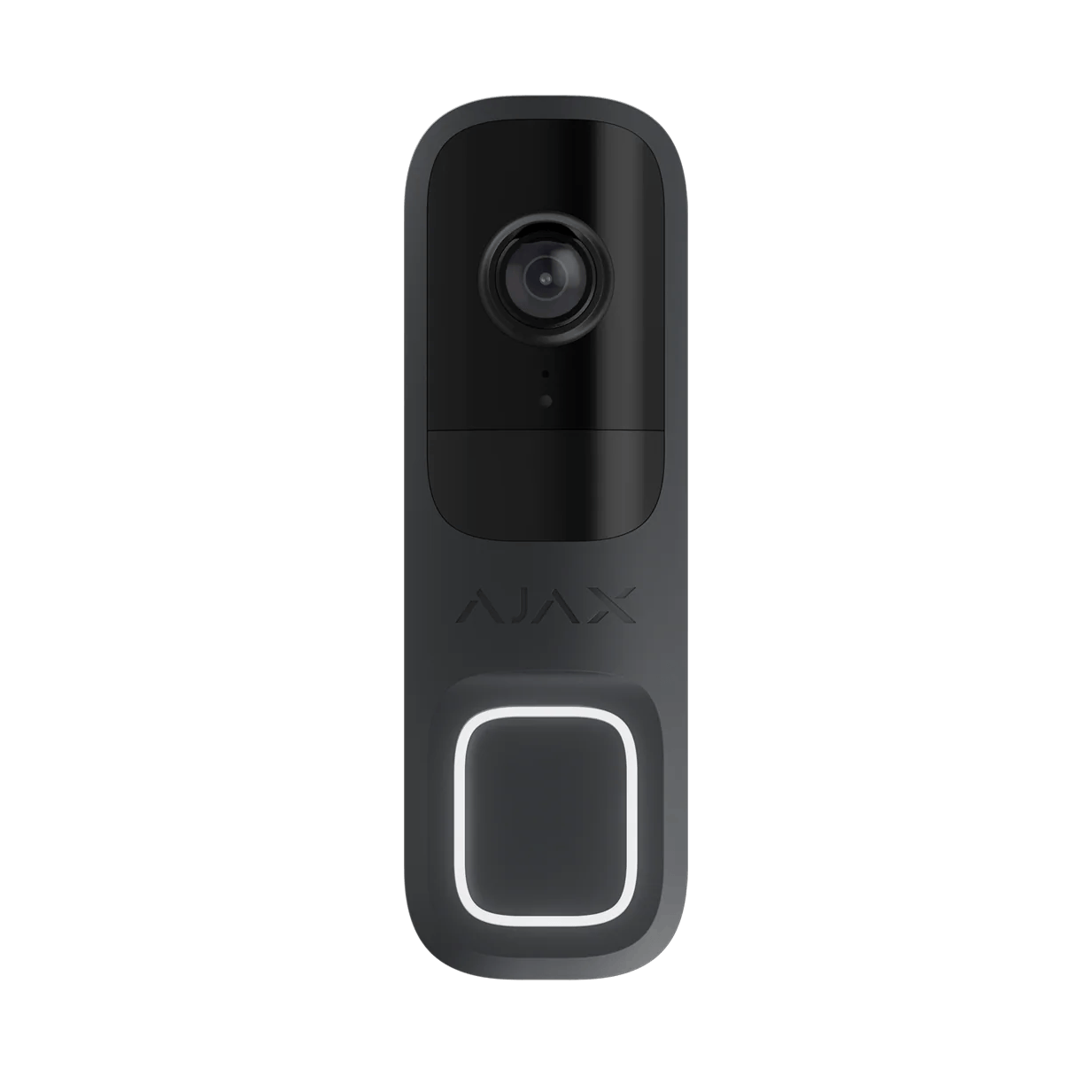

DoorBell is a smart video doorbell equipped with built-in AI, a PIR motion sensor, and seamless app control. It provides reliable video monitoring, two-way communication, and intelligent detection for enhanced home and business security.
With high-resolution video, AI-powered object detection, and secure wireless communication, DoorBell ensures real-time awareness and convenient visitor interaction from anywhere.
Features
- 4 MP CMOS sensor with up to 2688 × 1520 resolution
- Ultra-wide viewing angles (155° horizontal / 90° vertical)
- AI object detection for people, pets, and vehicles
- Built-in PIR motion sensor (up to 4 m detection)
- Two-way audio with noise suppression and echo cancellation
- Smart IR illumination up to 6 m with auto adjustment
- JetSparrow encrypted peer-to-peer video protocol
- Wi-Fi connectivity (2.4 GHz) with backup via Jeweller & Wings
- Supports Ajax Cloud Storage and NVR recording
- ONVIF compatibility (Profile S / partial Profile T)
- Advanced sabotage protection and secure authentication
- Indoor and outdoor installation support
Complete Set
- DoorBell

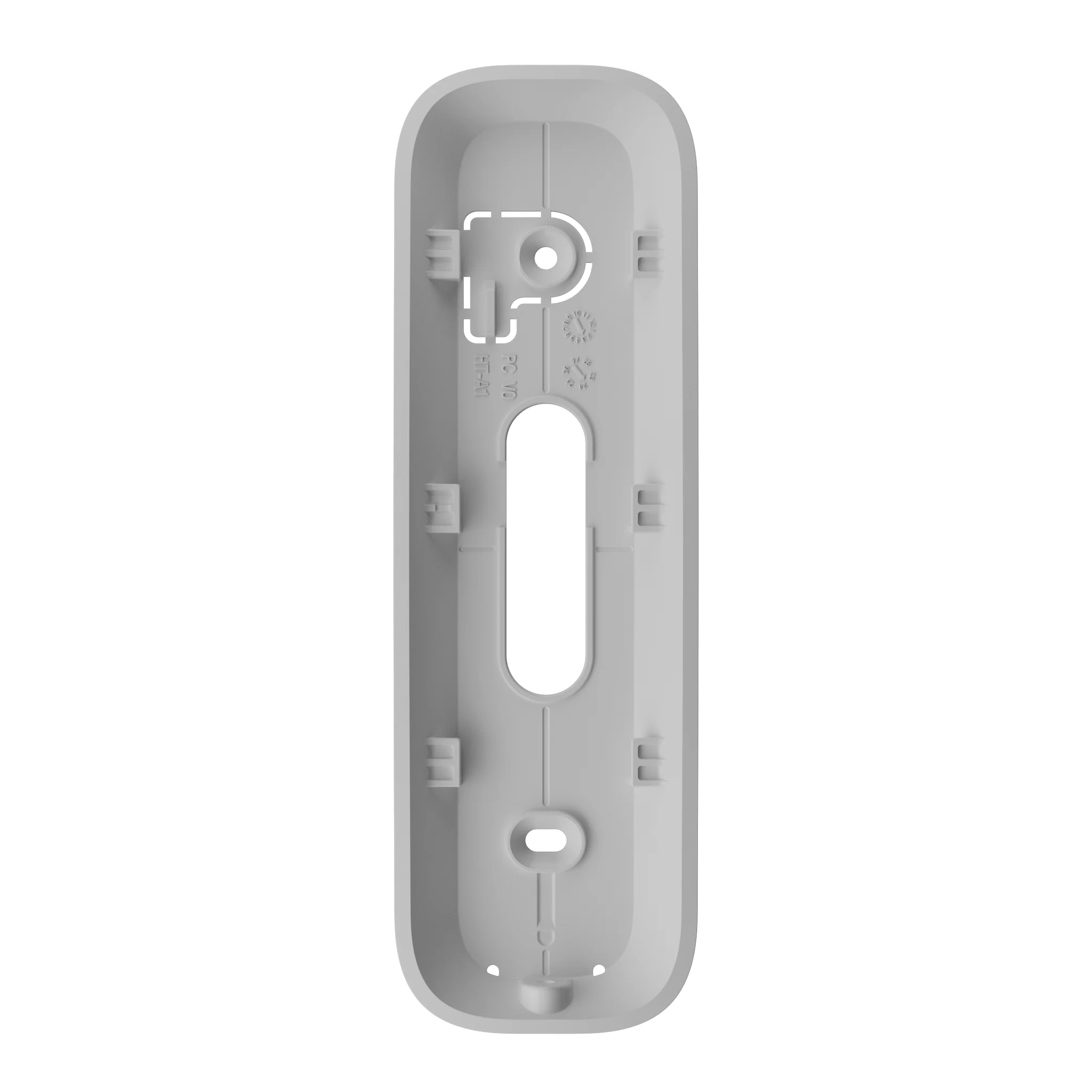

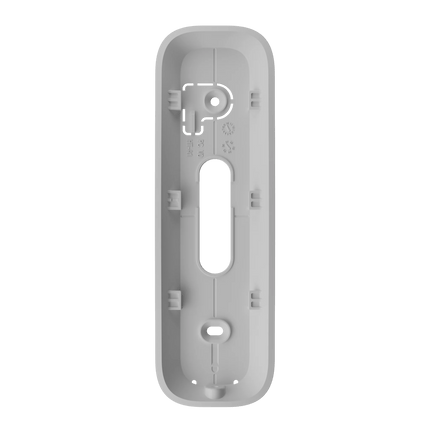

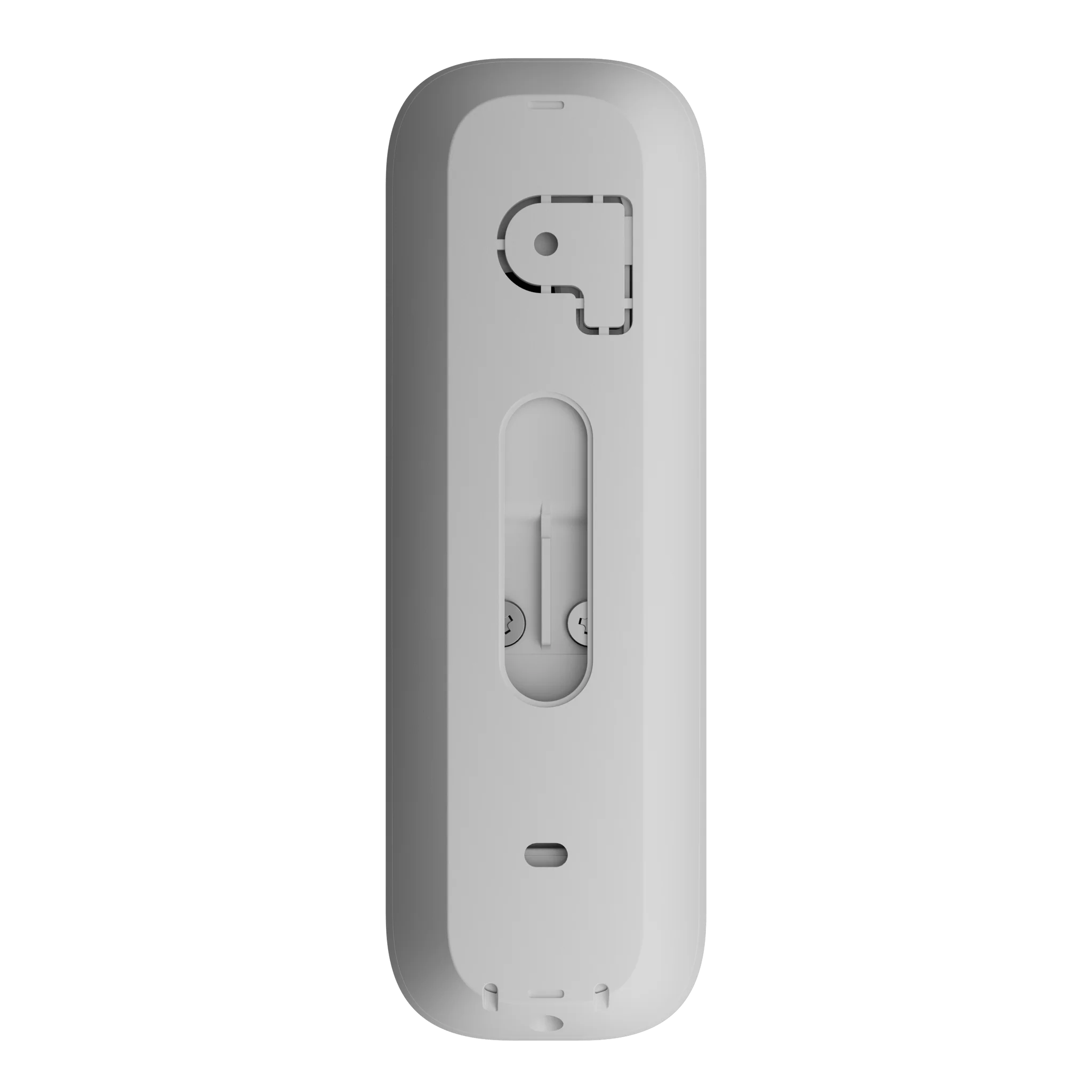

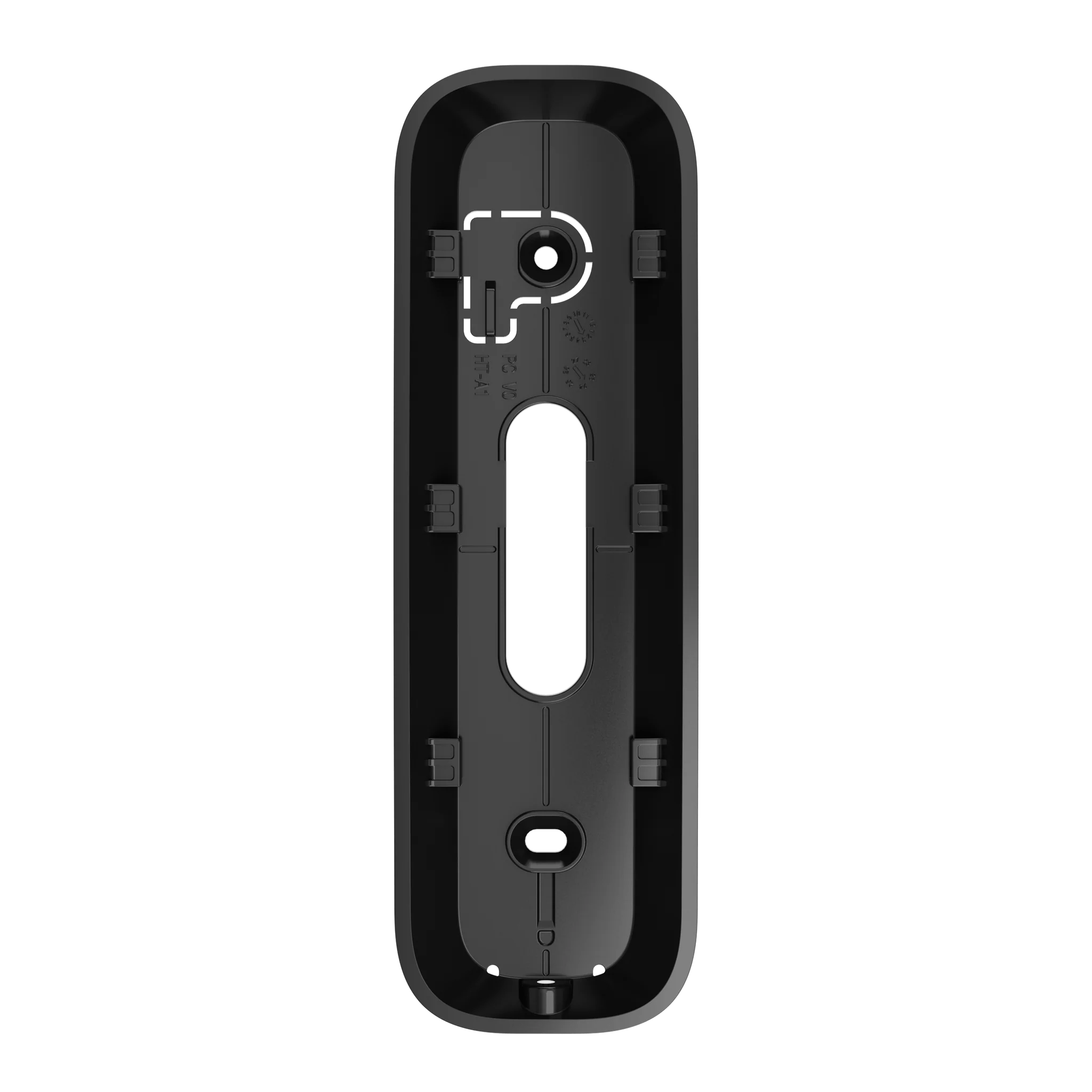

- SmartBracket mounting panel
- Wedge bracket (2 pcs)
- BellKit (for wired chime connection)
- Installation kit
- Quick start guide
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
Tech Specs
| Device Type |
Smart video doorbell with AI and PIR sensor |
| Image Sensor |
4 MP CMOS |
| Resolution |
Up to 2688 × 1520 |
| Field of View |
Horizontal: 155°
Vertical: 90° |
| Video Protocol |
JetSparrow (encrypted peer-to-peer) |
| Video Codec |
H.264 |
| Dynamic Range |
HDR |
| Storage |
Ajax NVR, Ajax Cloud Storage |
| Communication |
Wi-Fi 802.11 b/g/n (2.4 GHz, up to 2 Mbit/s)
Backup via Jeweller & Wings |
| Audio |
Built-in microphone and speaker (two-way communication) |
| Audio Codec |
G722 |
| Audio Processing |
Noise suppression and echo cancellation |
| AI Object Detection |
People, Pets, Vehicles |
| PIR Sensor |
1 × PIR sensor |
| Motion Detection Distance |
Up to 4 m |
| Motion Detection Angle |
Horizontal: 120°
Vertical: 100° |
| Sensitivity Levels |
3 levels (configurable) |
| IR Illumination |
Up to 6 m (auto-adjusting) |
| ONVIF Support |
Profile S, partial Profile T |
| Security |
mTLS encryption
Ajax Cloud authentication
Secure Boot
OTA signature verification |
| Sabotage Protection |
Tamper alarm, mounting panel removal detection |
| Communication Loss Detection |
Wi-Fi: from 30 s
Jeweller/Wings: after 36 s |
| Power Consumption |
Up to 10 W |
| Power Supply |
DC: 12–24 V
AC: 16–24 V, 50/60 Hz |
| Minimum Current |
Without chime: 0.4–1 A
With chime: up to 3 A (DC) |
| Battery |
Built-in Li-ion 600 mAh (backup and heating support) |
| Dimensions |
145 × 47 × 34 mm |
| Weight |
163 g |
| Operating Temperature |
−25 °C to +60 °C |
| Operating Humidity |
Up to 90% |
| Protection Class |
IP54 |
| Available Colors |
White (RAL 9003), Grey (RAL 7004), Graphite (RAL 7024), Black (RAL 9005) |
