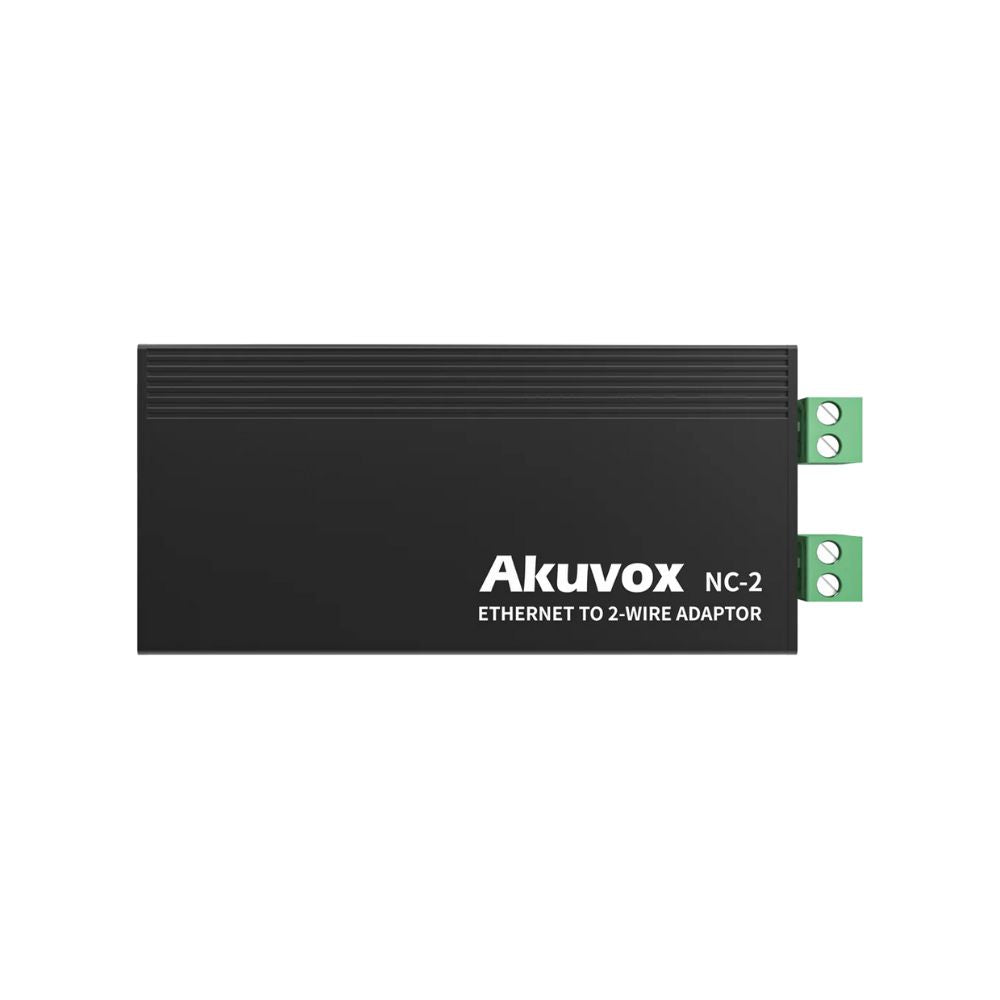

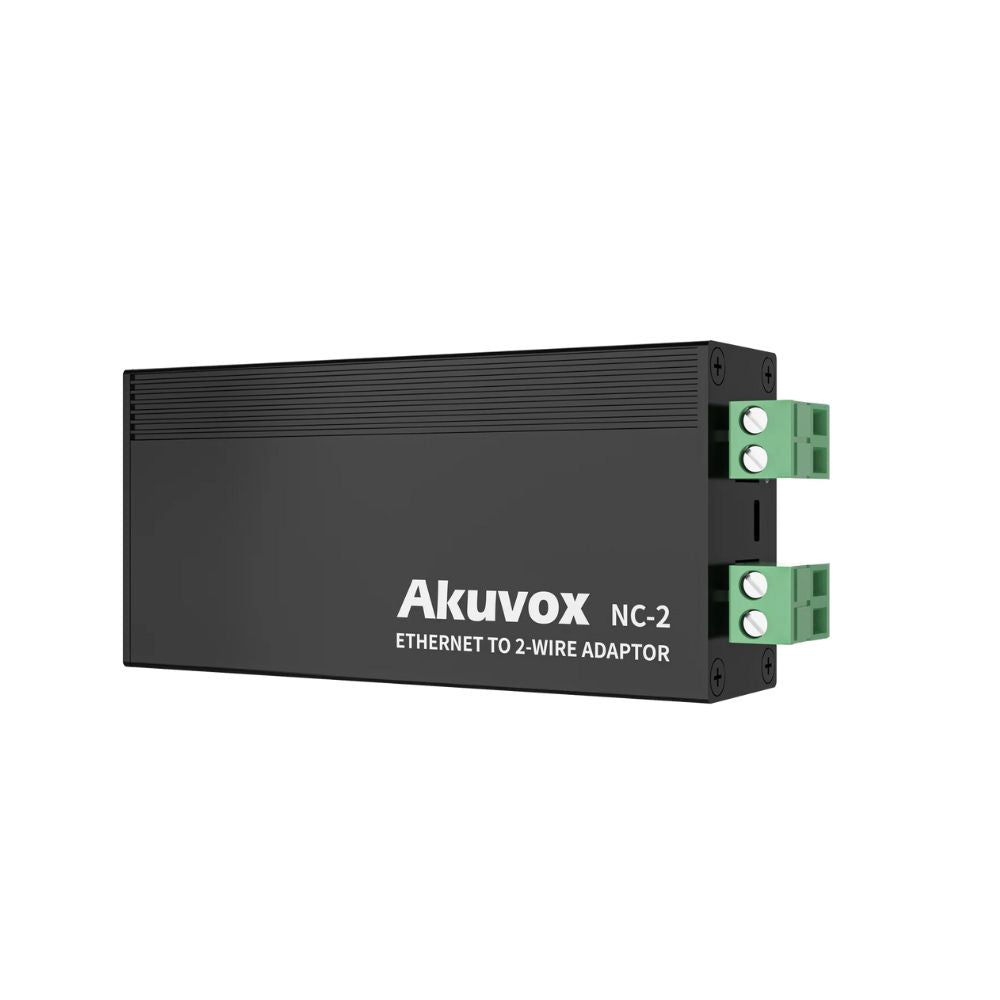

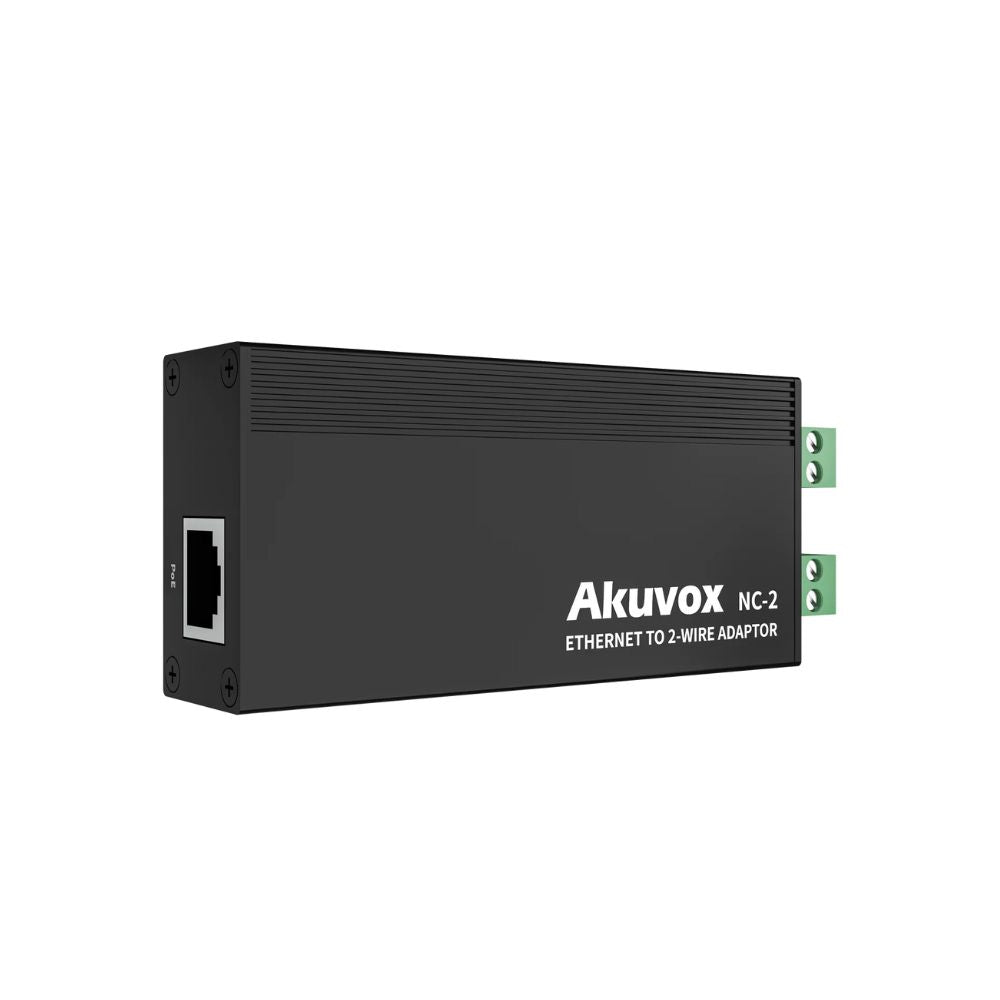

The NC-2 is Akuvox 2-wire IP network switch which provides a convenient way to upgrade analogue intercom systems, no need for rewiring. It can be used with Akuvox NS-2 to connnect Akuvox doorphones to the 2-wire IP intercom network.
Features
- Support PoE Output
- Long transmission distance via 2-wire cable
- Support for paired use or use with Akuvox NS-2
- Powerd by 48VDC unit or NS-2
Datasheet
AKUVOX 2-WIRE SWITCH- NC-2
Tech Specs
| Physical & Power |
|
- RJ45 port: 1 x RJ45 port, 10/100Mbps adapter
|
|
|
- Working temperature: -10℃~+50℃
|
- Storage temperature: -20℃~+70℃
|
- Working humidity: 10%~90%
|
- Dimension: 113 x 48 x 25 (mm)
|
