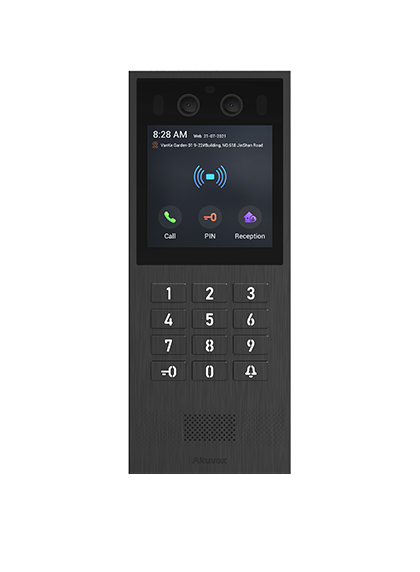

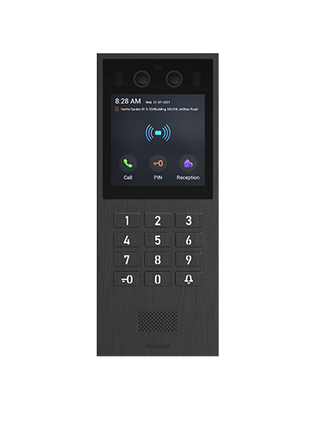

Akuvox X912K 4" Linux Video Doorphone with Physical Keypad

VendorAkuvox
Share
- WhatsApp
- Deel
- Messenger
- Email

Description

The Akuvox X912K is a premium IP video door phone with advanced access control, designed for high-security environments such as condominiums, office buildings, and gated communities. It features a durable vandal-resistant body, a 4-inch touchscreen display, and multiple authentication methods including face recognition, card, PIN, BLE, and QR code. With its powerful camera and wide-angle view, the X912K ensures reliable monitoring and secure entry management.

Features

4-inch color TFT touchscreen with physical numeric keypad
2MP camera with wide viewing angle (125° H / 65° V)
Multi-access authentication: Face, Card, PIN, BLE, and QR code
Two-way audio communication with echo cancellation
Linux-based operating system for stable performance
Vandal-resistant aluminum body (IP65, IK08 rated)
Supports SIP and ONVIF for easy integration
Flush-mounted or surface-mounted installation options
Built-in RF card reader (13.56MHz & 125kHz) with NFC support
BLE support for mobile-based access control

Downloads

Datasheet

Akuvox X912K Datasheet V1.0

Tech Specs

📌 Akuvox X912K Video Door Phone

Category	Item	Specification
Physical & Power	Front Panel	Aluminum
	Display	4-inch color TFT LCD touchscreen
	Camera	2MP camera
	Keypad	Physical numeric keypad
	Microphone & Speaker	2 microphones, 1 speaker
	Ethernet	RJ45, 10/100 Mbps adaptive
	Power	PoE+ (802.3at) or 12V DC
	Power Output	12V/1A (Max.)
	Installation	Wall-mounted or flush-mounted
	Dimensions	234 × 94.5 × 34 mm
	Protection Rating	IP65, IK08
	Operating Conditions	-20°C to +60°C, 10–90% humidity
Audio	Protocols	SIP v1 (RFC2543), SIP v2 (RFC3261)
	Codecs	G.711a, G.711μ, G.722
	Features	Echo cancellation, voice activity detection, comfort noise generation
	DTMF	In-band, RFC2833, SIP Info
Video	Sensor	1/2.8” CMOS
	Resolution	Up to 1920×1080 @ 30fps
	Codec	H.264 with HDR support
	Viewing Angle	125° (H) / 65° (V)
	Compatibility	Supports 3rd-party NVRs
Door Entry	Access Methods	Face, IC/ID Card, PIN, BLE
	Relay Outputs	2 relays
	Inputs	3 inputs
	Control	DTMF-controlled relays
	Camera Features	Auto white balance, 0.1 lux minimum illumination
Connectivity	Interfaces	Wiegand, RS485, Line out
	Wireless	BLE supported
	Networking	IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
System & Maintenance	Management	Web portal, auto-provisioning
	Functions	Firmware upgrade, logs, configuration backup/restore
	Data Handling	Entry log export, access table import/export
Application	Usage	Suitable for apartments, offices, gated communities, and industrial buildings
