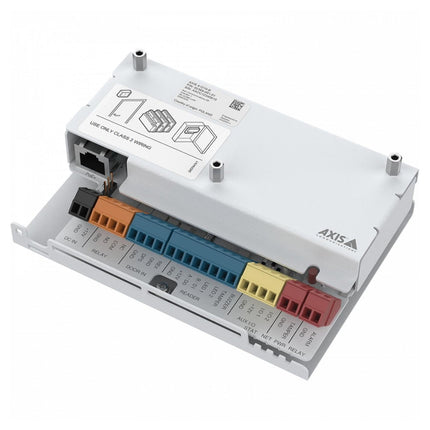

Name: Axis A1210-B Network Door Controller, Access Control - 02369-001
Brand: Axis
SKU: A1210-B
Price: 859.0 AUD

Axis A1210-B Network Door Controller, Access Control - 02369-001

VendorAxis
Share
- WhatsApp
- Deel
- Messenger
- Email

Description

The AXIS A1210-B is a compact and cost-effective door controller designed for one door installations. Powered by a single PoE cable, it supports flexible authentication options and is fully integrated within Axis end-to-end solutions. With its barebone design, it’s perfect for small enclosures and stackable for high-density installations. It features secure edge processing and robust cybersecurity protections, including Axis Edge Vault.

Features

Single-Door Controller – Controls 1 wired door or 1 wired + 1 wireless lock gateway via ASSA ABLOY Aperio®.
Supports 2 Readers – Connect up to 2 OSDP (Secure Channel) or 1 Wiegand reader.
Flexible Authentication – Compatible with third-party access software; stores 250,000 credentials.
Smart Edge Processing – Operates independently even during network interruptions.
Compact & Stackable – Space-saving, ideal for tight spaces and cabinet installations.
Advanced Cybersecurity – Includes Axis Edge Vault, secure boot, and secure keystore (EAL6+).
Power Efficient – PoE-powered with configurable power outputs for locks, readers, and auxiliary devices.

What's Included

AXIS A1210-B Network Door Controller
Mating connectors (pre-mounted)
Installation guide
Grounding kit
Cable ties

DOWNLOADS

Datasheet	AXIS A1210-B Datasheet
Installation Guide	AXIS A1210-B Installation Guide
User Manual	AXIS A1210-B User Manual

Tech Specs

Specification	Details
Doors Supported	1 wired door or 1 wired + 1 wireless lock
Readers Supported	Up to 2x OSDP (Secure Channel) or 1x Wiegand
Wireless Lock Support	Up to 16x ASSA ABLOY Aperio®
Credential Capacity	Up to 250,000 stored locally
Event Buffer	Up to 250,000 events
Power Input	12 V DC or PoE IEEE 802.3at (Class 4)
Reader Power Output	12 V DC, max 500 mA
Lock Power Output	12/24 V DC, up to 1600 mA (DC), 900 mA (PoE)
Aux Power Output	12 V DC, max 50 mA
Total Power Budget	2100 mA @12 V (DC) or 1400 mA @12 V (PoE)
Relay Outputs	1x NO/NC relay, max 2 A @ 30 V DC
I/O Interfaces	6 configurable I/Os, supervised inputs
Tamper Detection	Removal, vibration, tilt, cabinet input
Network Security	HTTPS, 802.1x, Edge Vault, secure keystore
Memory	512 MB RAM, 2 GB Flash
Casing	Aluminum, white (NCS S 1002-B), stackable
Mounting	Cabinet, DIN rail, or stack mount
Operating Temp	0 °C to 70 °C
Humidity	20–85% RH (non-condensing)
Storage Temp	-40 °C to 70 °C
Dimensions	Refer to dimension drawing
Weight	425 g (0.9 lb)
Languages	EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, PL, ZH-TW
Warranty	5-year warranty

Q&A

Q1: Is the A1210-B ideal for tight spaces or cabinets?
A: Yes. Its compact, stackable form is perfect for cabinet mounting or space-restricted setups.

Q2: How many readers can it support?
A: It supports 2 OSDP readers or 1 Wiegand reader per unit.

Q3: Does it work without a network?
A: Yes. With edge intelligence, it continues operating locally during network interruptions.

Q4: Can it power readers and locks?
A: Yes. It can power both, with PoE or DC input supplying the necessary current.

Q5: What’s the difference between this and A1210?
A: The A1210-B is a barebone version without a cover, designed specifically for cabinet or stack mounting.
