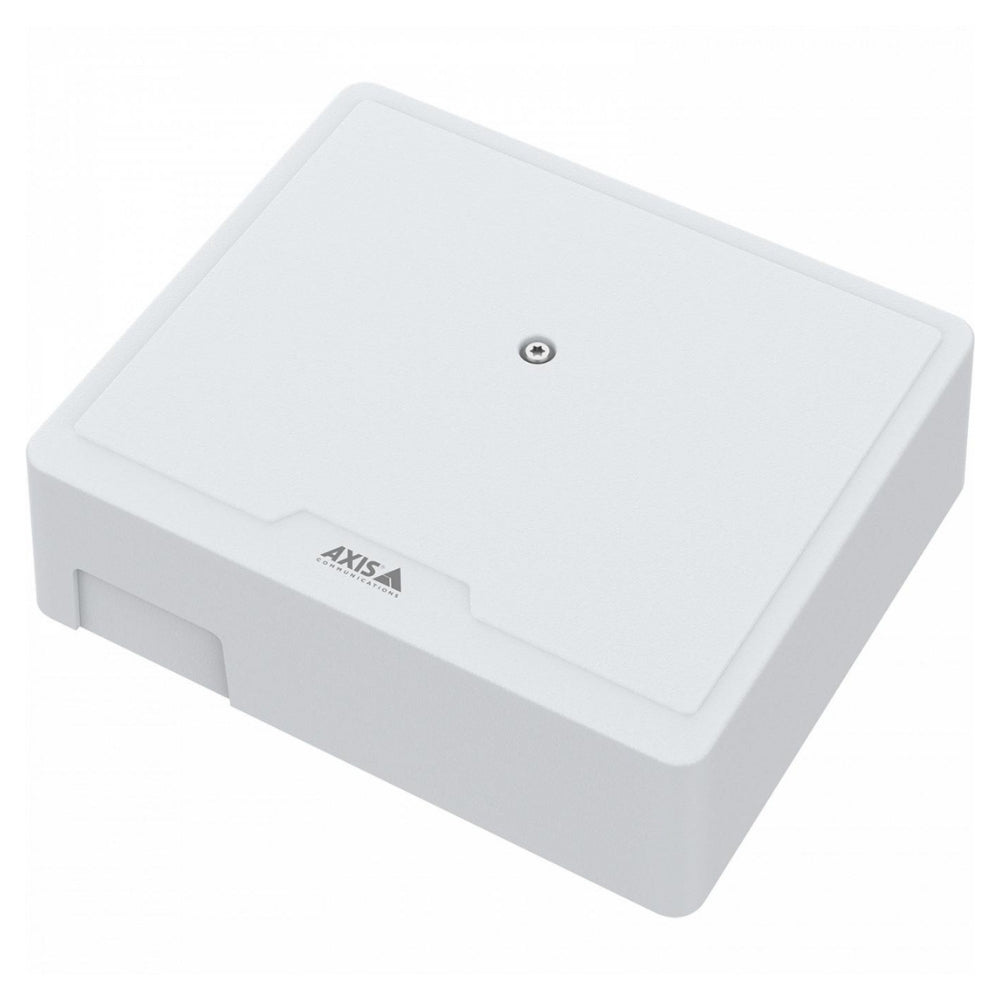

The AXIS A1210 is a compact, intelligent one-door controller designed for scalable installations. Suitable for both wall and DIN rail mounting, it supports flexible authentication and is powered via a single PoE cable. With edge processing, it ensures secure and continuous access control even during network outages. Fully integrated with Axis end-to-end solutions, it offers high performance, advanced cybersecurity, and simple deployment.
Features
-
One-Door Edge Controller – Manages 1 wired door or 1 wired door with 1 wireless lock gateway.
-
Supports 2 Readers – Connect up to 2 OSDP (Secure Channel) or 1 Wiegand reader.
-
Credential Flexibility – Compatible with third-party access software; stores 250,000 credentials locally.
-
Edge Intelligence – Ensures reliable door access operations even during network downtime.
-
Compact & Plenum-Rated – Wall and DIN rail mountable; ideal for tight spaces and ceiling installations.
-
Robust Cybersecurity – Includes Axis Edge Vault, secure boot, signed firmware, and EAL6+ secure element.
-
Flexible I/O Options – Includes relay, supervised inputs, and configurable outputs for door sensors and REX.
What's Included
- AXIS A1210 Network Door Controller
- Mating connectors (pre-mounted)
- Installation guide
- Grounding kit
- Cable ties
DOWNLOADS
Tech Specs
| Specification |
Details |
| Doors Supported |
1 wired door or 1 wired door + 1 wireless lock gateway |
| Readers Supported |
Up to 2x OSDP (Secure Channel) or 1x Wiegand |
| Wireless Lock Support |
Up to 16x ASSA ABLOY Aperio® wireless locks |
| Credential Capacity |
Up to 250,000 credentials stored locally |
| Event Buffer |
Up to 250,000 events stored locally |
| Power Input |
12 V DC (max 36 W) or PoE IEEE 802.3at (Class 4) |
| Reader Power Output |
12 V DC, max 500 mA |
| Lock Power Output |
12/24 V DC, up to 1600 mA (DC), 900 mA (PoE) |
| Aux Power Output |
12 V DC, max 50 mA |
| Total Power Budget |
2100 mA @12 V (DC) or 1400 mA @12 V (PoE) |
| Relay Outputs |
1x NO/NC relay, max 2 A @ 30 V DC |
| I/O Interfaces |
6 configurable I/Os, supervised inputs |
| Tamper Detection |
Cover removal, vibration, tilt |
| Network Security |
HTTPS, 802.1x, Axis Edge Vault, secure keystore |
| Memory |
512 MB RAM, 2 GB Flash |
| Casing |
Aluminum, white (NCS S 1002-B), PVC-free |
| Mounting |
Wall or DIN rail mount |
| Operating Temp |
0 °C to 70 °C (32 °F to 158 °F) |
| Humidity |
20–85% RH (non-condensing) |
| Storage Temp |
-40 °C to 70 °C |
| Dimensions |
Refer to datasheet for exact size |
| Weight |
645 g (1.4 lb) |
| Languages |
EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, PL, ZH-TW |
| Warranty |
5-year warranty |
Q&A
Q1: Is the A1210 suitable for both ceiling and wall installations?
A: Yes, it is plenum-rated and supports both wall and DIN rail mounting.
Q2: Can it operate if the network is down?
A: Yes. With built-in edge intelligence, access control continues securely offline.
Q3: How many readers are supported?
A: Up to 2 OSDP (Secure Channel) or 1 Wiegand reader per controller.
Q4: What makes this different from the A1210-B?
A: The A1210 includes an outer cover and is designed for visible or exposed installations, whereas the A1210-B is barebone and optimised for cabinet or stacked installs.
Q5: Can it integrate with Axis video systems?
A: Yes. It is fully compatible with Axis Camera Station and other VMS platforms.
