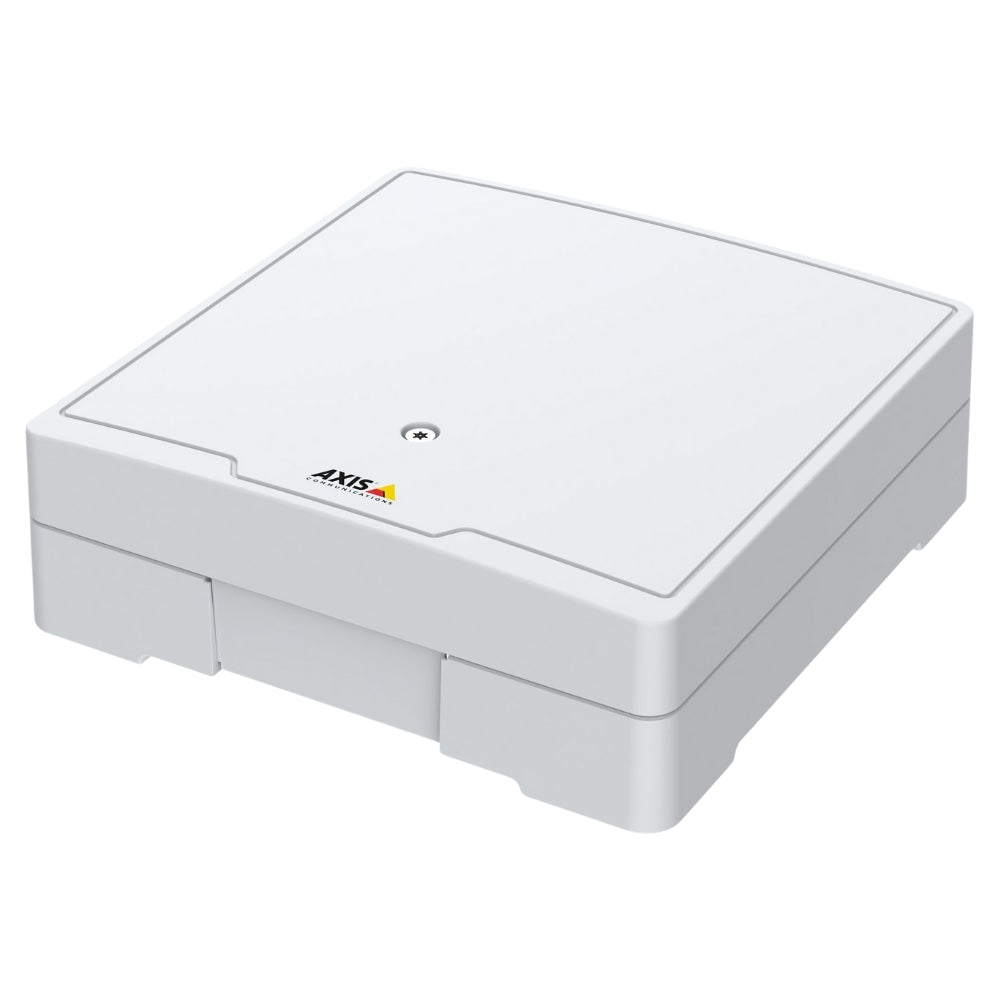

The AXIS A1601 Network Door Controller is a powerful, edge-based solution for advanced access control. It supports up to two doors, integrates with wireless locks, and is optimised for large-scale, multi-site deployments. Featuring PoE+ support and built-in relays and I/O ports, it’s easy to install and compatible with a wide range of readers and partner software. ONVIF Profile A and C compliance ensures open integration, while robust cybersecurity safeguards your system.
Features
-
Two-Door Edge Controller – Controls 1–2 wired doors or 1 wired door with 1 wireless lock gateway.
-
Flexible Reader Support – Supports 2x OSDP (Secure Channel) or Wiegand readers, with wireless integration options for Aperio and SimonsVoss.
-
High Credential Capacity – Stores up to 70,000 credentials locally for offline operation.
-
Open Platform Integration – Compatible with partner software, ONVIF Profile A/C, and other systems via VAPIX API.
-
Advanced Cybersecurity – Secure boot, signed firmware, HTTPS, 802.1x, Axis Edge Vault with EAL6+ hardware.
-
Built-In Power Options – PoE+ or 10.5–28 V DC input; supports powering locks, readers, and auxiliary devices.
-
Rich Event Handling – Configurable triggers and alerts for tampering, network loss, door activity, and more.
What's Included
- AXIS A1601 Network Door Controller
- Mating connectors (pre-mounted)
- Installation guide
- Grounding kit
- Cable ties
DOWNLOADS
Tech Specs
| Doors Supported |
1–2 wired doors or 1 wired door + 1 wireless lock gateway |
| Readers Supported |
Up to 2x RS485 (OSDP) or Wiegand readers |
| Wireless Lock Support |
Integration with ASSA ABLOY Aperio and SimonsVoss SmartIntego |
| Credential Capacity |
Up to 70,000 locally stored credentials |
| Event History |
Up to 100,000 FIFO events |
| Power Input |
10.5–28 V DC or PoE IEEE 802.3at (Class 4) |
| Reader Power Output |
2x 12 V DC, max 486 mA total |
| Lock Power Output |
2x 12/24 V DC, max 24 W total |
| Aux Power Output |
1x 12 V DC, max 200 mA |
| Relay Outputs |
2x NO/NC relays, max 2 A @ 30 V DC |
| I/O Interfaces |
14 configurable supervised inputs/outputs |
| Tamper Detection |
Cover removal, vibration, tilt |
| Network Security |
HTTPS, 802.1x, IP filtering, Edge Vault, signed firmware |
| Memory |
512 MB RAM, 1 GB Flash |
| Casing |
Aluminum, white (NCS S 1002-B), PVC-free |
| Mounting |
Wall mount |
| Operating Temp |
-40 °C to 55 °C |
| Humidity |
20–85% RH (non-condensing) |
| Storage Temp |
-40 °C to 55 °C |
| Dimensions |
175 x 175 x 60 mm (6.9 x 6.9 x 2.4 in) |
| Weight |
1.2 kg (2.6 lb) |
| Languages |
EN, DE, FR, ES, IT, PL, NL |
| Warranty |
5-year warranty |
Q&A
Q1: Can the A1601 work in large enterprise environments?
A: Yes. It’s designed for scalable installations and integrates easily with other Axis and third-party solutions.
Q2: Is offline operation supported?
A: Yes. The controller can store 70,000 credentials and up to 100,000 events locally.
Q3: What types of readers are compatible?
A: OSDP Secure Channel and Wiegand readers, plus integration with Aperio and SimonsVoss wireless locks.
Q4: Can it be powered solely by PoE+?
A: Yes. It also offers auxiliary and relay power outputs for connected devices.
Q5: How does it differ from the A1610?
A: The A1601 has a slightly lower storage capacity and is optimised for partner software integrations and ONVIF compliance.
