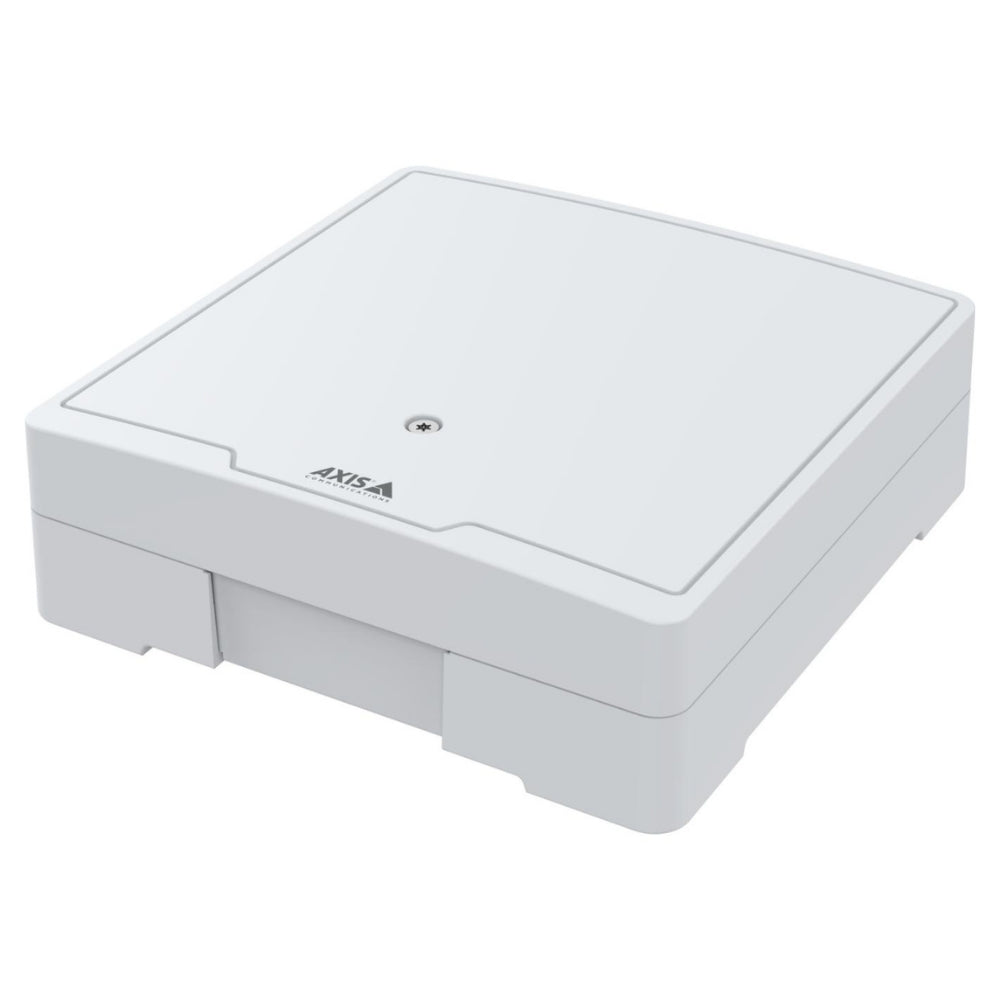

The AXIS A1610 is a robust and intelligent door controller built for controlling two doors with edge processing capabilities. It’s designed for both small and large installations, supporting up to four OSDP or two Wiegand readers and various credential types. This versatile unit includes six auxiliary I/Os and is suitable for plenum installations. With PoE or DC input, it offers flexible mounting and reliable, secure offline operation—even during network outages.
Features
-
Two-Door Edge Controller – Manages 1–2 wired doors or 1 wired door with 1 wireless lock gateway.
-
Supports up to 4 Readers – Connect up to 4 OSDP (Secure Channel) or 2 Wiegand readers.
-
Flexible Authentication – Compatible with third-party access software; stores 250,000 credentials.
-
Smart Edge Processing – Handles access control logic offline, ensuring operation even if the network is down.
-
Versatile Mounting – Wall-mountable and plenum-rated, perfect for challenging installations.
-
Built-In Cybersecurity – Features Axis Edge Vault, secure boot, EAL6+ secure element, and signed firmware.
-
Multiple Outputs & I/Os – Offers a wide array of configurable relays and supervised inputs/outputs.
What's Included
- AXIS A1610 Network Door Controller
- Mating connectors (pre-mounted)
- Installation guide
- Grounding kit
- Cable ties
DOWNLOADS
Tech Specs
| Specification |
Details |
| Doors Supported |
1–2 wired doors or 1 wired door + 1 wireless lock gateway |
| Readers Supported |
Up to 4x OSDP (Secure Channel) or 2x Wiegand |
| Wireless Lock Support |
Up to 16x ASSA ABLOY Aperio® wireless locks |
| Credential Capacity |
Up to 250,000 credentials stored locally |
| Event Buffer |
Up to 250,000 events stored locally |
| Power Input |
10.5–28 V DC (max 36 W) or PoE IEEE 802.3at (Class 4) |
| Reader Power Output |
2x 12 V DC, max 500 mA total |
| Lock Power Output |
2x 12/24 V DC, up to 1800 mA (DC), 900 mA (PoE+) |
| Aux Power Output |
1x 12 V DC, max 200 mA |
| Total Power Budget |
2100 mA @12 V (DC) or 1300 mA @12 V (PoE+) |
| Relay Outputs |
2x NO/NC relays, max 2 A @ 30 V DC |
| I/O Interfaces |
14 configurable supervised inputs/outputs |
| Tamper Detection |
Unit removal, vibration, or tilt |
| Network Security |
HTTPS, 802.1x, IP filtering, Edge Vault, secure keystore |
| Memory |
512 MB RAM, 2048 MB Flash |
| Casing |
Aluminum, white (NCS S 1002-B), plenum-rated, PVC-free |
| Mounting |
Wall or DIN rail mount |
| Operating Temp |
-40 °C to 55 °C (70 °C max DC only) |
| Humidity |
20–85% RH (non-condensing) |
| Storage Temp |
-40 °C to 55 °C |
| Dimensions |
175 x 175 x 60 mm (6.9 x 6.9 x 2.4 in) |
| Weight |
1.2 kg (2.6 lb) |
| Languages |
EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, PL, ZH-TW |
| Warranty |
5-year warranty |
Q&A
Q1: Is the A1610 suitable for commercial or industrial applications?
A: Yes. With plenum-rating, robust I/O capacity, and scalability, it’s ideal for both small offices and large enterprise deployments.
Q2: Does it work without a network connection?
A: Absolutely. Its edge-processing capability ensures uninterrupted access control even during outages.
Q3: How many readers can it support?
A: Up to 4 OSDP (Secure Channel) or 2 Wiegand readers.
Q4: Can it power both locks and readers?
A: Yes, the controller can power readers, locks, and auxiliary equipment from PoE or DC input.
Q5: How is it different from the A1610-B model?
A: The A1610 includes a protective top cover and is plenum-rated, while the A1610-B is a barebone version for cabinet mounting.
