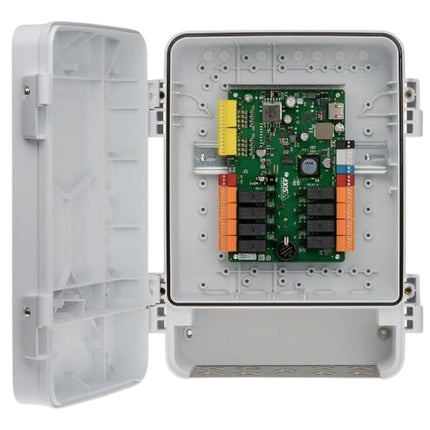

The AXIS A9188-VE is an outdoor-ready, intelligent I/O relay module featuring 8 supervised inputs and 8 form C relays. It’s optimised for secure floor access control and integrates seamlessly with Axis devices and third-party systems. With UL294 certification and the included surveillance cabinet, it delivers reliable performance in demanding environments.
Features
-
8 Supervised I/Os – Each input/output is configurable with analog read-out, tamper detection, and 4-state supervision.
-
8 Form C Relays – NO/NC relays for controlling locks, doors, sirens, and other devices.
-
Outdoor-Ready & Vandal-Resistant – Bundled with the AXIS T98A15-VE Surveillance Cabinet for IP66/NEMA 4X protection and UL294 compliance.
-
Flexible Power Options – Supports 12 V and 24 V DC output with power input via PoE+ or 8–28 V DC.
-
Advanced Integration – Compatible with AXIS Camera Station, AXIS A1001 Network Door Controller, and third-party systems via VAPIX and ACAP.
-
Event-Based Automation – Triggers via tamper sensors, network loss, input signals, relays, heartbeat monitoring, and more.
-
Secure Communication – HTTPS encryption, IEEE 802.1X, IP filtering, and digest authentication for reliable data protection.
What's Included:
- AXIS A9188-VE I/O Relay Module
- AXIS T98A15-VE Surveillance Cabinet
- Connector kit
- Jumper kit
- TORX® Key TR20
- Installation guide
DOWNLOADS
Key Info
Purpose-Built for Access Control
The AXIS A9188-VE is ideal for managing multiple entry points or building zones—especially in elevator and floor control applications where supervised inputs are required.
Reliable Outdoor Design
Encased in the included AXIS T98A15-VE Surveillance Cabinet, this module is resistant to water, dust, and impact, enabling dependable installation in outdoor or exposed environments.
Scalable & Standalone Capable
While optimised for integration with AXIS A1001 or camera systems, the A9188-VE can also operate independently, triggering relays or alarms from external devices like PIR sensors.
Rich Event Management
Store up to 30,000 events with FIFO memory, and configure smart triggers such as schedule-based automation, heartbeat loss, and tamper alerts to notify or activate other systems.
Tech Specs
| Specification |
Details |
| I/O Interface |
|
| Digital I/O |
8x configurable I/Os (input, supervised input with analog read-out, or output, max 40 V DC, 100 mA) |
| Relays |
8x Form C relays, NO/NC, max 1 A at 48 V DC (30 V DC outdoors) |
| System Integration |
|
| API Support |
Open API for software integration, VAPIX®, ACAP |
| Event Triggers |
Tamper detection, network loss, input signal, schedule, relays, supervised inputs (4 states), heartbeat lost |
| Event Actions |
Email, HTTP, HTTPS, TCP notifications, external output control |
| Event History |
30,000 events (FIFO) |
| Network |
|
| Security |
Password protection, HTTPS encryption, IP filtering, IEEE 802.1X, digest authentication |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, TLS, FTP, SFTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, DHCP, ARP, SOCKS |
| Connectors |
1x RJ45 10BASE-T/100BASE-TX, terminal blocks: DC in/out, 8x I/Os, 8x relays, tamper, RS485 (future use) |
| Power |
|
| Input Power |
8–28 V DC or PoE IEEE 802.3af Class 3 / IEEE 802.3at Class 4 |
| Output Power |
12 V DC and 24 V DC, max shared power: 3.6 W (PoE Class 3), 12 W (PoE Class 4/DC input) |
| Hardware |
|
| Memory |
256 MB RAM, 256 MB Flash |
| Tamper Input |
Dedicated input for external tamper contact |
| Sustainability |
PVC-free |
| General |
|
| Casing |
AXIS T98A15-VE Surveillance Cabinet (outdoor-ready, vandal-resistant) |
| Operating Temperature |
-30 °C to 55 °C (-22 °F to 131 °F) |
| Humidity |
20–85% RH (non-condensing) |
| Dimensions |
361 x 282 x 131 mm (14.2 x 11.1 x 5.2 in) |
| Weight |
5000 g (11.0 lb) |
| Languages |
English, French, Italian, German, Spanish |
| Warranty |
5-year warranty |
Q&A
Q1: Is the AXIS A9188-VE suitable for outdoor installation?
A: Yes. It is bundled with the AXIS T98A15-VE Surveillance Cabinet, making it outdoor-ready, IP66-rated, and vandal-resistant.
Q2: Can this module operate without a controller like AXIS A1001?
A: Yes. It supports standalone operation and can be triggered by external devices like motion sensors or switches.
Q3: What is the benefit of supervised inputs?
A: Supervised inputs allow detection of short circuits, tampering, or line breaks—crucial for secure access control.
Q4: Can I use this with third-party VMS?
A: Absolutely. It supports VAPIX®, ACAP, and an open API for easy integration with third-party video and access control systems.
Q5: What security features are in place?
A: HTTPS, IP filtering, IEEE 802.1X, password and digest authentication help secure communication and access to the device.
