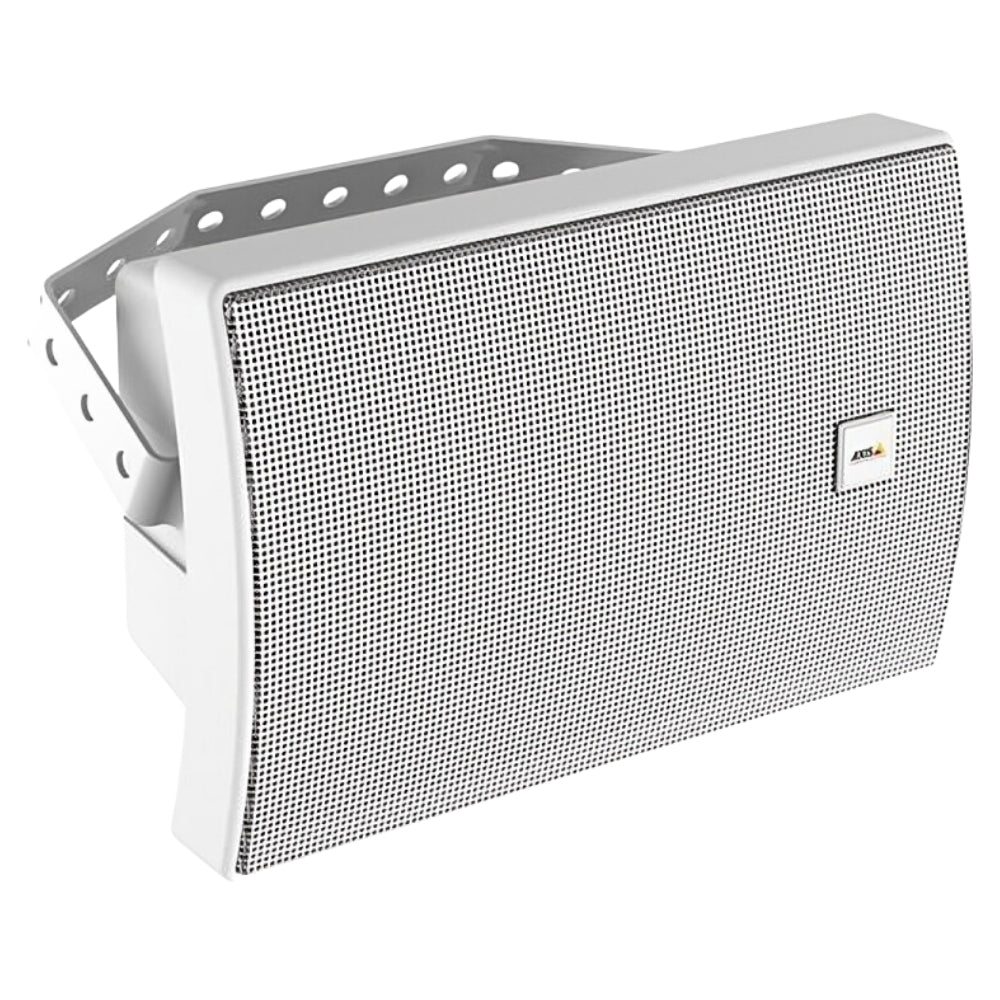

The AXIS C1004-E is an all-in-one network speaker for live or pre-recorded voice messages in indoor and semi-outdoor areas. It supports PoE, DSP, remote health testing, and integrates easily with VMS, VoIP, and analytics systems for smart, scalable audio solutions.
Key Features
-
All-in-One Network Speaker – Integrated amplifier, DSP, microphone, and local storage
-
High-Quality Sound – 96 dB SPL, 60 Hz–20 kHz, 4.72" cone speaker + 0.98" tweeter
-
Clear Audio Output – Suited for voice messages and background music
-
2-Way Audio – Built-in microphone with half-duplex echo cancellation
-
Simple PoE Installation – Single cable for power and data
-
Built-in Audio Management – AXIS Audio Manager Edge for scheduling and zoning
-
Secure and Reliable – HTTPS, 802.1X, secure boot, and IP filtering
-
Flexible Placement – Mount horizontally or vertically indoors or in sheltered outdoor areas
-
Open Integration – Supports SIP, VAPIX, and major VoIP/PBX systems
What’s Included:
- AXIS C1004-E Network Cabinet Speaker (White or Black)
- Installation Guide
- AVHS Authentication Key
- AXIS Camera Station License Key
- Cable Shoe
- Mounting Bracket with Screws and Washers
- AXIS Connector Guard A
DOWNLOADS
Tech Specs
| Category |
Details |
| Speaker Type |
Two-way bass reflex: 4.72" cone speaker + 0.98" dome tweeter |
| Max SPL |
96 dB |
| Frequency Response |
60 Hz – 20 kHz |
| Coverage Pattern |
130° horizontal / 100° vertical |
| Amplifier |
Built-in 6 W Class D amplifier |
| DSP |
Built-in and pre-configured |
| Microphone |
Built-in (50 Hz – 16 kHz), can be disabled |
| Audio Encoding |
AAC, G.711, G.726, µ-law, Opus, MP3, WAV |
| Network & Power |
RJ45 (10/100 PoE, IEEE 802.3af, Class 3, max 12.95 W) |
| Storage Support |
microSD/microSDHC/microSDXC (up to 64 GB) |
| Memory |
256 MB RAM / 256 MB Flash |
| Operating Temp |
–20 °C to 50 °C (4 °F to 122 °F), 10–85% RH |
| Protection Rating |
IP45, NEMA 3R, IK10 |
| Dimensions (H×D×W) |
290 × 200 × 196 mm (11.4 × 7.9 × 7.7 in) |
| Weight |
3.0 kg (6.61 lbs) |
| Certifications |
EMC, Safety (UL, CE, FCC), Environmental (IK10, IP45) |
| Mounting |
Horizontal or vertical wall or ceiling mounting |
| Accessories |
Safety Wire Kit, Surveillance Cards, Connector Accessories |
Q&A
Q1: Can this speaker be installed outdoors?
It’s designed for indoor and semi-outdoor use in sheltered areas (IP45, NEMA 3R). For full outdoor installations, use models like AXIS C1610-VE.
Q2: How is this different from C1110-E?
The C1004-E has a slightly smaller speaker and lower storage capacity, making it a more compact option for announcements and background audio in smaller spaces.
Q3: Does it work with VoIP systems?
Yes. It supports SIP and is tested with major systems like Cisco, Asterisk, and Grandstream. Secure features like SRTP, TLS, and NAT traversal are also supported.
Q4: Can I play scheduled or emergency announcements?
Absolutely. AXIS Audio Manager Edge lets you schedule content and prioritize emergency messages to interrupt regular playback.
Q5: What audio formats does it support?
It supports AAC, G.711, G.726, MP3, WAV, Opus, and more with mono or stereo playback at various bitrates.
