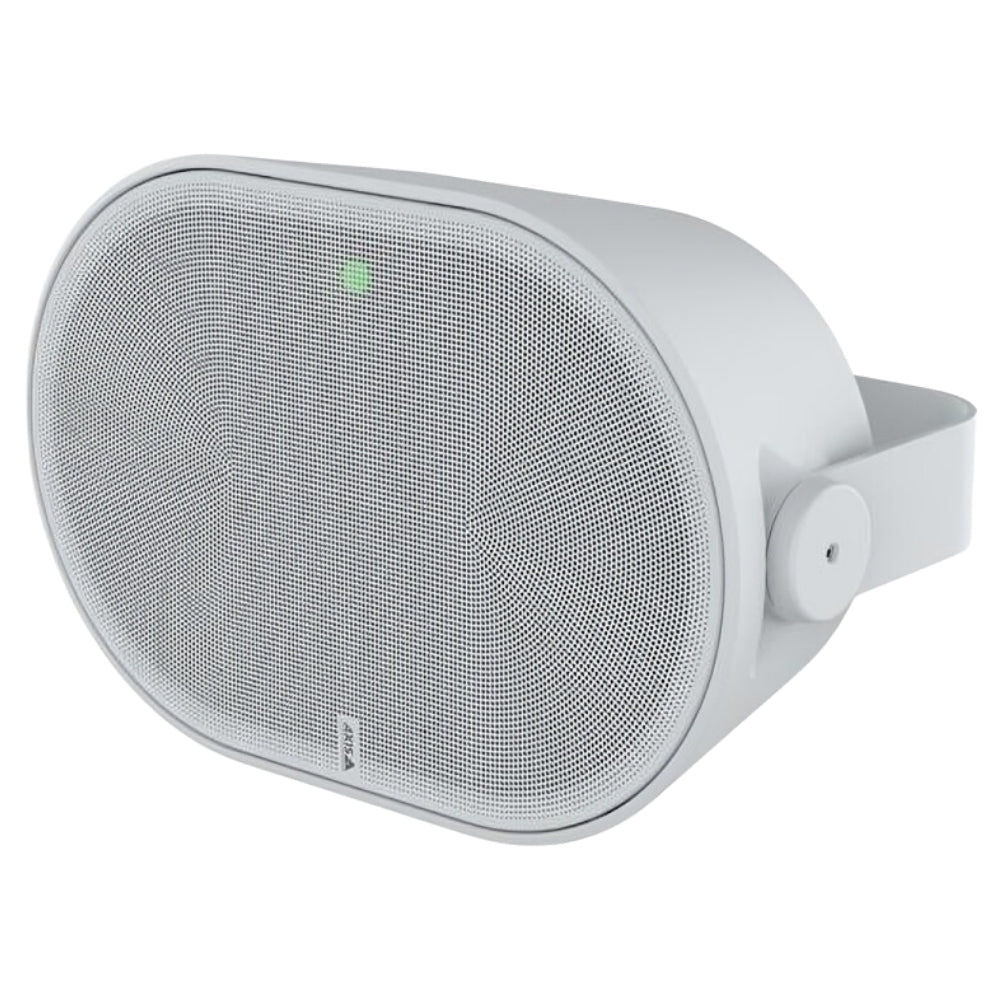

The AXIS C1110-E is a powerful all-in-one network speaker for clear voice announcements and quality background music. It features full-duplex two-way audio, built-in DSP, and a mic for remote testing. With PoE, AXIS Audio Manager Edge, and integration with VMS, VoIP, and analytics, it's ideal for indoor and semi-outdoor use.
Key Features
-
All-in-One Network Speaker – With amplifier, DSP, mic, and local storage
-
High-Quality Sound – 96 dB SPL, 60 Hz–20 kHz, two-way bass reflex system
-
Rich Audio Output – Ideal for voice announcements and background music
-
2-Way Audio – Built-in microphone with full-duplex echo cancellation
-
Easy PoE Installation – One cable for both data and power
-
Built-in Audio Management – AXIS Audio Manager Edge for content, zones, and scheduling
-
Secure by Design – Axis Edge Vault, secure boot, signed OS, FIPS-compliant crypto
-
Flexible Mounting – Installs easily on walls, ceilings, or poles
-
Scalable & Open Platform – Supports SIP, VAPIX, MQTT, and major VMS platforms
What’s Included:
- AXIS C1110-E Network Cabinet Speaker
- Installation Guide
- Terminal Block Connector (for I/O connections)
- Connector Guard
- Cable Gaskets
- Owner Authentication Key
DOWNLOADS
Tech Specs
| Category |
Details |
| Speaker Type |
2-way bass reflex: 4" cone speaker + 1.25" dome tweeter |
| Max SPL |
96 dB |
| Frequency Response |
60 Hz – 20 kHz |
| Coverage Pattern |
140° horizontal / 90° vertical |
| Amplifier |
Built-in 7 W Class D amplifier |
| DSP |
Built-in and pre-configured |
| Microphone |
Built-in (50 Hz – 12 kHz), supports external mic & line-in |
| Audio Encoding |
AAC, G.711, G.726, µ-law, Opus, MP3, WAV |
| Network & Power |
RJ45 (10/100 PoE, IEEE 802.3af/at, Class 3, 12.95 W max) |
| Storage Support |
microSD/microSDHC/microSDXC (up to 1 TB) |
| SoC & Memory |
NXP i.MX 8M Nano, 1024 MB RAM / 1024 MB Flash |
| Operating Temp |
-30 °C to 50 °C (-22 °F to 122 °F), 10–100% RH |
| Protection Rating |
IP44 (NEMA 3R), Aluminium casing |
| Dimensions (H×W×L) |
207 × 310 × 165 mm |
| Weight |
4.1 kg (9.04 lbs) |
| Certifications |
EMC, Safety (UL, CE, FCC), Cybersecurity (ETSI EN 303 645, FIPS-140) |
| Mounting |
Wall, ceiling, pole (with accessories) |
| Accessories |
AXIS C8310 Volume Controller, Surveillance Cards, Mounting Kits |
Q&A
Q1: Can this speaker be used outdoors?
It’s designed for indoor and protected semi-outdoor use (IP44, NEMA 3R). For full outdoor installations, use IP66-rated models like the C1610-VE.
Q2: What makes this different from the C1111-E?
The C1110-E offers more powerful bass, higher sound pressure (96 dB), and a larger speaker with tweeter, making it ideal for spaces that demand rich music and voice clarity.
Q3: Is it compatible with VoIP?
Yes. It supports SIP (including secure features like TLS, SRTP, NAT traversal), compatible with Cisco, Avaya, Zoom, and more.
Q4: Can I manage this speaker remotely?
Yes. AXIS Audio Manager Edge is built-in. You can also upgrade to Pro or use the cloud-based AXIS Audio Manager Center for multi-site management.
Q5: Does it support event triggers and alerts?
Yes. It supports MQTT, HTTP/TCP notifications, LED indicators, SNMP traps, I/O toggling, and scheduled announcements.
