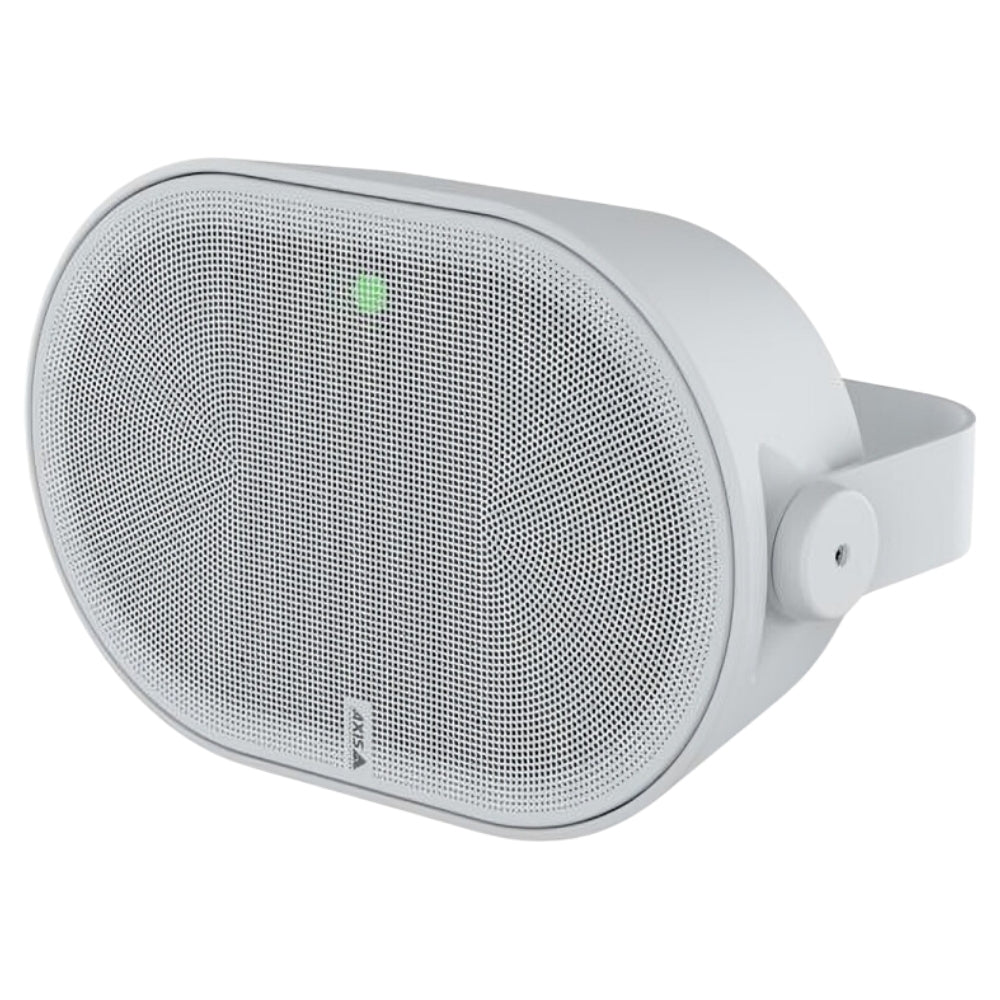

The AXIS C1111-E is a sleek all-in-one PoE speaker for clear announcements and background music. With DSP, echo cancellation, and built-in microphone, it supports two-way audio and integrates with VMS, VoIP, and Axis Audio Manager Edge for easy control and scheduling.
Features
-
All-in-One Design – Network speaker with built-in mic, amplifier, and DSP
-
PoE Installation – One cable for power and network
-
Clear Sound Quality – 93 dB SPL with 120° x 130° coverage
-
2-Way Audio – Built-in mic with echo cancellation
-
Audio Manager Edge – Built-in scheduling, zone, content & user management
-
Flexible Mounting – Easy-click mount for wall, ceiling, or pole
-
Cybersecure by Design – Axis Edge Vault, signed OS, and secure boot
-
Stylish & Durable – IP55-rated cabinet in white or black
What’s Included:
- AXIS C1111-E Speaker
- Mounting Kit & Cable Gaskets
- Owner Authentication Key
- 5-Year Warranty
DOWNLOADS
Tech Specs
| Specification |
Details |
| Speaker Type |
2.5" broadband dynamic cone speaker |
| Max SPL |
93 dB |
| Frequency Response |
120 Hz – 20 kHz |
| Coverage Pattern |
120° horizontal / 130° vertical |
| Built-in Mic |
Yes (50 Hz – 12 kHz) with echo cancellation |
| Amplifier |
7 W Class D |
| DSP |
Built-in and pre-configured |
| Audio Management |
AXIS Audio Manager Edge (Pro/Center optional) |
| Audio Encoding |
AAC, G.711, G.726, MP3, WAV, µ-law, Opus |
| Power |
PoE IEEE 802.3af/at Type 1 Class 3 (max 12.95 W) |
| Connectors |
RJ45 PoE, 4-pin terminal (2x I/O), microSD slot (up to 1 TB) |
| Casing |
Aluminum, IP55 rated, available in black or white |
| Dimensions & Weight |
253 × 164 × 129 mm, 2.2 kg |
| Operating Temp |
–30 °C to 50 °C (–22 °F to 122 °F) |
| Certifications |
FCC, CE, RoHS, IP55, KC, VCCI Class A, REACH |
| Cybersecurity |
Axis Edge Vault, Secure Boot, HTTPS, 802.1X, TLS 1.3, OpenID, SD encryption |
Q&A
Q1: Where can it be installed?
Indoors or semi-outdoor environments like halls, corridors, or sheltered outdoor areas.
Q2: Is it SIP-compatible for VoIP use?
Yes. Fully SIP-supported with tested compatibility with Cisco, Grandstream, and more.
Q3: Does it support two-way communication?
Yes. It has a built-in microphone and echo cancellation for clear interaction.
Q4: Is it part of Axis’ centralized audio management?
Yes. It comes with AXIS Audio Manager Edge pre-installed and supports Pro and Center systems.
Q5: Can it be securely managed over a network?
Yes. It includes advanced security features like Axis Edge Vault, signed OS, and secure keystore.
