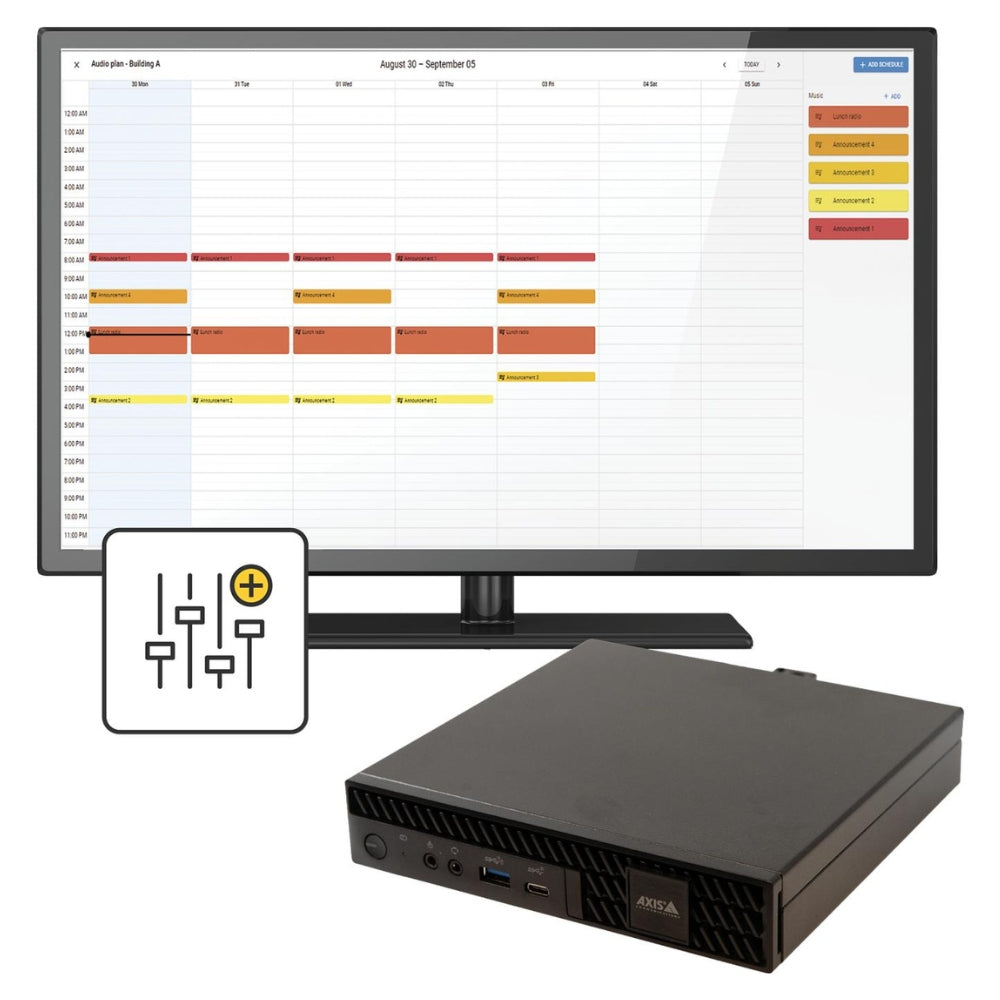

The AXIS Audio Manager Pro C7050 Mk III is a secure, preloaded appliance for managing up to 5,000 speakers across 100 zones. It supports announcements, music, and emergency alerts, with enterprise-grade performance and integration with SIP, VoIP, and Dante.
Features
-
Scalable Audio Management – Manage up to 5,000 speakers across 100 zones with one appliance.
-
Centralized Control Interface – Configure devices, zones, and content from a single dashboard.
-
Advanced Scheduling – Automate playback for music, announcements, and emergency alerts.
-
Real-Time Configuration – Make changes on the fly without interrupting ongoing audio.
-
Built-In Security – FIPS 140-2 certified TPM 2.0, encrypted OS drive, and recovery support.
-
VoIP & SIP Support – Compatible with IP-PBX, SIP trunking, and two-way SIP communication.
-
Pre-Installed on Reliable Hardware – Comes with Intel Core i3, 256 GB SSD, and 16 GB RAM.
What’s Included:
- AXIS Audio Manager Pro C7050 Mk III (Windows 10 IoT Enterprise LTSC 2021)
- AC Power Adapter with Wall Plug Cord
- 5-Year Warranty
- Built-in OS Recovery Tools
DOWNLOADS
Tech Specs
| Specification |
Details |
| Max Devices/Zones |
5,000 devices / 100 zones |
| Processor |
Intel® Core™ i3-12100T |
| Memory |
16 GB RAM (2 x 8 GB) |
| Storage |
256 GB SSD |
| OS |
Windows 10 IoT Enterprise LTSC 2021 |
| Graphics |
Intel® UHD Graphics |
| Audio I/O |
Line in/out, universal audio jack |
| Network |
1x RJ45 Ethernet |
| Ports |
USB 3.2, USB-C, DisplayPort 1.4a |
| Security |
FIPS 140-2 TPM 2.0, OS encryption, Axis Security Model |
| Operating Temp |
0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temp |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Power Input |
100–240 V AC, Max 90 W, DC 19.5 V / 4.62 A |
| Dimensions |
182 x 36 x 178 mm (7.2 x 1.4 x 7.0 in) |
| Weight |
1.1 kg (2.4 lbs) |
| Supported Formats |
MP3, MP4, WAV, OGG, FLAC, AAC, MPEG, WMA |
| Audio Streaming |
Opus 48 kHz, SIP (G.711, G.722, L16), internet radio via URL |
| VoIP Support |
SIP trunk and peer-to-peer connectivity |
| Languages |
EN, FR, ES, DE, IT, ZH, JP, RU, PT, KO, TH, VI, etc. |
| Compliance |
CE, FCC, UL, RCM, VCCI, TAA compliant |
| Software Integration |
Compatible with Dante (via virtual soundcards), SIP, IP-PBX, and VAPIX |
| Warranty |
5-year limited warranty |
Q&A
Q1: How many speakers and zones does it support?
A: It can manage up to 5,000 speakers across 100 zones.
Q2: Can it be used with VoIP systems?
A: Yes. It supports SIP for two-way communication and integration with IP-PBX systems.
Q3: Is it suitable for live and scheduled announcements?
A: Yes. You can configure live, scheduled, and emergency messages per zone.
Q4: Is the system secure?
A: Absolutely. It includes a TPM 2.0 chip, encrypted OS drive, and cybersecurity documentation.
Q5: What audio file formats are supported?
A: It supports MP3, WAV, OGG, FLAC, WMA, AAC, MP4, and more.
