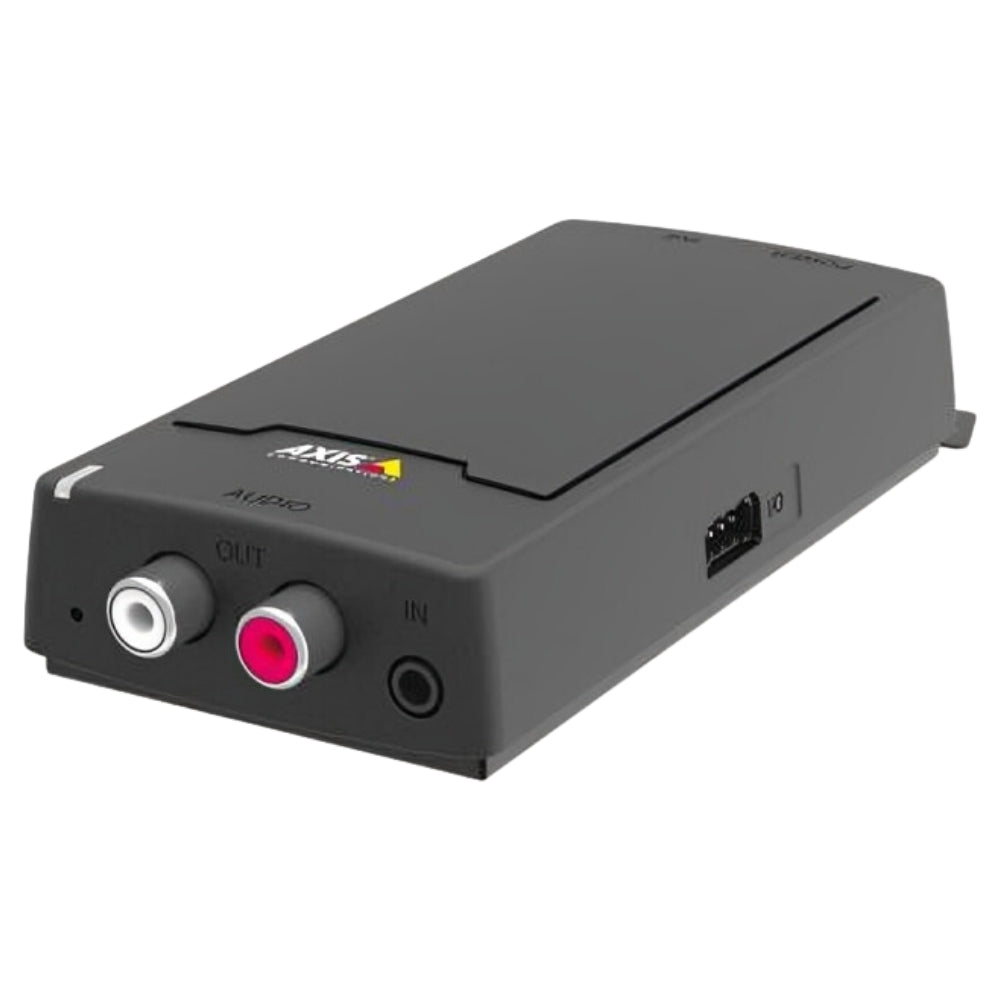

The AXIS C8110 Network Audio Bridge connects analog and IP audio systems, enabling zone control, scheduling, and SIP callouts. It upgrades legacy setups with modern IP audio features without replacing existing speakers.
Features
-
Hybrid Audio Bridge – Connects analog audio to network systems, enabling legacy speaker integration.
-
Built-in Audio Manager – Includes AXIS Audio Manager Edge for scheduling, zone control, and health monitoring.
-
VoIP & SIP Compatible – Supports SIP for IP telephony callouts via analog speakers.
-
One-Cable Setup – Powered and networked via PoE for easy, flexible installation.
-
Smart I/O Integration – Two configurable I/Os for event triggers, buttons, or relays.
-
Wide Audio Format Support – Handles MP3, AAC, G.711, WAV, and more with high-fidelity playback.
-
Secure & Reliable – Includes HTTPS encryption, access control, and 24/7 reliability in an IP20-rated compact design.
What’s Included:
- AXIS C8110 Network Audio Bridge
- AVHS Authentication Key
- Power Connector
- I/O Connector
- Digital AXIS Camera Station License Key
- Hook-and-Loop Fastener
- Installation Guide
- 5-Year Warranty
DOWNLOADS
Tech Specs
| Specification |
Details |
| Audio I/O |
3.5 mm Mic-in/Line-in, RCA Line-out |
| Audio Formats |
AAC, G.711, G.726, Axis µ-law, MP3, WAV |
| Max Input Voltage |
2.2 Vrms |
| Max Output Voltage |
0.91 Vrms |
| SoC & Memory |
512 MB RAM, 512 MB Flash |
| PoE |
IEEE 802.3af, Class 2 (Max 4 W) |
| DC Power Input |
8–28 V DC, Max 4 W |
| Connectors |
RJ45, 4-pin I/O, DC input, Audio ports |
| Audio Sync |
Built-in sync for up to 30 speakers (unicast); hundreds (multicast) |
| Networking Protocols |
IPv4/v6, HTTPS, TLS, SIP, RTSP, SNMP, SSH, and more |
| Cybersecurity |
HTTPS, password protection, 802.1X, central cert. management |
| Operating Temp |
-20 °C to 50 °C (-4 °F to 122 °F) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Casing |
IP20-rated plastic/metal (Black NCS S 9000–N) |
| Dimensions |
24 x 56 x 128 mm (0.94 x 2.2 x 5.0 in) |
| Weight |
107 g (0.24 lb) |
| Compliance |
CE, FCC, UL, RCM, VCCI, RoHS, SIP Compatible |
| Software Support |
AXIS Audio Manager Edge, AXIS Camera Station, ACAP, VAPIX |
| Languages |
English, French, Spanish, German, Chinese, Japanese, and more |
| Warranty |
5-year limited warranty |
Q&A
Q1: Can I use this to connect old analog systems to network audio?
A: Yes. It bridges analog and digital audio, letting you upgrade without replacing legacy speakers.
Q2: Does it work with SIP/VoIP systems?
A: Yes. It supports SIP for integration with systems like Cisco, Avaya, Asterisk, etc.
Q3: Can I use it to stream background music to Axis speakers?
A: Absolutely. It supports MP3, AAC, and more, and streams to Axis network speakers.
Q4: Is PoE required for installation?
A: It can be powered via PoE or 8–28 V DC depending on your setup preference.
Q5: How many zones does it support?
A: Up to 20 zones and 200 speakers using AXIS Audio Manager Edge.
