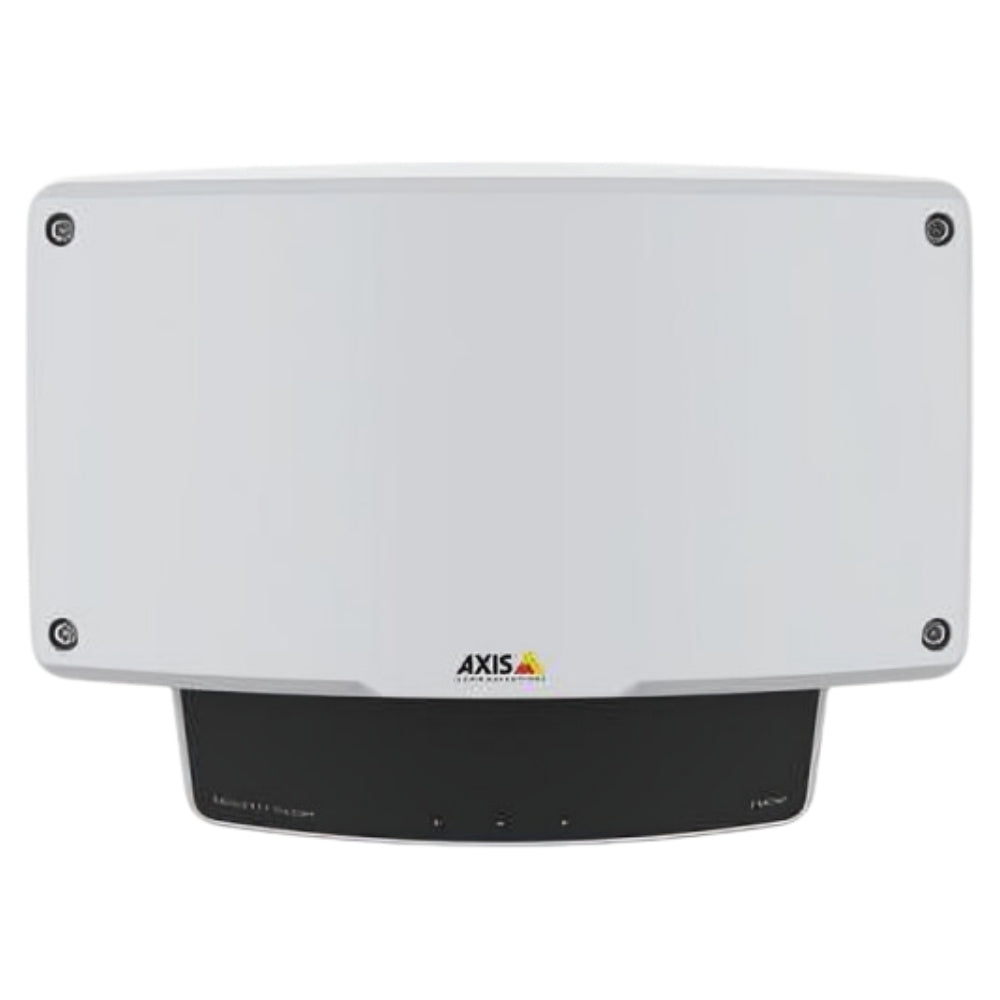

Axis D2110-VE Security Radar, 180° Coverage, Built-In Analytics (Radar) – 01564-001

Description

The AXIS D2110-VE is a smart security radar offering wide 180° coverage and accurate detection around the clock. Built on advanced radar technology and enhanced by machine and deep learning analytics, it classifies people and vehicles with low false alarm rates. Thanks to PoE-out and smart coexistence, it's ideal for pairing with other devices and for flexible, scalable deployments.

Features

  • Wide 180° Coverage – Phased-array FMCW radar with up to 11300 m² vehicle coverage and 5600 m² for people.
  • Accurate Detection – Classifies humans and vehicles with high precision, even in darkness or harsh conditions.
  • Built-In Analytics – Machine and deep learning-based detection, classification, and tracking of objects.
  • Smart Coexistence – Run multiple radars together or back-to-back for seamless 360° protection.
  • PoE-Out Capability – Power a camera or speaker for visual verification or audible deterrence.
  • Flexible Integration – Supports VAPIX, ACAP, ONVIF (G/S/T), MQTT, and more for full system compatibility.
  • Robust & Durable – IP66, IK08, and NEMA 4X rated for outdoor use in tough environments.

What’s Included:

  • AXIS D2110-VE Radar
  • Installation guide
  • Connector kit
  • Pipe adapters
  • Cable gland and gaskets
  • Windows® decoder (1-user license)
  • 5-Year Warranty

DOWNLOADS

Datasheet  AXIS D2110-VE Datasheet
Installation Guide  AXIS D2110-VE Installation Guide
User Manual  AXIS D2110-VE User Manual



Tech Specs

Specification Details
Field of View 180° horizontal coverage
Detection Range People: up to 60 m / Vehicles: up to 85 m
Speed Monitoring Road profile: up to 105 km/h (65 mph)
Object Tracking Range, direction, velocity, classification
Speed Accuracy ±2 km/h (1.25 mph)
Distance Accuracy 0.7 m (2.3 ft)
Angle Accuracy ±1°
Smart Analytics Motion detection, radar autotracking, speed monitoring
Video Output 1080p (1920x1080), 10 fps, H.264/H.265/MJPEG
Audio Integration Speaker pairing via edge-to-edge
Connectivity PoE in/out (Class 4/5), DC input, configurable I/O ports
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), 10–100% RH
Security HTTPS, 802.1X, IP filtering, signed firmware, encryption
Casing IP66, IK08, NEMA 4X, aluminum and plastic, white (NCS S 1002-B)
Dimensions & Weight 285 x 206 x 152 mm, 2.4 kg (5.3 lb)
Mounting Options Pole, wall, corner (with optional mounts)
Software Integration VAPIX, ACAP, ONVIF G/S/T, MQTT, AXIS Camera Station
Storage Options microSD (encrypted), NAS
Warranty 5-year limited warranty



Q&A

Q1: How wide is the detection range?
A: It offers 180° coverage with up to 11300 m² for vehicles and 5600 m² for people.

Q2: Can it detect vehicles at higher speeds?
A: Yes. With the road monitoring profile, it detects vehicles traveling up to 105 km/h (65 mph).

Q3: Is it easy to install with other Axis devices?
A: Absolutely. It supports PoE-out for powering cameras or speakers and integrates using Edge-to-Edge technology.

Q4: How accurate is the object detection?
A: It provides high accuracy with ±2 km/h speed detection and ±1° angle precision.

Q5: Can multiple radars be used together?
A: Yes. Smart coexistence allows use of multiple units in close proximity without interference.
