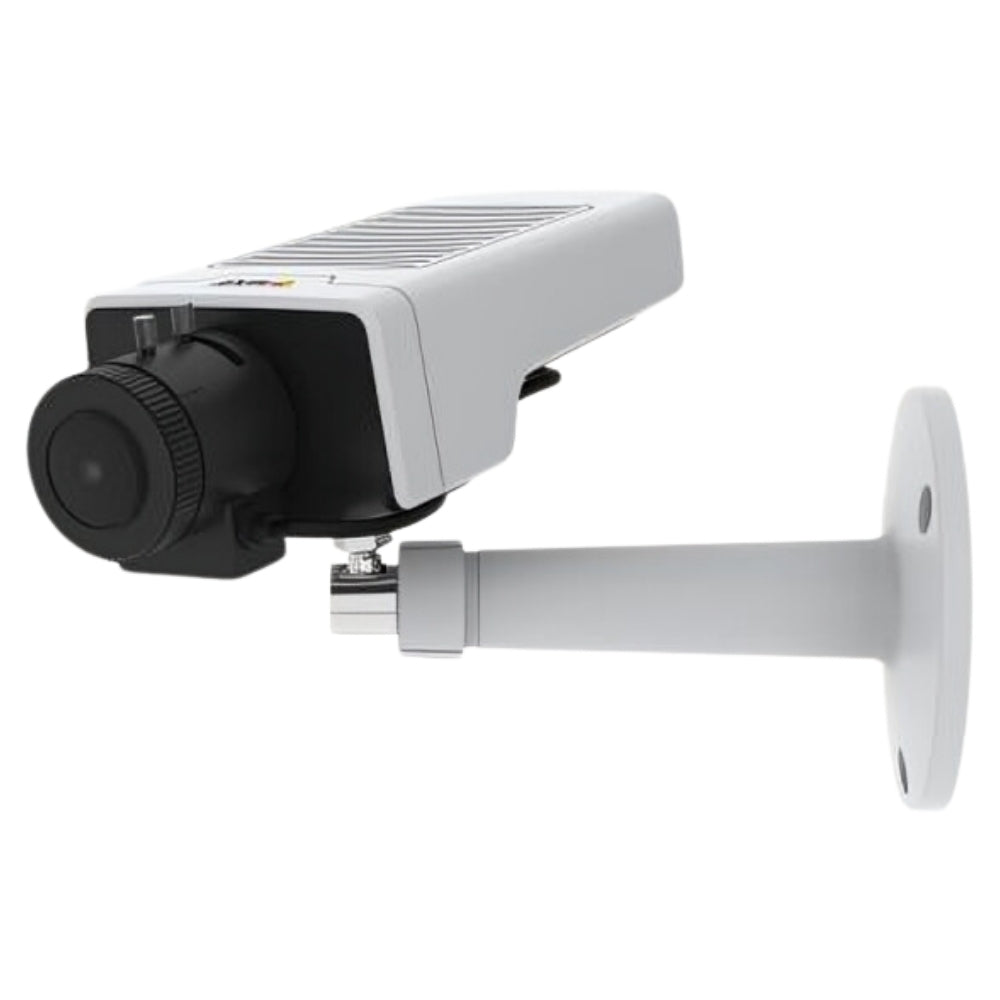

Axis M1135 Mk II 2MP Indoor Fixed Box, 3-10.5mm VF DC-Iris IR Lens, WDR, LightFinder - 02483-001

Description

The AXIS M1135 Mk II is an affordable, compact 2 MP box camera designed for reliable, flexible surveillance. With Axis Lightfinder, Forensic WDR, and built-in microphone, it delivers excellent video and audio in any lighting condition. Featuring exchangeable CS-mount lenses and advanced AXIS Object Analytics, it’s ideal for diverse indoor security scenarios.

Features

  • 2 MP HDTV 1080p Video – Crisp, high-definition footage in all conditions.
  • Lightfinder & Forensic WDR – Clear color and detail in low light or high contrast.
  • Built-in Microphone – Records synchronized audio.
  • CS-Mount Lens Support – Flexible lens replacement, including remote zoom/focus options.
  • PoE & Redundant DC Power – Reliable operation during power outages.
  • Advanced Object Analytics – Built-in human and vehicle detection.
  • Zipstream Technology – Efficient bandwidth and storage usage.

What's Included:

  • AXIS M1135 Mk II Camera (without or with lens)
  • AXIS T91A11 Stand (White)
  • Installation Guide
  • Windows® Decoder
  • 1-user license

DOWNLOADS

Datasheet  AXIS M1135 Mk II Datasheet
Installation Guide  AXIS M1135 Mk II Installation Guide
User Manual  AXIS M1135 Mk II User Manual

Key Info

Smart Detection with AXIS Object Analytics
AXIS M1135 Mk II supports AI-based object detection, classification, and event triggering for people and vehicles with customizable rules. It enables smarter event handling and forensic searches.

Flexible Lens and Audio Capabilities
The CS-mount design supports swappable lenses for different views. Choose i-CS lenses for remote zoom/focus. The built-in mic and line-in support audio streaming and edge-to-edge communication.

Robust Performance & Easy Integration
Featuring ARTPEC-7 SoC, Forensic WDR, and Lightfinder, this camera provides clear imagery in complex lighting. It integrates seamlessly with VMS, supports ONVIF, and enables secure cloud connections.

Cybersecurity Built-In
Edge Vault platform ensures secure boot, signed OS, secure video, and encrypted SD card support. Network security protocols include IEEE 802.1X, HTTPS/TLS 1.3, and MACsec.

Tech Specs

Specification Details
**Camera**
Image Sensor 1/2.9” progressive scan RGB CMOS
Lens Varifocal 3–10.5 mm CS-mount, IR corrected, DC-iris; Optional i-CS lens
Field of View H: 90°–33°, V: 49°–19° (CS); H: 101°–33°, V: 53°–18° (i-CS)
Day/Night Automatically removable IR-cut filter
Min. Illumination Color: 0.15 lux / B&W: 0.03 lux (F1.4)
Shutter Speed 1/33500 s to 2 s
SoC ARTPEC-7
Memory 1024 MB RAM, 512 MB Flash
Compute Capabilities MLPU (Machine Learning Processing Unit)
**Video**
Compression H.264 (Baseline/Main/High), H.265 (Main), Motion JPEG
Resolutions From 1920x1080 to 160x90
Frame Rate Up to 25/30 fps
Streaming Multiple streams, Zipstream, VBR/ABR/MBR, low latency mode
Image Settings Forensic WDR, rotation, distortion correction, privacy mask, overlays
PTZ Digital PTZ
**Audio**
Audio Support Audio in, built-in mic, two-way via edge-to-edge
Encoding LPCM, AAC-LC, G.711, G.726, Opus
Connectors 3.5 mm mic/line input
**Network**
Protocols IPv4/6, HTTP/2, HTTPS, TLS, FTP, SFTP, SNMP, RTSP, MQTT, mDNS, LLDP, etc.
Connectors RJ45 (PoE), DC input, terminal block for I/O
**System Integration**
API VAPIX, ONVIF (G/M/S/T), ACAP, cloud connection
Event Triggers Audio, motion, tampering, I/O, system, MQTT, temperature (i-CS)
Event Actions Recording, email, SNMP trap, PTZ, status LED, MQTT publish
Built-in Tools Pixel counter, remote zoom/focus with i-CS
**Analytics**
Included AXIS Object Analytics, Scene Metadata, Motion Detection, Privacy Shield
Object Detection Humans, vehicles; up to 10 scenarios, color-coded bounding boxes
Metadata Scene Metadata: object types, attributes, positions
**Cybersecurity**
Software Security Signed OS, OAuth 2.0, password protection, brute force delay
Hardware Security Axis Edge Vault, secure element, signed video, secure boot
Network Security IEEE 802.1X, MACsec, HTTPS, TLS 1.2/1.3, NTS, X.509, firewall
**General**
Casing Polycarbonate blend, white or black
Mounting ¼”-20 tripod thread, camera stand included
Power PoE IEEE 802.3af/at, DC input (10–28 V)
Storage microSD (AES encrypted), NAS supported
Operating Conditions -20 °C to 50 °C, 10–85% RH (non-condensing)
Storage Conditions -40 °C to 65 °C, 5–95% RH
Dimensions 47 x 70 x 147 mm (CS), 63 x 70 x 149 mm (i-CS)
Weight 165 g (no lens), 250 g (with optics), 240 g (with i-CS)
Languages EN, DE, FR, ES, IT, RU, ZH (Simplified/Traditional), JA, KO, PT, etc.
Warranty 5-year warranty



Q&A

Q1: Is the camera compatible with interchangeable lenses?
A: Yes, it supports CS- and i-CS-mount lenses, giving you flexibility based on your surveillance needs.

Q2: Can this be used outdoors?
A: While the camera itself is not weatherproof, it can be used outdoors with appropriate housing accessories like the AXIS T92E20.

Q3: How well does it perform in low light?
A: Very well—Lightfinder and Forensic WDR ensure excellent performance even in near-darkness and high-contrast scenes.

Q4: What types of analytics are supported?
A: The camera includes AXIS Object Analytics for detecting and classifying humans and vehicles, Scene Metadata, Motion Detection, and more.

Q5: How secure is the camera?
A: It features Axis Edge Vault, secure boot, signed OS, encrypted storage, MACsec, TLS 1.3, and robust software hardening.

Videos

Read more

Product form

Axis M1135 Mk II 2MP Indoor Fixed Box, 3-10.5mm VF DC-Iris IR Lens, WDR, LightFinder - 02483-001

SKU: M1135-MK-II Datasheet
Part Number: 02483-001

🟢 IN STOCK— Delivery in 1–3 days.

$899.00 $869.00 Incl. GST
