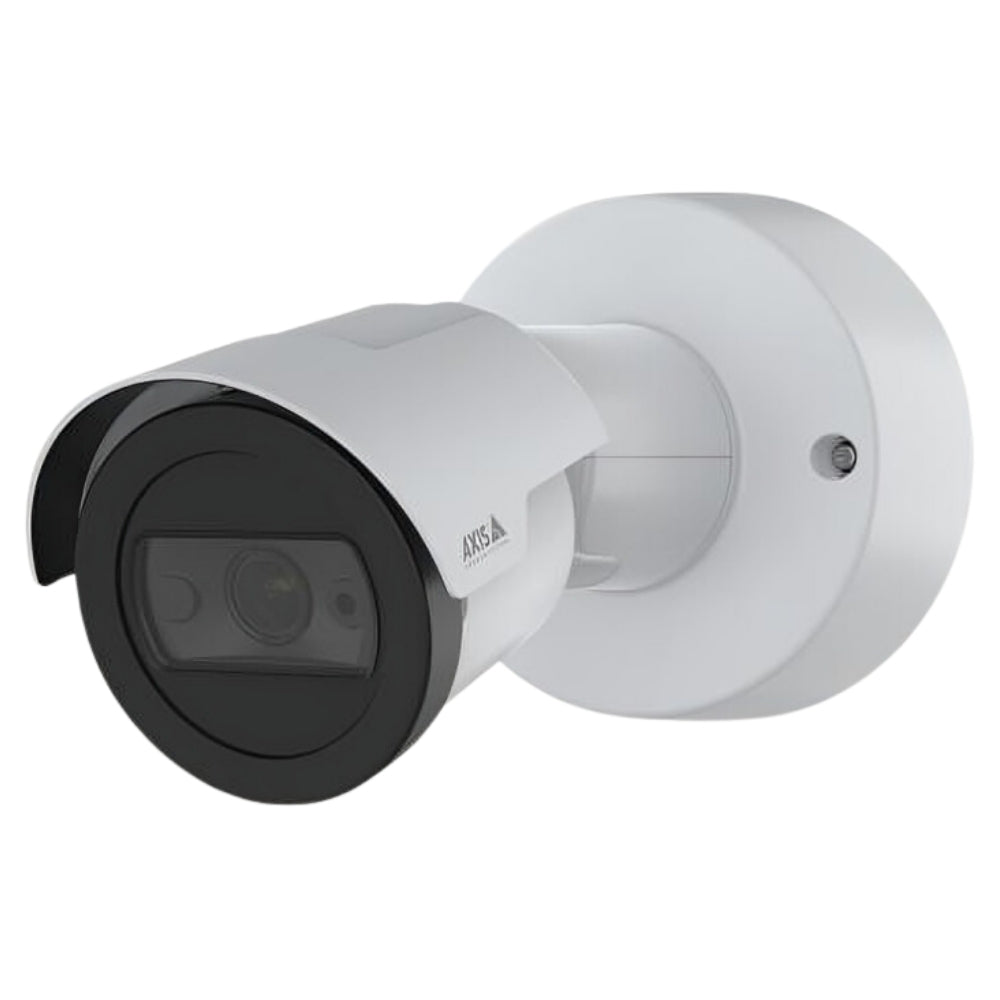

The AXIS M2035-LE is a compact and cost-effective bullet camera designed for tough outdoor conditions. With HDTV 1080p resolution, built-in IR, and a deep learning processing unit (DLPU), it enables smart analytics and reliable performance even in low light. Ideal for perimeter protection and small business surveillance.
Feature
- HDTV 1080p Video – Delivers crisp video in 16:9 and 4:3 formats with support for H.264 and H.265.
- Edge Analytics with DLPU – Enables accurate real-time classification of humans and vehicles.
- AXIS Object Analytics – Offers detection rules like line crossing and object-in-area for targeted alerts.
- Lightfinder & Optimised IR – Provides clear images even in total darkness, with IR range up to 20m.
- Rugged Outdoor Build – IP66/67-, IK08-, and NEMA 4X-rated casing for all-weather durability.
- Secure by Design – Includes Axis Edge Vault, secure boot, and encrypted storage.
- Flexible Viewing – Corridor format, digital PTZ, and cropped multi-view streams.
What's Included:
- AXIS M2035-LE Camera (White or Black)
- Installation Guide
- Windows Decoder 1-user License
- Torx L-key
- Connector Guard
DOWNLOADS
Key Info
Smart Analytics at the Edge
Thanks to its deep learning processing unit (DLPU), this camera enables advanced object classification. AXIS Object Analytics detects and classifies humans and vehicles with multiple customizable rules and zones.
High-Quality Day & Night Surveillance
Equipped with Lightfinder and Optimised IR, the camera delivers high-quality color footage in low light and sharp black-and-white video in total darkness.
Durable & Compact Design
IP66/67 and IK08 ratings make this camera suitable for outdoor installations. The compact bullet form factor allows for discreet deployment in tight spaces.
Efficient Bandwidth Management
Zipstream with H.264/H.265 reduces bandwidth and storage without compromising on quality. Multi-view streaming supports up to 2 cropped streams at full frame rate.
Cybersecurity You Can Trust
Includes Axis Edge Vault, signed firmware, secure boot, encrypted video storage, and a secure keystore (CC EAL4 certified).
Easy Installation
With Power over Ethernet (PoE), pre-mounted cable, and spacious back box for secure cable management, installation is streamlined.
Integration Ready
Supports VAPIX, ONVIF profiles (G, M, S, T), MQTT, and edge-to-edge pairing with Axis speakers.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.9” progressive scan RGB CMOS |
| Lens Options |
3.2 mm F1.4 (101° H FOV), 7.5 mm F1.6 (39° H FOV) |
| Day/Night |
IR-cut filter, Lightfinder, Optimised IR 20 m range |
| DLPU |
Yes, with object classification |
| IR Range |
Up to 20 m (65.6 ft), 855 nm IR LEDs |
| SoC |
CV25 with DLPU |
| Memory |
1024 MB RAM, 512 MB Flash |
| **Video** |
|
| Compression |
H.264 (Main/High), H.265, Motion JPEG |
| Resolution |
Up to 1920x1080 (16:9), 1280x960 (4:3) |
| Frame Rate |
Up to 25/30 fps |
| Streaming |
Multi-stream H.264/H.265/MJPEG, Zipstream, VBR/ABR/MBR |
| Features |
Multi-view streaming, Corridor format, digital PTZ |
| **Audio** |
|
| Output |
Smart pairing with Axis speakers (edge-to-edge) |
| **Network** |
|
| Security |
HTTPS, 802.1X, signed firmware, secure boot, Edge Vault |
| Protocols |
IPv4/6, HTTPS, MQTT, RTSP, UPnP, SNMP, TLS, FTP, SSH, etc. |
| Connector |
RJ45 10BASE-T/100BASE-TX PoE |
| **System Integration** |
|
| API |
VAPIX, ONVIF (G/M/S/T), ACAP, cloud connection |
| Events |
Motion, tampering, storage status, VMD, MQTT |
| Actions |
Record/upload/notify, overlay, pre/post-buffering |
| Tools |
Pixel counter, level grid |
| **Analytics** |
|
| Included |
AXIS Object Analytics, VMD, active tampering alarm |
| Object Detection |
Humans, vehicles (cars, buses, trucks, bikes) |
| Trigger Rules |
Line crossing, object in area (10 scenarios) |
| **Cybersecurity** |
|
| Software Security |
Signed firmware, digest auth, SD encryption, secure boot |
| Network Security |
IEEE 802.1X, MACsec, HTTPS/TLS 1.2/1.3, secure keystore |
| **General** |
|
| Casing |
IP66/67-, IK08-, NEMA 4X-rated, aluminum/plastic |
| Power |
PoE IEEE 802.3af/at Type 1 Class 3, 5W typical |
| Storage |
microSD/SDHC/SDXC with encryption, NAS support |
| Operating Conditions |
-30 °C to 50 °C, 10–100% RH |
| Dimensions |
Ø101 mm × 170 mm |
| Weight |
491 g (1.1 lb) |
| Languages |
EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, PL, NL, CZ, SV, FI, TR, TH, VI |
| Warranty |
5-year warranty |
Q&A
Q1: What environments is the AXIS M2035-LE designed for?
A: It’s built for harsh outdoor conditions, thanks to its IP66/IP67 and IK08 rating.
Q2: Does the camera have built-in night vision?
A: Yes, it uses Optimised IR and Lightfinder for clear images in complete darkness.
Q3: How is the AXIS M2035-LE secured against cyber threats?
A: It features Axis Edge Vault, secure boot, signed firmware, and encrypted storage.
Q4: Can it classify objects?
A: Yes, with a DLPU and AXIS Object Analytics, it can classify humans, cars, trucks, buses, and bikes.
Q5: Is audio supported?
A: Yes, via smart edge-to-edge pairing with Axis speakers.
Q6: What mounting accessories are available?
A: It supports Axis mounts like recessed mount, pendant kit, conduit box, and gang box plate.
