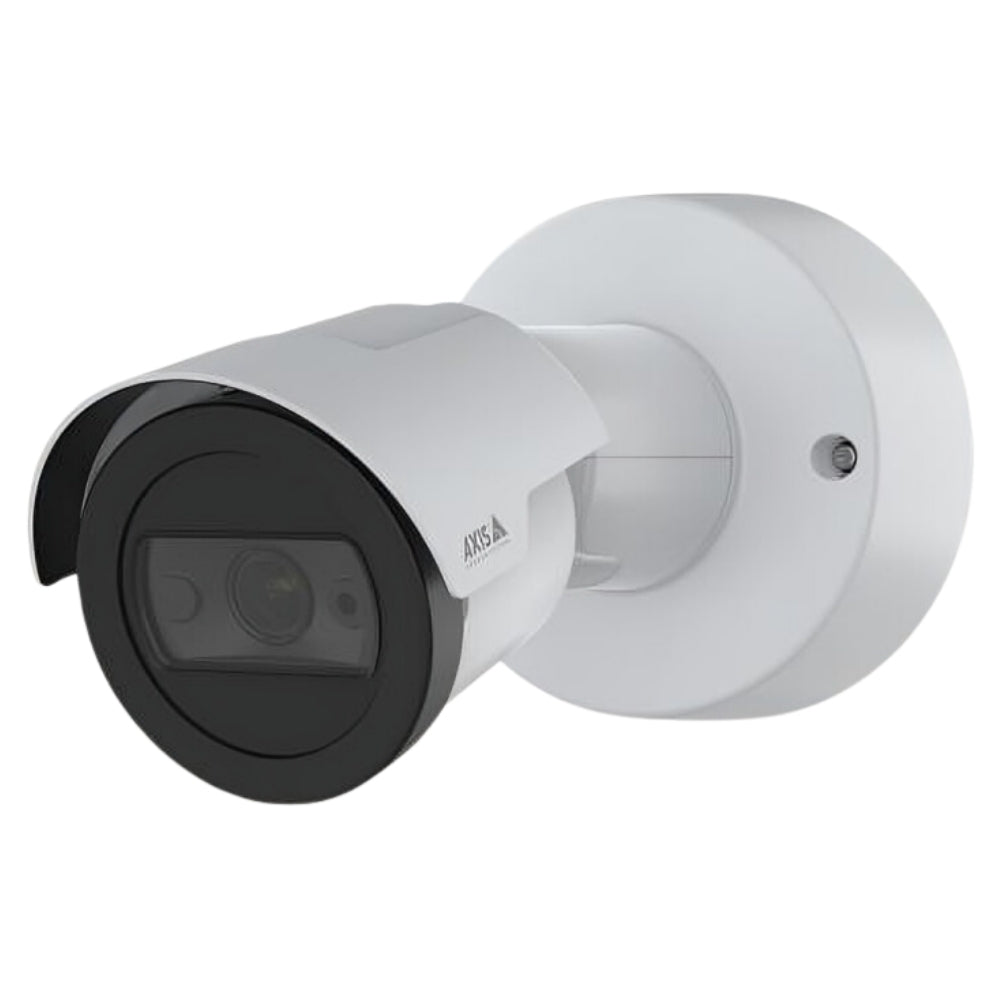

The AXIS M2036-LE is a compact and durable bullet camera offering 4 MP Quad HD resolution and advanced analytics. With a deep learning processing unit (DLPU) and robust outdoor-rated casing, it's ideal for security applications that require high-detail monitoring and smart event detection.
Feature
-
Quad HD 1440p/4 MP – Delivers sharp and wide-angle video in both 16:9 and 4:3 formats.
-
Deep Learning Analytics at the Edge – Built-in DLPU enables real-time classification of objects.
-
AXIS Object Analytics – Supports line crossing, object-in-area, and “time in area” (BETA).
-
Wide Field of View – 130° horizontal view with optimised IR illumination up to 20 m.
-
Rugged & Compact – IP66/67-, IK08-, and NEMA 4X-rated housing built for harsh environments.
-
Flexible Installation – Smart cable management with back box and PoE support.
-
Cybersecurity Ready – Features Axis Edge Vault, signed firmware, and secure boot.
What's Included:
- AXIS M2036-LE Camera (White or Black)
- Installation Guide
- Windows Decoder 1-user License
- Torx L-key
- Connector Guard
DOWNLOADS
Key Info
Smarter Edge Analytics
Equipped with a DLPU, the M2036-LE enables fast, reliable object classification directly on the device. AXIS Object Analytics supports customizable detection scenarios like object-in-area, line crossing, and time-in-area (beta).
Wide, Detailed Coverage
This camera delivers crisp Quad HD 1440p resolution with a 130° horizontal field of view, making it perfect for wide-area surveillance with minimal blind spots.
Low-Light Excellence
Thanks to Lightfinder and Optimised IR, it captures high-quality color footage in low light and clear black-and-white images in complete darkness.
Built for Harsh Environments
Designed to endure challenging conditions, the M2036-LE is IP66/67-, IK08-, and NEMA 4X-rated. The sealed back box ensures safe cable management.
Efficient Storage & Bandwidth
With Zipstream and multi-stream H.264/H.265 support, this camera minimizes bandwidth while preserving video quality.
Strong Cyber Protection
It features Axis Edge Vault, secure keystore, encrypted SD card storage, signed firmware, and secure boot for robust cybersecurity.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.7” progressive scan RGB CMOS |
| Lens |
2.4 mm F2.1 (130° H FOV - 16:9) |
| Day/Night |
IR-cut filter, Lightfinder, Optimised IR (20 m range) |
| DLPU |
Yes, with object classification |
| SoC |
CV25 with DLPU |
| Memory |
1024 MB RAM, 512 MB Flash |
| **Video** |
|
| Resolution |
Up to 2668x1512 (16:9), 2304x1728 (4:3) |
| Compression |
H.264 (Main/High), H.265, Motion JPEG |
| Frame Rate |
Up to 25/30 fps |
| Streaming |
Multi-stream, Zipstream, VBR/ABR/MBR |
| Features |
Multi-view streaming, Corridor format, digital PTZ |
| **Audio** |
|
| Output |
Smart edge-to-edge pairing with Axis speakers |
| **Network** |
|
| Security |
HTTPS, 802.1X, secure boot, signed firmware, Edge Vault |
| Protocols |
IPv4/6, HTTPS, RTSP, MQTT, SNMP, TLS, SSH, FTP, and more |
| Connector |
RJ45 10BASE-T/100BASE-TX PoE |
| **System Integration** |
|
| API |
VAPIX, ONVIF (G/M/S/T), ACAP, one-click cloud |
| Events |
Motion, object analytics, tampering, storage health |
| Actions |
Record/upload/notify, pre/post-buffering, overlays |
| Tools |
Pixel counter, level grid |
| **Analytics** |
|
| Included |
AXIS Object Analytics, VMD, active tampering alarm |
| Object Detection |
Humans, vehicles (cars, trucks, buses, bikes) |
| Trigger Rules |
Line crossing, object in area, time in area (BETA) |
| **Cybersecurity** |
|
| Security Features |
Axis Edge Vault, secure boot, SD encryption, signed video |
| Certifications |
CC EAL4 secure keystore |
| **General** |
|
| Casing |
IP66/67, IK08, NEMA 4X, aluminum & plastic |
| Power |
PoE IEEE 802.3af/at, 5W typical, 12.95W max |
| Storage |
microSD/SDHC/SDXC with encryption, NAS support |
| Operating Conditions |
-30 °C to 50 °C, 10–100% RH |
| Dimensions |
Ø101 mm × 170 mm |
| Weight |
491 g (1.1 lb) |
| Languages |
EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, PL, and more |
| Warranty |
5-year warranty |
Q&A
Q1: What resolution does the AXIS M2036-LE offer?
A: It supports up to 4 MP (Quad HD 1440p), with options for 16:9 and 4:3 video formats.
Q2: How does it handle analytics?
A: With a DLPU and AXIS Object Analytics, it can classify humans and vehicles, and detect advanced scenarios like time-in-area.
Q3: Is the camera night vision capable?
A: Yes, it features Lightfinder for low-light color and Optimised IR for zero-light B/W coverage.
Q4: What environments is it suitable for?
A: It’s outdoor-ready with IP66/IP67 and IK08 ratings and operates from -30°C to 50°C.
Q5: How is cybersecurity handled?
A: The camera includes secure boot, signed firmware, Axis Edge Vault, and encrypted SD storage.
Q6: Can it integrate with other systems?
A: Yes, it supports VAPIX, ONVIF (G/M/S/T), MQTT, ACAP apps, and edge-to-edge speaker pairing.
