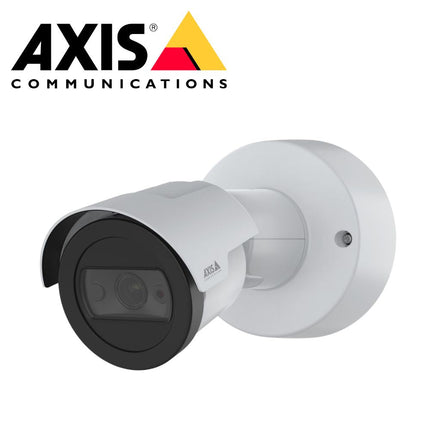

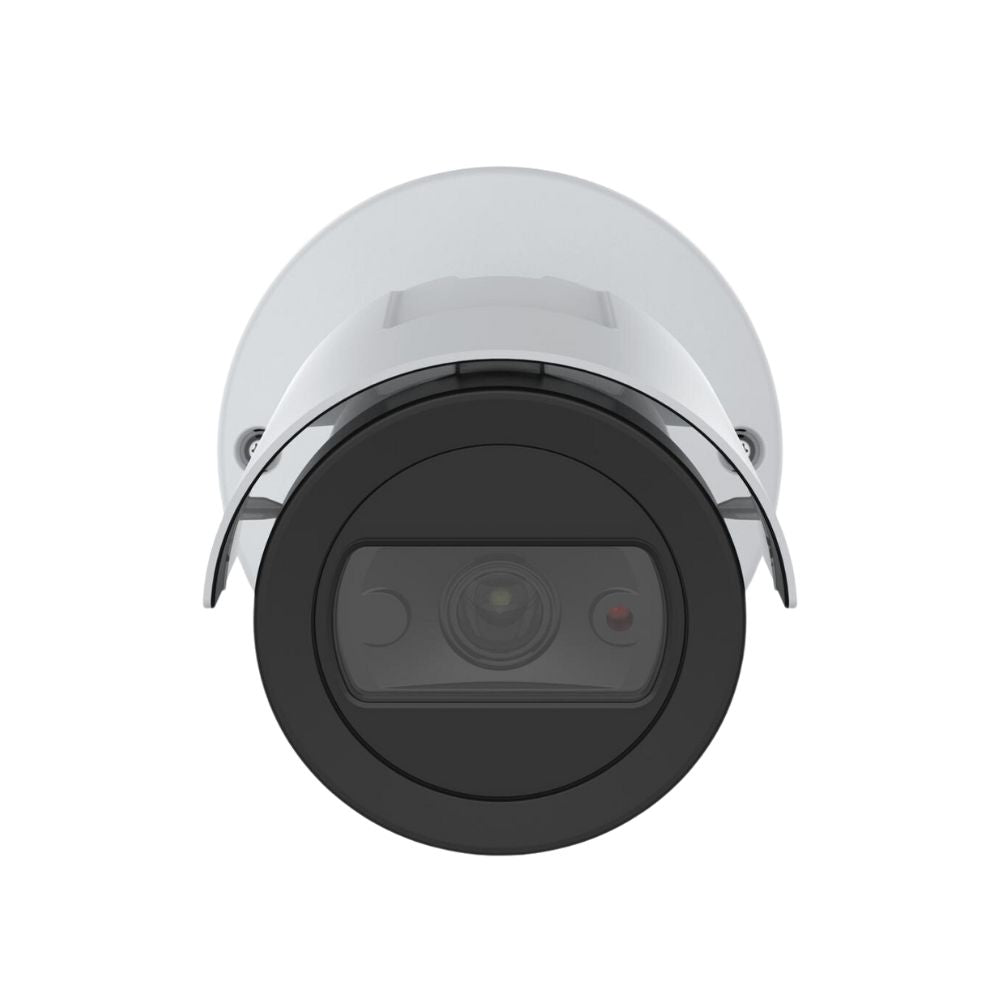

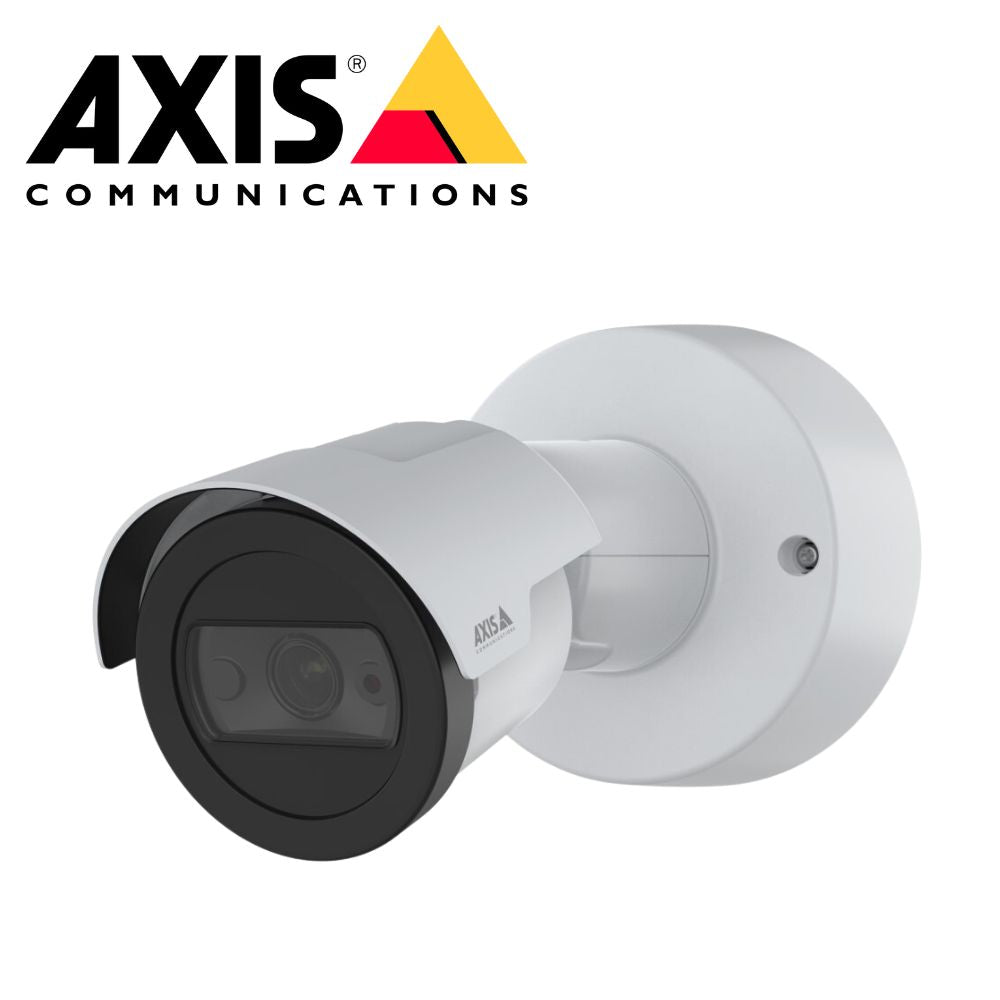

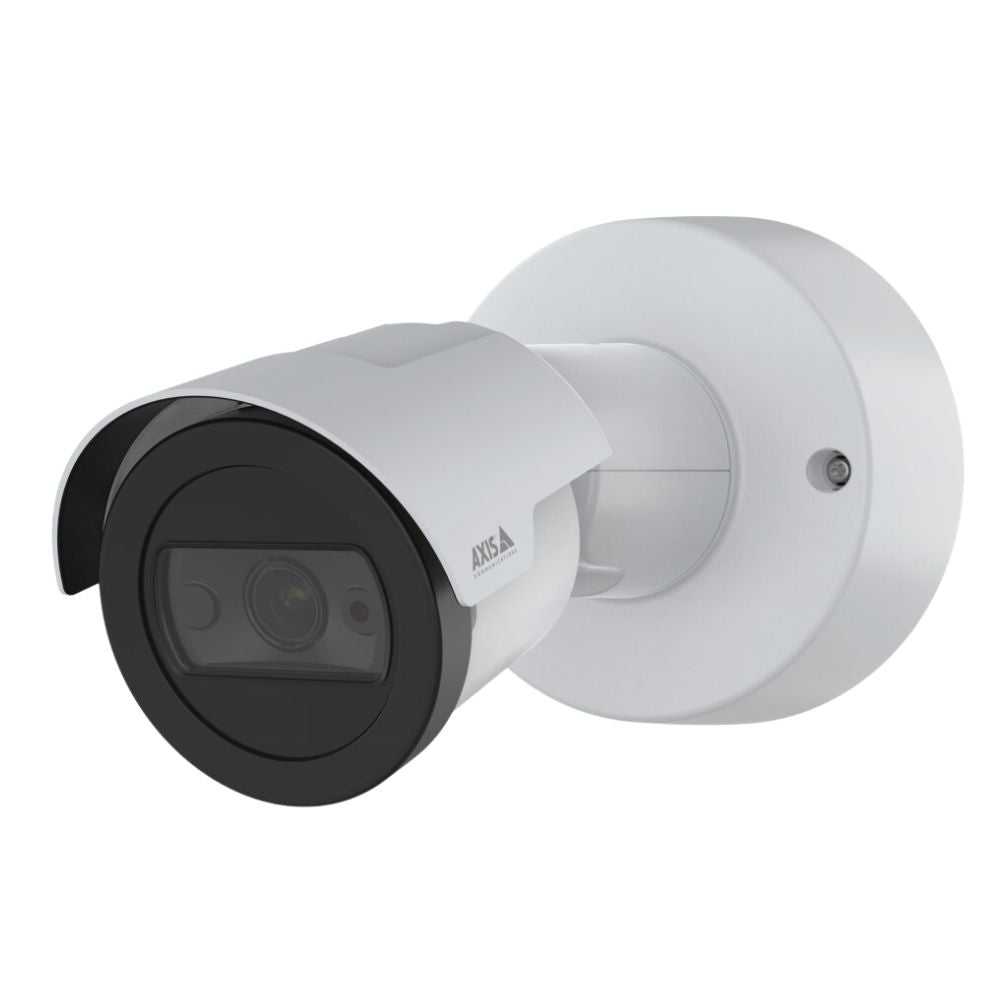

The AXIS M2036-LE is a compact 4 MP outdoor bullet camera with a 130° wide view, IR night vision, and deep learning for real-time object detection. Durable with IK08 and IP67 ratings, it’s ideal for smart, efficient surveillance in commercial and industrial areas.
Features
-
Quad HD 1440p/4 MP Resolution – Delivers clear and detailed video with wide-angle coverage.
-
Deep Learning on the Edge – Built-in DLPU supports AXIS Object Analytics for advanced detection.
-
Optimised IR Illumination – 20m IR range for effective surveillance even in total darkness.
-
Compact & Tough Design – IP66/IP67- and IK08-rated casing with spacious sealed back box.
- Edge Vault Security – Safeguards device ID and secures device authorization.
-
Flexible Installation – Supports PoE and various mounting accessories.
-
Zipstream with H.264/H.265 – Reduces storage and bandwidth while preserving important details.
What's Included
- AXIS M2036-LE Camera
- Installation Guide
- Windows® Decoder 1-user License
- Torx® L-key
- Connector Guard
DOWNLOADS
Key Info
Compact and Powerful
AXIS M2036-LE packs high-resolution imaging and advanced analytics into a small, durable bullet-style body, ideal for tight outdoor installations.
Smarter Surveillance with Deep Learning
With its DLPU, the camera enables AXIS Object Analytics to classify objects like cars, buses, trucks, bikes, and humans—all processed on the edge.
Outdoor-Ready Reliability
With IP66/IP67 and IK08 ratings, it withstands rain, dust, and vandalism. Lightfinder and IR LEDs ensure sharp images in all lighting conditions.
Cybersecurity Built-In
Equipped with Axis Edge Vault, secure boot, encrypted SD card storage, and signed firmware to protect data and device integrity.
Efficient Storage
Zipstream with H.264 and H.265 compresses video intelligently, cutting storage needs without losing forensic detail.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.7" CMOS, progressive scan |
| Lens |
Fixed focus 2.4 mm, F2.1 |
| Field of View |
H: 130° (16:9), H: 109° (4:3) |
| Day/Night |
IR-cut filter, 0 lux with IR on |
| Min. Illumination |
Color: 0.18 lux, B/W: 0.04 lux |
| IR Illumination |
Optimised IR, 20m range |
| SoC |
CV25 with DLPU |
| Memory |
1024 MB RAM, 512 MB Flash |
| **Video** |
|
| Compression |
H.264, H.265, Motion JPEG |
| Resolution |
Up to 2668x1512 (16:9), 2304x1728 (4:3) |
| Frame Rate |
Up to 25/30 fps |
| Streaming |
Multiple streams, Zipstream, VBR/ABR/MBR |
| WDR |
Forensic WDR up to 115 dB |
| Image Settings |
Brightness, sharpness, privacy mask, rotation, corridor format |
| PTZ |
Digital PTZ |
| **Audio** |
|
| Output |
Smart pairing with Axis speakers |
| **Network** |
|
| Protocols |
IPv4/6, HTTPS, TLS, RTSP, MQTT, etc. |
| Connectors |
RJ45 10/100 BASE-TX PoE |
| **System Integration** |
|
| API |
VAPIX, ONVIF (G/M/S/T), ACAP |
| Event Triggers |
Motion, tampering, temperature, schedule, MQTT |
| Event Actions |
Record, notify, upload, text overlay, MQTT publish |
| **Analytics** |
|
| Included |
AXIS Object Analytics, Motion Detection, Tampering Alarm |
| Object Detection |
Humans, vehicles (cars, buses, trucks, bikes) |
| Advanced Features |
Trajectories, bounding boxes, perspective config |
| **Cybersecurity** |
|
| Software Security |
Signed firmware, brute force protection, SD encryption |
| Hardware Security |
Axis Edge Vault, Secure Boot, TPM |
| Network Security |
IEEE 802.1X, TLS 1.2/1.3, HTTPS, IP filtering |
| **General** |
|
| Casing |
IP66/IP67, IK08-rated aluminum/plastic casing |
| Power |
PoE IEEE 802.3af, Max 12.95W |
| Storage |
microSD/microSDHC/microSDXC, NAS support |
| Operating Conditions |
-30 °C to 50 °C, 10–100% RH |
| Dimensions |
L: 170 mm, Ø: 101 mm |
| Weight |
491 g |
| Languages |
Multiple incl. EN, DE, FR, ZH, JA, PT |
| Warranty |
5-year warranty |
Q&A
Q1: What resolution does the AXIS M2036-LE support?
A: It offers up to Quad HD 1440p (2668x1512), with both 16:9 and 4:3 aspect ratios.
Q2: Is this camera suitable for outdoor use?
A: Yes, it's IP66/IP67 and IK08 rated, built to withstand harsh weather and physical impact.
Q3: What kind of analytics does it support?
A: It includes AXIS Object Analytics for detecting and classifying humans and vehicles, all processed on the edge.
Q4: Does it work at night?
A: Yes, it features Optimised IR with a 20m range and Lightfinder for low-light color imaging.
Q5: How secure is the AXIS M2036-LE?
A: It includes Axis Edge Vault, secure boot, signed firmware, encrypted storage, and advanced network security protocols.
