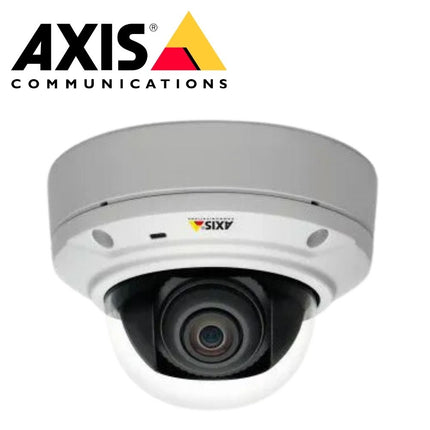

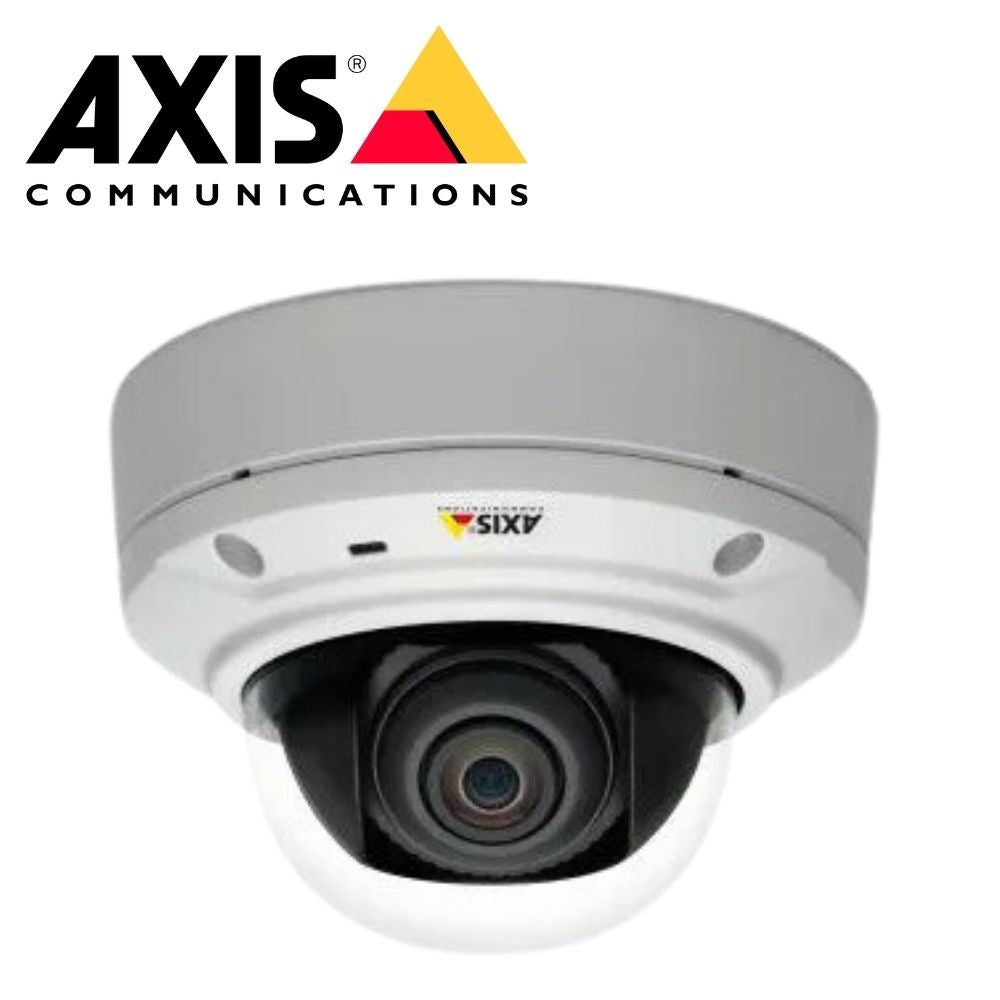

The Axis M3026-VE is a compact, vandal-resistant dome camera, ideal for demanding indoor or outdoor surveillance applications. Designed with clarity, durability, and efficiency in mind, it delivers 3MP video resolution with wide-angle coverage—perfect for monitoring entrances, parking lots, schools, or retail spaces. Engineered for reliable day and night operation, this model features Axis' signature image processing technologies for optimal performance in all lighting conditions.
Features
-
Wide 3MP Resolution – Captures highly detailed video ideal for facial recognition and wide-area coverage.
-
Fixed Wide-Angle Lens – Offers a 106° horizontal field of view, perfect for monitoring open spaces or building entrances.
-
Edge Storage Support – Built-in microSD/SDHC slot enables local video recording, reducing the need for external NVRs.
-
AXIS Corridor Format – Optimized for hallways or narrow areas, maximizing pixel use and coverage vertically.
-
WDR – Forensic Capture – Balances scenes with harsh light and shadows, maintaining detail in every frame.
-
Day/Night Function with IR Cut Filter – Automatically adjusts for 24/7 surveillance, even in low light.
-
Vandal-Resistant Design (IK10) – Built to withstand impact and tampering in exposed or high-risk areas.
-
Weatherproof Housing (IP66 Rated) – Reliable performance in rain, snow, or dusty environments.
-
H.264 Compression – Efficient video storage and streaming without sacrificing image quality.
Downloads
Extra Info
Smart Coverage for Challenging Environments
The M3026-VE is built for tough conditions. With an IK10-rated housing, it’s resistant to vandalism and physical tampering—ideal for schools, transit stations, or any place vulnerable to abuse. The IP66 weatherproofing ensures consistent operation in harsh climates.
Clarity Where It Matters Most
Thanks to Wide Dynamic Range (WDR – Forensic Capture), this camera excels in high-contrast environments such as entryways or lobbies where both indoor and outdoor lighting meet. It maintains clear visibility of faces, vehicles, and critical details—even when part of the scene is backlit.
Optimized for Narrow Spaces
AXIS Corridor Format intelligently rotates the video stream 90° to better monitor vertical spaces such as hallways, staircases, or aisles—eliminating wasted pixels and providing a more effective viewing area for narrow scenes.
Local Storage Flexibility
Edge recording via microSD/SDHC card support gives you the flexibility to store footage on the device itself. This is ideal for backup during network downtime or for remote locations with limited infrastructure.
Compact and Discreet
With its low-profile dome design, the M3026-VE blends seamlessly into walls or ceilings, making it less noticeable—yet still highly capable. Perfect for environments where discretion and coverage are both essential.
Tech Specs
| Camera Image Sensor |
1/3" progressive scan RGB CMOS |
| Minimum Illumination |
Color: 0.3 lux at F2.0
B/W: 0.05 lux at F2.0 |
| Shutter Time |
1/6 s to 1/10,000 s |
| Camera Angle of View |
Horizontal: 106°
Vertical: 59° |
| Lens |
Fixed lens
Focal length: 2.8 mm
Aperture: F2.0
Horizontal FOV: 106° |
| Day/Night Function |
IR-cut filter |
| Video Compression |
H.264 (Main and Baseline Profiles)
Motion JPEG |
| Resolution |
2048x1536 (3 MP) to 160x90 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video Streaming |
Multiple, individually configurable streams
Controllable frame rate and bandwidth
VBR/CBR H.264 |
| Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, rotation, mirroring, text/image overlay, privacy masks,
Wide Dynamic Range – Forensic Capture,
Axis Corridor Format |
| Pan/Tilt/Zoom |
Digital PTZ |
| Network Protocols |
IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security |
Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log |
| System Integration |
Open API for software integration
VAPIX® and AXIS Camera Application Platform |
| Intelligent Video |
Video motion detection
Active tampering alarm
AXIS Camera Application Platform support |
| Event Triggers |
Video motion detection, active tampering |
| Event Actions |
File upload: FTP/SFTP/HTTP/email
Notification: email, HTTP, TCP
External output activation
Pre- and post-alarm video buffering |
| Video Storage |
Support for microSD/microSDHC/microSDXC
Support for recording to network-attached storage (NAS) |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| Power |
Power over Ethernet (IEEE 802.3af Class 1)
Max. 4.0 W |
| Operating Conditions |
-30 °C to 50 °C (-22 °F to 122 °F)
Humidity 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals |
EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 60950-1, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, KCC KN22 Class B, KN24 |
| Casing |
IP66- and NEMA 4X-rated, IK10 impact-resistant polycarbonate dome with aluminum base.
Color: White NCS S 1002-B |
| Dimensions |
Height: 56 mm (2.2 in.)
Ø: 101 mm (4.0 in.) |
| Weight |
330 g (0.73 lb) |
| Included Accessories |
Installation Guide, Windows decoder 1-user license, Resistorx® L-key |
| Optional Accessories |
AXIS T94B01P Conduit Back Box
AXIS T94B02D Pendant Kit
AXIS T94B02M J-Box/Gang Box Plate |
| Warranty |
Axis 3-year warranty |
Q&A
Q: Is the Axis M3026-VE suitable for outdoor use?
Yes. It features an IP66-rated weatherproof housing and IK10 vandal resistance, making it ideal for both indoor and outdoor deployments.
Q: Does this camera work in low-light conditions or at night?
Yes. It includes a day/night function with an IR-cut filter, allowing it to adapt to lighting changes and deliver clear images around the clock.
Q: What is the field of view?
It offers a wide 106° horizontal field of view—great for monitoring large areas with a single camera.
Q: Can the camera store footage without a network video recorder (NVR)?
Yes. It supports edge storage with a built-in microSD/SDHC card slot for local recording.
Q: Is the camera easy to install?
Yes. It supports Power over Ethernet (PoE) and has a compact, pre-focused lens, simplifying both mounting and configuration.
Q: What type of lens does it use?
It comes with a fixed wide-angle lens optimized for general-purpose surveillance in open or high-traffic areas.
