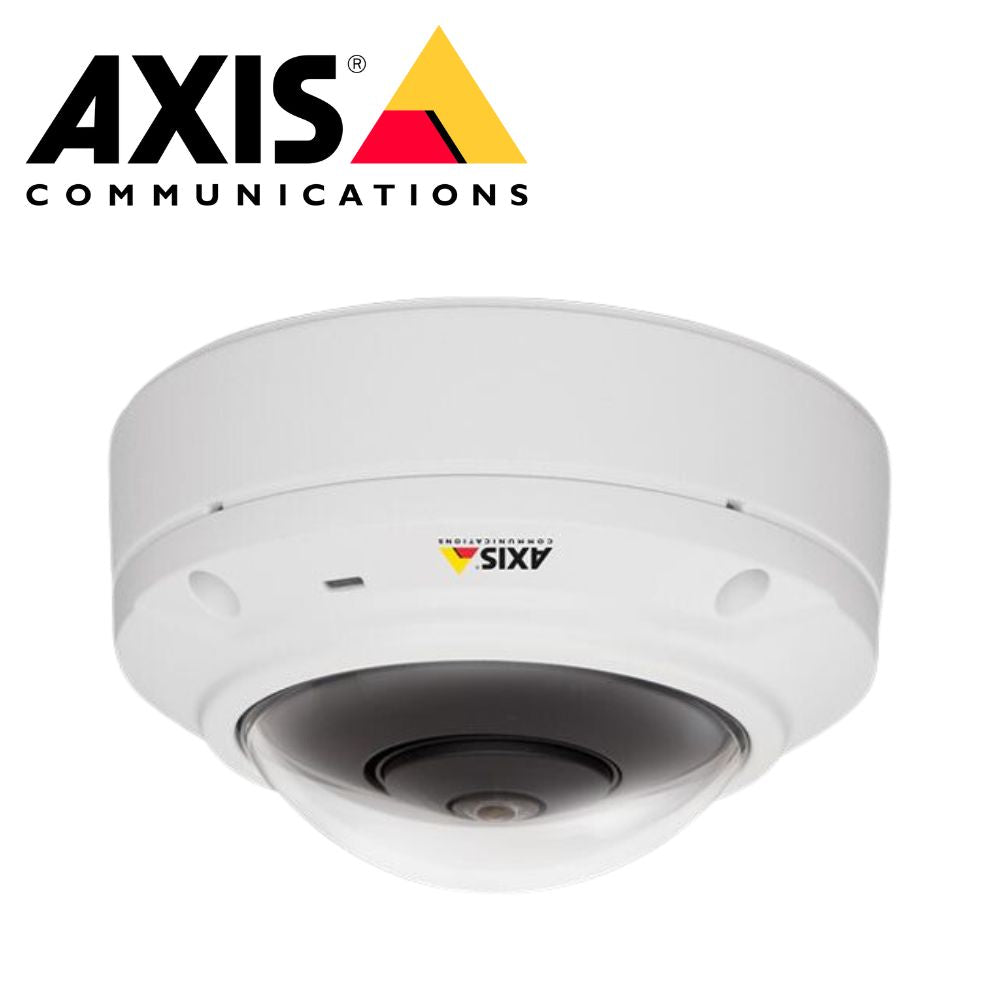

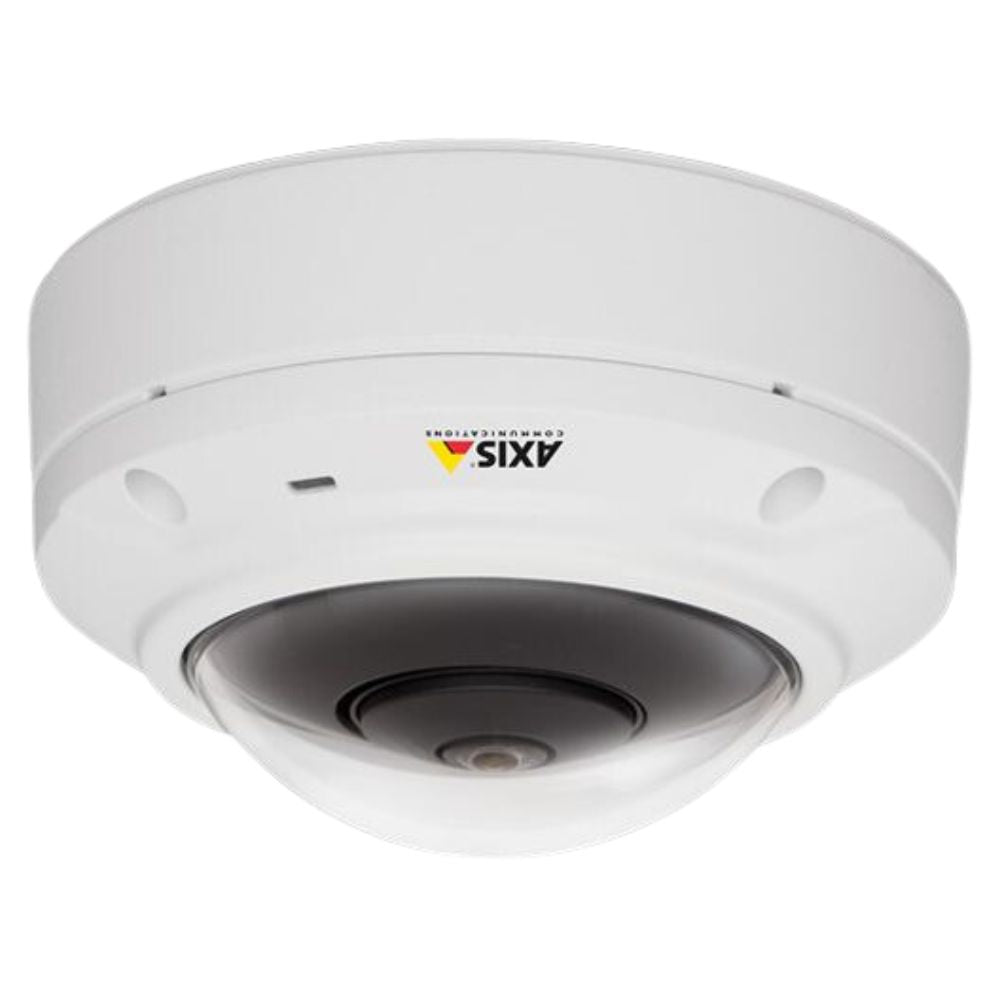

The AXIS M3037-PVE is a compact outdoor panoramic mini dome camera with 360°, 270°, and 180° views in up to 5 MP. It offers dewarped views, two-way audio with echo cancellation, SIP support, and third-party analytics integration—ideal for full situational awareness.
Feature
-
Panoramic 360°/270°/180° Views – High-quality overview with multiple dewarped streaming options including panorama, quad, and corner views.
-
Built-in Microphone and Speaker – Echo-free, full-duplex two-way communication for real-time audio monitoring and interaction.
-
Digital PTZ & Multi-View Streaming – Stream multiple dewarped and cropped view areas simultaneously.
-
SIP Integration – Easily integrates with IP phone systems for interactive video and audio communication.
-
Compact and Rugged – IK10- and IP66-rated for vandal and weather resistance in outdoor environments.
-
Analytics Ready – Supports AXIS video motion detection, cross-line detection, and third-party analytics through ACAP.
-
Full 5 MP Resolution – Delivers crisp and detailed panoramic imaging in all lighting conditions with support for day/night operation.
What’s Included:
- AXIS M3037-PVE Camera
- Installation guide
- Windows decoder 1-user license
- Drill hole template
- Resistorx® L-key
- Terminal block connector
DOWNLOADS
Key Info
Versatile 360° Panoramic Views
Capture complete surroundings with options to stream dewarped views including panorama, corner, and quad views. Supports up to 5 MP resolution with up to 4 dewarped view areas and full 360° overview.
Two-Way Audio with SIP Support
Integrated microphone and speaker allow for full-duplex communication. Supports Session Initiation Protocol (SIP) for IP telephony systems, enabling real-time audio/video communication.
Outdoor-Ready and Durable
The camera's compact dome is IK10-, IP66-, and NEMA 4X-rated, built to withstand harsh conditions and vandalism.
Analytics Capabilities
Supports built-in motion and audio detection, tampering alarms, and advanced third-party analytics including people tracking and cross-line detection.
Digital PTZ and Cropped Streams
Digitally pan, tilt, and zoom in view areas with guard tours and preset positions, enabling flexible monitoring.
High-Quality Imaging
Offers 5 MP resolution with true day/night functionality and dynamic WDR for balanced scenes in any light.
Easy Installation and Configuration
Includes pixel counter, multi-view streaming, and built-in tools for efficient setup and operation.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/3.2” progressive scan RGB CMOS |
| Lens |
1.27 mm, F2.0, fixed iris, M12 mount, IR corrected |
| Field of View |
H: 187°, V: 168° |
| Day/Night |
IR-cut filter |
| Min. Illumination |
Color: 0.3 lux / B&W: 0.06 lux |
| Shutter Speed |
1/24500 s to 2 s |
| Angle Adjustment |
Rotation: ±180° |
| **Video** |
|
| Compression |
H.264 Baseline/Main, Motion JPEG |
| Resolution |
2592x1944 (5 MP) max, various dewarped resolutions |
| Frame Rate |
12 fps (overview and panoramic views) |
| Streaming |
Multiple configurable streams, VBR/MBR, multi-view dewarped |
| Image Settings |
WDR, overlays, privacy mask, backlight, rotation, fine low-light tuning |
| PTZ |
Digital PTZ, preset positions, guard tours |
| **Audio** |
|
| Input/Output |
Built-in mic and speaker, echo cancellation, noise reduction |
| Encoding |
AAC-LC, G.711, G.726 |
| **Network** |
|
| Protocols |
IPv4/6, HTTPS, TLS, FTP, SSH, RTSP, SIP, SNMP, DHCP, MQTT, etc. |
| Security |
HTTPS, IEEE 802.1X, digest auth, user logs, IP filtering |
| Connectors |
Shielded RJ45 (PoE), 2 m network cable, terminal block (1 in/1 out) |
| **System Integration** |
|
| API |
VAPIX, ONVIF S, ACAP, SIP for VoIP integration |
| Events |
Analytics, edge storage, input/output, SIP call |
| Actions |
Notifications, overlays, PTZ presets, edge recording |
| **Analytics** |
|
| Included |
Motion Detection, Audio Detection, Tampering Alarm |
| Supported |
AXIS Cross Line Detection, Digital Autotracking, ACAP apps |
| **Cybersecurity** |
|
| Storage |
microSD/microSDHC/microSDXC, NAS support |
| Certifications |
IP66, IK10, NEMA 4X, UL 60950-22 |
| **General** |
|
| Casing |
Polycarbonate dome, aluminum base |
| Power |
PoE IEEE 802.3af/at, Max: 5.1 W, Typical: 3.4 W |
| Operating Conditions |
-30°C to 50°C, 10–100% RH (condensing) |
| Dimensions |
132 x 132 x 73 mm |
| Weight |
740 g |
| Warranty |
5-year warranty |
Q&A
Q1: What kind of views does the M3037-PVE offer?
A: It supports 360° overview and dewarped views including panorama, quad, and corner for complete scene awareness.
Q2: Is the camera suitable for outdoor use?
A: Yes, it is IP66-, IK10-, and NEMA 4X-rated for protection against dust, water, and vandalism.
Q3: Can it be integrated with phone systems?
A: Yes, it supports SIP protocol for integration with VoIP/IP telephony systems.
Q4: What analytics features are included?
A: It includes motion, audio, and tampering detection, with support for additional ACAP-based analytics.
Q5: How does the audio system perform?
A: It offers echo-free, full-duplex audio with built-in mic and speaker for clear two-way communication.
