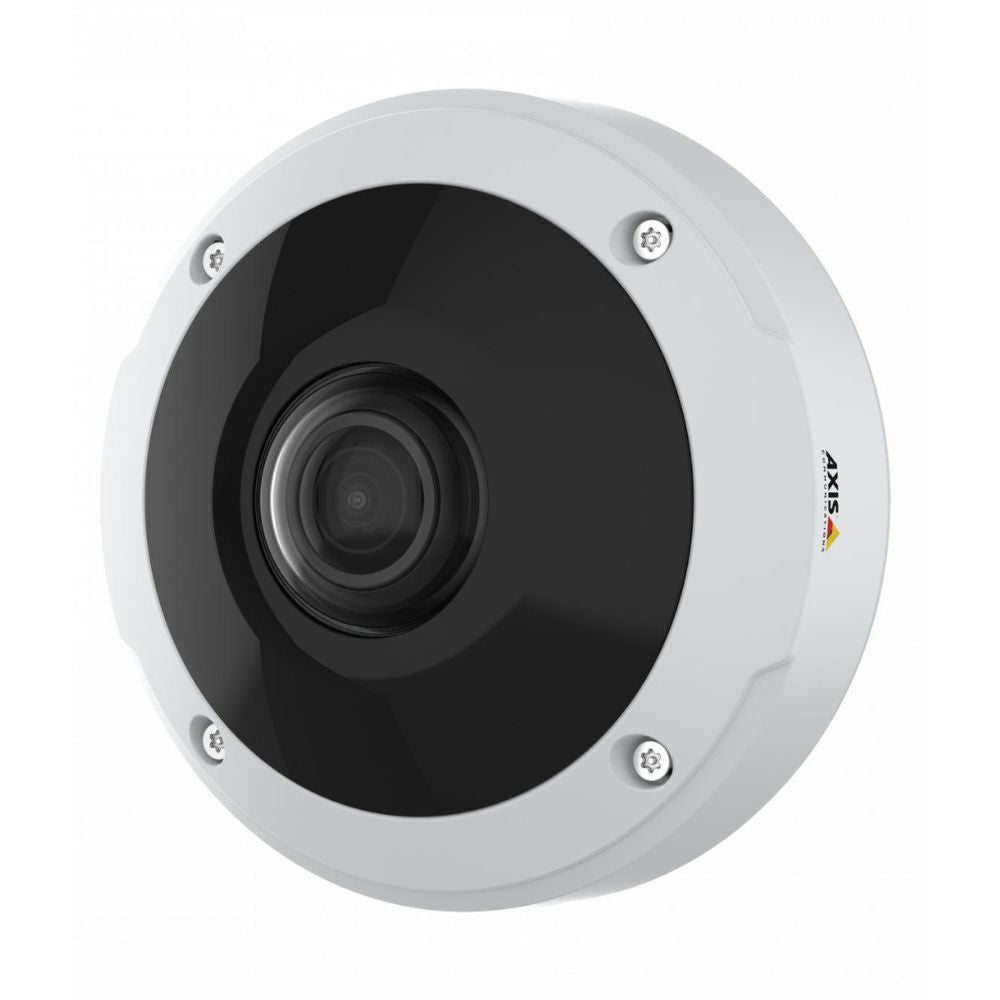

The AXIS M3057-PLVE Mk II is a compact 6 MP dome camera offering 360°/180° panoramic views with dewarping options. It features Lightfinder, Forensic WDR, and Optimised IR for clear images in any light, and its rugged, vandal-resistant design is ideal for indoor or outdoor use.
Features
-
360°/180° Panoramic Views – Full situational awareness indoors or outdoors.
-
High-Quality Imaging – 6 MP sensor with Lightfinder, Forensic WDR, and Optimised IR.
-
Dewarped View Options – Panorama, quad, corridor, corner, and more.
-
Advanced Cybersecurity – Edge Vault, signed video, and secure boot.
-
Edge Analytics Ready – Compatible with AXIS analytics and third-party apps.
-
Multi-View Streaming – Stream multiple dewarped views and 360° simultaneously.
-
Rugged Outdoor Design – IP66-, NEMA 4X-, and IK10-rated housing for extreme conditions.
What's Included:
- AXIS M3057-PLVE Mk II Camera
- Installation Guide
- Windows® Decoder 1-user License
- Mounting Bracket, Gaskets, Bit Tool, and Accessories
DOWNLOADS
Key Info
Full 360° Coverage
Monitor wide areas with a single camera using dewarped views for more meaningful footage in real time.
Excellent Low-Light Performance
Forensic WDR, Lightfinder, and Optimised IR ensure details and true color in varying lighting conditions.
Dewarped Streams
Simultaneously stream 360° view with up to four dewarped views like panorama, quad, or corridor.
Built to Last
IP66, NEMA 4X, and IK10 ratings ensure it's ready for any environment, with -40 °C start-up temperature and corrosion protection.
Cybersecurity You Can Trust
Includes secure boot, signed firmware, encrypted storage, and Axis Edge Vault for tamper protection.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/1.8" CMOS, progressive scan |
| Lens |
Fixed 1.56 mm, F2.0 |
| Field of View |
H/V: 183° (360° overview) |
| Day/Night |
Removable IR-cut filter |
| Min. Illumination |
Color: 0.16 lux, B/W: 0.03 lux, 0 lux with IR |
| IR Illumination |
Optimised IR, 20m range, 850 nm |
| SoC |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| **Video** |
|
| Compression |
H.264, H.265, Motion JPEG |
| Resolution |
2016x2016 (overview), up to 2560x1920 (dewarped views) |
| Frame Rate |
360° only: 50/60 fps; 360° + views with WDR: up to 25/30 fps |
| Streaming |
Multiple streams, Zipstream, VBR/ABR/MBR |
| WDR |
Forensic WDR up to 120 dB |
| PTZ |
Digital PTZ, guard tours, presets |
| **Network** |
|
| Protocols |
IPv4/6, HTTPS, TLS, MQTT, SIP, RTSP, SRTP, etc. |
| Security |
Signed firmware, Edge Vault, HTTPS, IP filtering |
| **System Integration** |
|
| API |
VAPIX, ONVIF (G/M/S/T), ACAP |
| Events |
Motion, tampering, casing open, MQTT, virtual inputs |
| Event Actions |
Record, notify, overlay text, buffer video |
| **Analytics** |
|
| Included |
Motion Guard, Fence Guard, Loitering Guard, Tampering Alarm |
| Supported |
People Counter, Occupancy Estimator, Queue Monitor |
| Multi-View |
Up to 4 dewarped views + 360° simultaneously |
| **Cybersecurity** |
|
| Software Security |
AES encryption, signed firmware, brute force protection |
| Hardware Security |
Secure Boot, Axis Edge Vault |
| **General** |
|
| Casing |
IP66, NEMA 4X, IK10-rated polycarbonate and aluminum |
| Power |
PoE IEEE 802.3af/at, Max 11.9W |
| Storage |
microSD/microSDXC, NAS, SD card encryption |
| Operating Conditions |
-40 °C to 50 °C, up to 100% RH (condensing) |
| Dimensions |
H: 66 mm, Ø: 149 mm |
| Weight |
700 g |
| Languages |
EN, DE, FR, ZH, JA, KO, PT, ES, RU, PL, IT |
| Warranty |
5-year warranty |
Q&A
Q1: What views does this camera support?
A: It offers 360° overview and dewarped views such as panorama, quad, corner, and corridor views.
Q2: Is this camera outdoor-ready?
A: Yes, it's IP66-, NEMA 4X-, and IK10-rated for harsh weather and impact protection.
Q3: Can it handle low-light conditions?
A: Absolutely. It includes Lightfinder, Forensic WDR, and Optimised IR for low-light and no-light imaging.
Q4: What analytics are available?
A: It includes AXIS Guard Suite, tampering detection, and supports AXIS analytics like People Counter and Queue Monitor.
Q5: How secure is this camera?
A: It includes signed firmware, encrypted storage, secure boot, Axis Edge Vault, and HTTPS/IP filtering.
