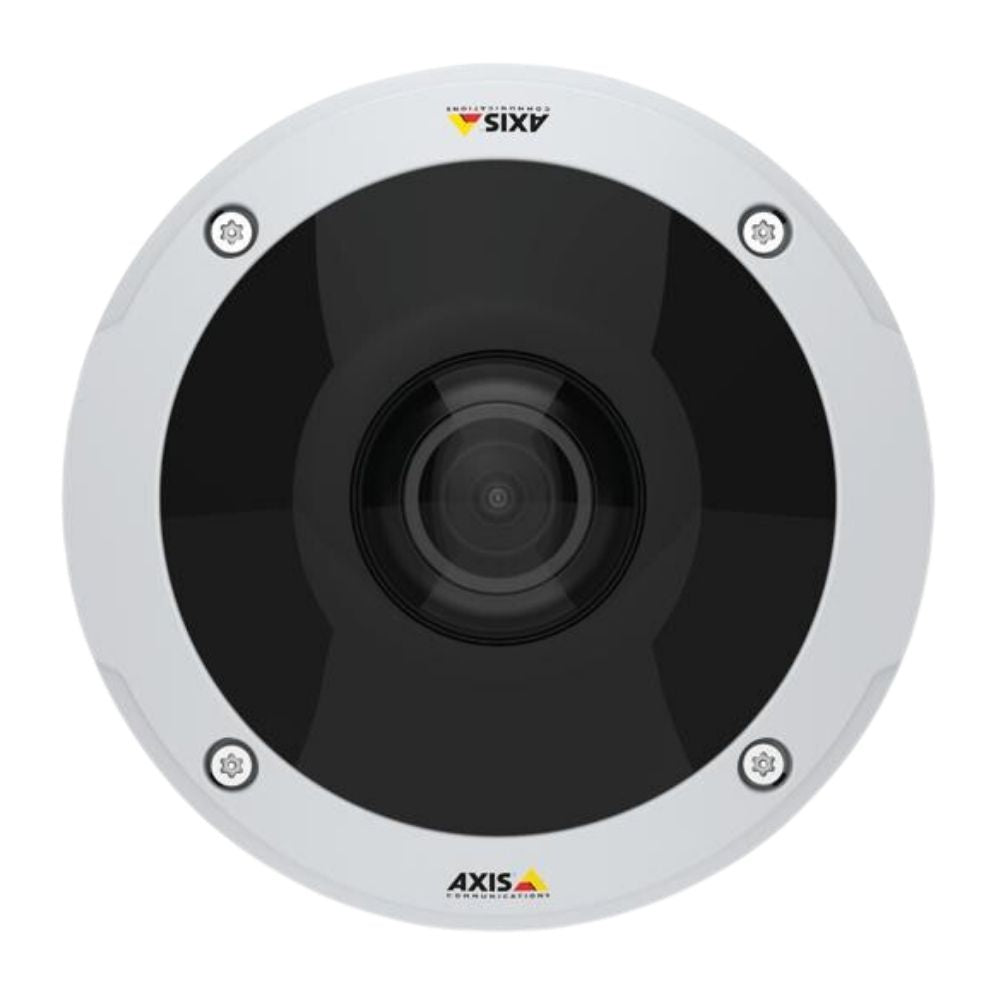

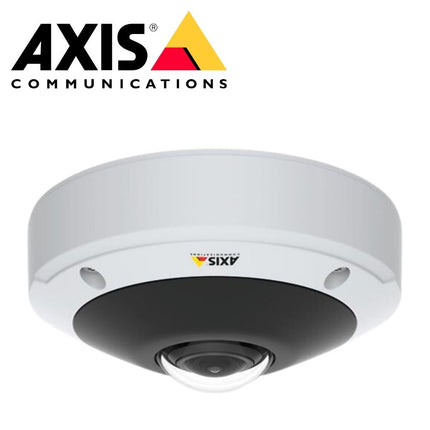

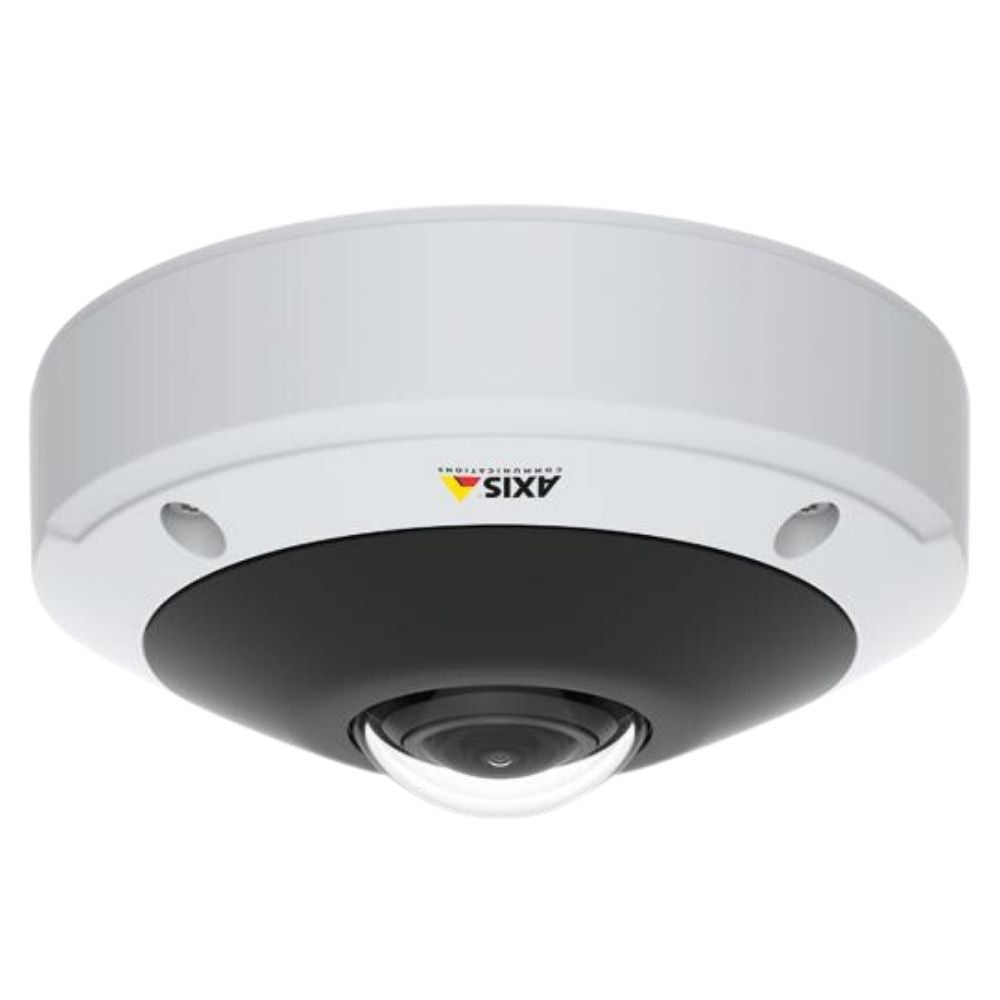

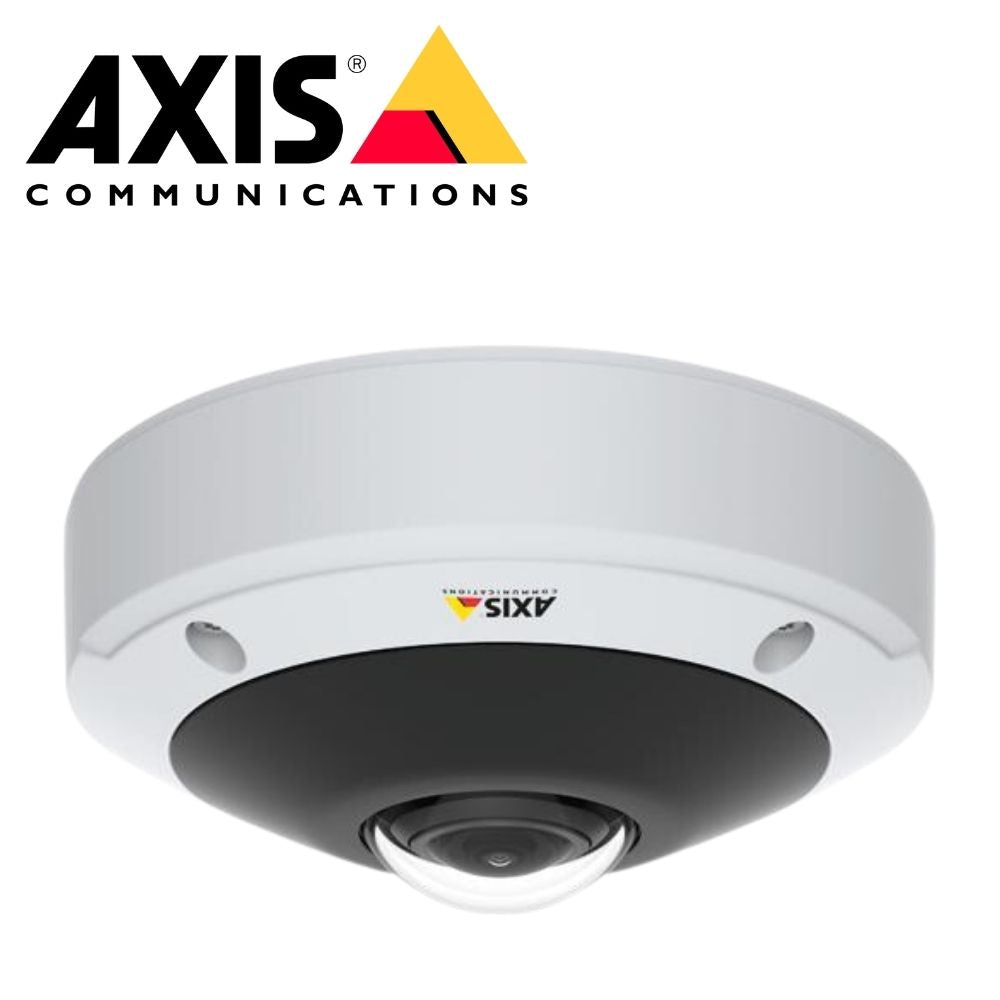

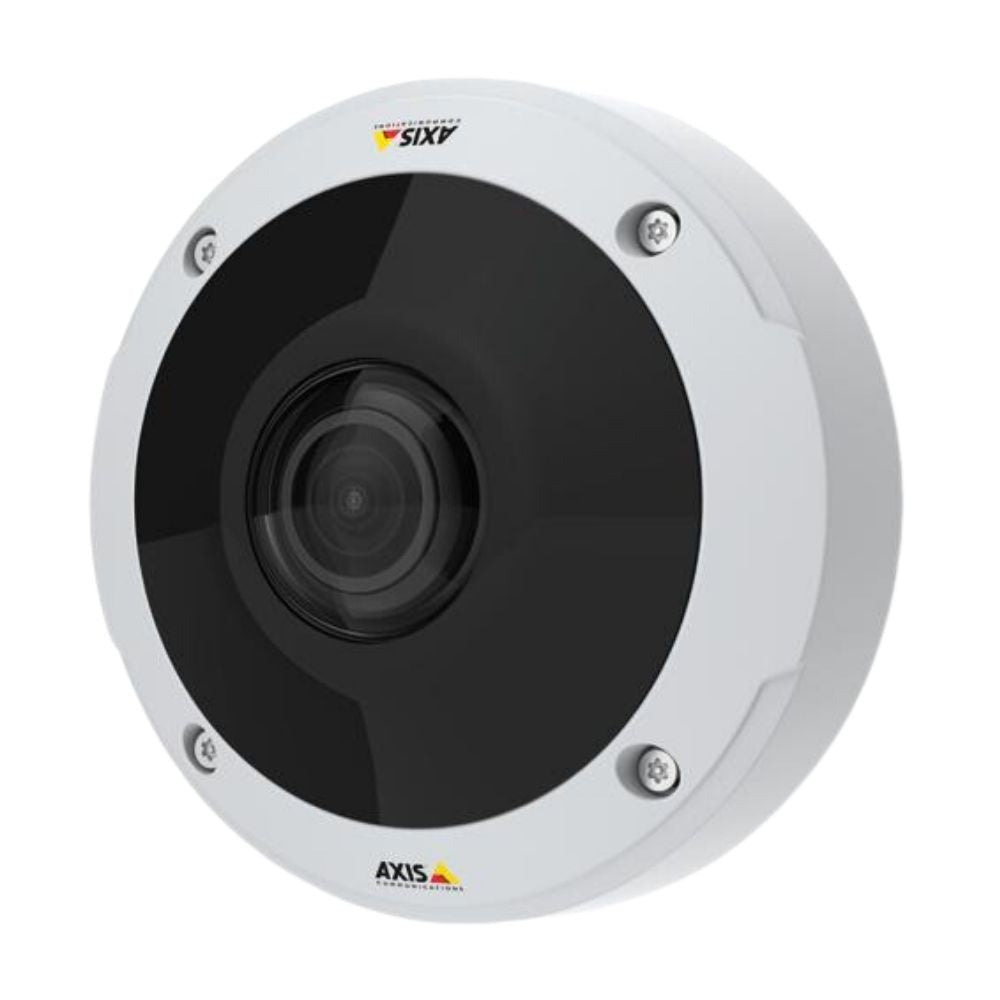

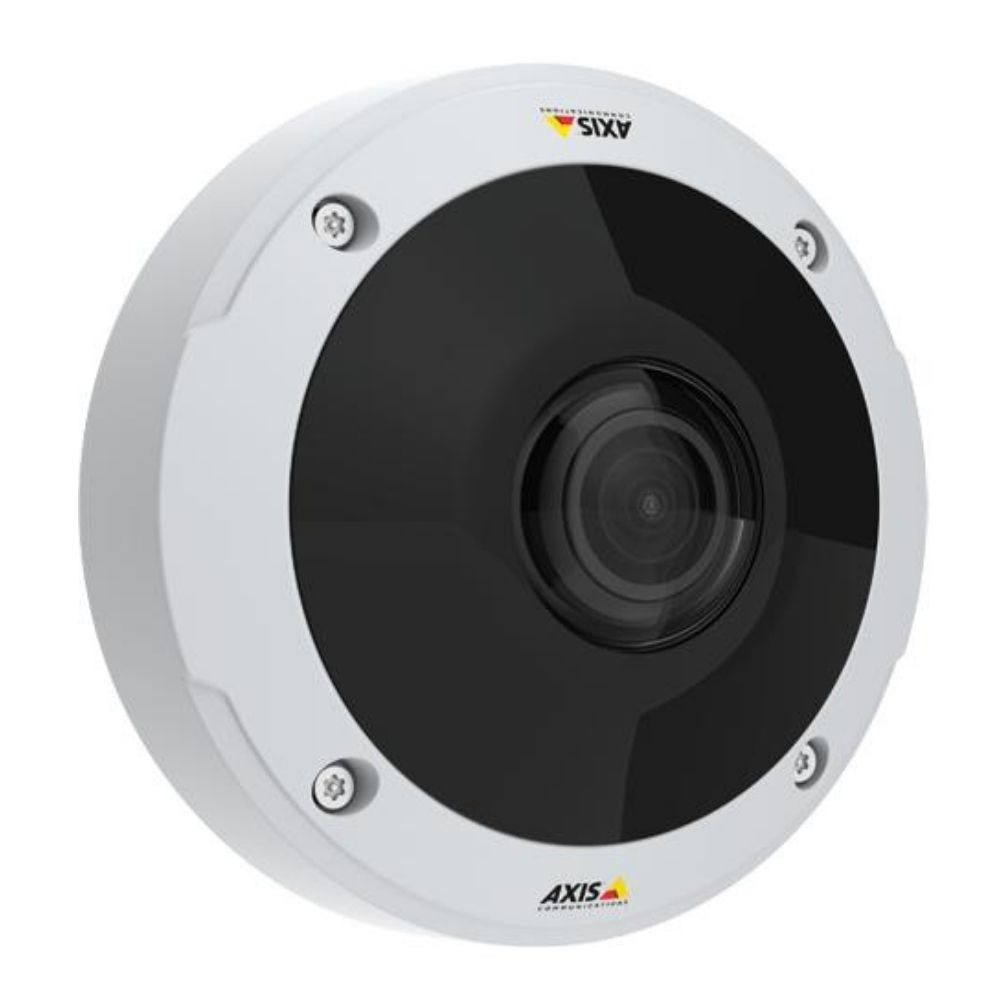

The Axis M3058-PLVE is a powerful, ultra-compact fisheye camera designed for detailed 360° indoor and outdoor surveillance. Ideal for wide-area monitoring such as retail stores, gas stations, building entrances, and public transit hubs, this camera offers complete situational awareness in ultra-high 12MP resolution—day or night. Built on Axis' M30 Series platform, it delivers edge-to-edge coverage with intelligent video compression and low-light performance in a discreet form factor.
Features
-
360° Panoramic View – Seamlessly covers entire rooms or large open spaces with a single camera, reducing blind spots and camera counts.
-
Lightfinder Technology – Captures color images in near-dark conditions, enhancing visibility where others fail.
-
OptimizedIR Illumination – Delivers clear night vision up to 15 meters, without overexposing close objects.
-
IK10 & IP66 Rated Housing – Vandal-resistant and weatherproof for challenging environments indoors and out.
-
Fixed 1.56mm Fisheye Lens – Perfect for ceiling or wall mounting; provides wide coverage without mechanical movement.
-
Forensic WDR – Maintains detail in both dark and bright scenes, ideal for entrances or areas with backlighting.
-
Zipstream Compression – Preserves image quality while drastically reducing bandwidth and storage use.
-
Discrete & Low Profile – Compact design fits tight spaces and blends into modern interiors or exteriors.
-
Edge Storage Support – Records locally to microSD for redundancy or standalone operation.
Downloads
Extra Info
Crystal-Clear 360° Coverage
Unlike standard dome cameras, the M3058-PLVE provides a complete fisheye panoramic view with no blind spots. Whether ceiling- or wall-mounted, it’s perfect for capturing entire rooms, entrances, or lobbies—making it an excellent choice for installers looking to reduce the number of cameras needed per site.
Low-Light Mastery with Lightfinder & IR
Axis’ Lightfinder technology ensures vibrant color footage even in near-total darkness, while built-in OptimizedIR LEDs illuminate scenes up to 15 meters without creating glare or washing out close-up details. Together, they provide uncompromised visibility 24/7.
Built to Withstand the Elements
The camera is IK10 vandal-resistant and IP66 weather-rated, meaning it’s made for tough environments—from schoolyards and loading docks to cold parking garages. It's rugged and reliable, even in harsh outdoor conditions.
Efficient Storage Without Sacrificing Detail
Thanks to Axis' Zipstream technology, you’ll save up to 50% on bandwidth and storage compared to standard H.264—without losing critical forensic detail. This makes the M3058-PLVE a smart long-term investment for high-traffic environments.
Flexible & Secure Installation
It supports edge recording via microSD card, enabling local storage even if the network connection drops. Ideal for standalone use or as part of a larger VMS, it installs quickly on ceilings, walls, or junction boxes with included accessories.
Tech Specs
| Camera Image Sensor |
1/1.7" progressive scan RGB CMOS |
| Lens |
Fixed lens, 1.56 mm, F2.0
Horizontal field of view: 185°
Vertical field of view: 185°
Diagonal field of view: 185° |
| Day/Night Functionality |
IR-cut filter with auto switch |
| Minimum Illumination |
Color: 0.18 lux (50 IRE, F2.0)
B/W: 0.03 lux (50 IRE, F2.0)
0 lux with IR illumination on |
| IR Illumination |
OptimizedIR with 4 IR LEDs
Range: up to 15 m (49 ft) |
| Shutter Time |
1/32500 s to 1 s |
| Camera Angle Adjustment |
Rotation: 0°–340° |
| Video Compression |
H.264 (Baseline, Main, High profile)
Motion JPEG
H.265 (HEVC) |
| Resolution |
2016x2016 to 160x160 |
| Frame Rate |
12 MP at up to 30 fps
(360° overview or dewarped views) |
| Video Streaming |
Multiple, individually configurable streams
Axis Zipstream technology in H.264/H.265 |
| Video Intelligence |
Video motion detection
Active tampering alarm
Autotracking 2
Axis Object Analytics (license-free) |
| Audio |
No audio support |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security Features |
Signed firmware
Secure boot
Axis Edge Vault with TPM
HTTPS encryption
IEEE 802.1X
IP address filtering
Password protection
Digest authentication
Certificate-based authentication |
| Memory & Storage |
512 MB RAM, 256 MB Flash
MicroSD/microSDHC/microSDXC slot
Support for SD card encryption |
| Operating Conditions |
-30 °C to 50 °C (-22 °F to 122 °F)
Humidity: 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Protection Ratings |
IP66-rated, NEMA 4X
IK10-rated impact resistance |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical: 6.3 W
Max: 9.8 W |
| Connectors |
RJ45 Ethernet 10/100 Base-T |
| Mounting Options |
Wall or ceiling mount
Conduit back box
Adapter plates included |
| Dimensions |
Height: 55 mm (2.2 in)
Diameter: 130 mm (5.1 in) |
| Weight |
500 g (1.1 lb) |
| Certifications |
CE, UKCA, FCC, ICES, VCCI, RCM, KC, UL, CB, BIS, BSMI, RoHS, REACH, WEEE |
| Included Accessories |
Installation guide
Drill template
Resistorx L-key
Screws, cable gaskets, connector guard, AXIS M30 Mount Bracket |
| Optional Accessories |
Axis T94B01P Conduit Back Box
Axis TM3101 Pendant Wall Mount
Axis Surveillance Cards |
| Warranty |
5-year Axis warranty |
Q&A
Q: Can this camera see in total darkness?
A: Yes. The M3058-PLVE is equipped with built-in IR LEDs that provide visibility up to 15 meters in complete darkness.
Q: Is this suitable for outdoor use?
A: Absolutely. It is IP66 weatherproof and IK10 impact-resistant, designed to handle rain, dust, and vandalism.
Q: Does it provide a 360° view?
A: Yes. The fisheye lens provides full panoramic coverage—ideal for single-camera room or area monitoring.
Q: Can this be used for recording without an NVR?
A: Yes. It supports edge storage via microSD card, allowing local recording without needing a network video recorder.
Q: What's the difference between this and a PTZ camera?
A: This camera captures everything at once in a fixed panoramic view, with no moving parts—unlike PTZs which rotate mechanically and can miss action outside their field of view.
