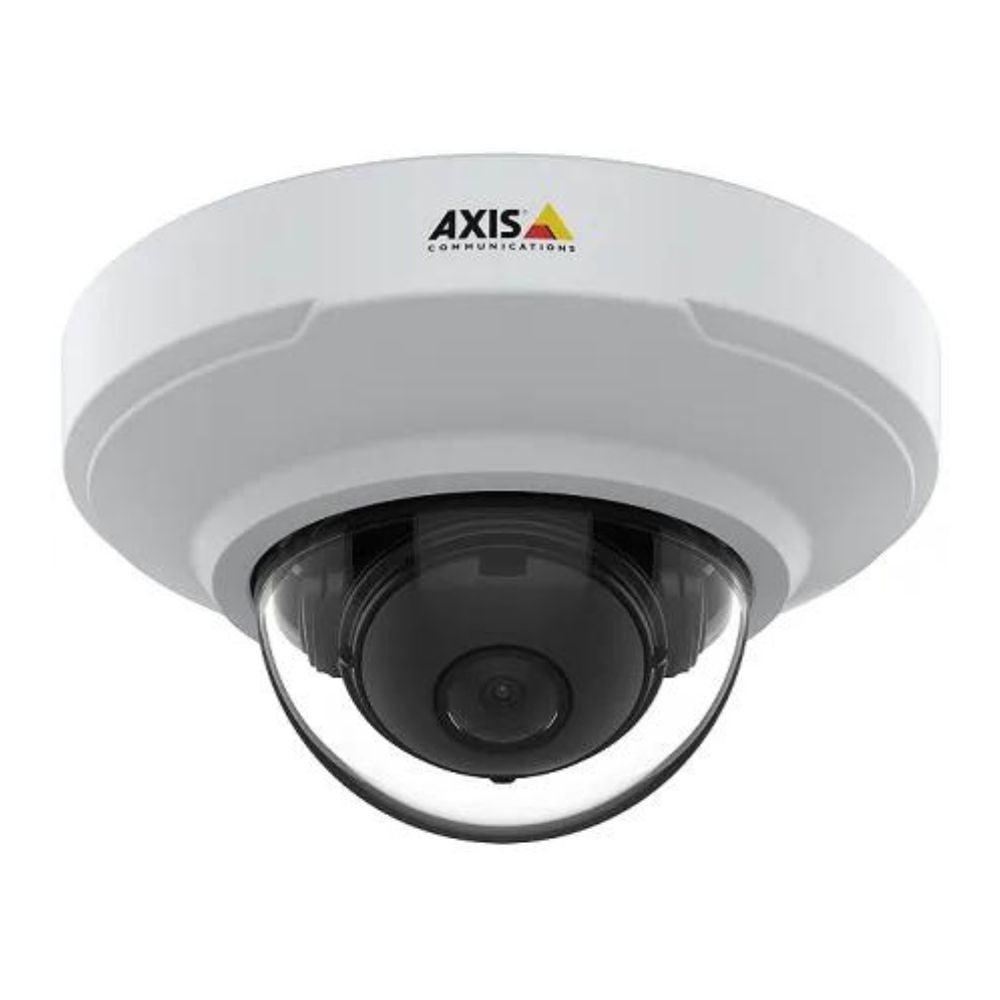

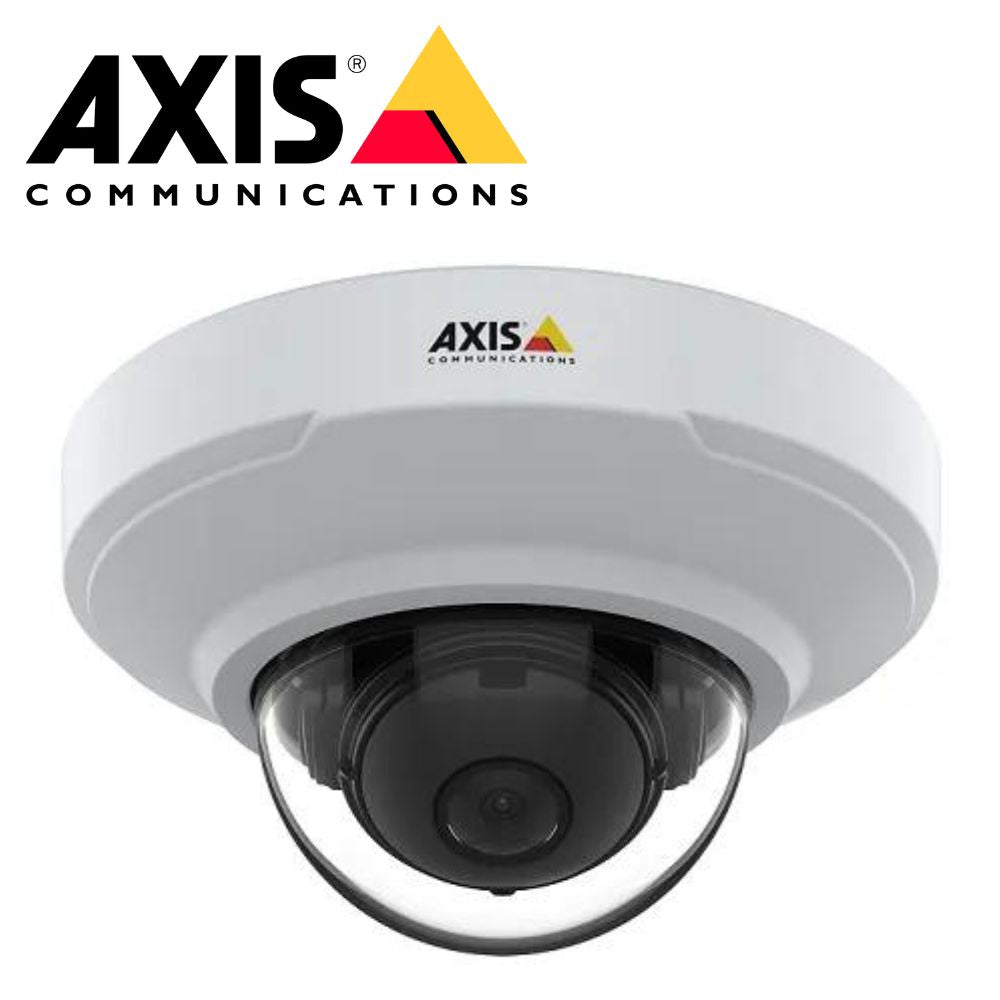

Compact, discreet, and built for versatility, the Axis M3065-V delivers high-performance video surveillance for both indoor commercial and residential environments. Its HDTV 2MP resolution, built-in IR illumination, and wide dynamic range make it ideal for retail stores, offices, hotels, and schools where clarity and reliability matter most. Plus, advanced features like Axis Zipstream and analytics-ready firmware provide professional-grade surveillance in a low-profile, vandal-resistant dome.
Features
-
Discreet Dome Design – Low-profile form factor blends seamlessly into ceilings or walls for non-intrusive surveillance.
-
Built-in IR Illumination – Clear, detailed footage even in total darkness, ideal for 24/7 coverage.
-
Wide Dynamic Range (WDR) – Balanced exposure in scenes with both bright light and shadows, like entryways or lobbies.
-
HDTV 1080p Video – Crisp image quality helps identify faces, movements, and details with precision.
-
Fixed 2.8mm Lens – Wide 106° horizontal field of view for broad coverage in compact spaces.
-
Axis Zipstream Technology – Reduces bandwidth and storage needs without compromising image quality.
-
Edge Storage Support – Built-in microSD card slot for local recording redundancy.
-
Vandal-Resistant (IK08 Rated) – Durable construction for use in high-traffic or tamper-prone areas.
-
Compatible with Axis Camera Station – Fully supported by Axis’ own video management software for streamlined integration.
Downloads
Extra Info
Smart Compression with Zipstream
Axis Zipstream technology optimizes H.264 video compression by focusing on relevant motion while maintaining forensic-quality detail. This means lower storage costs and less bandwidth usage, especially useful for systems with multiple cameras or remote access needs.
Built-in IR for Night Monitoring
The integrated infrared (IR) LEDs automatically activate in low-light conditions, capturing detailed monochrome images in complete darkness. This ensures uninterrupted surveillance overnight, in unlit hallways, or storerooms.
True Wide Dynamic Range (WDR)
With WDR enabled, the M3065-V handles challenging lighting scenarios—such as bright windows or doorways—by balancing exposure across the entire frame. This reduces glare and shadow, improving visibility in mixed-light areas like lobbies or retail entrances.
Flexible Mounting & Discreet Monitoring
Thanks to its compact and minimal design, the M3065-V is a discreet choice for indoor installations. The camera can be repainted to blend in with its surroundings and is ceiling or wall mountable depending on your space.
Durable and Tamper-Resistant
With an IK08-rated vandal-resistant casing, the camera is built to withstand impact and tampering attempts. Ideal for schools, hospitals, and other environments where camera protection is crucial.
Tech Specs
| Camera Image Sensor |
1/2.9” progressive scan RGB CMOS |
| Min. Illumination |
Color: 0.14 lux at 50 IRE, F2.0
B/W: 0 lux with IR illumination on |
| IR Illumination |
OptimizedIR with 850 nm IR LEDs
Range up to 15 m (49 ft) |
| Lens |
2.8 mm, F2.0
Horizontal field of view: 106°
Vertical field of view: 59° |
| Day/Night Functionality |
Automatically removable IR-cut filter |
| Shutter Speed |
1/33500 s to 1/5 s |
| Camera Angle Adjustment |
Pan: ±100°
Tilt: 75°
Rotation: ±175° |
| Video Compression |
H.264 (Baseline, Main, High Profiles)
Motion JPEG |
| Video Streaming |
Multiple configurable streams in H.264 and Motion JPEG
Controllable frame rate and bandwidth
Axis Zipstream technology in H.264 |
| Resolution |
1920x1080 to 160x90 |
| Frame Rate |
Up to 30 fps (50/60 Hz) in all resolutions |
| Video Intelligence |
Video motion detection
Axis Video Motion Detection 4
Active tampering alarm
Support for AXIS Camera Application Platform, enabling installation of additional applications |
| Audio |
Two-way audio
Built-in microphone
External microphone input
Audio encoding: AAC-LC, G.711, G.726
Audio streaming: Full duplex |
| Network Interface |
10/100 Mbps Ethernet (RJ-45) |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB,
SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II),
DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP,
RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Security |
Password protection, IP address filtering,
HTTPS encryption, IEEE 802.1X network access control,
Digest authentication, User access log,
Signed firmware, Secure boot |
| Storage |
Support for microSD/microSDHC/microSDXC card
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
0 °C to 40 °C (32 °F to 104 °F)
Humidity 10–85% RH (non-condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals |
EMC: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A
Safety: UL/IEC/EN 62368-1
Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30
Vibration: IEC 60068-2-6
Impact: IK08 |
| Casing |
Polycarbonate and aluminium
Repaintable, IP42-rated (with optional accessory), IK08-rated |
| Dimensions |
Ø 101 × 51 mm (Ø 4 × 2 in) |
| Weight |
150 g (0.33 lb) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 2
Typical: 2.8 W
Max: 4.1 W |
| Included Accessories |
Installation guide, Windows® decoder 1-user license, Drill hole template, Resistorx® L-key, Connector guard, Cable gasket |
| Optional Accessories |
AXIS T94B01P Conduit Back Box
AXIS TP3601 Plenum Box
AXIS TP3603 Tile Grid Ceiling Mount
AXIS Surveillance microSDXC Card
AXIS Device Microphone A |
| Warranty |
5-year Axis limited hardware warranty |
Q&A
Q: Is this camera suitable for low-light or nighttime surveillance?
A: Yes. The Axis M3065-V has built-in IR LEDs for clear nighttime monitoring, even in total darkness.
Q: Can this camera be used outdoors?
A: No. The M3065-V is designed for indoor use only and is not weatherproof.
Q: Does it support audio recording?
A: Yes. The camera has built-in audio support, including a microphone for capturing ambient sound.
Q: Can I record video without using an NVR?
A: Yes. The M3065-V supports edge storage via a microSD card slot, allowing for onboard recording.
Q: Is this camera compatible with third-party VMS platforms?
A: Yes. It's ONVIF-compliant and also integrates seamlessly with Axis Camera Station and most major VMS systems.
Q: What is the angle of view?
A: The fixed 2.8mm lens provides a horizontal field of view of 106°, suitable for wide indoor coverage.
Q: Is this camera vandal-proof?
A: Yes. The unit is IK08-rated for impact resistance, making it ideal for high-risk or public indoor areas.
