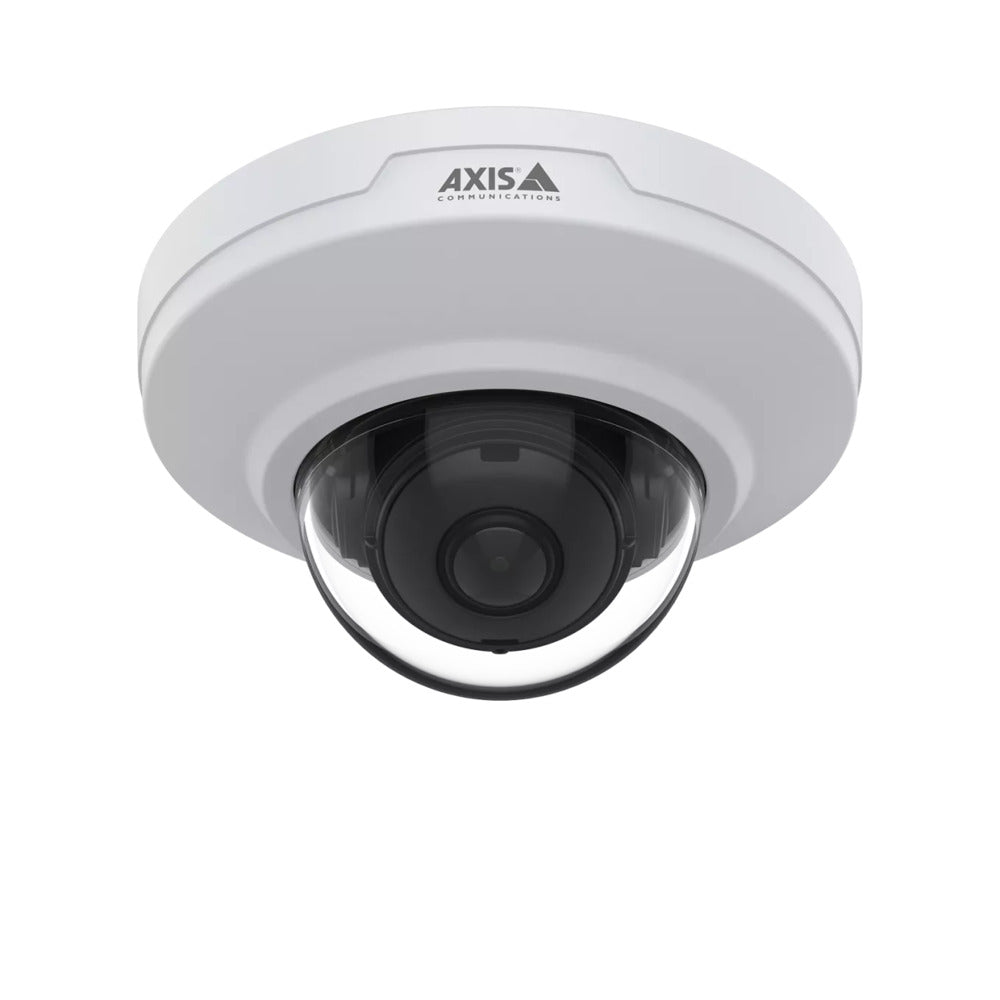

The AXIS M3086-V is a compact 4MP indoor mini dome camera designed for discreet and reliable surveillance. Featuring Lightfinder technology, Wide Dynamic Range (WDR), and a Deep Learning Processing Unit (DLPU), it delivers exceptional image quality and intelligent analytics in a compact vandal-resistant design. Ideal for retail stores, offices, schools, healthcare facilities, and other indoor environments requiring high-quality video surveillance.
Features
-
4MP Resolution – Captures highly detailed video at up to 2688 × 1512 resolution.
-
Lightfinder Technology – Produces clear color images in challenging low-light conditions.
-
Wide Dynamic Range (WDR) – Maintains image clarity in scenes with bright and dark areas.
-
Deep Learning Processing Unit (DLPU) – Enables advanced analytics and object classification directly on the camera.
-
AXIS Object Analytics – Detects and classifies people and vehicles with AI-powered analytics.
-
Compact Mini Dome Design – Discreet appearance for indoor environments.
-
Factory-Focused Lens – Fast and simple installation without manual focus adjustments.
-
H.265 with Zipstream – Optimizes bandwidth and storage usage while maintaining image quality.
-
Built-in Cybersecurity Features – Protects the device against unauthorized access and cyber threats.
What's Included:
- AXIS M3086-V Dome Camera
- Installation Guide
- Windows Decoder License
- Mounting Hardware
- Terminal Connectors
DOWNLOADS
Key Info
Compact and Discreet Surveillance
The AXIS M3086-V delivers high-resolution 4MP video in a compact mini dome design that blends seamlessly into indoor environments. Its factory-focused lens ensures quick deployment and simplified installation.
Enhanced Image Quality
Designed to provide reliable surveillance performance in a wide range of lighting conditions.
-
Lightfinder for improved color images in low light
-
Wide Dynamic Range (WDR) for balanced scene exposure
-
Day/Night Functionality for continuous surveillance
-
4MP Resolution for enhanced image detail and forensic evidence
Advanced Edge Analytics
The integrated Deep Learning Processing Unit enables intelligent analytics directly on the camera, reducing server load and improving operational efficiency.
- AXIS Object Analytics
- Object classification and detection
- Metadata generation for forensic search
- Support for ACAP applications
Reliable Indoor Security
- IK08-rated vandal-resistant housing
- Compact and discreet form factor
- Built-in cybersecurity protection
- Efficient H.264 and H.265 video compression
Tech Specs
| Specification |
Details |
| Model |
M3086-V (02374-001) |
| Camera Type |
Indoor Mini Dome Camera |
| Image Sensor |
1/2.7" Progressive Scan RGB CMOS |
| Resolution |
2688 × 1512 (4MP) |
| Lens |
2.4 mm Fixed Lens, F2.0 |
| Field of View |
Horizontal: 130°, Vertical: 72° |
| Frame Rate |
Up to 30 fps |
| Day/Night Function |
Automatic IR-cut Filter |
| Minimum Illumination |
Color: 0.19 lux, B/W: 0.04 lux |
| Lightfinder |
Yes |
| Wide Dynamic Range |
WDR |
| Analytics |
AXIS Object Analytics, Deep Learning Analytics |
| AI Processing |
Deep Learning Processing Unit (DLPU) |
| Video Compression |
H.264, H.265, Motion JPEG, Zipstream |
| Memory |
1024 MB RAM, 512 MB Flash |
| Storage |
microSD/microSDHC/microSDXC Support |
| Network Interface |
RJ45 10/100 Ethernet |
| Power |
PoE IEEE 802.3af Class 2 |
| Protection Ratings |
IP42, IK08 |
| Operating Temperature |
0°C to 45°C |
| Warranty |
5-Year Warranty |
Q&A
Q: Is the M3086-V suitable for outdoor use?
No. The M3086-V is designed for indoor environments and carries an IP42 environmental rating.
Q: Does the camera support AI analytics?
Yes. The integrated DLPU supports AXIS Object Analytics for intelligent object detection and classification.
Q: What advantage does the 4MP resolution provide?
The 4MP sensor captures significantly more detail than Full HD cameras, improving identification and forensic investigations.
Q: Can the camera perform in low-light conditions?
Yes. Lightfinder technology delivers high-quality color images even in challenging lighting environments.
Q: Is manual focusing required?
No. The camera features a factory-focused lens for quick and easy installation.
Q: What applications is the M3086-V best suited for?
It is ideal for offices, retail stores, schools, healthcare facilities, and other indoor locations requiring discreet, high-resolution surveillance.
