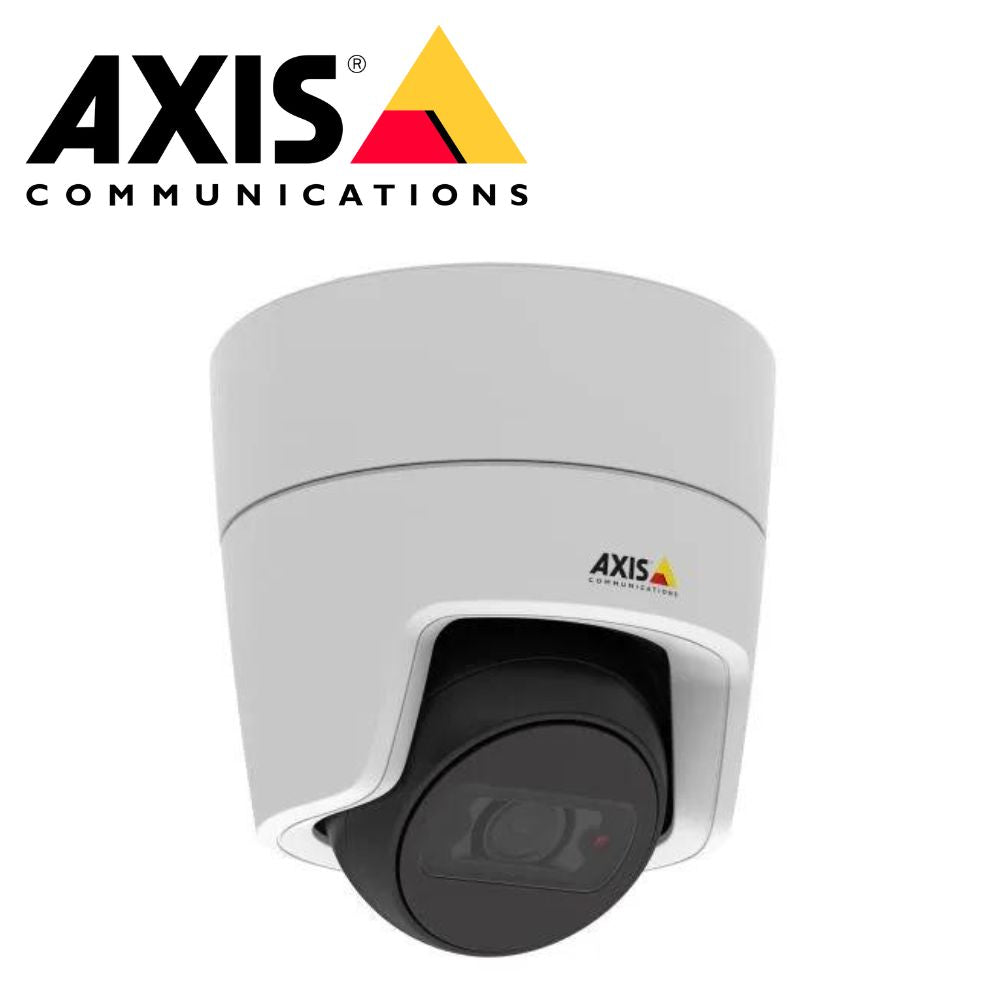

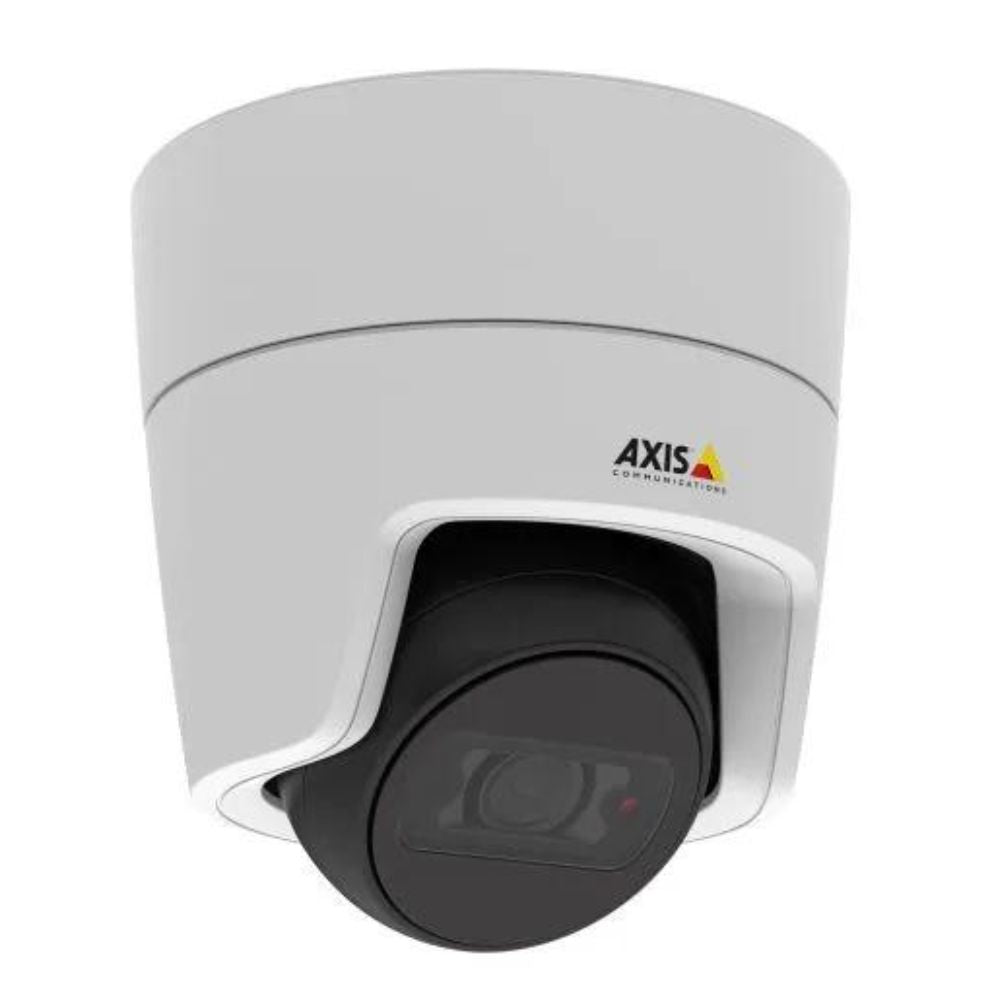

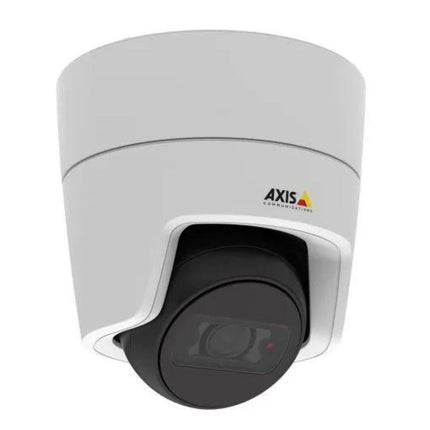

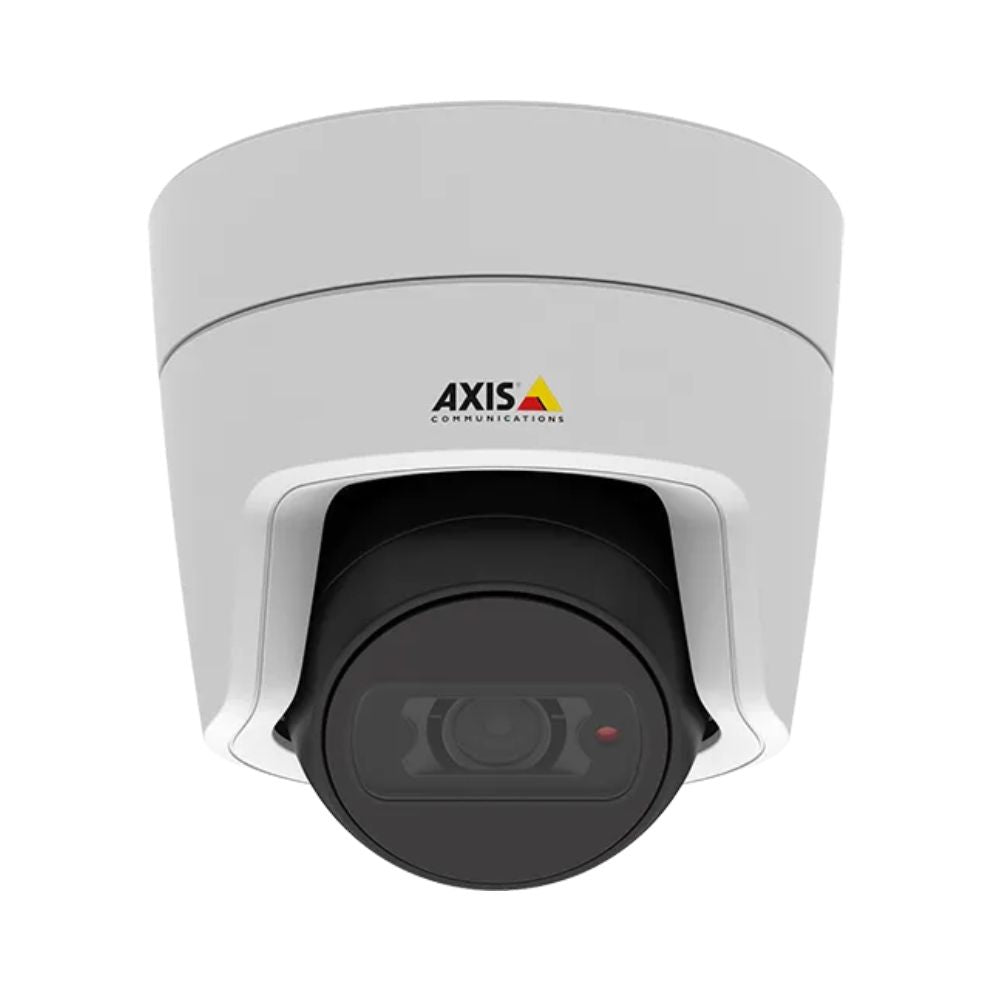

Compact yet powerful, the Axis M3104-LVE is a rugged, mini dome camera designed for discreet outdoor surveillance. Ideal for small businesses, residential entrances, or high-traffic indoor areas like retail or schools, this fixed mini dome offers HD video clarity and built-in IR for reliable day-and-night monitoring. It features Axis Zipstream for bandwidth savings, Wide Dynamic Range for challenging light, and is vandal-resistant for exposed installations. Designed with installers in mind, this camera ships ready for quick mounting on walls or ceilings—even corners.
Features
-
Built-In IR Illumination – Delivers clear surveillance even in total darkness, ideal for 24/7 monitoring.
-
Wide Dynamic Range (WDR) – Captures detail in scenes with both bright and dark areas, such as entrances or storefronts.
-
Compact Dome Design – Low-profile and discreet, perfect for unobtrusive security indoors or outdoors.
-
Rugged Outdoor Housing – IP66 and IK08-rated for dust, water, and impact resistance—ideal for exposed environments.
-
Fixed 2.8mm Lens – Offers a wide 106° horizontal field of view, perfect for covering rooms, lobbies, or alleyways.
-
HDTV 720p Video – Sharp, clear footage suitable for facial recognition and situational awareness.
-
Zipstream Technology – Reduces bandwidth and storage needs without sacrificing critical image detail.
-
AXIS M31 Series – Part of a trusted series known for affordability, performance, and simple installation.
-
Edge Storage Ready – Supports microSD card storage for onboard video recording redundancy.
Downloads
Extra Info
Designed for Discreet Security
The M3104-LVE is engineered to blend in without compromising performance. Its compact, dome-style design makes it suitable for customer-facing areas, while its outdoor-ready build ensures durability against weather and tampering. You can install it in tight spaces—like entryways, porches, or small shops—without drawing attention.
Reliable Night Vision with IR
Integrated infrared LEDs allow this camera to see even in complete darkness. With no need for external lighting, it’s a smart choice for low-light installations like back doors, parking areas, or storage units.
Wide Dynamic Range (WDR) Performance
WDR ensures visibility in scenes with harsh lighting contrast, such as a doorway where bright sunlight meets indoor shadows. This helps retain facial and object detail in both bright and dark areas.
Efficient Storage and Streaming
Axis Zipstream technology optimizes H.264 video compression to reduce file size—saving storage and bandwidth—while preserving important forensic detail. Combined with edge storage capabilities, it ensures redundancy even if network connectivity is lost.
Built to Withstand the Elements
With its IP66-rated casing, the M3104-LVE resists dust, rain, and snow. IK08 vandal resistance also means it can be mounted in vulnerable areas without worrying about damage from tampering or impact.
Tech Specs
| Camera Type |
Fixed Dome Network Camera |
| Image Sensor |
Progressive scan RGB CMOS 1/3" |
| Lens |
Fixed focal, 2.8 mm, F2.0
Horizontal field of view: 106°
Vertical field of view: 59°
Diagonal field of view: 121° |
| Minimum Illumination |
Color: 0.25 lux at 50 IRE, F2.0
B/W: 0.05 lux at 50 IRE, F2.0
0 lux with IR illumination on |
| Shutter Time |
1/5 s to 1/32,000 s |
| IR Illumination |
Optimized IR with 850 nm IR LEDs
Range: up to 15 m (50 ft) |
| Video Compression |
H.264 (Main Profile), Motion JPEG |
| Resolution |
1280x720 (HD 720p) to 640x360 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| WDR |
Dynamic Contrast |
| Video Streaming |
Multiple, individually configurable streams
Axis Zipstream technology in H.264 |
| Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, WDR, fine tuning of behavior
Rotation: 0°, 90°, 180°, 270° including corridor format
Mirroring, text and image overlay, privacy masks |
| Pan/Tilt/Zoom |
Digital PTZ |
| Audio |
No audio support |
| Network Protocols |
IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security |
HTTPS encryption, IEEE 802.1X (EAP-TLS), IP address filtering, password protection, signed firmware, digest authentication, user access log |
| Edge Storage |
MicroSD/microSDHC/microSDXC slot
Support for memory card encryption
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
-30 °C to 50 °C (-22 °F to 122 °F)
Humidity: 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Ingress Protection |
IP66-rated |
| Impact Resistance |
IK08-rated |
| Power |
Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 2
Typical: 3.8 W, Max: 4.3 W |
| Dimensions |
Height: 56 mm (2.2 in)
Diameter: 101 mm (4.0 in) |
| Weight |
360 g (0.79 lb) |
| Included Accessories |
Installation guide, Windows decoder 1-user license
Drill template, Resistorx L-key, Connector guard |
| Mounting Options |
Ceiling or wall mount
Optional accessories available for corner, pole, and recessed installation |
| Compliance |
CE, FCC, ICES, VCCI, RCM, UL, CB, BIS, EAC, KCC |
Q&A
Q: Is this camera suitable for outdoor use?
A: Yes. It is IP66-rated for weather resistance and IK08-rated for impact protection, making it ideal for both indoor and outdoor installations.
Q: Does the camera work at night?
A: Absolutely. It has built-in infrared (IR) LEDs for night vision, allowing clear black-and-white video even in complete darkness.
Q: What field of view does it offer?
A: The camera features a fixed 2.8mm lens with a 106° horizontal field of view—ideal for covering wide areas like lobbies, hallways, or storefronts.
Q: Can I store footage locally?
A: Yes. The camera supports microSD card storage, allowing onboard video recording in addition to your network video recorder (NVR).
Q: How does it handle lighting changes?
A: The Axis M3104-LVE uses Wide Dynamic Range (WDR) to maintain detail in scenes with both bright and dark areas, such as sunny entrances or shadowed corners.
Q: What video compression does it use?
A: It uses H.264 with Axis Zipstream, which significantly reduces bandwidth and storage needs while maintaining video quality.
