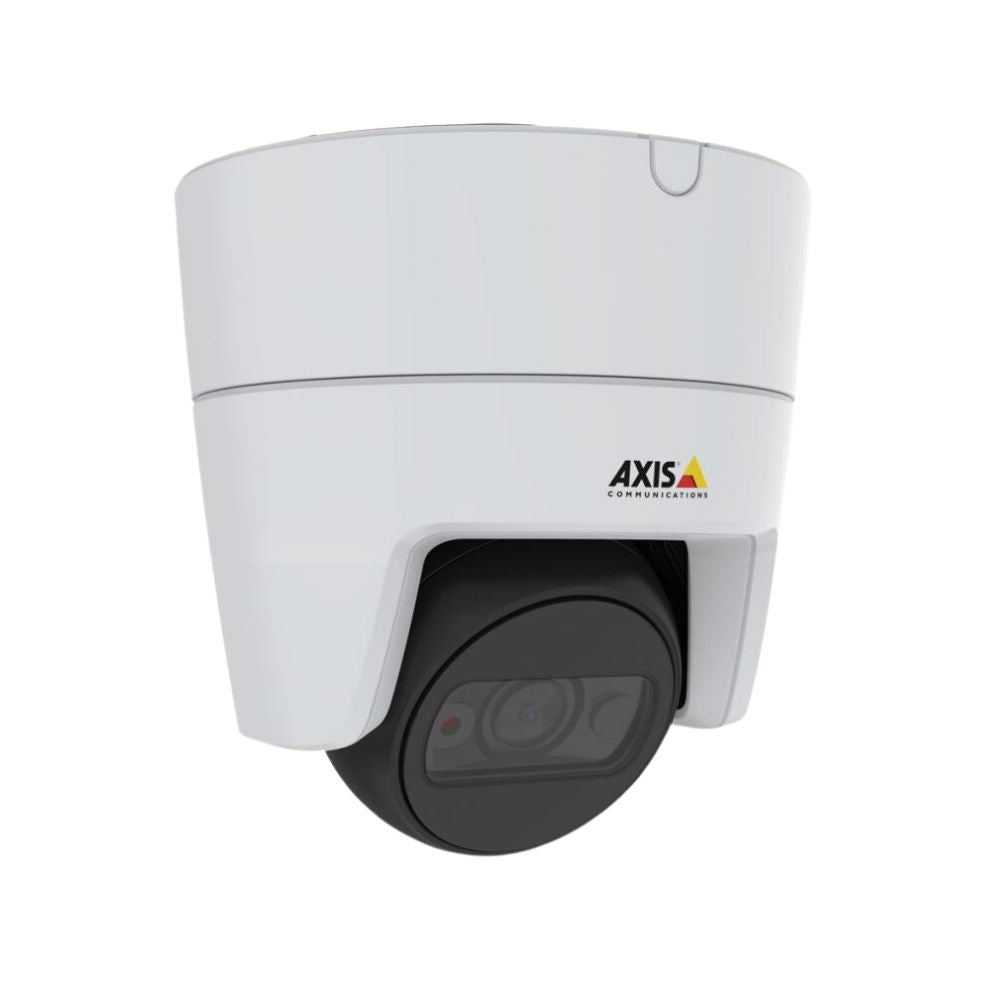

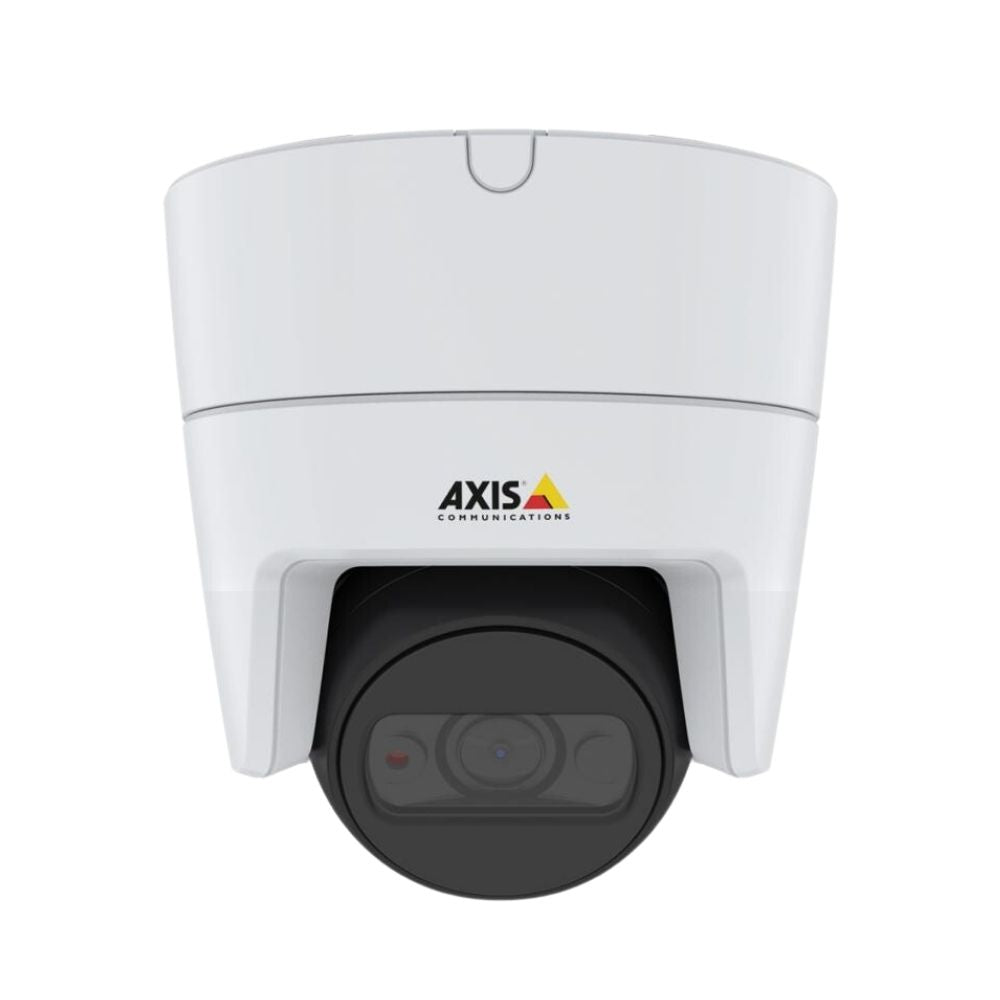

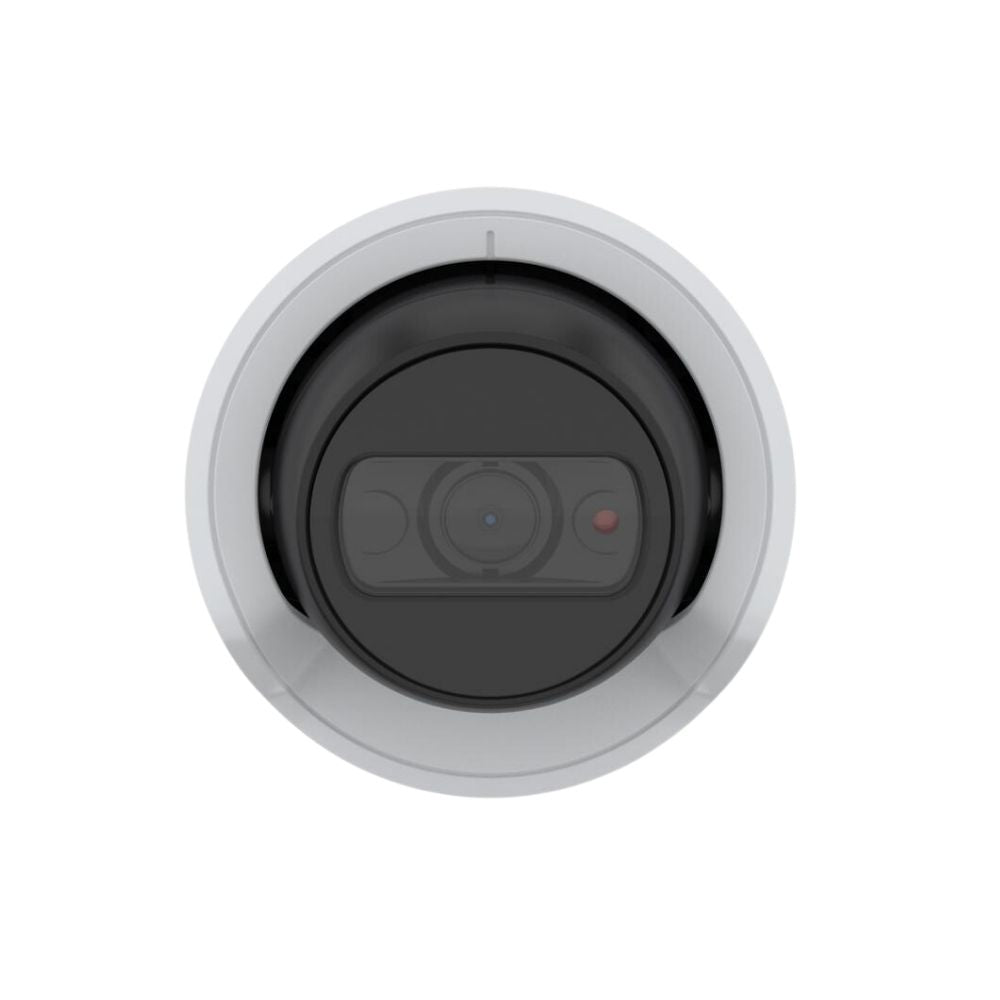

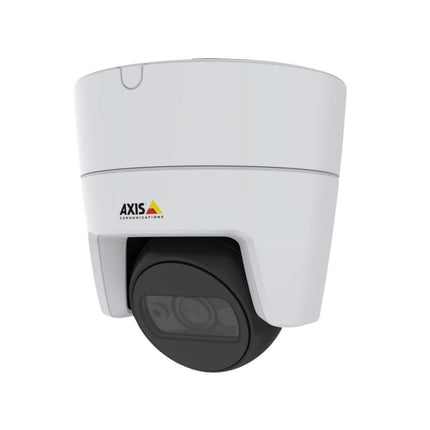

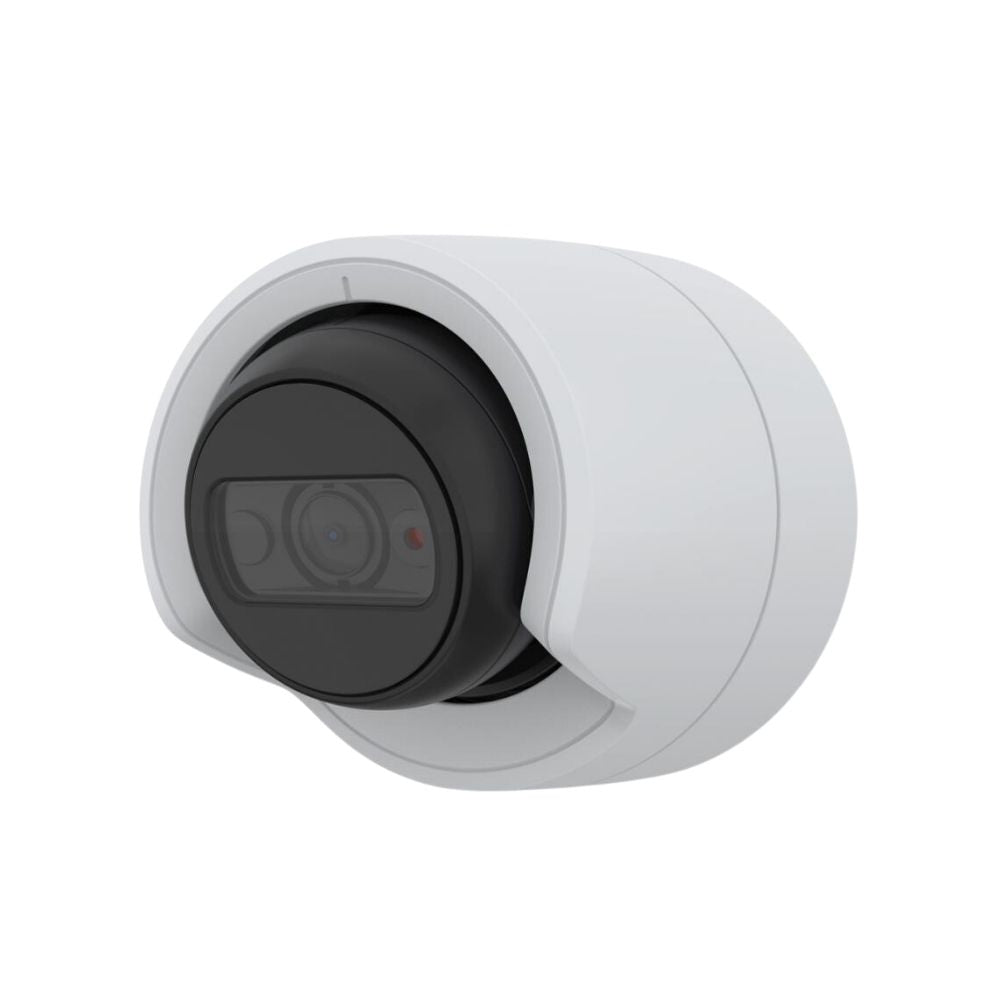

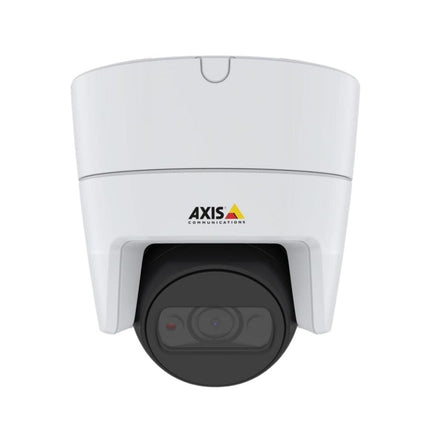

The Axis M3116-LVE is a compact and robust mini dome camera designed to deliver crystal-clear 4MP video in both indoor and outdoor environments. Whether you're securing a small business, retail space, or residential entryway, this model combines wide-angle coverage with strong durability and advanced imaging technologies. Featuring built-in IR, WDR, and Axis Lightfinder, it ensures reliable performance in varying lighting conditions – day or night. Its flat-faced design resists tampering and minimizes light reflections, making it ideal for discreet installations in exposed areas.
Features
-
4MP Clarity – High-resolution video captures critical details for identification and monitoring.
-
Fixed Wide-Angle Lens – Covers more area with fewer cameras, ideal for small spaces or doorways.
-
IR Illumination – Built-in invisible infrared lets you see clearly in total darkness (up to 15m).
-
WDR (Wide Dynamic Range) – Balances exposure in scenes with strong backlighting or shadows.
-
Lightfinder Technology – Provides sharper color video even in near-darkness.
-
IK08 Vandal Resistance – Rugged casing protects against impact and tampering.
-
IP66-Rated Weatherproof – Built to withstand rain, dust, and temperature extremes.
-
Zipstream with H.264/H.265 – Reduces bandwidth and storage needs without sacrificing image quality.
-
Flat, Low-Profile Design – Discreet appearance for visible deterrence without being intrusive.
Downloads
Extra Info
Clear, Consistent Image Quality
The Axis M3116-LVE delivers 4MP resolution at up to 30 fps, making it ideal for scenes where identifying faces or license plates matters. The camera's WDR ensures usable footage in challenging lighting—such as entrances or windows—while Lightfinder enhances low-light color capture, reducing reliance on black-and-white night vision.
Reliable in Any Weather or Light
With a weatherproof IP66 and impact-resistant IK08 housing, this camera is built for tough environments like outdoor entrances, parking areas, or warehouses. Built-in IR LEDs automatically activate in darkness, offering clear vision up to 15 meters even when lighting is absent.
Smart Bandwidth Management
The camera uses Axis’ Zipstream technology, which optimizes compression based on motion and scene complexity. It works seamlessly with H.264 and H.265 formats to reduce storage and bandwidth consumption, making it ideal for systems where resource efficiency matters.
Discreet and Secure Mounting
Its compact, flat-faced design reduces glare and tampering opportunities. The camera can be flush-mounted to ceilings or walls and includes optional accessories for recessed or pendant mounting—making it versatile for homes, shops, and professional buildings.
Tech Specs
| Camera Image Sensor |
1/2.9” progressive scan RGB CMOS |
| Lens |
Fixed lens, 2.4 mm
Horizontal FOV: 130°
Vertical FOV: 73°
Diagonal FOV: 180° |
| Minimum Illumination |
Color: 0.19 lux at 50 IRE, F2.0
B/W: 0 lux with IR illumination on |
| Shutter Speed |
1/24500 s to 1/6 s |
| Camera Angle Adjustment |
Pan: 0° to 175°
Tilt: 0° to 65°
Rotation: 0° to 180° |
| Day/Night Functionality |
IR-cut filter with auto switch |
| Infrared Illumination |
OptimizedIR
IR LED range: up to 15 m (49 ft) |
| Video Compression |
H.264 (Baseline, Main, High Profile)
H.265 (Main Profile)
Motion JPEG |
| Resolution |
Up to 2688x1512 (4 MP) |
| Frame Rate |
Up to 30 fps in all resolutions |
| Video Streaming |
Multiple individually configurable streams
Axis Zipstream technology in H.264/H.265 |
| Image Settings |
Compression, Color, Brightness, Sharpness, Contrast
White balance, Exposure control
Exposure zones, WDR: Forensic Capture
Rotation: 0°, 90°, 180°, 270°
Text/image overlay, Privacy masks |
| Pan/Tilt/Zoom |
Digital PTZ |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security |
Signed firmware, Secure boot, HTTPS, Network access control, Digest authentication, IEEE 802.1x (EAP-TLS), user access log, brute force delay protection, encryption (AES-XTS-Plain64 256-bit) |
| Edge Storage |
MicroSD/microSDHC/microSDXC card slot
Support for recording to NAS (network-attached storage) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 2
Max. 4.9 W |
| Operating Conditions |
-30 °C to 50 °C (-22 °F to 122 °F)
Humidity 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Housing |
Polycarbonate casing and clear dome
Color: White (RAL 9003) |
| Dimensions |
Ø 101 x 54 mm (Ø 4.0 x 2.1 in) |
| Weight |
200 g (0.44 lb) |
| Ingress Protection |
IP66-rated |
| Impact Protection |
IK08-rated |
| Mounting Options |
Ceiling or wall
Optional recessed and pendant kits |
| Certifications |
CE, FCC, ICES, VCCI, RCM, UL, BIS, UKCA, NOM, BSMI, RoHS, WEEE, EAC |
| Included Accessories |
Installation guide, Windows decoder 1-user license, Drill hole template, Connector guard, Resistorx T20 L-key |
| Warranty |
5-year limited warranty |
Q&A
Q: Is this camera suitable for outdoor use?
Yes. The Axis M3116-LVE is IP66-rated for water and dust resistance and IK08-rated for impact protection, making it ideal for outdoor installations.
Q: Can it see in total darkness?
Yes. It has built-in IR LEDs with a range of up to 15 meters, allowing it to capture clear footage in complete darkness.
Q: What makes Lightfinder different from regular night vision?
Lightfinder captures color images in low-light conditions where most cameras would switch to black and white, offering more visual detail at night.
Q: Does this camera support audio?
No, the M3116-LVE does not have built-in audio capture. For audio, a separate model with audio input support is required.
Q: What kind of storage or NVR is needed?
It supports both local edge storage (microSD/microSDHC/microSDXC slot) and integration with network video recorders (NVRs) via ONVIF or Axis VMS systems.
