| **Camera** |
|
| Image Sensor |
1/2.7″ progressive-scan RGB CMOS |
| Lens |
Fixed focal, 2.9 mm, F2.0; Horizontal FOV: 102°, Vertical FOV: 73°, IR corrected |
| Day/Night |
Automatic IR-cut filter, hybrid IR filter |
| Min. Illumination |
Color: 0.16 lux @ F2.0; B/W: 0 lux; 0 lux with IR on |
| Shutter Speed |
1/50000 s to 1/5 s |
| Angle Adjustment |
Pan ±190°, Tilt –10° to +80°, Rotation ±190° |
| SoC |
ARTPEC-8 |
| Memory |
1024 MB RAM, 8192 MB Flash |
| Compute Capabilities |
Deep Learning Processing Unit (DLPU) |
| **Video** |
|
| Compression |
H.264 (Baseline/Main/High), H.265 (Main), Motion JPEG |
| Resolutions |
16:9: 2688×1512 to 160×90; 4:3: 2304×1728 to 160×120 |
| Frame Rate |
Up to 30/25 fps in all resolutions |
| Streaming |
Multiple configurable streams, Zipstream (H.264/H.265), VBR/ABR/MBR, Low latency |
| Multi-view Streaming |
Up to 8 individually cropped view areas |
| Image Settings |
Saturation, contrast, brightness, sharpness, WDR (up to 120 dB), white balance, tone mapping, exposure zones, defogging, distortion correction, privacy masks, overlays, rotation |
| PTZ |
Digital PTZ |
| **Audio** |
|
| Streaming |
Two-way audio via edge-to-edge technology |
| Encoding |
AAC, G.711, G.726, Opus, LPCM |
| Audio I/O |
Digital audio input, AGC, network speaker pairing |
| **Network** |
|
| Security |
Axis Edge Vault, secure boot, signed firmware, signed video, SD encryption, IEEE 802.1X, HTTPS, TLS 1.2/1.3, firewall, X.509, OAuth 2.0 |
| Protocols |
IPv4/6, HTTP/S, HTTP/2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, DNS/DDNS, NTP, RTSP/RTP/SRTP, TCP/UDP/IGMP, SSH, SIP, LLDP, MQTT, Secure syslog, ZeroConf |
| **System Integration** |
|
| API |
VAPIX, ACAP, one-click cloud connect |
| ONVIF |
Profiles G, M, S, T |
| SIP |
Supported for VoIP, PBX, peer-to-peer audio |
| Metadata |
Supported |
| **Analytics** |
|
| Included |
AXIS Object Analytics, Scene Metadata, Image Health Analytics, Motion Detection, Tampering, Audio Detection |
| Object Detection |
Humans, vehicles (cars, buses, trucks, bikes) |
| Scenarios |
Line crossing, object in area, crossline counting, time in area, occupancy |
| Advanced Features |
Trajectories, perspective correction, visualization |
| Event Actions |
Text overlays, IR/WDR/defogging control, play audio, record to SD/NAS, upload (FTP/HTTP/email), trigger I/O, SIP calls |
| **General** |
|
| Casing |

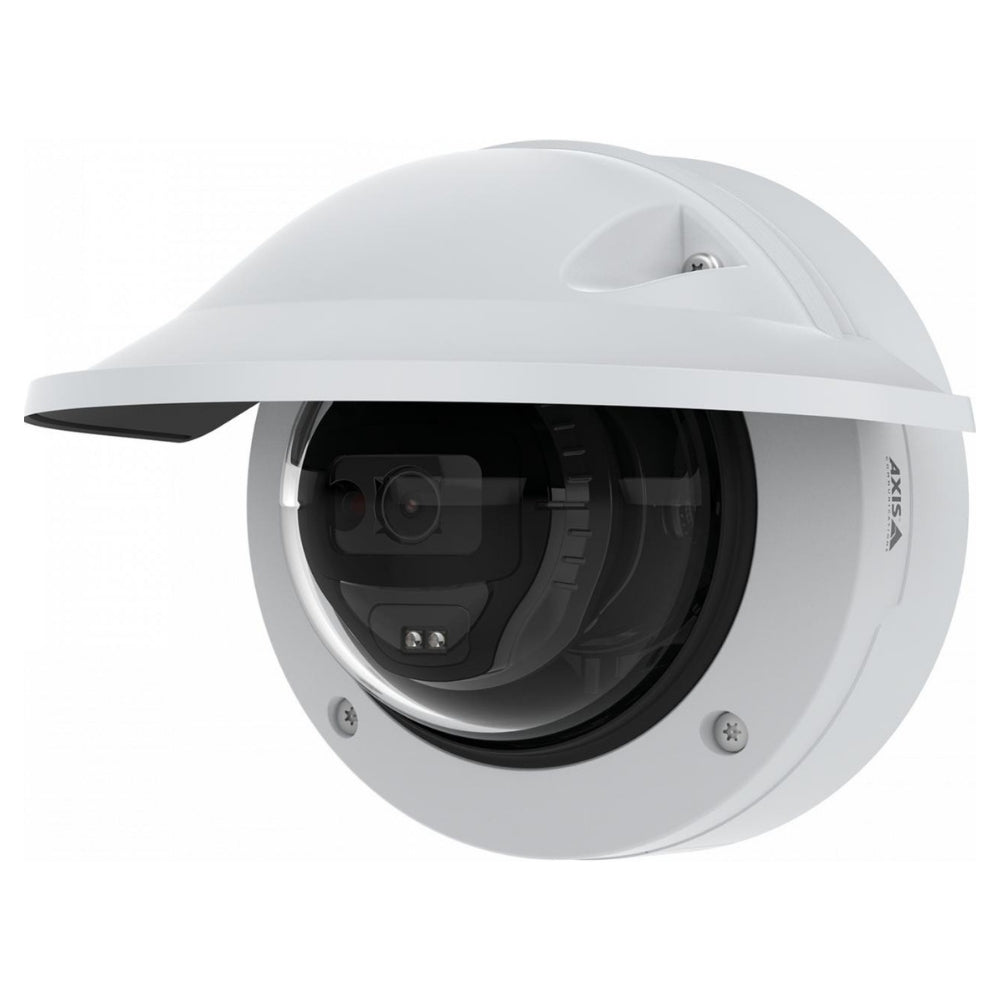

IK10, IP66, NEMA 4X plastic with hard-coated polycarbonate dome (white NCS S 1002-B); repaintable |
| Mounting |
Junction box, wall, ceiling; side conduit (½” or ¾” with adapter) |
| Power |
PoE IEEE 802.3af/at Type 1 Class 3; Typical: 4.8 W, Max: 10.8 W |
| Connectors |
RJ45 10/100 PoE, 4-pin terminal block (1 DI, 1 DO), 3.5 mm audio in |
| IR Illumination |
Optimised IR, 850 nm; Range: 30 m (98 ft) or more |
| Storage |
microSD/SDHC/SDXC with encryption, NAS recording supported |
| Operating Conditions |
-40 °C to +50 °C; Start-up: -30 °C; Max (NEMA TS2): 74 °C; 10–100% RH |
| Storage Conditions |
-40 °C to +65 °C; 5–95% RH (non-condensing) |
| Dimensions |
Ø149 mm × 102 mm (without weathershield) |
| Weight |
791 g (with weathershield) |
| Included Accessories |
Installation guide, Windows decoder (1-user), drill template, terminal block, cable gaskets, connector guard, weathershield, RESISTORX TR20 bit |
| Optional Accessories |
Black casing, smoked dome, weathershield, Axis Surveillance Cards |
| VMS Compatibility |
AXIS Companion, AXIS Camera Station, third-party VMS |
| Languages |
EN, DE, FR, ES, IT, RU, ZH (Simplified/Traditional), JA, KO, PT, PL, CZ, TR, VI, and more |
| Warranty |
5-year warranty |
